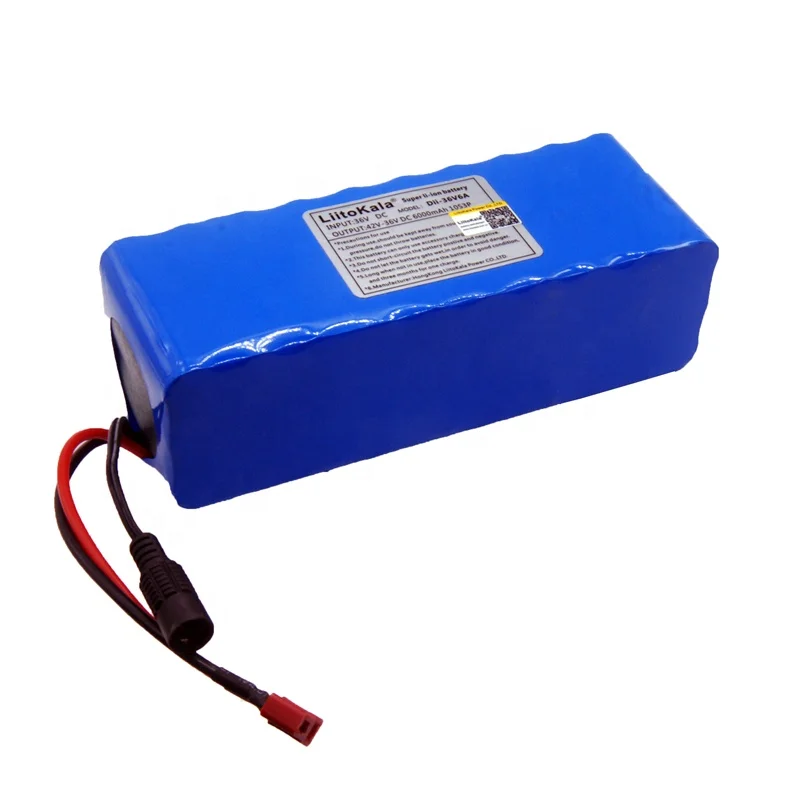

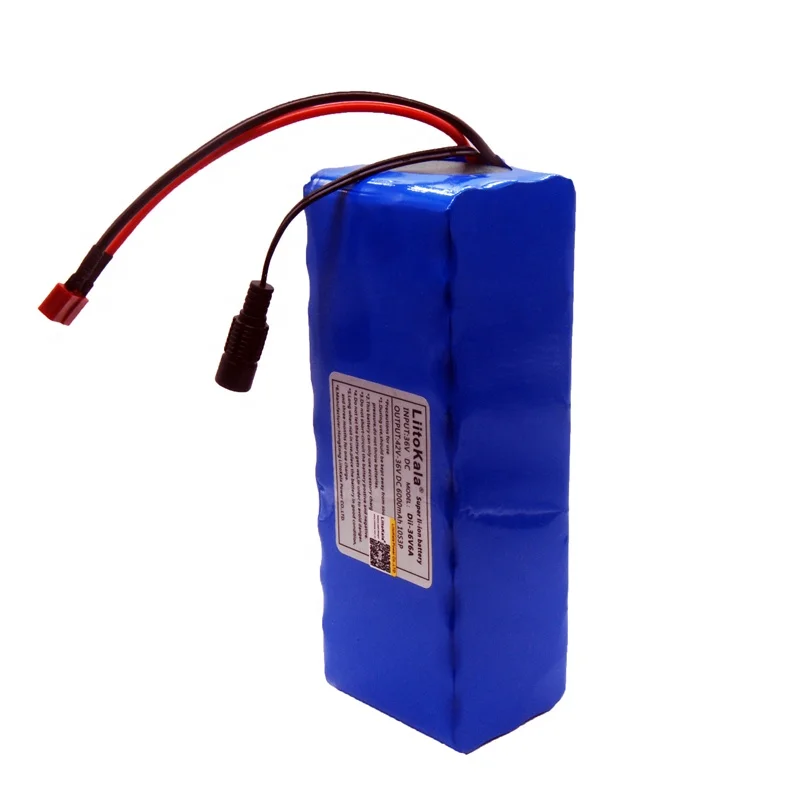

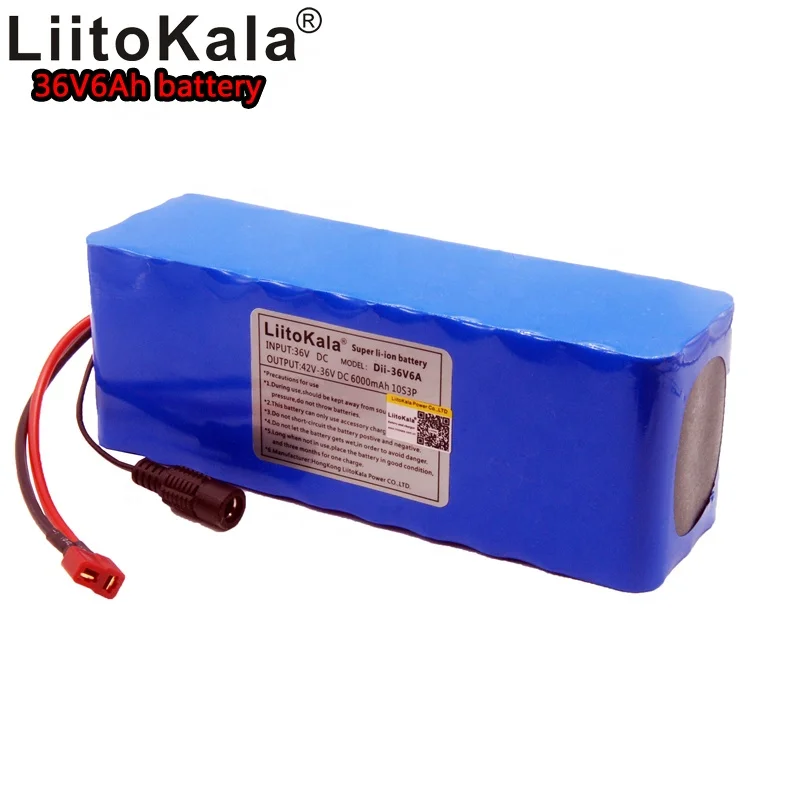

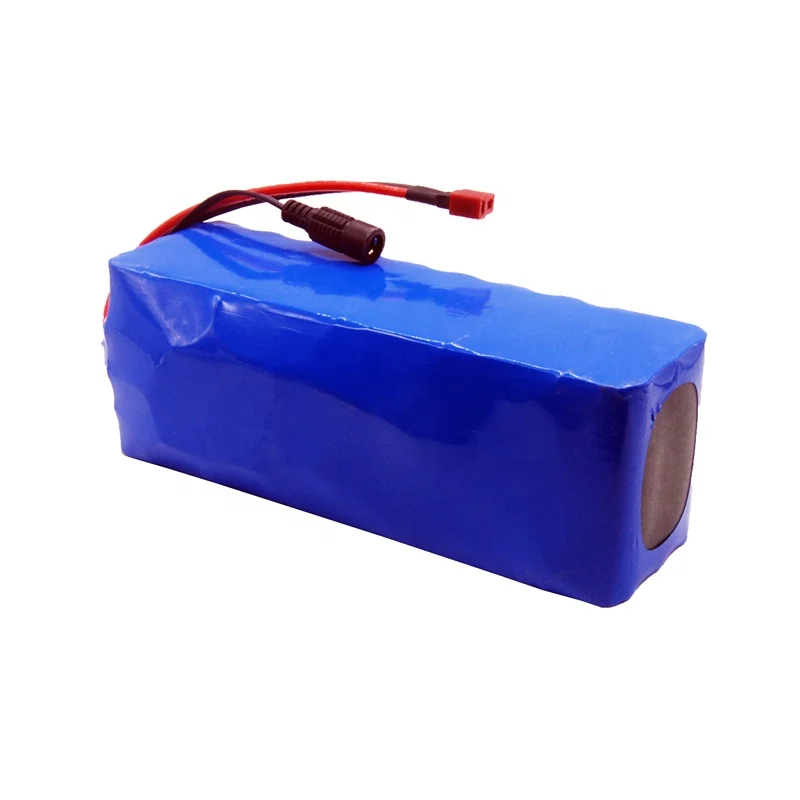

LiitoKala 36v6ah electric bicycle lithium ion battery 18650 6000mAh 10S3P large capacity battery pack bms 500W overcurrent
- Category: >>>
- Supplier: Shenzhen Liitokala Power Co. Ltd.
Share on (60808792271):
Product Overview
Description
36V 500W 18650 lithium battery 36V 6AH Electric bike battery with PVC case for electric bicycle, 42V 2A charger free shipping to RU
Parts included:(NO charger)
1. 36v 6ah Lithium Battery with PVC case,built in 15A BMS.
Battery Specification:
Battery Model:36V 6Ah
Nominal Capacity (AH) :6ah
Nominal Voltage (V): 36V
Cell Source Resistance (mΩ) :about 40 mΩ)
Cell Specification :3.7V 2AH/18650 Cell
Cell Combination :4-parallel 10-series
Battery Size :70*80*200MM
Cell Quantity (parallel*series) :30pcs
Discharge Cutoff Voltage (V) :30+/- 1V
Charge Cutoff Voltage (V) :42V
Rated Discharge Current (A): 15A
Instantaneous Maximum Discharge Current (A): 30A
Maximum Continuous Discharge Current (A) :15A
Charge Mode :CC/CV
Standard Charge Current (A) :2A
Charge Time under Standard Charge Current :4h
Maximum Continuous Charge Current (A) :5A
Charge Time under Fast Charge Current: 2h
Charge Temperature Range :0 - 45°C
Discharge Temperature Range: -20 - 60°C
Battery Weight About: 1.5kgs
