Ore Screw Conveyor Mining Conveying Mechanism Belting Spiral Conveyor Machine Sand Auger Conveyor
- Category: >>>
- Supplier: Shicheng Oasis Mineral Equipment Manufacturing Co. Ltd.Shicheng Ltd.
Share on (60808837684):
Product Overview
Description
Product Overview
When GX spiral conveyor works, the electric motor drives the spiral to rotate, and it can horizontally, obliquely and vertically convey materials and it is the ideal equipment to convey all kinds of powdery and granulate materials. It uses the rotating spiral to push the materials to be conveyed along the fixed main case, and the materials will not rotate with the spiral, thus achieving the aim of conveying the materials. Spiral conveyor is divided into horizontal spiral conveying equipment and vertical spiral conveying equipment.
Product Specification
Dia. Of standard spiral | LZGX150 mm | LZGX200 mm | LZGX250 mm | LZGX300 mm | LZGX400 mm | LZGX500 mm | LZGX600 mm | ||||||||
Spiral | Entity Helicoid spiral | 120 mm | 160 mm | 200 mm | 240 mm | 320 mm | 400 mm | 480 mm | |||||||
Draper-type Helicoid spiral | 150 mm | 200 mm | 250 mm | 300 mm | 400 mm | 500 mm | 600 mm | ||||||||
Standard Revolution of screw shaf(n/min) | 20、30、35、45、60、75、90、120、150、190 | ||||||||||||||
Max Conveying Amount | Revolution of Screw Shaft | 190 r/min | 150 r/min | 150 r/min | 120 r/min | 90 r/min | 90 r/min | 90 r/min | |||||||
(Pulverized coal) | |||||||||||||||
Conveying Amount | 4.5 t/h | 8.5 t/h | 16.5 t/h | 23.5 t/h | 41 t/h | 79 t/h | 139 t/h | ||||||||
(Pulverized coal) | |||||||||||||||
Revolution of Screw Shaft | 90 r/min | 75 r/min | 75 r/min | 60 r/min | 60 r/min | 45 r/min | 45 r/min | ||||||||
(clay) | |||||||||||||||
C Conveying Amount | 4.8 t/h | 9.5 t/h | 18.6 t/h | 25.8 t/h | 60.8 t/h | 39.3 t/h | 153 t/h | ||||||||
(clay) | |||||||||||||||
Revolution of Screw Shaft | 75 r/min | 60 r/min | 60 r/min | 60 r/min | 45 r/min | 45 r/min | 35 r/min | ||||||||
(placer) | |||||||||||||||
Conveying Amount | 4.6t/h | 8.6t/h | 17t/h | 29.5t/h | 52t/h | 102t/h | 137t/h | ||||||||
(placer) | |||||||||||||||

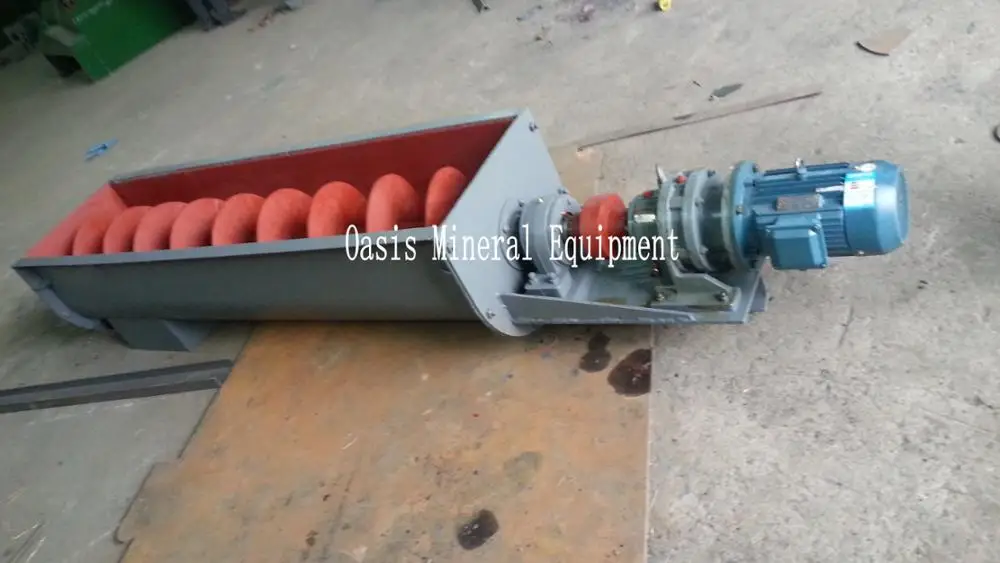

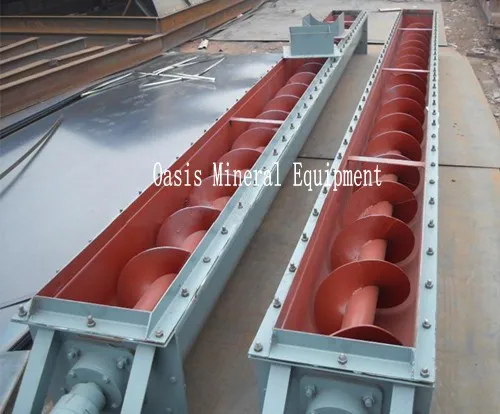

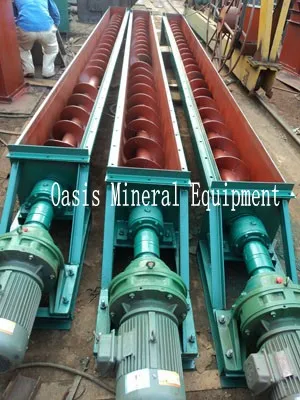

Product Display
About us
Oasis Industrial Equipment Technology Com. Ltd.,is an import-export trade enterprise enterprise engaged in the production,sale and installation of mineral equipment,environmental protection equipment,hardware and machinery.Our company has been approved for registration by relevant departments,and can provide users with project design,process design and uniform and non-uniform design services.Part of the company products to obtain a patent tor invention,the company awarded the CE & ISO9001:2008 international quality management system certification.
Oasis Company mainly produce laboratory crusher,conveyor,feeder,vibrating screen,ball mill,washing machine,mixing tank,magnetic separator,shaking table,jig,spiral the other can be customized according to customers' requirements of various types of mineral processing machinery and equipment,such as complete set of processing equipment,applicable to iron,cooper,gold,silver,lead,tin,tantalum,niobium,monazite,rutile,tungsten,zinc,molybdenum,
manganese and other non-ferrous metal and fluorite,quartz and other non-metallic mineral,
widely used in metallurgy,mining,chemical industry,Building materials,coal,refractory,materials,
schools and other industries.Company's products have been sold to:Australian,Germany,
Canada,Mexico,Fiji,Belgium,Russia,South Africa,Nigeria,Uruguay,Congo(cloth),India,Indonesia,
Malaysia,the Philippines,Korea,Mongolia,Vietnam,Chile,Mali,Finland,Kenya,Laos,Japan,USA,
Tanzania,Ethiopia,Sudan and other countries,our engineer went to some county before.
FAQ
Q:Are you a manufacturer or trading company?
A:We are a professional mineral Equipment manufacturer for 20 years.
Q:Where is your factory? How can we visit you?
A: Our factory is located in Shi cheng county,Gan zhou city,Jiang xi province,China.Welcome to our factory!
Q:Why buy from us?
1,High quality and most competitive price.----we are famous for mineral equipment .
2,The Best delivery----Goods will be shipped out within 7-30 days based on order quantities.
3,Best service----Answering e-mail/messages and solving questions timely;Deliver and update information on time.Long-time business Cooperation and friendship based on trust,good quality and service etc.
Q:How is the quality of your products?
A:Oasis product is carefully manufactured according to the internal standard, we have patens and passed ISO9001:2008,CE AND SGS,our lab and large crusher,virbrating screen,ball mill,gold washing machine,shaking table,spiral chute,flotation cellmmagnetc machine and other,our machines be shipped to lots of countries and regions of the world.
