Product Overview
Description
For Short Span ADSS cable Dead End Helical Dead end Clamp
Helical Dead End Clamp are intended for turning angle, continuing and terminal connecting. Helical aluminum clad steel rod has strong tensile strength, no concentrated stress, plays a role to protect cable and assist reducing vibration. The whole set of cable tension hardware contains: structural reinforcing rod, outer preformed rod (dead end), matching connection hardware. Clamp’s holding strength is no less than 95% of cable rated tensile strength, easy and quick to install, cut construction cost, suitable for a span>400m.
Specifiction :
Anchor Shackle: Hot dipped galvanized steel. Anchor Shackle is connected with fastener clamp on tensile pole (or tower).
Parallel Plate: Hot dipped galvanized steel. Parallel Plate is connected Anchor Shackle and Clevis Thimble.
Clevis Thimble: Hot galvanized cast steel. Clevis Thimble is plugged in bend of Outer Reinforcing Rods for protection and connected.
Inner Protection Rods: Inner Protection Rods are made of aluminium clad steel rods. With a layer of particle emery inside, Inner Protection Rods can increase friction and decrease side pressure to cables. Rods are made into four subsets which can reduce misalignment errors and speeds installation. The ends are bent outward to avoid stress to OPGW cables.
Outer Reinforcing Rods: Rods are made into one subset with a layer of firm emery inside, in order to increase gripping power of Outer Reinforcing Rods while decreasing side pressure. Sets are color marked to reduce misalignment errors and to speed installation.
Ground Clamp: Ground Clamp is designed to connect OPGW cable with ground providing close circuit for short circuit current.

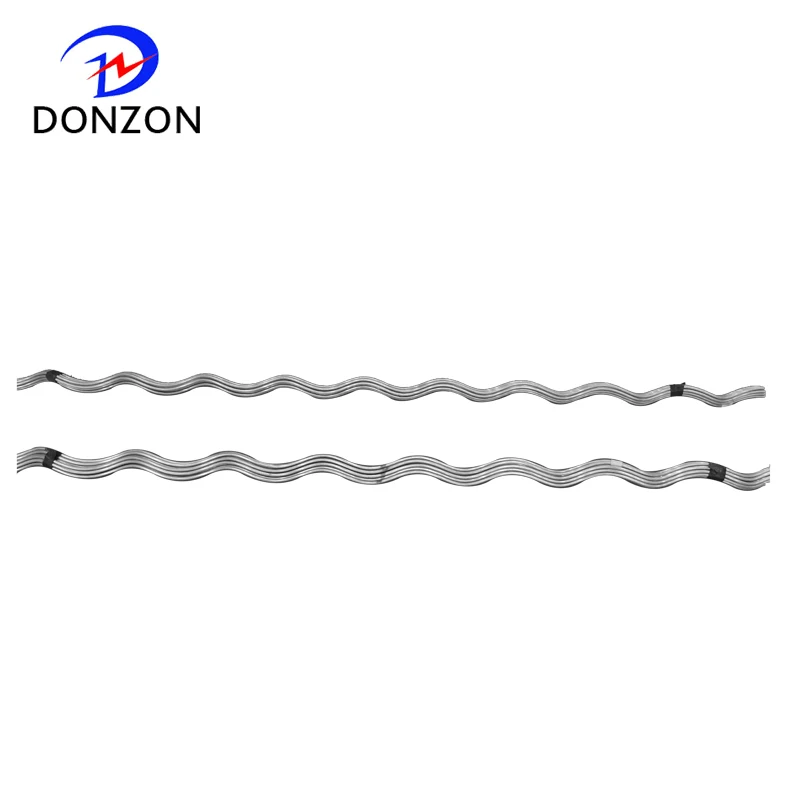

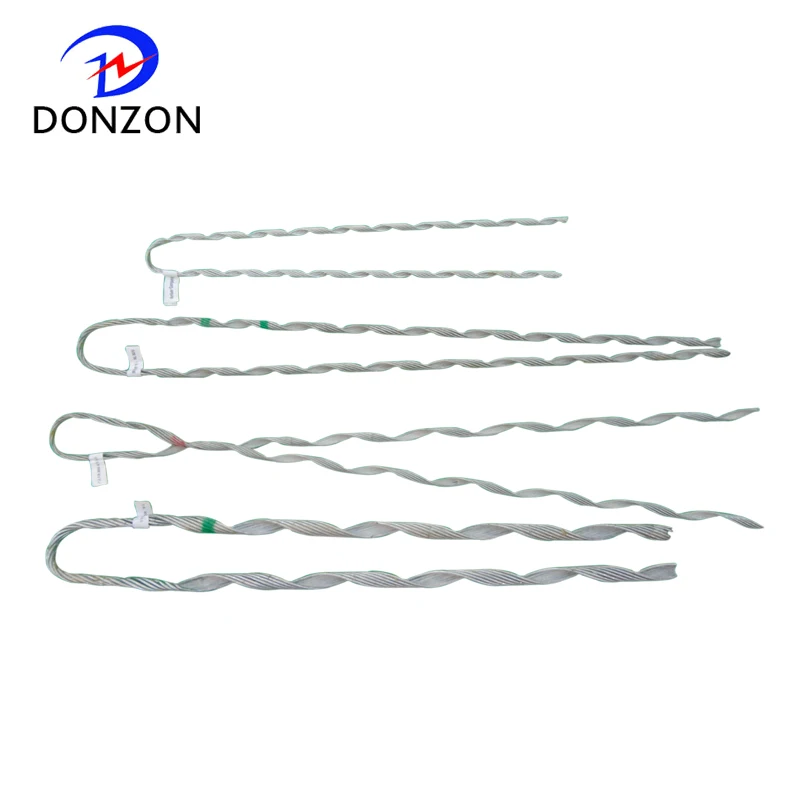

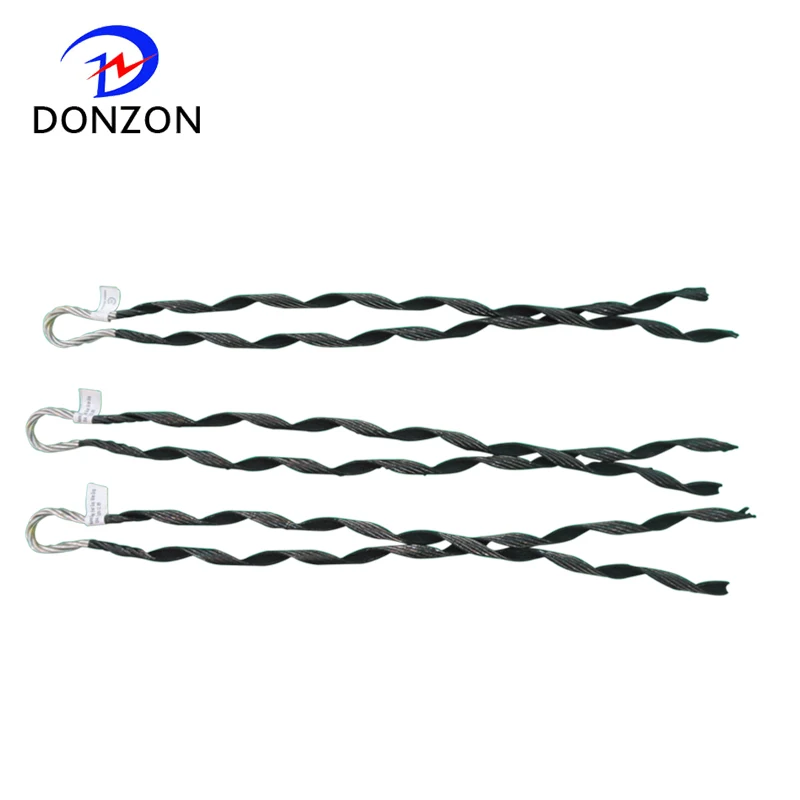

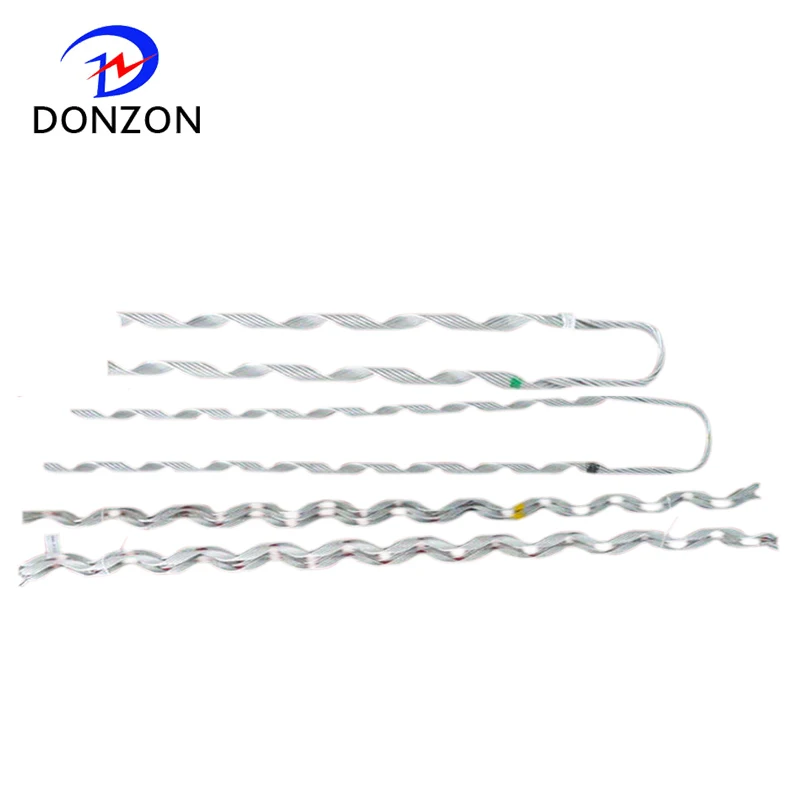

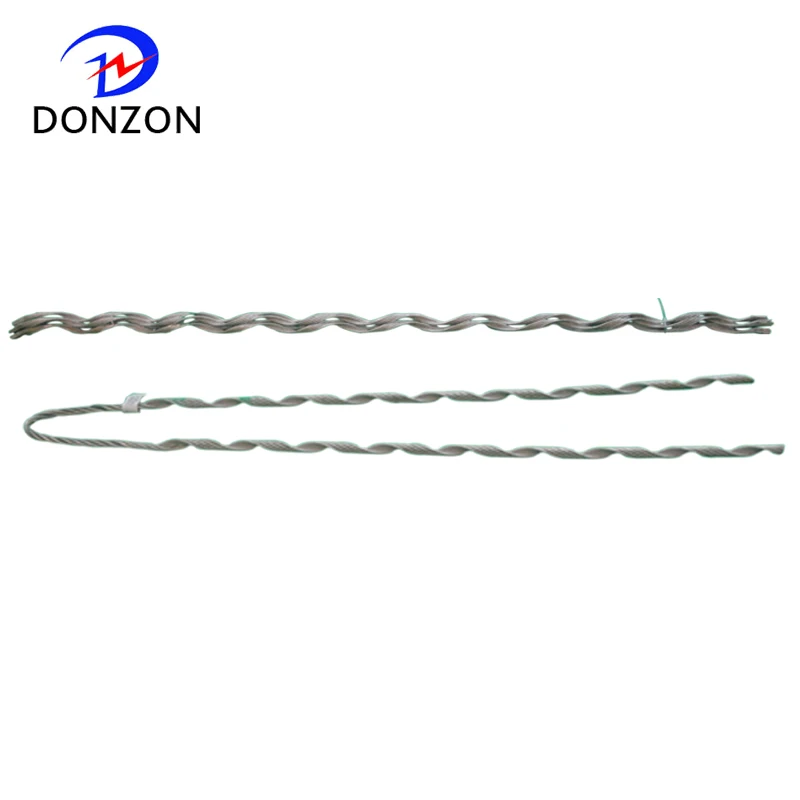

Helical Dead End Clamp Product Display :
Company Information
Donzon Power Co.,Ltd was established in September 18, 2002 ,located in SiXian industrial Zone RenQiu City, HeBei province , just 110 kilometers from tianjin port.
Fortunately, Welcome to our factory. And We can pick you up at Beijing Capital International Airport , only need two hours .
Our location:
| Manufacture | more than 15 years |
| Standard | DIN ISO or According to your requirement |
| Certification | ISO, SGS ,CE |
| Applications | Pole line hardware, electrical hardware |
| Packing details | Intertaional standard or your requirement |
| Delivery time | According to the quantity but asap |
| Payment terms | 30%TT before the produce,70%before the shipment |
| Place of origin | Hebei province |
Entrance door:
About the products,we mainly research, develope and manufacture electric power line equipment, electrical hardware, electric iron fittings, ADSS, OPGW cable accessories , preformed guy grips, optical fiber closure, vibration damper ,carbon fiber composite conductor, overhead insulated wire ,silicone rubber and porcelain insulator, our factory covers an area of 17600 square meters, to provide users with thousands of electric power communication and railway products.
Sample room:
Our company strictly implement ISO9001:2008 and ISO14001, With first-class technology ability, perfect pre-sales, after-sales service guarantee system, we set up good reputation between the business and user.
Chief executive:
Our Company won the bid in the country's state grid .Many Products are exported to Russia, the United States, Australia, Canada, South Africa, Kenya, Tanzania, Zambia, Brazil, Argentina, Chile, all nations of southeast Asia and other international markets.
| Main Markets | Total Revenue |
| Africa | 20.00% |
| South America | 20.00% |
| North America | 20.00% |
| Central America | 10.00% |
| Mild East | 10.00% |
| Eastern Europe | 10.00% |
| Southeast Asia | 10.00% |

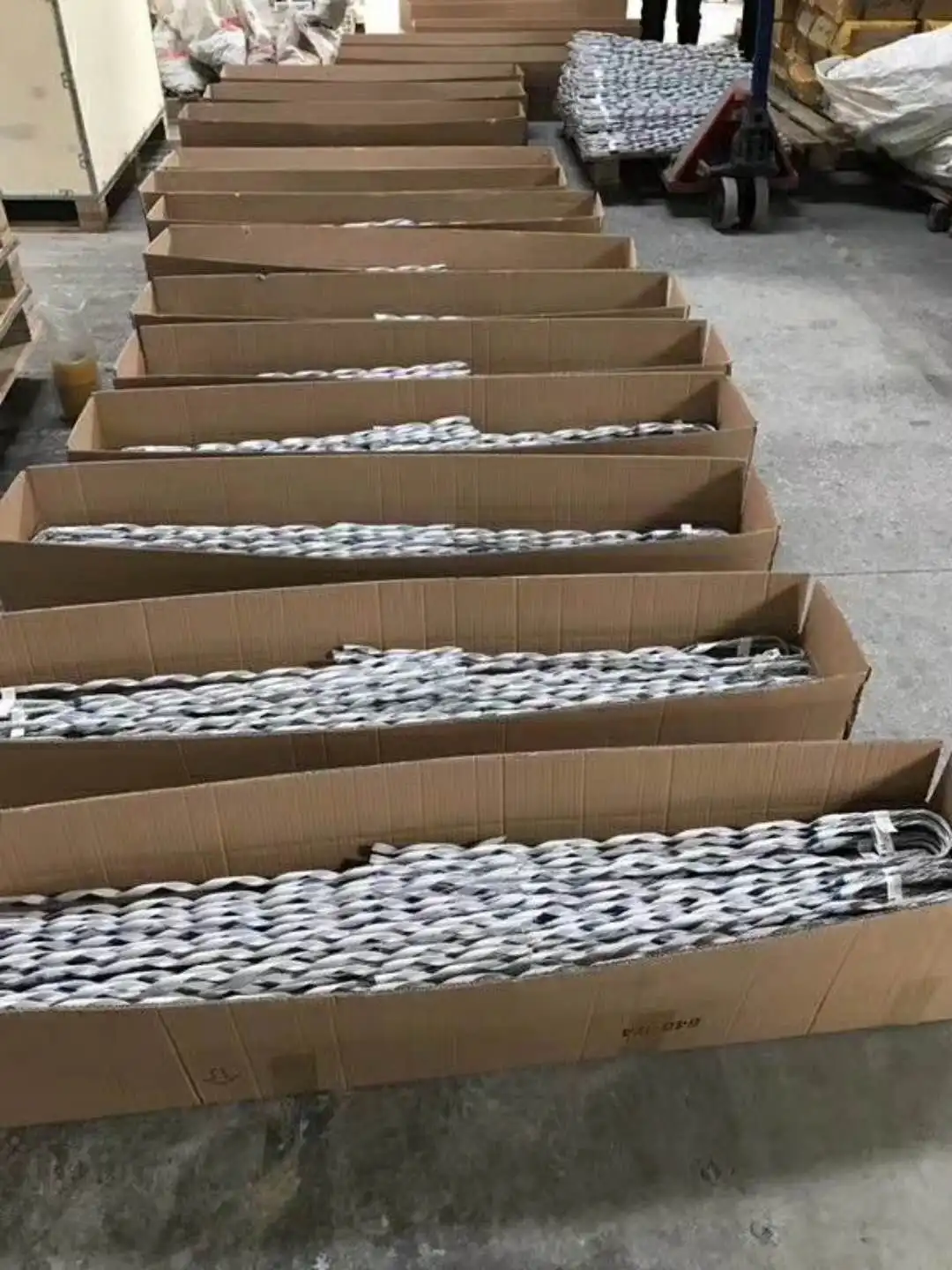

Shipping
Usually we pack goods by box, wooden cases or according to client’s requirements to adjust. We will be responsible for packing the stores suitable for transit by sea/ rail/ road so as to ensure their being free from loss. Usually we export the product onTianjin port . We will do our best to meet the client's requirements.
Related Products
Our products range are as following:
We are manufacture for electric power fittings,ADSS/OPGW cable accessories,preformed guy grips,overhead linefittings, ACSR, hot dip galvanized steel strand,suspension clamp,D iron,eyebolt,stay rod and so on.
We have competitive price and high quality, if you are interested ,welcome to send inquiry here ,we can send to you the best price and freely samples.
Our service tenets is:Customer first,Good quality.Welcome the clients at home and abroad to negotiate and cooperate with us.
FAQ
1. Where is your factory located?
-We are located in SiXian industrial Zone RenQiu City, HeBei province ,, China.
2.How's the delivery time ?
-Usually it will take about 15 days for the order .
3.Tell me the standard of package?
For inner box and master carton are made as per international standards,and we can make special design for you if need.
Also if necessary, will be packed in pallet to avoid any damage.
4.Free Sample.
- For sample we have in stock, we can send it in one day.we provide small products to check quality for you, just you pay the express fees.
5.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
