Distribution price p2.5 640*640mm high resolution indoor wall led display solution for airport and hotel

Product Overview

Description

Model number	P2.5
Pixch pitch	2.5mm
Pixel Density(dots/m2)	160000
Pixel Configuration	SMD2121 3 IN1
Module size (mm)	160*160  320*160mm
Module resolution (dots)	64*64
Cabinet size (mm)	480*480  640*640mm
Scanning method	1/32
Brightness (cd/m2)	1200
Min. viewing distance	≥1
Viewing angle ( 50% brightness )	≤150°
Screen fresh rate	LED screen refresh frame freauency recommended is no less than 1200HZ(recommended)
Average Power Consumption(w/m2)	800
IP grade ( Waterproof Grade )	IP31
Screen thickness	8cm
Control system	LINSN , Nova ,HD , XIXUN.....
Input Voltage	AC220 V/50HZ or AC 110V/60HZ
Gray Scale	Recommended 14bit
Printed Circuit Board(PCB)	4 Layer
Color Temperature	The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
Color	64g color(on the condition of 4096 gray scale)
Effective Communication Distance(without relay)	Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.

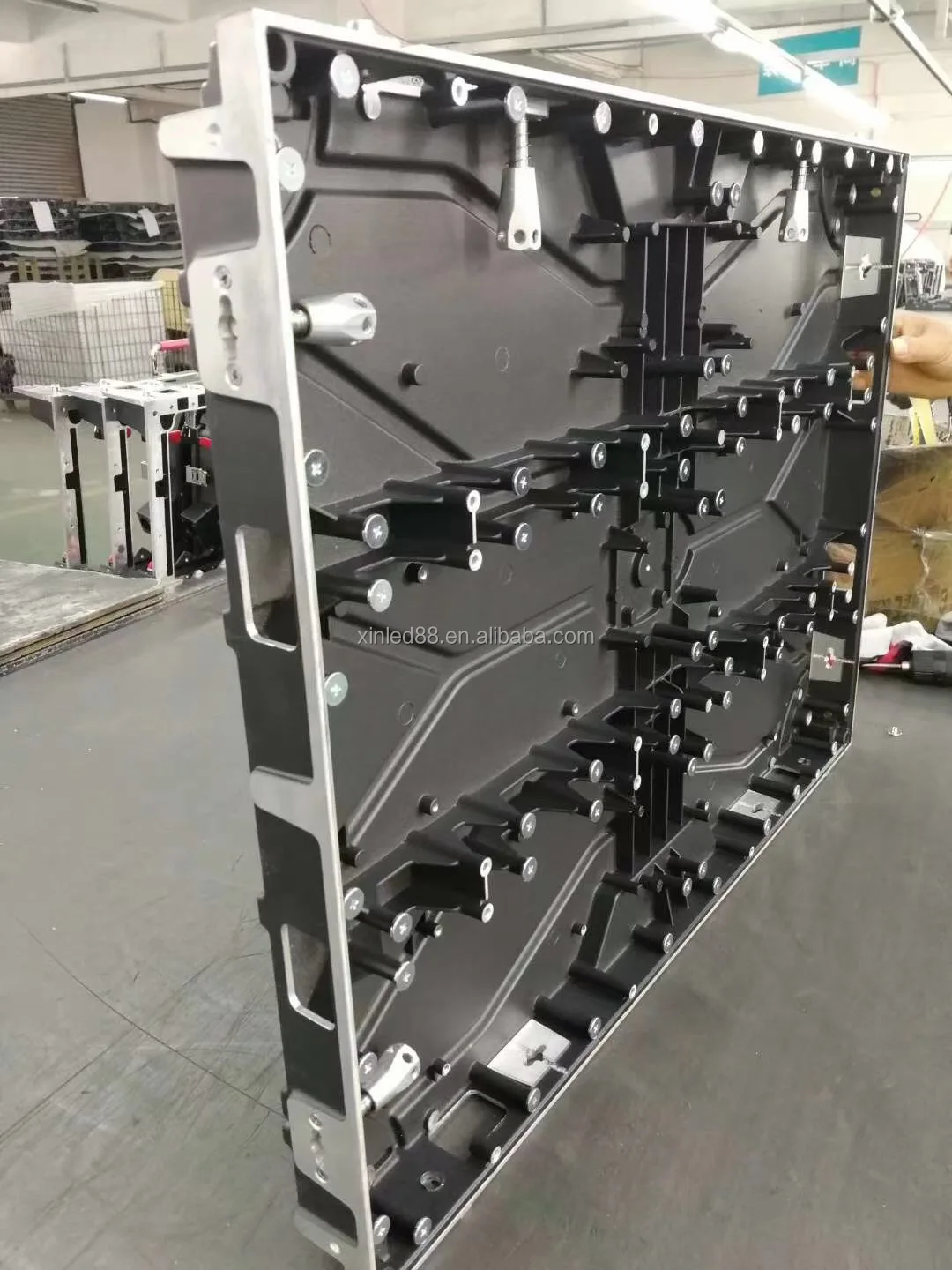

Cabinet	Die casting aluminum cabinet
Cabinet weight	7KG/PCS
Warranty	5 years

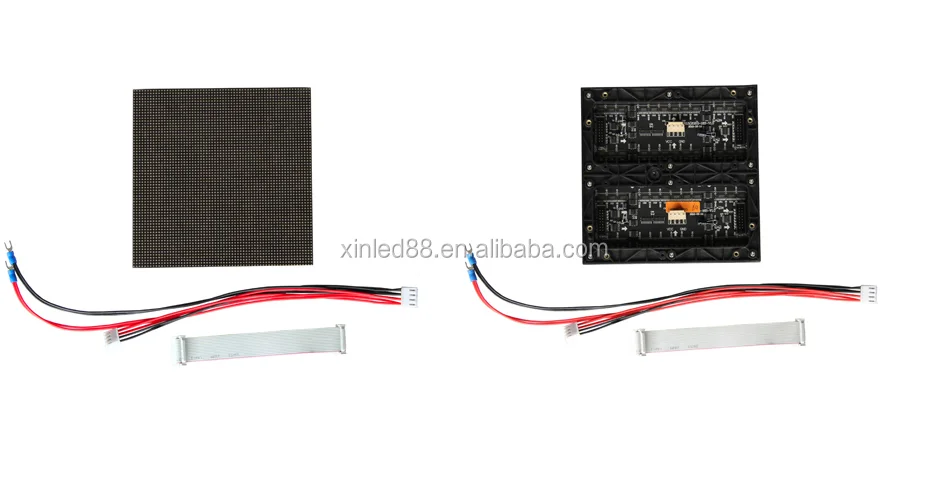

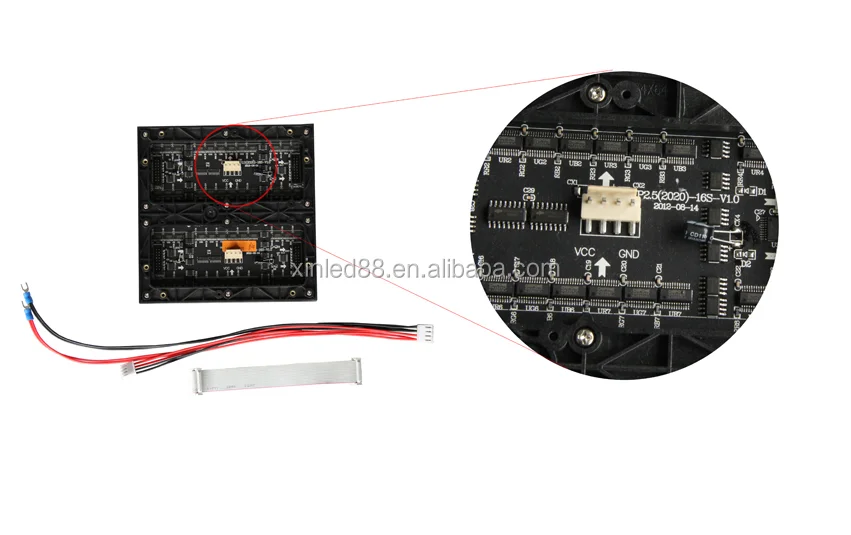

Module introduction :

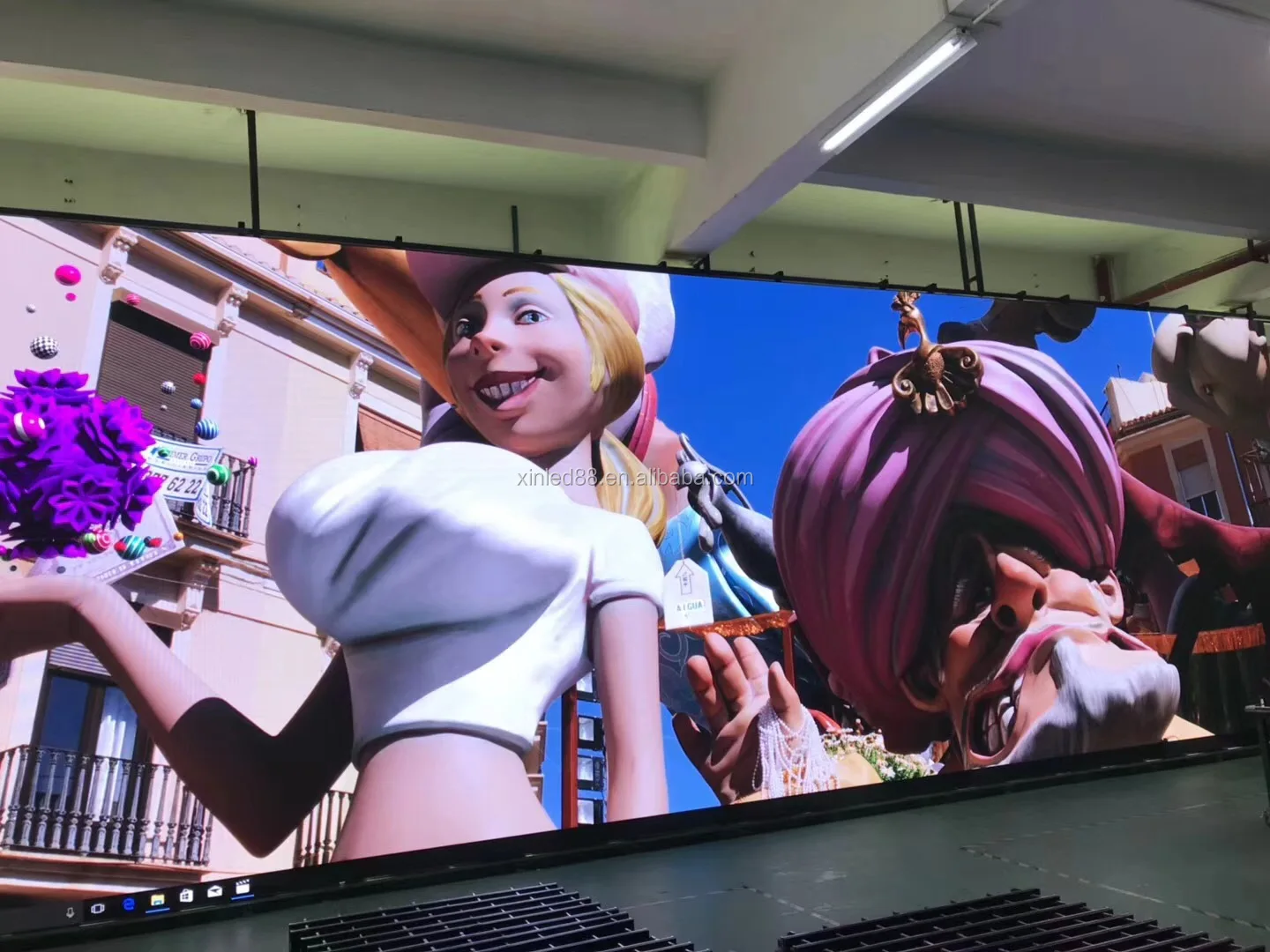

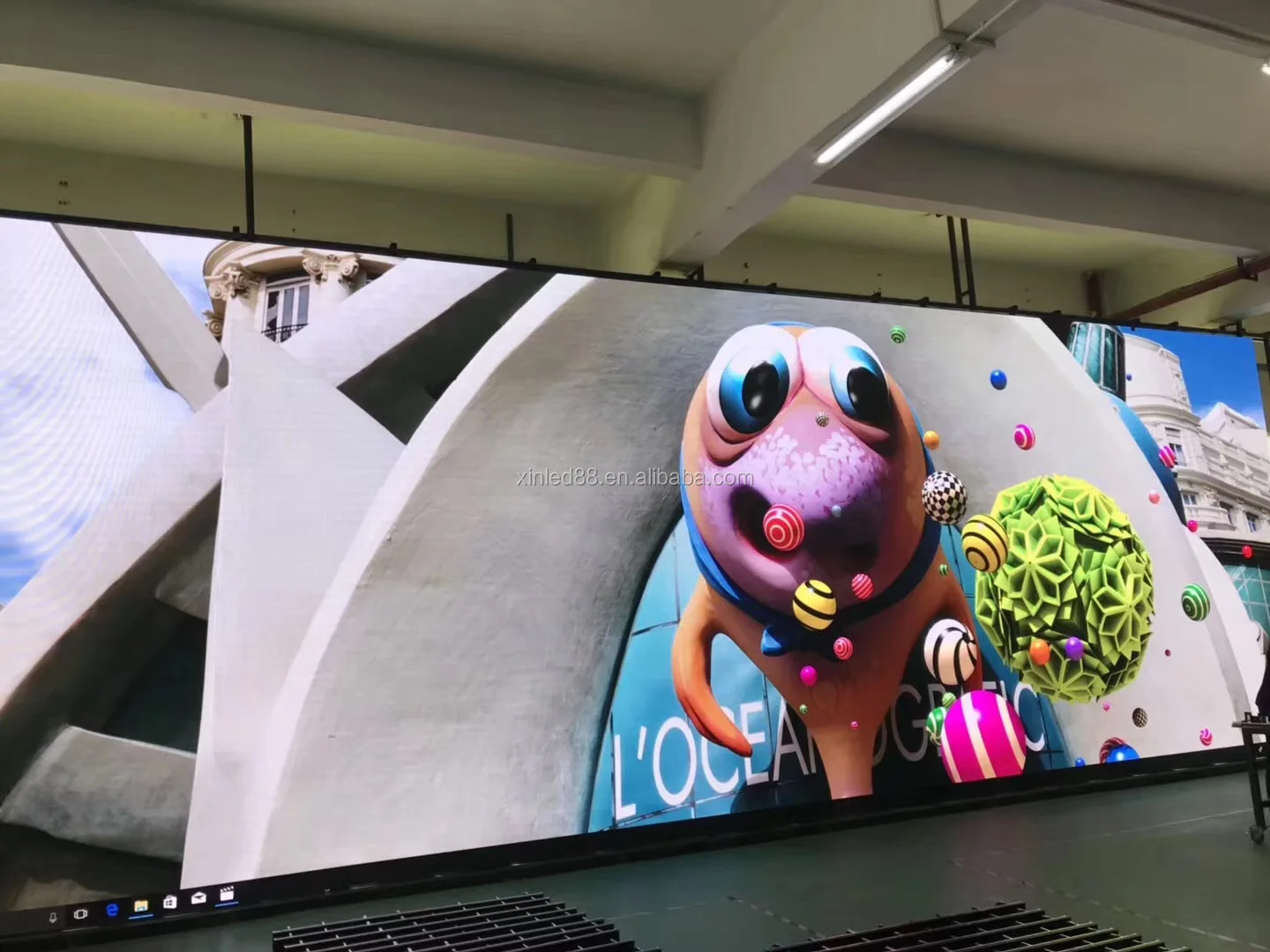

Project







FAQ

Q1: How about your company ?
A: XINLED is a professional LED display manufacturer, having been enrolled in led display industry with professional R&D team and skilled QC team for 12 years

Q2: What is the control system? How is it?
A: We use Novastar/Colorlight/Linsn/HD..... control system. Support cluster play and management. Support APP/ Phone/ WIFI/ Ipad/ Laptop/PC/ Cloud control.
It’s very easy and convenient to control the screen.

Q3: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it;
2. Track your order and let you know each step and detail of it;
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after - sales service be well,
5…6…etc.

Q4. How about your delivery time?
A: Standard module we have stock ,Can send out after 12 hours aging testing .The led display can finish 10-15 days.

Q5:How about your Warranty Term?
A: 1-3 years warranty. Structure design, installation problem, program the screen, how to use the screen.....We have professional after-sale team to solve any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.



Q6: What quality certificates do you have?
A: We have CE-LVD, CE-EMC,RoHS,FCC certificates.
