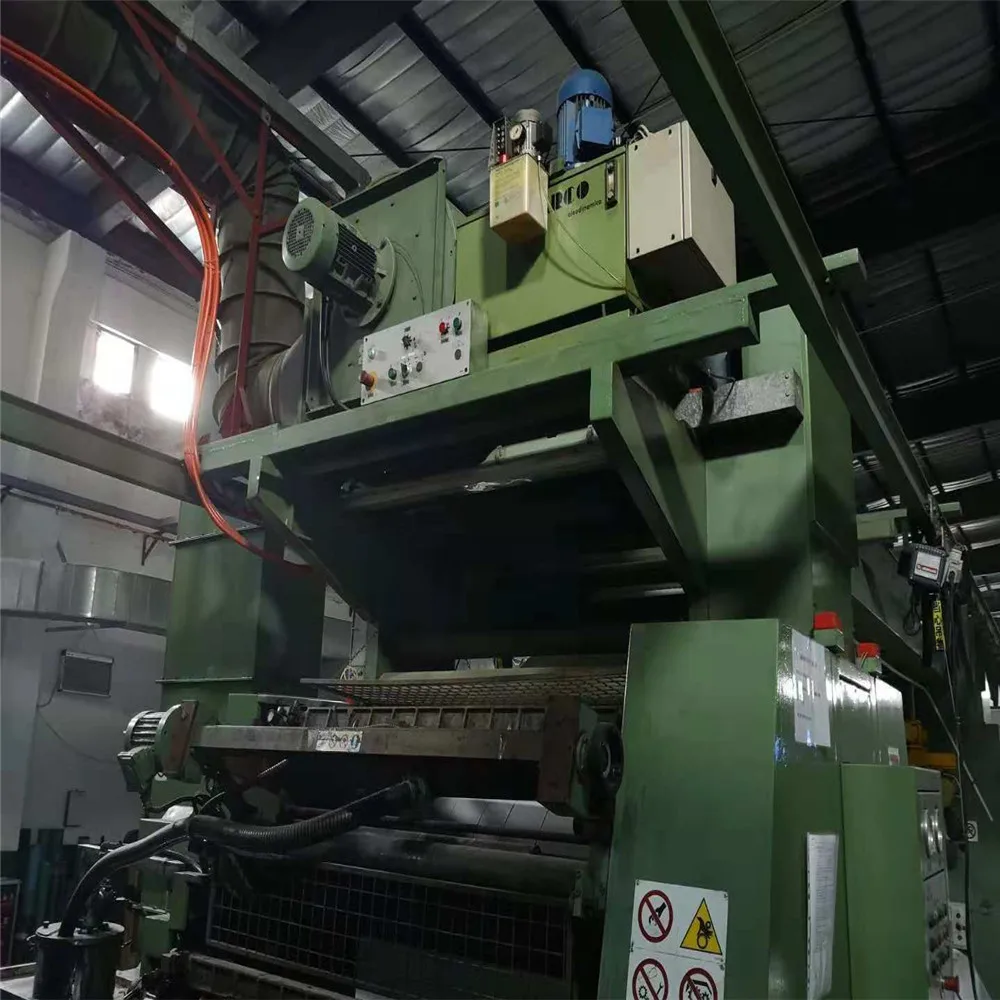

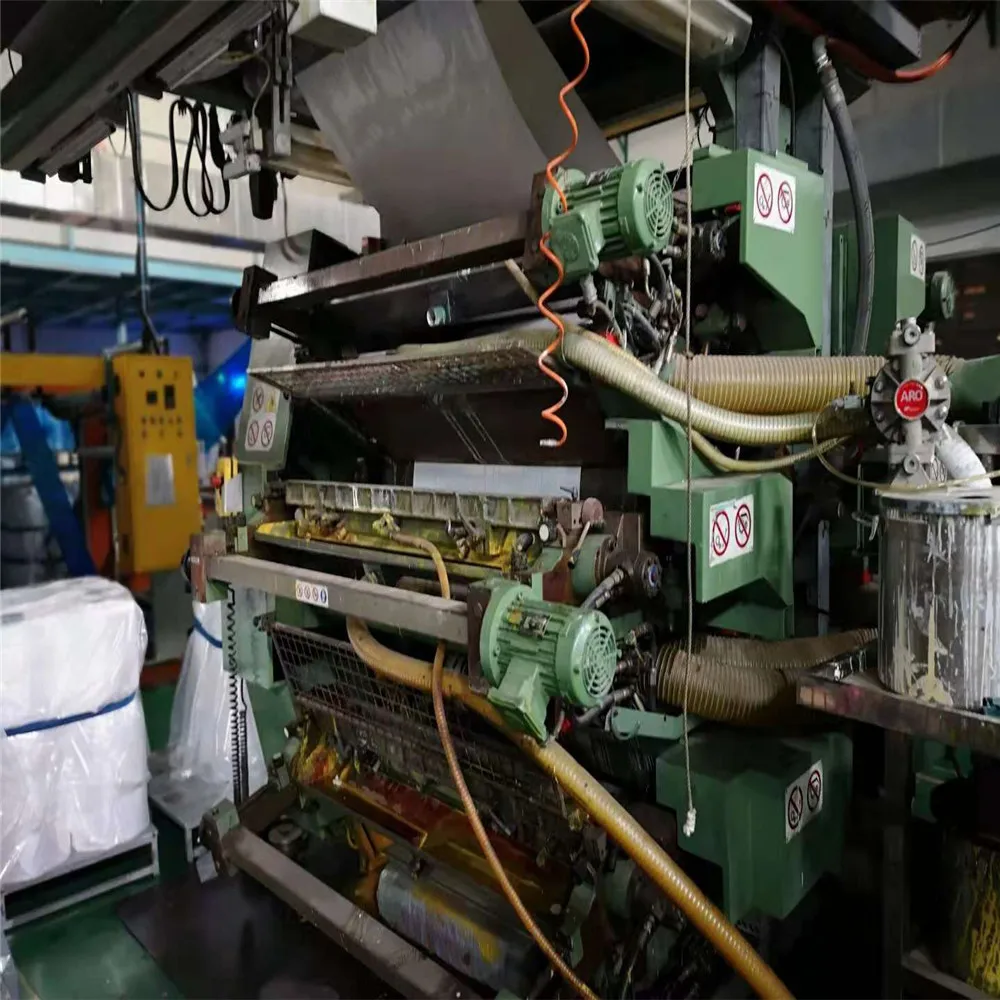

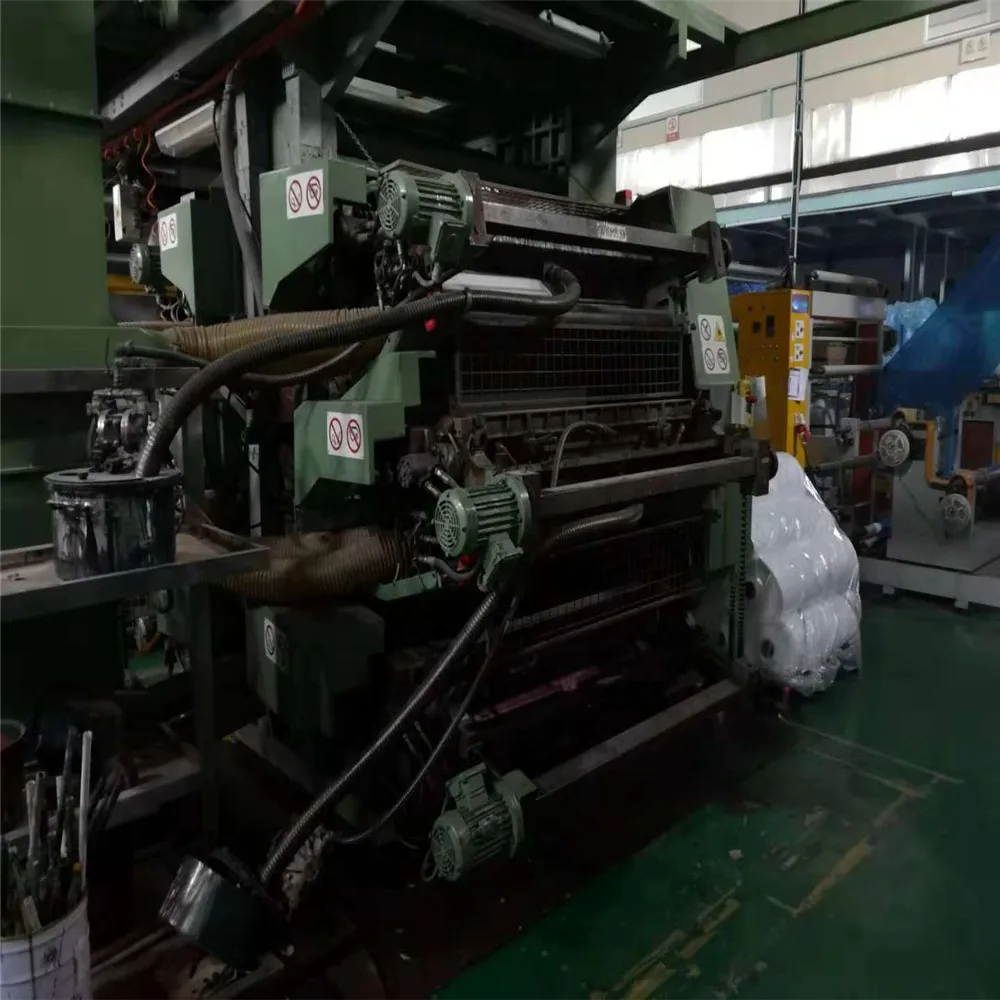

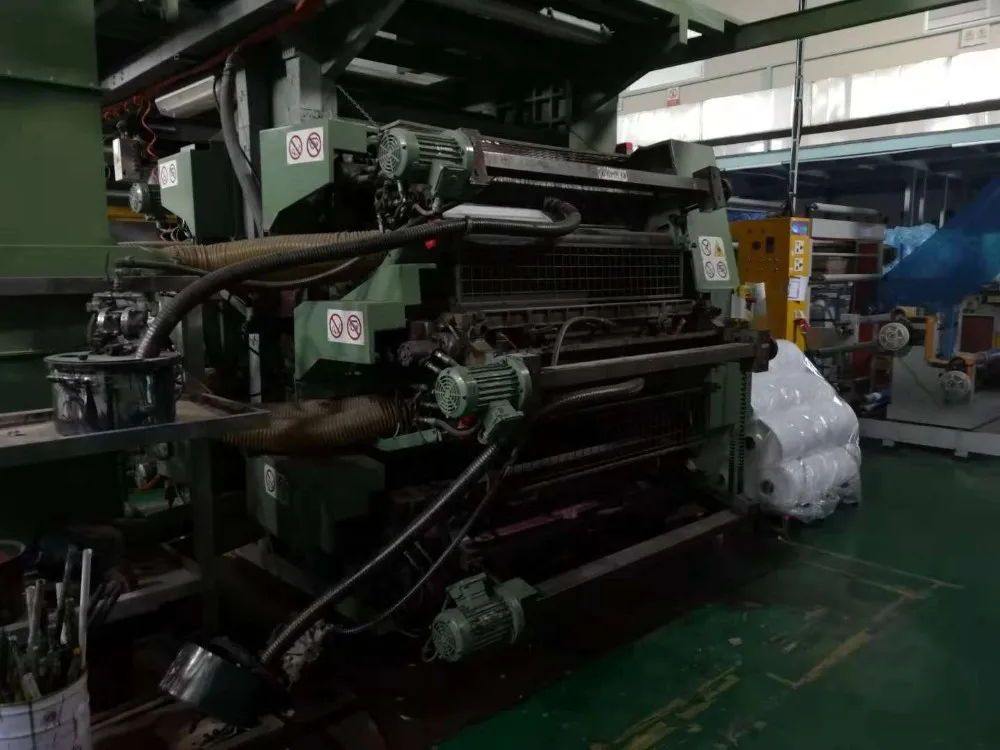

Used CI Flexo Printing Machine 6 color 1300mm European machine

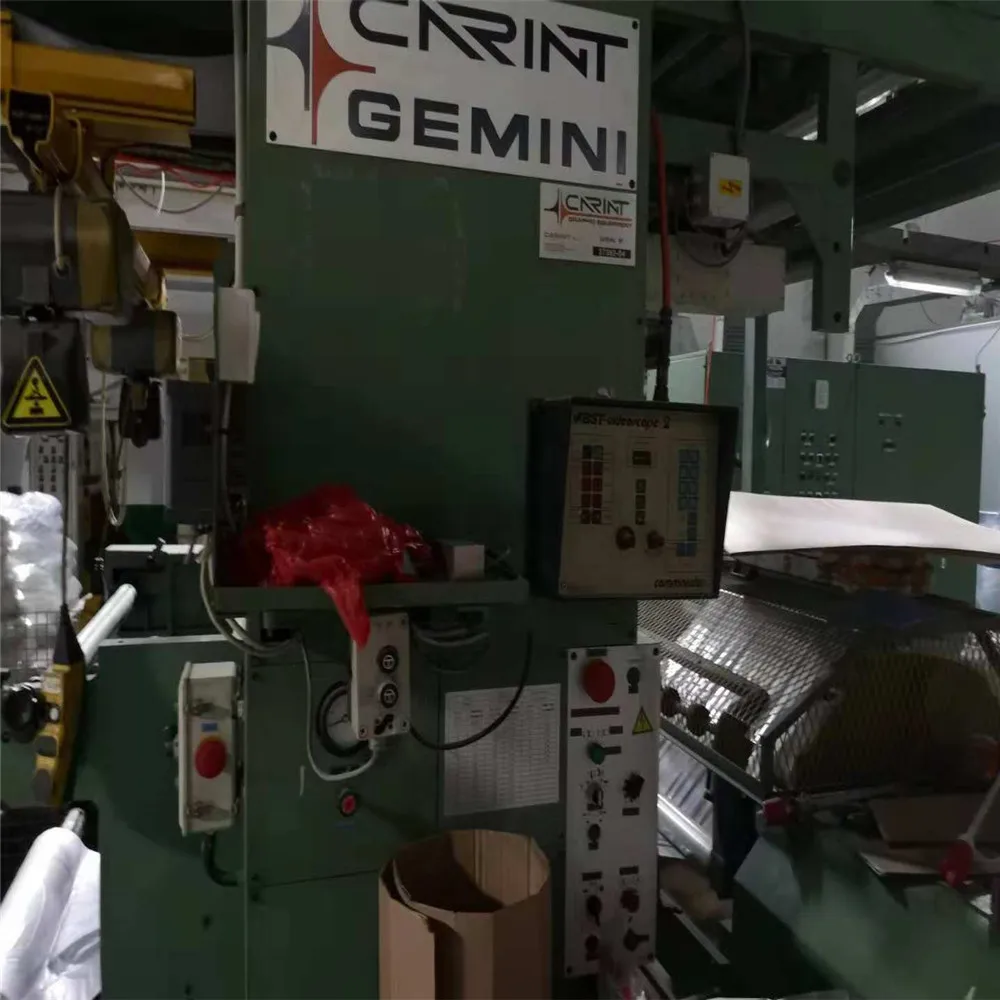

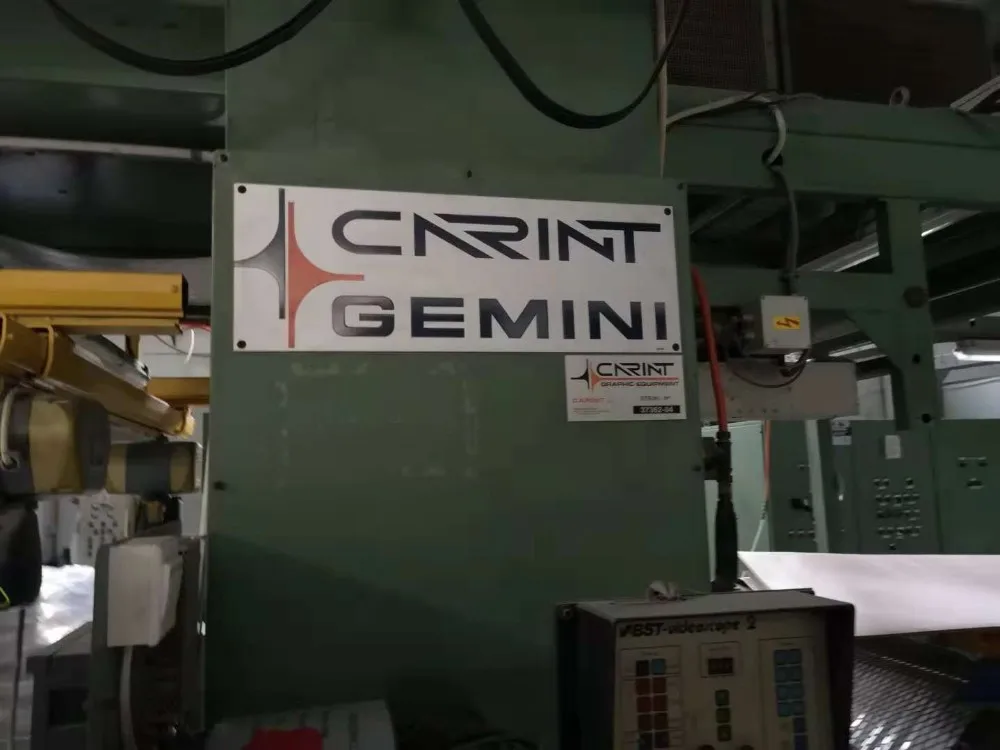

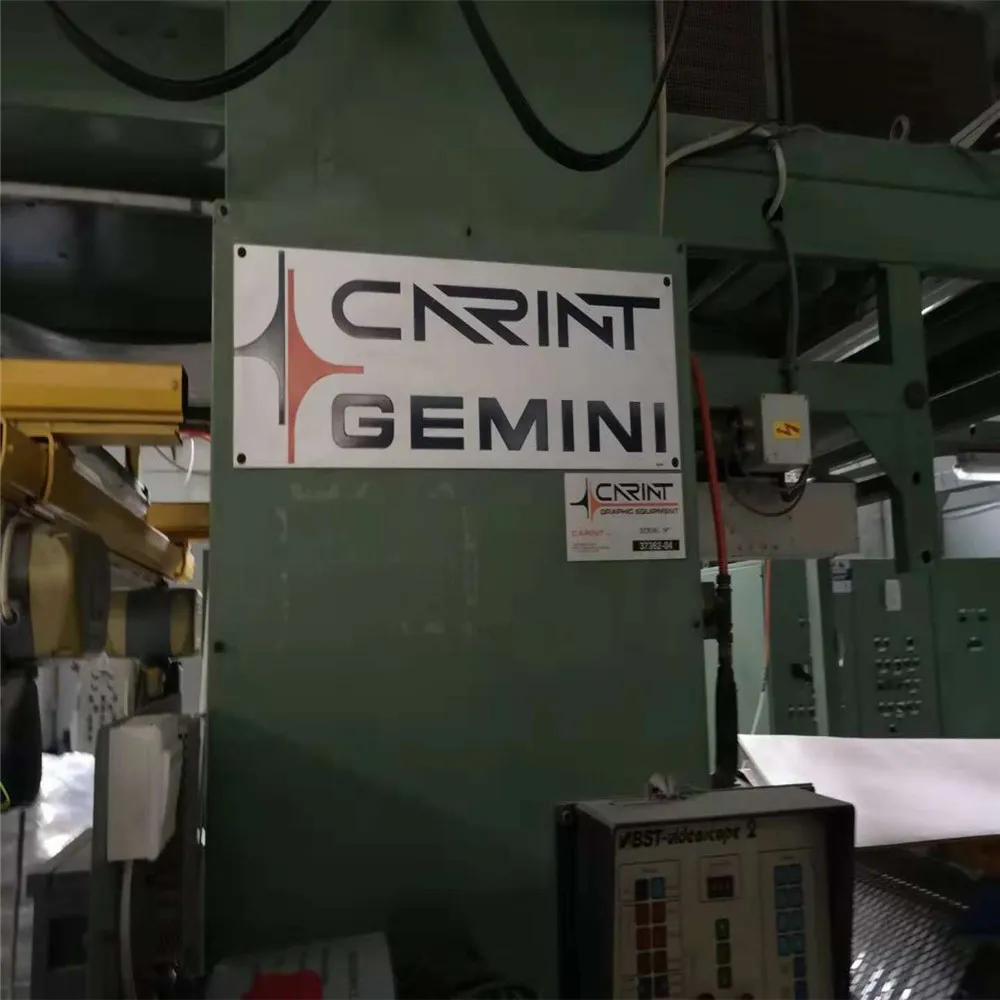

CARINT Gemini
Brand: CARINT
Manufacture year: 2004

Maximum Web width - 1350 mm

Gear pitch module - 2.75, 30 degrees

Thickness range: 0.02 - 0.2 mm

Shaft diameter: 76 mm and 152 mm

Max roll diameter: 800 mm (both unwind and rewind)

Installed power: 100 kWh

Inspection system: Fife Scan-a-Web - model SLB 500.

Speed max: 220m/min

Unwinder max roll diameter: 800 mm, tension control

Rewinder max roll diameter:800 mm, tension control

Availability of edge guiding system before printing section: yes

Availability of edge guiding system before rewinding section: yes

Corona treater: yes

Viscosimeters: yes

Availability of thermostat for CI: yes
