Two Way Car Alarm and Tracking System GPS / GPRS / GSM Car Security Alarm With Smartphone APP Control

Product Overview

Description

This GPS/GSM/GPRS module has to work together with the control module of our alarm system. Our state-of-the-art alarm system allows you to control your car with our APP anytime and anywhere in the world without distance limit. You may use the APP to lock/unlock the doors, release the trunk, find your car in a big parking lot, check the car location or start your car engine remotely. And you can also know the realtime status of your car with the APP. When the car alarm receives any trigger, you can receive SMS alert on smartphone and you will see which part of the car is triggered dynamically on the APP.



Control Module:

Work Voltage	DC12V­­­­±2V
Static Current	15mA
Working Frequency	433.92mhZ



Remote Control:

Static Current	<10uA
Battery Specifications	CR2032
Working Frequency	433.92MHz



Product Description

Main features of the Smartphone APP Control:

1. Two-way communications

2. No distance limitation

3. Operations via Smartphone APP

4. Real-time car status dynamic display on APP

5. With both GPRS data and SMS message controls

6. Arm/Lock, Disarm/Unlock, Trunk Release, Car Finding

7. Car temperature display (Optional)

8. Car battery level display

9. Remote fuel cut off

10. Real-time location check and track history replay via Google map

11. Be notified when your car alarm was triggered

12. With built-in backup battery and power disconnect alert

13. Data protocol communications between the GPS/GSM/GPRS module and the alarm module



Main features of the Car Alarm:
1. Working with aftermarket remote controls

2. Aftermarket remote controls with code hopping and anti-scanning technology

3. Remote arming/disarming

4. Silent arming/disarming

5. Auto rearming

6. Remote trunk release

7. Trunk release output Pos./Neg. Selection

8. Alarm triggers by shock sensor/doors/trunk/hood/ignition

9. Additional port for ultrasonic sensor

10. Pos./Neg. door trigger selection

11. Both starter kill relay and fuel cut off relay are included

12. Door open alert while driving (Selectable by Dip Switch)

13. Car finder

14. Panic

15. Automatic central door lock/unlock

16. Shock sensor bypass

17. False alarm prevention

18. Anti-hijacking by aftermarket remote control

19. Anti-hijacking by driver door (Selectable with Dip Switch)

20. Power window output

21. Auto arming ON/OFF (Selectable with Dip Switch)

22. Auto arming with or without door locking (Selectable with Dip Switch)

23. Single pulse/double pulse unlock (Selectable with Dip Switch)

24. Dome light delay (Selectable with Dip Switch)

25. Siren/horn output selection (Selectable with both Dip Switch and Jumper)

26. Locking time selectable by Jumper (0.5 second/3.5 seconds)

27. Closing door reminder when arming

28. Valet mode

29. Emergency override

30. Power interrupted memory

31. LED status indicator

32. Remote control code learning

 Interface of the APP

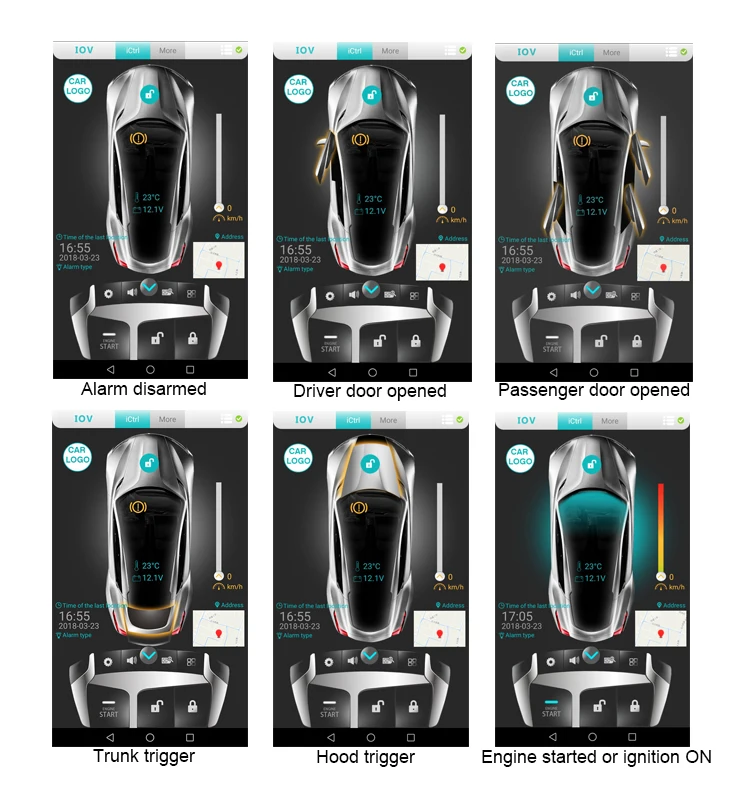

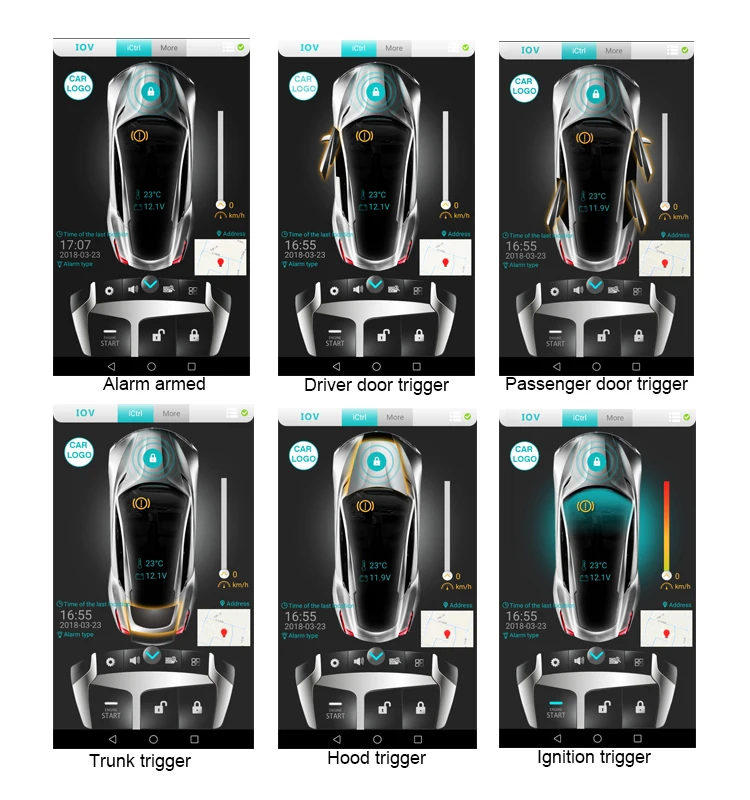

Car status indications on APP while the alarm is armed

Car status indications on APP while the alarm is disarmed

 Car location on APP

 Car tracking on APP

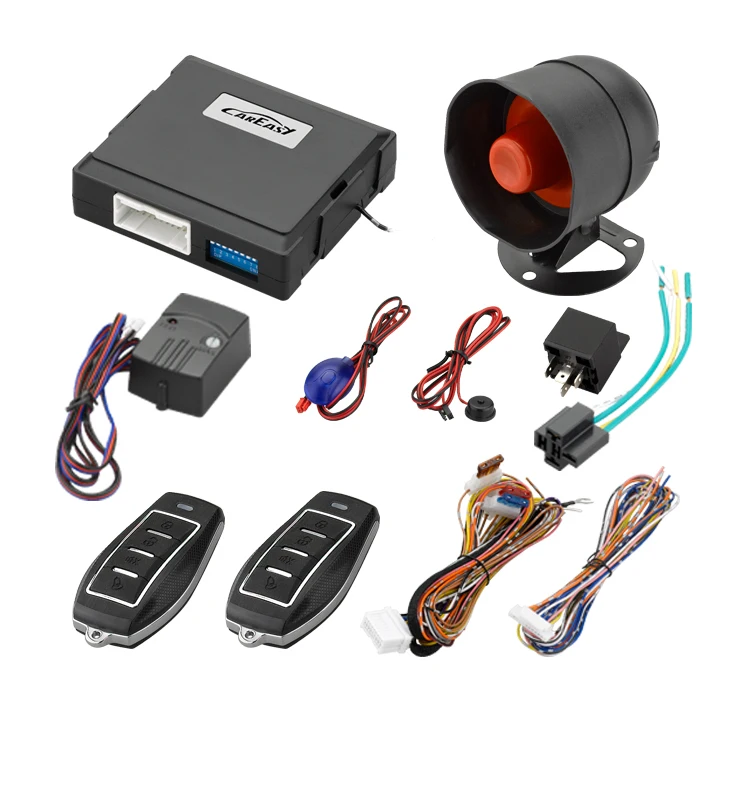

Kit of the car alarm

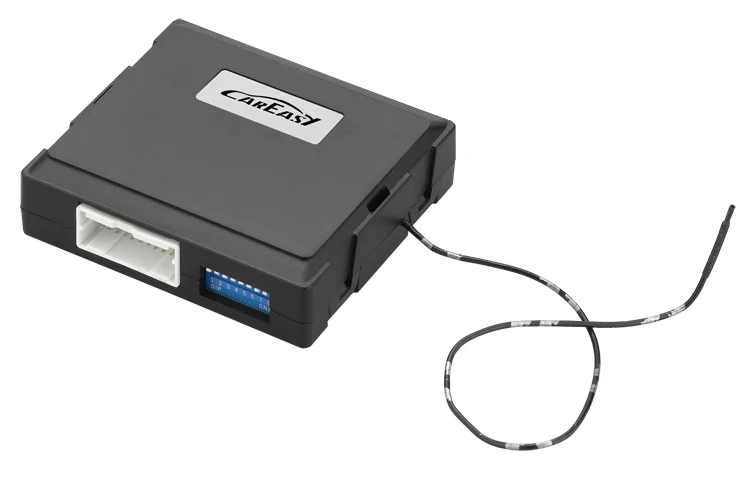

Control Module

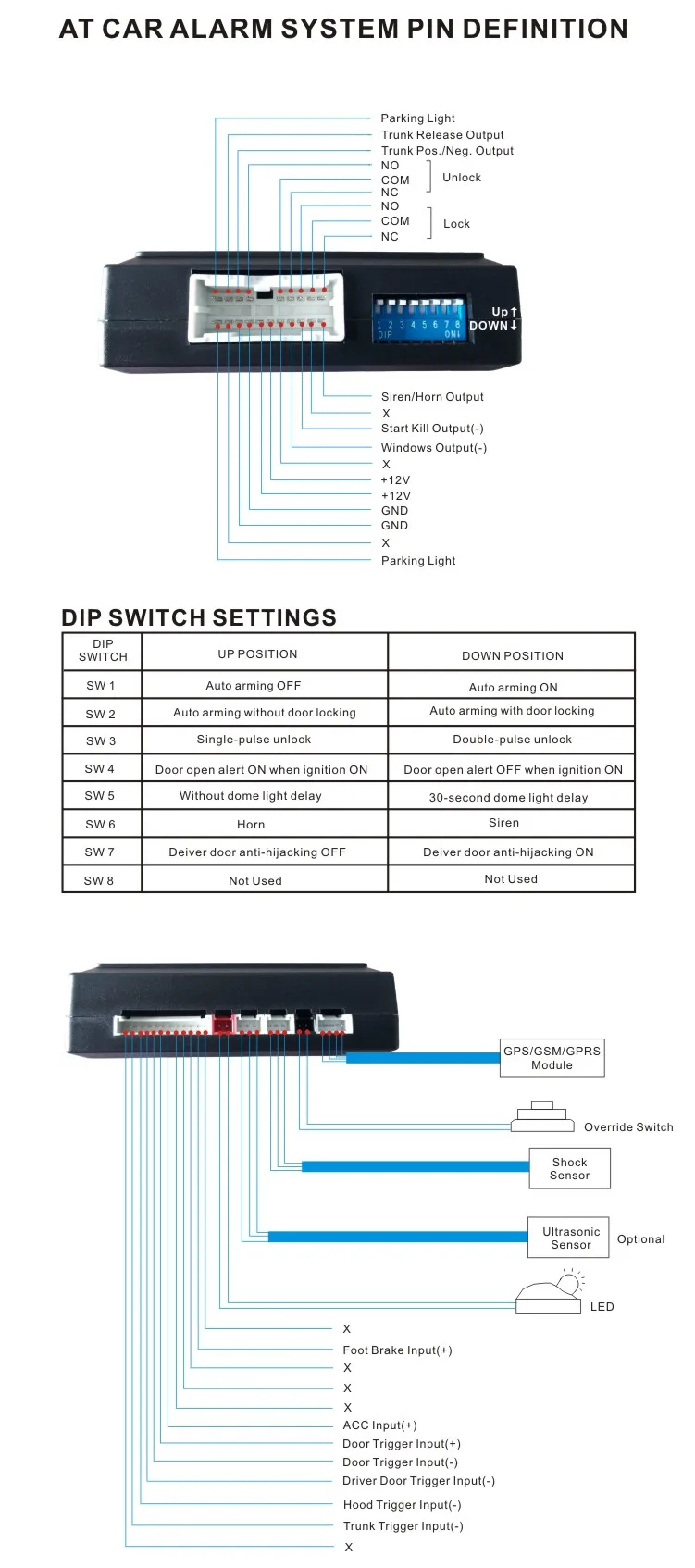

Pin definition

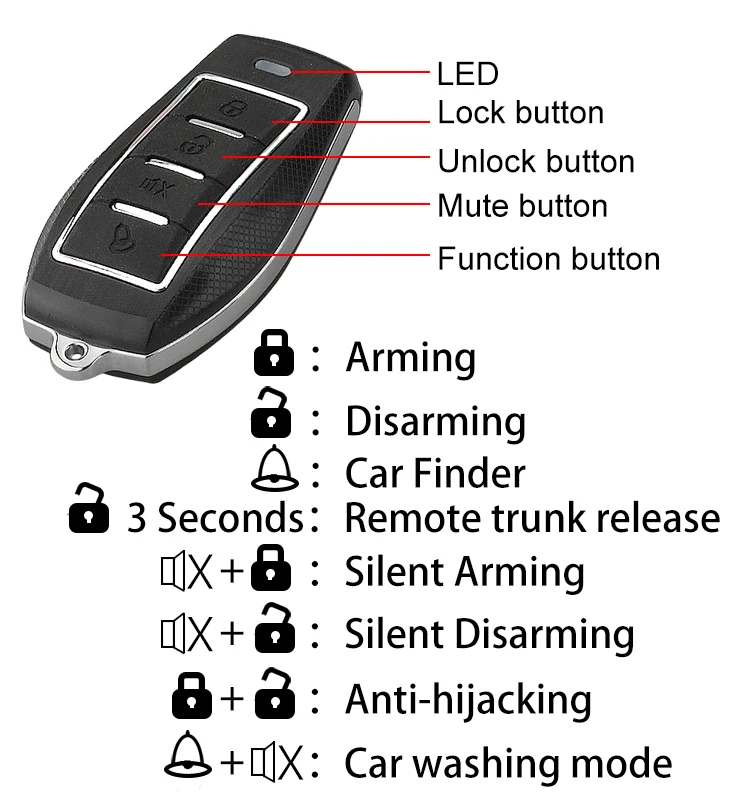

Remote control operation

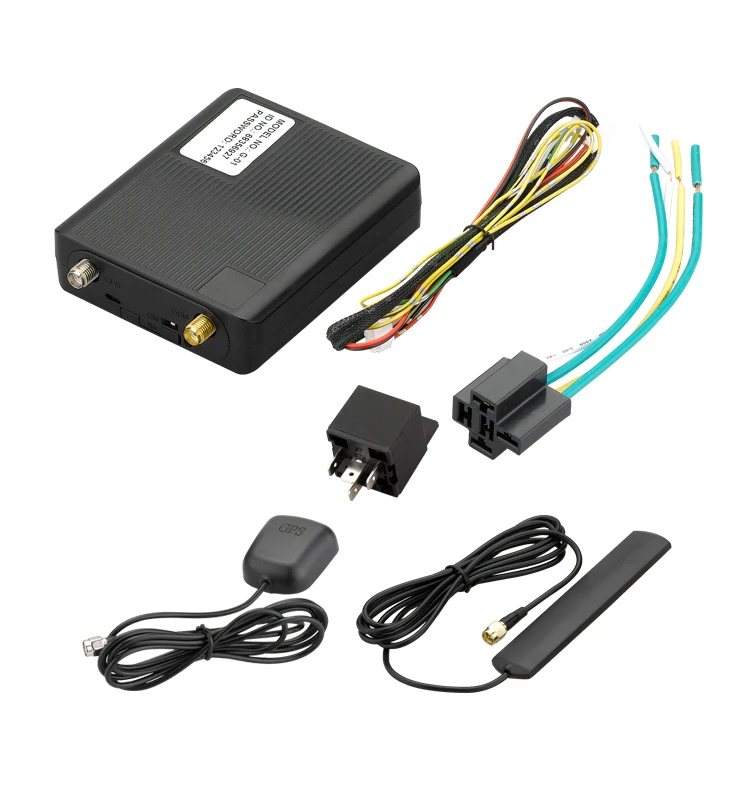

GPS/GSM/GPRS module

Gift box
