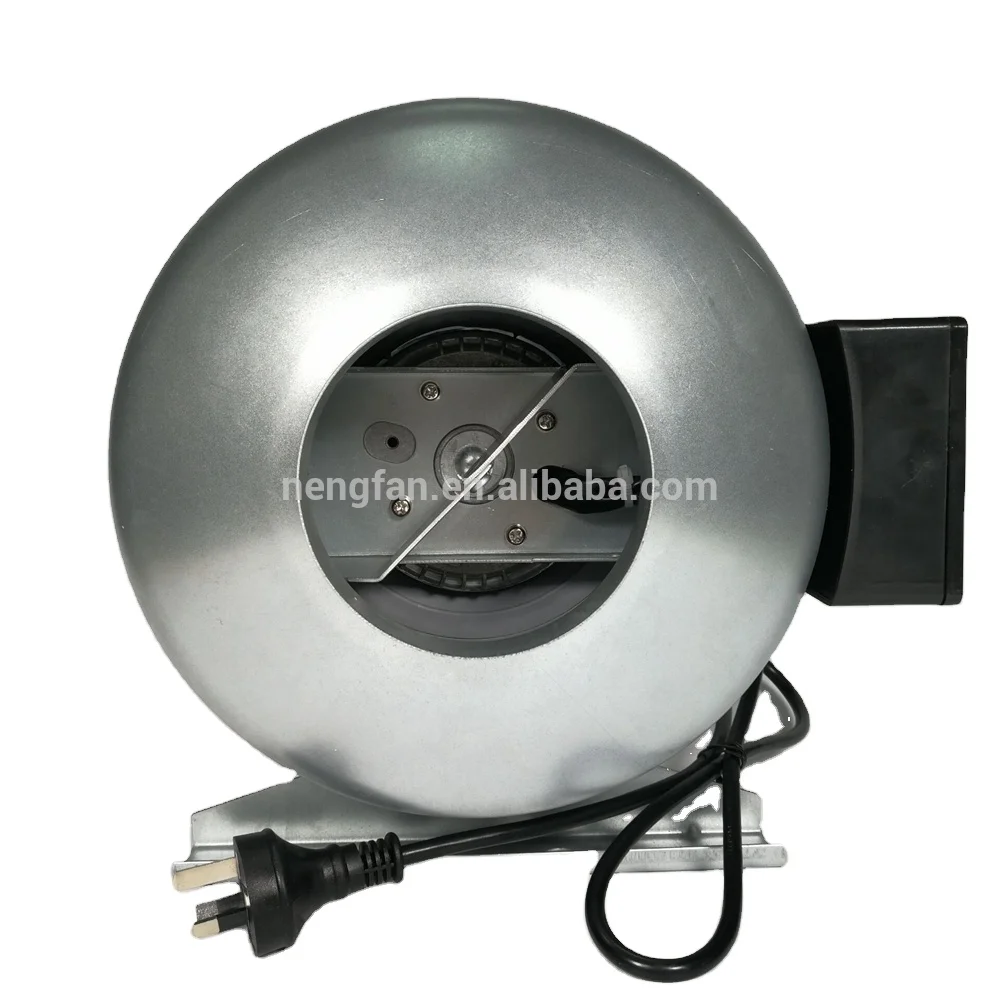

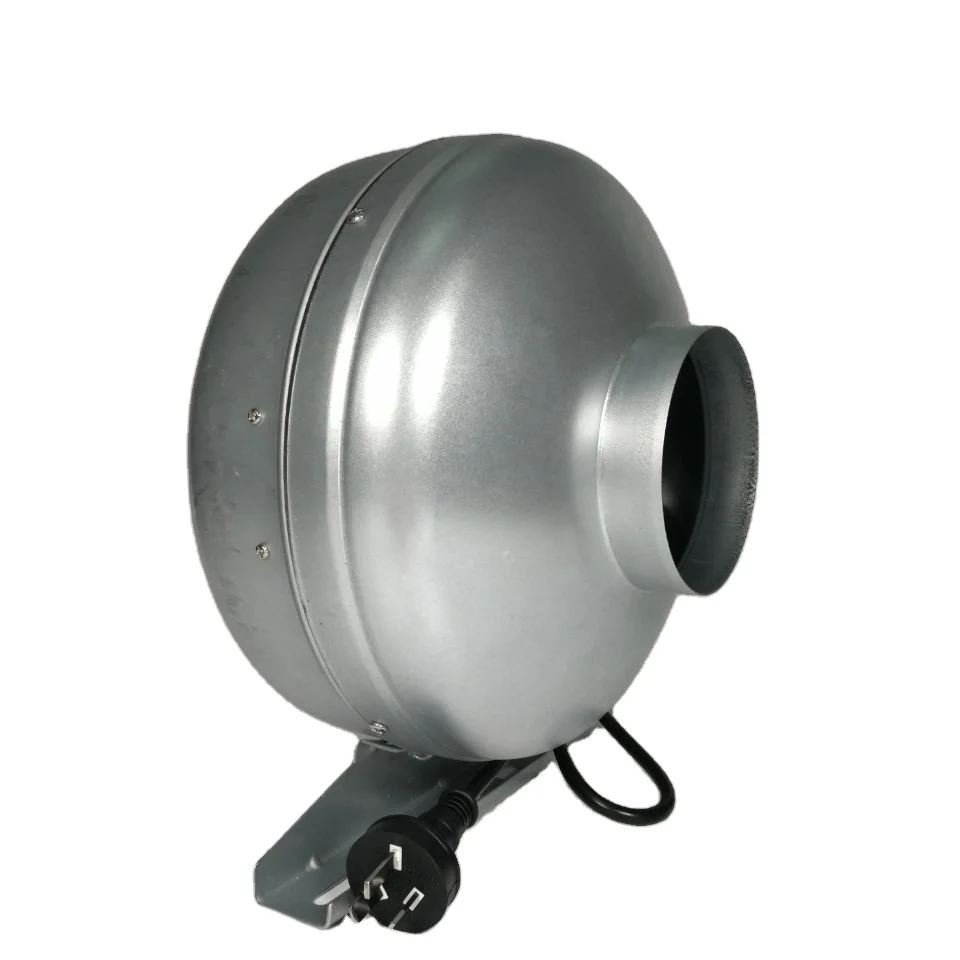

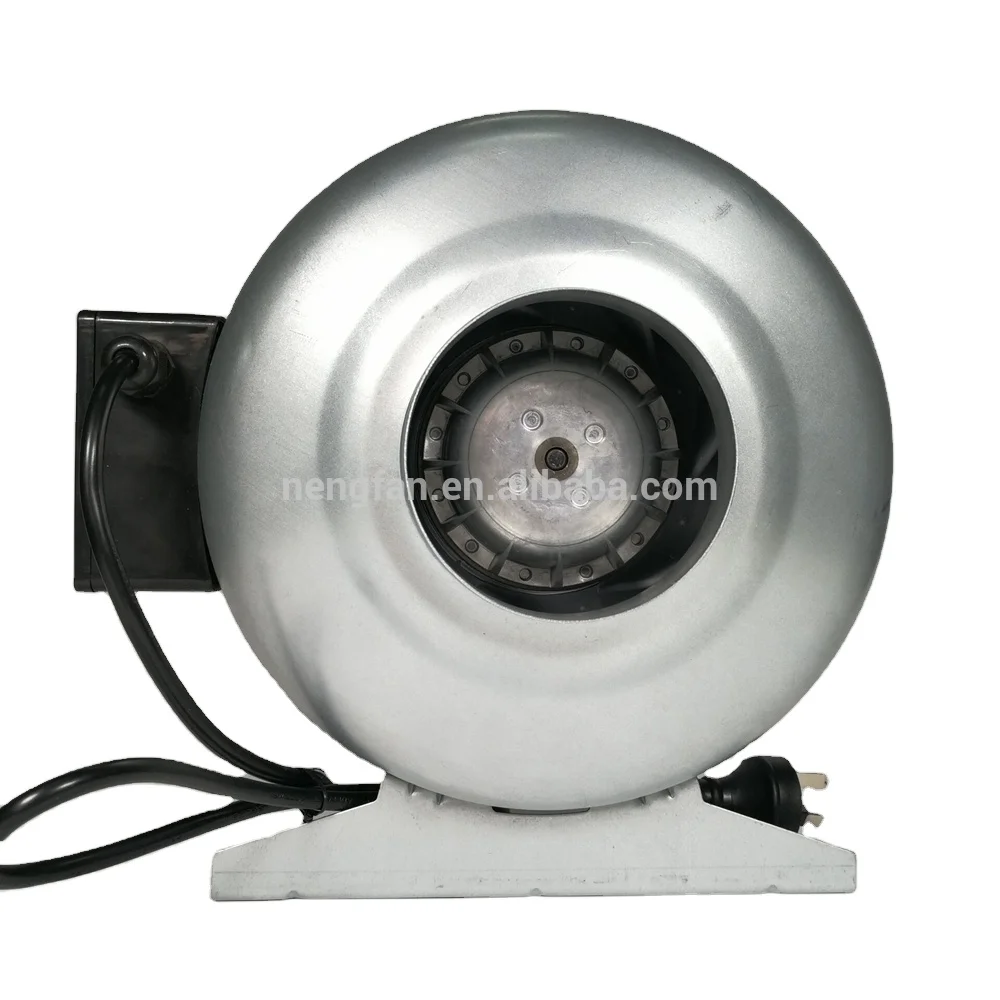

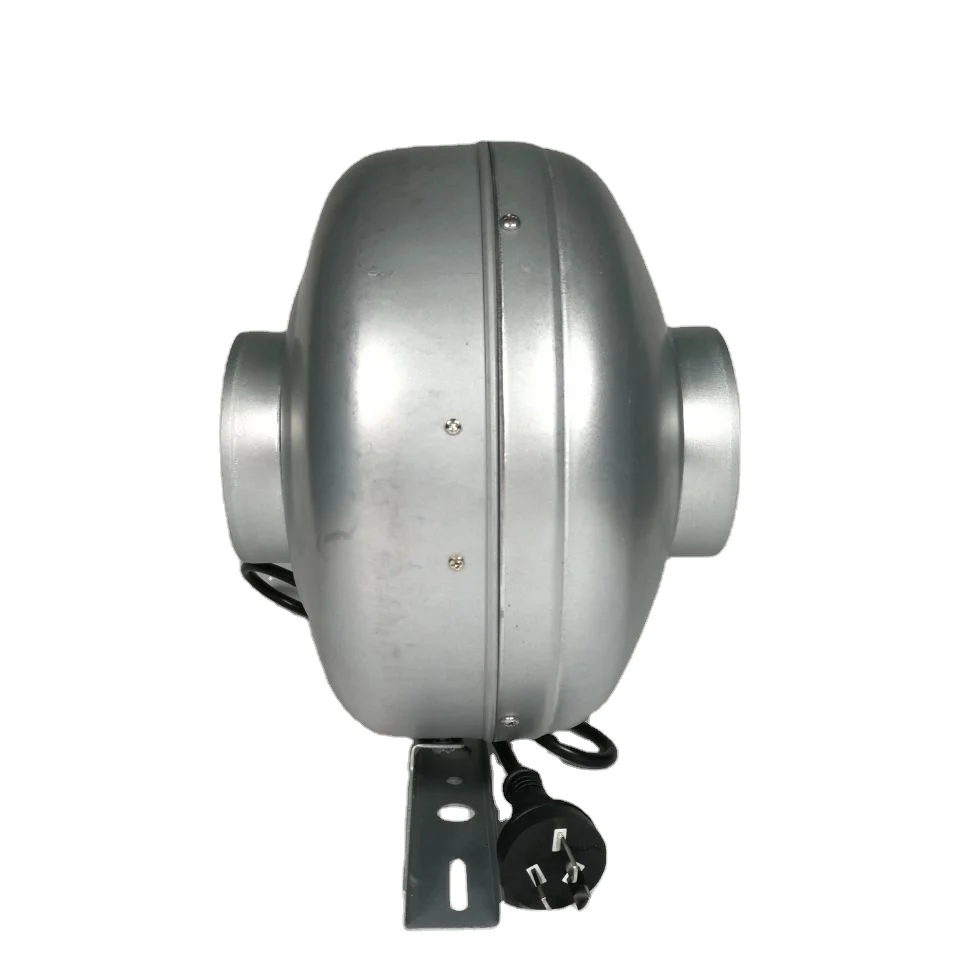

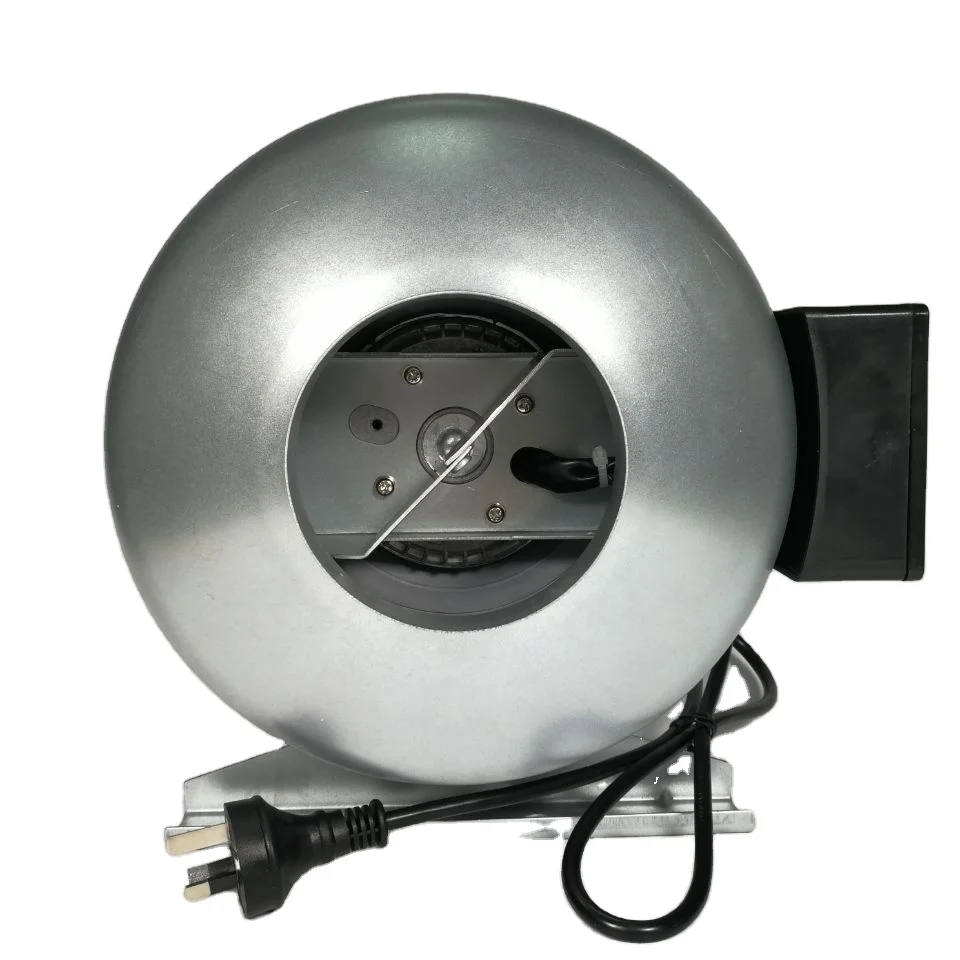

125mm Solar Power Hydroponic Grow Room Ventilation Duct Fan Centrifugal Fan Plant DC Exteror Motor

Share on (60809033252):


Price:$26.00 - $47.60

Quantity:


Product Overview

Description



Type: DCCK125/ 5"

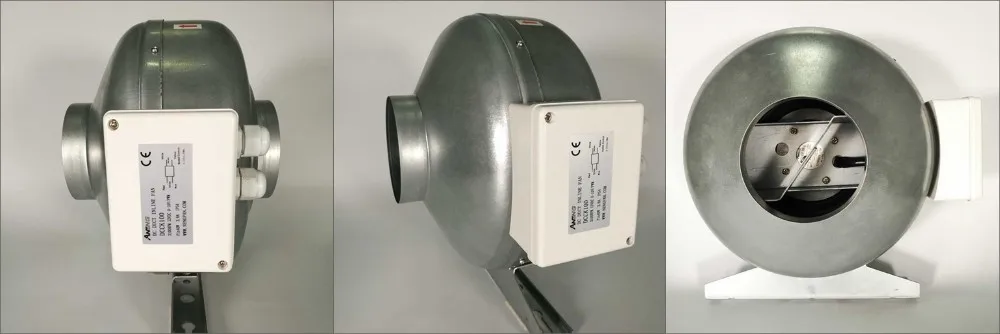

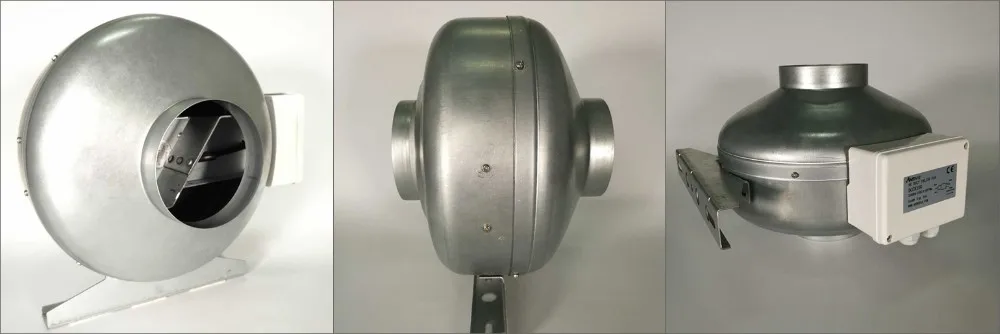

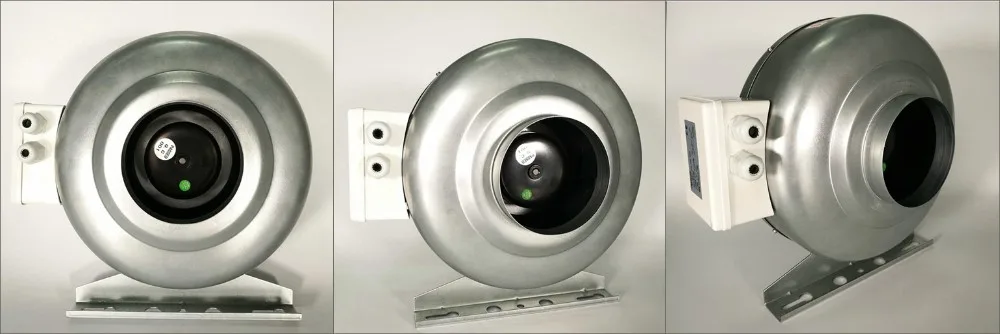

Product Pictures



(PS: ANNENG Reserved, Pirates Must Investigate.)



Product Datasheet

















































































































































Specification
Model Type: DCCK125 / Motor Type:  72mm
Rated Voltage FrequencyRated CurrentInput PowerSpeedAir FlowAir FlowStatic Pressure
(VDC)(Hz)(A)(W)(RPM)(CFM)(m3/h) (Pa)
12 /24/48/2.7/1.35/0.7323000154262354
Details Description
Current Leakage <=0.25mA
Operation Mode continuous operation S1
Direction of Rotation clockwise, seen on rotor
Mounting Position at will
Insulation Class "B"
Cable Length 450mm
Bearing  ball bearing (NMB)
Net weight  3.2kg
Surface of Rotor electrophoresis
Number of Blades "7"
Type of Protection IP44 or IP55
Speed control 0-10v / PWM signal
Approval CE
Operate Life >=40,000hours
Noise <65dB(a)  1 meter away
*Motor Protection Function
1. Soft Start (8 seconds)
2. Polarity Protection
3. Undervoltage Protection
4. Overvoltage Protection
5. Current Limit Protection
6. Over Current Protection
7. Blocking Protection
8. 3 Self Starting Function
9. Stepless Speed regulation Function
10. FG Speed Signal Output (open drain)








specification









Factory Display


IMG_20200810_143634winding machinetesting



Packaging

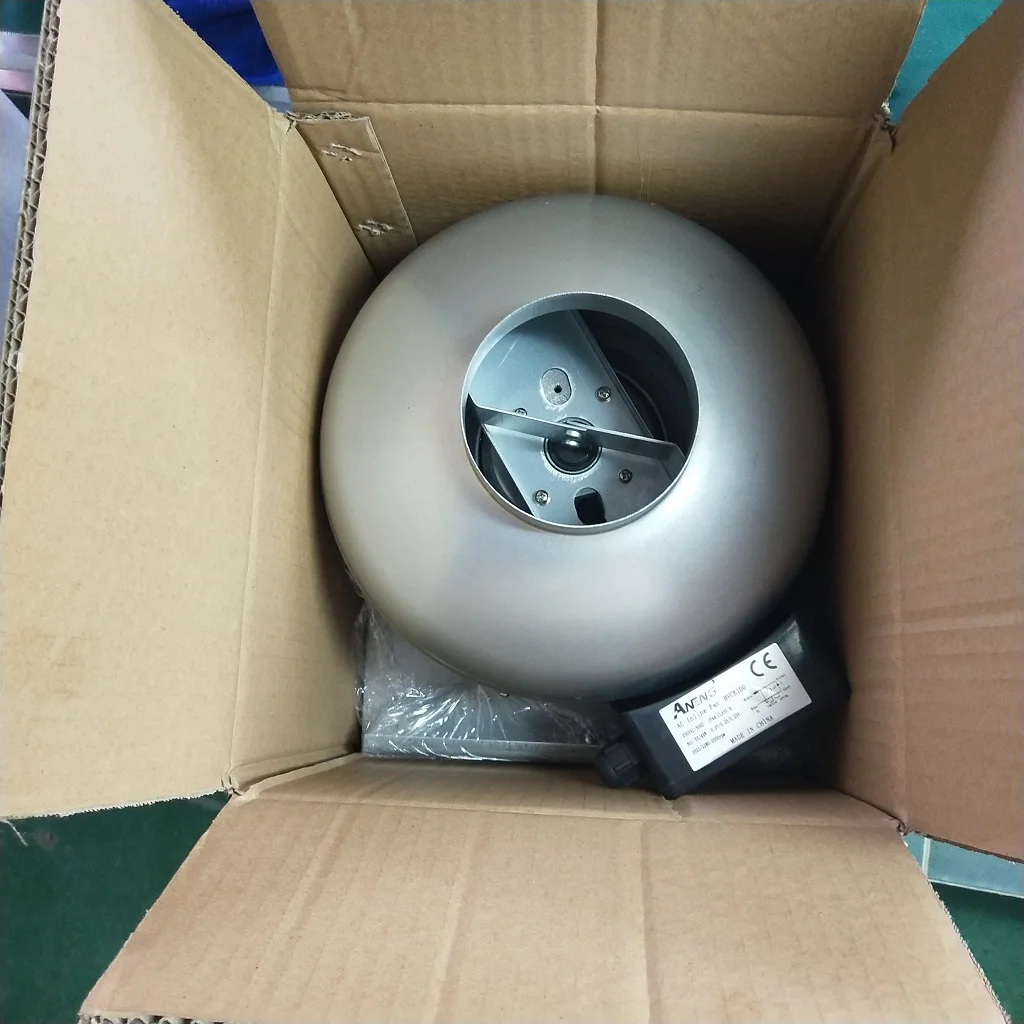

1. for Sample, packing individually by foam carton;


2. for Mass, pallet package 120x100x120CM.
