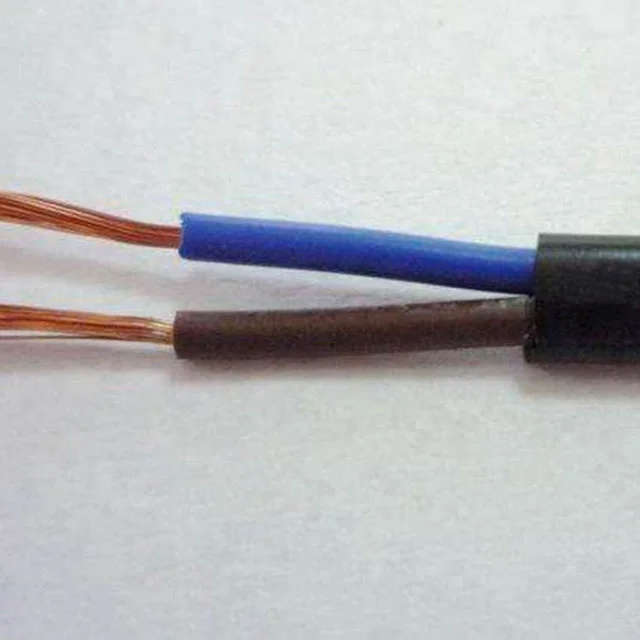

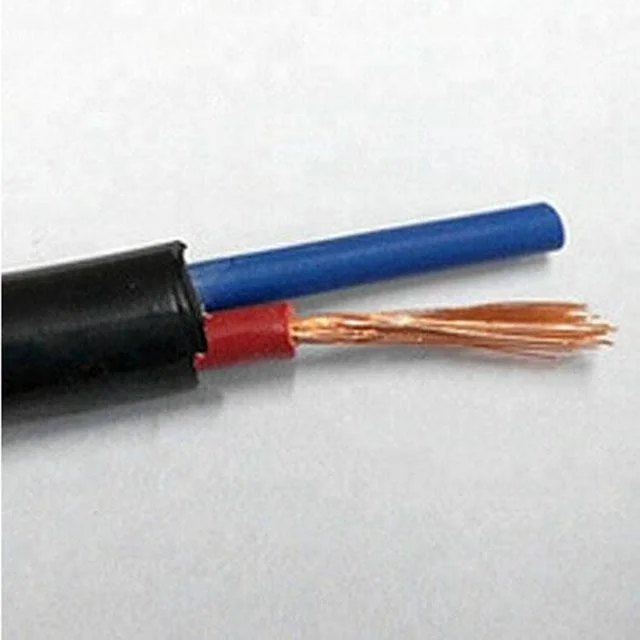

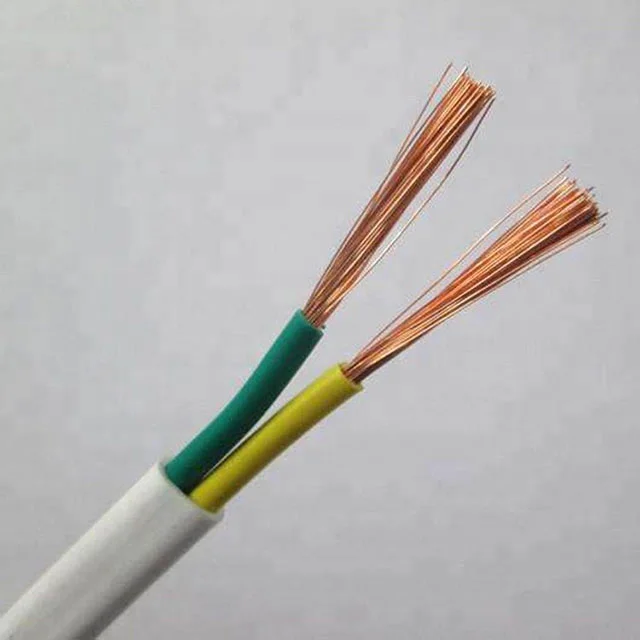

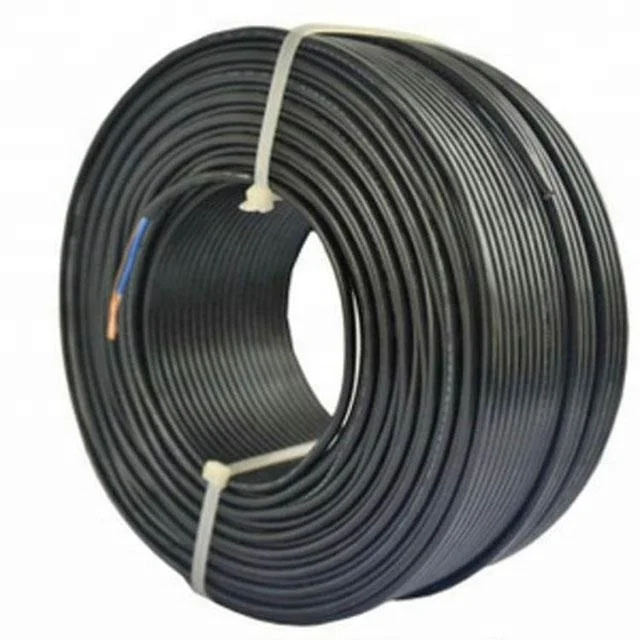

Flexible Flat Copper PVC 2x1.5 Cable

Standard

IEC 60227-5: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - Part 5, Flexible cables (cords)

Application

This flexible flat copper pvc 2x1.5 cable is used in movable applications of rated voltage 600/1000V and below such as electrical appliances, lighting, house decoration. Flame retardant and fire resistant cable is also available.

Product Details

1) Conductor: class 5 annealed copper, 30/0.25 mm

2) Insulation: PVC, 0.7 mm

3) Number of cores: 2

4) Core color: red, blue or as per customer's requirements

5) Outer sheath: PVC, 0.8 mm

6) Sheath color: white, black or as per customer's requirements

6) Overall dimension: 7.8*4.8 mm

7) Net weight: 65 kg/km

8) Max. DC resistance @ 20℃: 13.3 Ω/km

9) Max. working temperature: 70 degrees

10) Features: oil resistance, flame retardant, fire resistance
