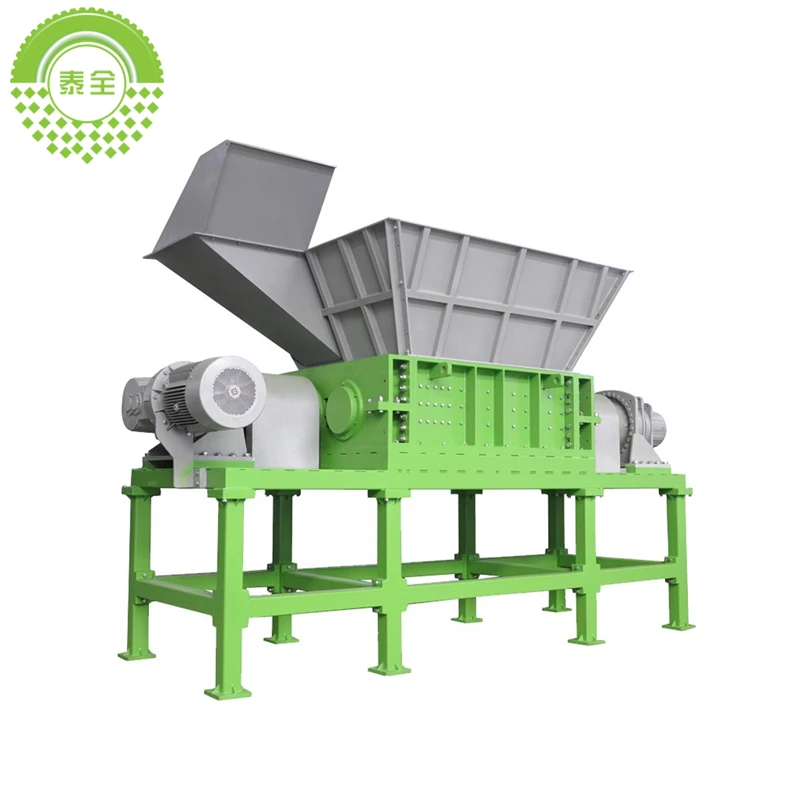

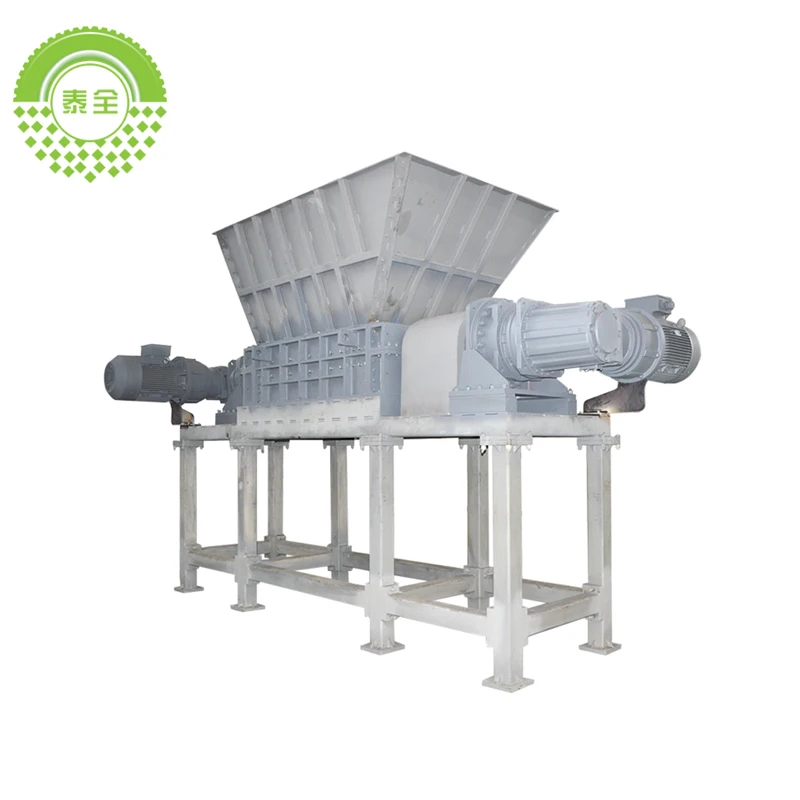

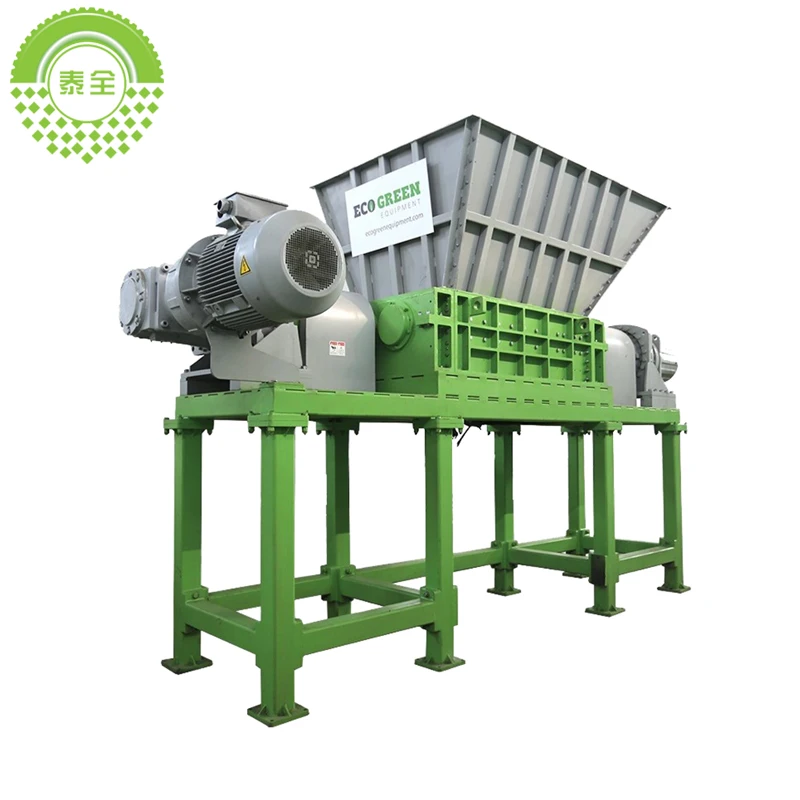

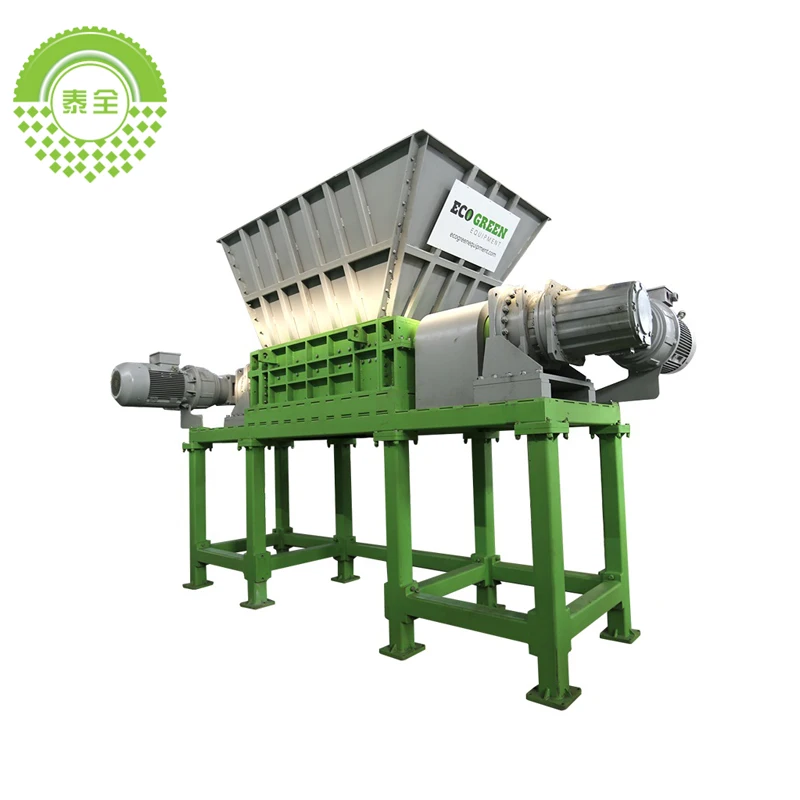

Shredder Manufacturers Supplier Tire Cutting Crushing Recycling Plant Machine
- Category: >>>
- Supplier: Wuxi Dura-Shred Recycling Technologies Co. Ltd.
Share on (60809090852):
Product Overview
Description
Manufacturers Supplier Tire Cutting Crushing Recycling Plant Machine
Product Description
| Equipment Specifications -shredder | |||||||
| TSD2471 | TSD1663 | TSD1651 | |||||
| Motor Specifications | Electric | Electric | Electric | ||||
| Number of Motors | 2 | 2 | 2 | ||||
| HP | 55KWX2 | 45KWX2 | 37KWX2 | ||||
| Voltage | As per customer request | ||||||
| Cutting Chamber | Split Chamber | Split Chamber | Split Chamber | ||||
| Large Blade Thickness | 75mm | 75mm | 75mm | ||||
| Small Blade Thickness | 40mm | 40mm | 40mm | ||||
| Blade Diameter | 754mm | 542mm | 542mm | ||||
| Cutting Chamber L*W | 1804X1410 | 1604X858 | 1304X858 | ||||
| Equipment Dimensions | 5876x2310x3493 | 5464x2624x3040 | 4280x2206x2492 | ||||
| Equipment Weight | 22400kg | 13700kg | 12500kg | ||||
| Hopper Opening | 3711x2438x1046 | 2835x1628x770 | 2335x1628x770 | ||||
| Capacity | 15-20t/h | 10-15t/h | 5-10t/h | ||||
| Product Size Range | 40mm-75mm | 40mm-75mm | 40mm-75mm | ||||
| Equipment Specifications -shredder | |||||||||
| TSD1347 | TSD1340 | TSD1332 | TSD832 | ||||||
| Motor Specifications | Electric | Electric | Electric | Electric | |||||
| Number of Motors | 2 | 2 | 2 | 2 | |||||
| HP | 22KWX2 | 22KWX2 | 15KWX2 | 7.5KWX2 | |||||
| Voltage | As per customer request | ||||||||
| Cutting Chamber | intact Chamber | intact Chamber | intact Chamber | intact Chamber | |||||
| Large Blade Thickness | 40mm | 40mm | 40mm | 40mm | |||||
| Small Blade Thickness | / | / | / | / | |||||
| Blade Diameter | 450mm | 450mm | 450mm | 284mm | |||||
| Cutting Chamber L*W | 1204X686 | 1004x686 | 804x686 | 804x460 | |||||
| Equipment Dimensions | 4092x1416x2163 | 3892x1416x2163 | 3327x1030x2075 | 2796x1256x2311 | |||||
| Equipment Weight | 6300kg | 5800kg | 4700kg | 2000kg | |||||
| Hopper Opening | 1521x1416x695 | 1321x1416x695 | 1120x1257x800 | 1120x1256x800 | |||||
| Capacity | 3-5t/h | 2-3t/h | 1-2t/h | 800-1000kg/h | |||||
| Product Size Range | 40mm chips | 40mm chips | 40mm chips | 40mm chips | |||||
Related Products
Company profile
Workflow
Product packaging
FAQ
1 Warranty: 1 year warranty for main parts, 20 years for the heavy duty machine.
2 After sale service: 2 or 3 engineers will be sent to help install the machines.
3 Turn-Key service, available to handle all the work including shipment, customs clearance, etc.
4 Modern European and American technologies (Eldan, Granutech) supported by our engineers who ever worked in German company for 5 years, and 17 years in this industry.
5 Customized solutions: we design by your requirements, until you are satisfied.
6 Super great quality control system: SIEMENS, ZWZ, FAG..., details can be guaranteed in the contract!
7 After sale: Profits can be shared if you introduce new client to us from your market! Long-term cooperation is our target!
8 Price: at the same quality level, with our 17 years experiences, we promise you the lowest price!
