YN27C бензиновая дизельная бензиновая буровая установка

Product Overview

Description

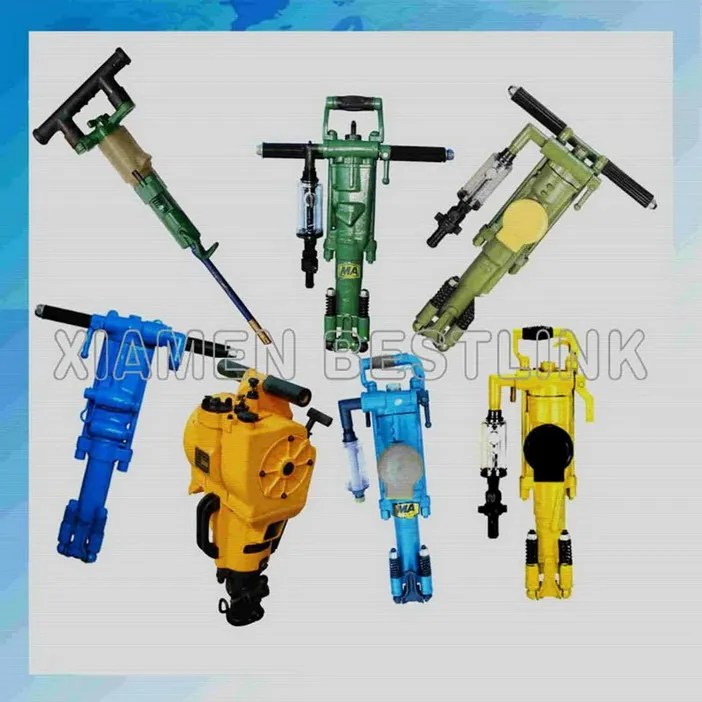

1.  Pneumatic rock drilling machine includes: Y6, Y20, Y24, and Y26(hand held), YT24 and YT28(air leg).

This type rock drills use compressed air as power, mainly used in construction sites, various types of mines, tunnel, railways, water conservancy construction and national defense construction areas for drilling operations.



YT24 YT28 pusher leg rock drills always works with support air leg, can be used for any angle drilling.

Y6, Y20, Y24, and Y26 hand held rock drills works without air leg, mainly use for downwards drilling.

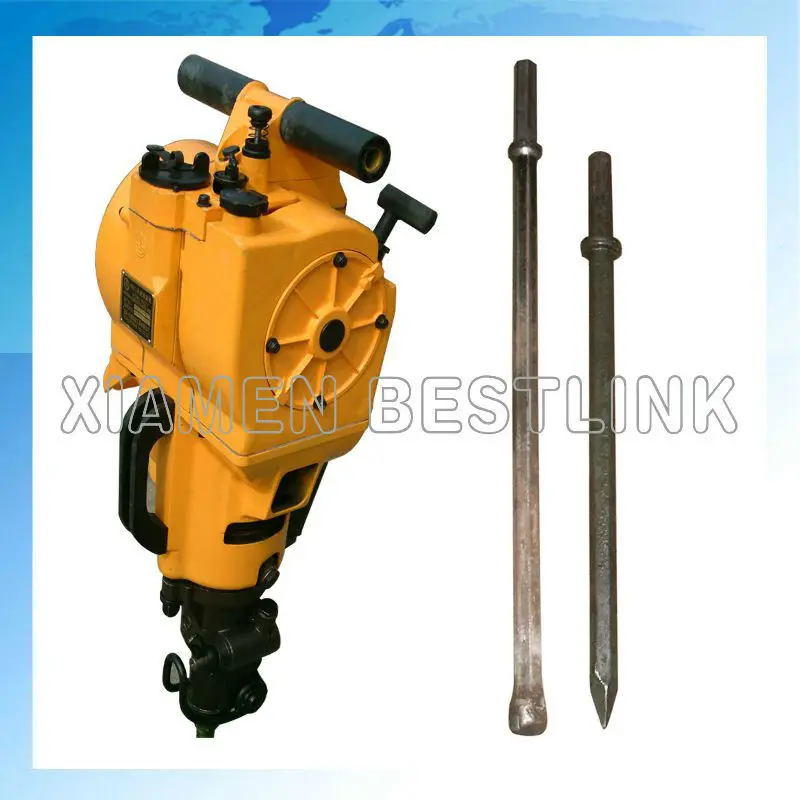

2.  Gasoline rock drilling machine includes: YN27, YN27C and YN27J.

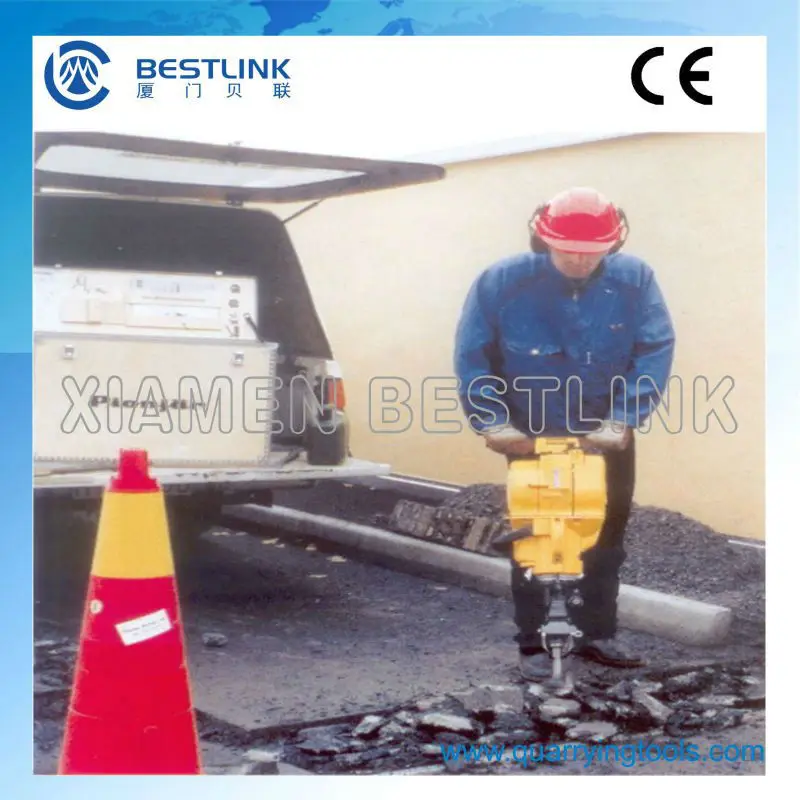

This type rock drill adapt to outside situations where there is no water, no electronic power and no air compressor. It's a kind of hand held rock drill with gasoline engine, air pump and rotation plumbum equipment for running or stop. It can be used for breaking, drilling, blasting, tamping splitting and ramming.



Sansung supplied rock drilling machines have following advantages:



1. Reasonable design                            2. Light weight

3. Convinient operation                          4. High efficiency

5. Fast drilling velocity                            6. Low Air consumption

7. Long life parts etc.



Product specifications:

Type	Weight	Air consumption	Bore Dia.	Drilling depth	Air pressure
Y6	6kg	≤9.5 L/s	Φ20 mm	0.5 m	0.4 Mpa



Model	Weight	Air consumption	Length	Shank	Bore Dia.	Drill depth	Impact rate	Hose connection
	kg	L/s	mm	mm	mm	m	Hz	mm
Y20	18	26	605	22*108	30-42	3	30	16 or 19
Y24	23	≤50	604	22*108	30-42	3	34	16 or 19
Y26	25	≤60	608	22*108	30-42	3	38	16 or 19



Model	Weight	Air consumption	Length	Shank	Bore Dia.	Impact rate	Air Hose connection	Water Hose connection
	kg	L/s	mm	mm	mm	Hz	mm	mm
YT24	24	67	678	22*108	30-42	31	19	13
YT28	26	81	661	22*108	30-42	37	25	13
