With Good Quality at Comepititiv Europe MINI GX6621 DVB-S2 Digital Satellite TV Receiver IPTV Powervu FTA satellite receiver
Product Description
1.
Key Features:
m DVB-S2 / DVB-S Compatible
m True-color OSD and 2D graphics accelerator, anti-flicker filter supported
m MPEG4, H.264, H265 ,MPEG-2,JPEG/MJPEG/AVS, AVS plus Video Decoding
m AC3,DD+,AAC,HE-AAC,MP3,MPEG1/II Audio Decoding
m version 1.4, HDCP revision 1.2
m Video Resolution:1080P/1080i/720p/576P/576i/480p/480i
m All of the PAL and NTSC analog TV standards supported
m Media Player Support MP4,AVI,MKV,FLV, MPG, VOB, DAT,TS etc
m 2*USB 2.0, Support PVR/Timeshift/Multi-Media Player
m Strong Memory:Up to 100 Satellites,1000TP & 5000 Channels
m Support DiSEqC1.0/1.1/1.2/USALS
m 10M/100M Ethernet RJ-45 Port
m Supports fast channel blind
m TKGS WiFi 3GYouTube Weather IPTV YouPron Hotstar supported
m Patch:irdeto viaccess Nagravison cryptworks biss powervu(auto) supported
m IKS Protol: Newcam Wecam
2. Specifications
System
CPU | GX6621, 32-bit CK610M CPU 600MHZ |
Flash | 64M-bit Serial Flash/128M-bit Serial Flash |
RAM | 1024Mb DDR2 RAM/2046Mb DDR3 RAM |
Tuner | AV2018 |
Video and Audio
Video Standard | MPEG-2 MP@ML,MP@HL,MPEG-4 H.264/AVC |
Video Mode | 576i, 576p,720p, 1080i, 1080p |
Audio Standard | MPEG-1 layer I/II ,MP3 decoding,MPEG4, H.264, H265 AVS, AVS plusHD AAC and HE-AAC(AAC Plus) decodingDD and DD+ Optional |
Tuner and Demodulator
Type | DVB-S2[EN302 307], DVB-S[EN300 421] | |
Frequency Range | 950 ~ 2150MHz | |
RF Input Level | -60 ~ -25dBm | |
Transmission Mode | ISO/IEC 13818-1 MPEG-2 Transport stream Specification | |
Symbol Rate | DVB-S mode | 1 ~ 45MS/s |
DVB-S2 mode | 1 ~ 30MS/s | |
Demodulation | DVB-S mode | QPSK |
DVB-S2 mode | 8PSK, QPSK 16APSK 32APSK | |
Code Rate | DVB-S mode | 1/2, 2/3, 3/4, 5/6, 7/8 |
DVB-S2 mode | 1/2, 3/5,2/3, 3/4, 4/5,5/6, 8/9,9/10 | |
Power Supply
Input Voltage | DC-12V 1A |
Operating Power Consumption | Max. 12W |
Standby Power Consumption | Max. 1W |
IR Front Panel
Display | 4 Digital 7 Segment LED Display |
Indicator | Red: Standby ,Green: Run |
Buttons | NO |
USB | NO |
Rear Panel
RF Input | F Type Female 75ohm |
RF Output | NO |
IR Extension | 1 × Earphone |
AV Out | 1 x Jack |
SCART | NO |
S/PDIF | NO |
|
|
USB | 2 x USB2.0 |
Ethernet | NO |
DC Input | 1 x Jack |

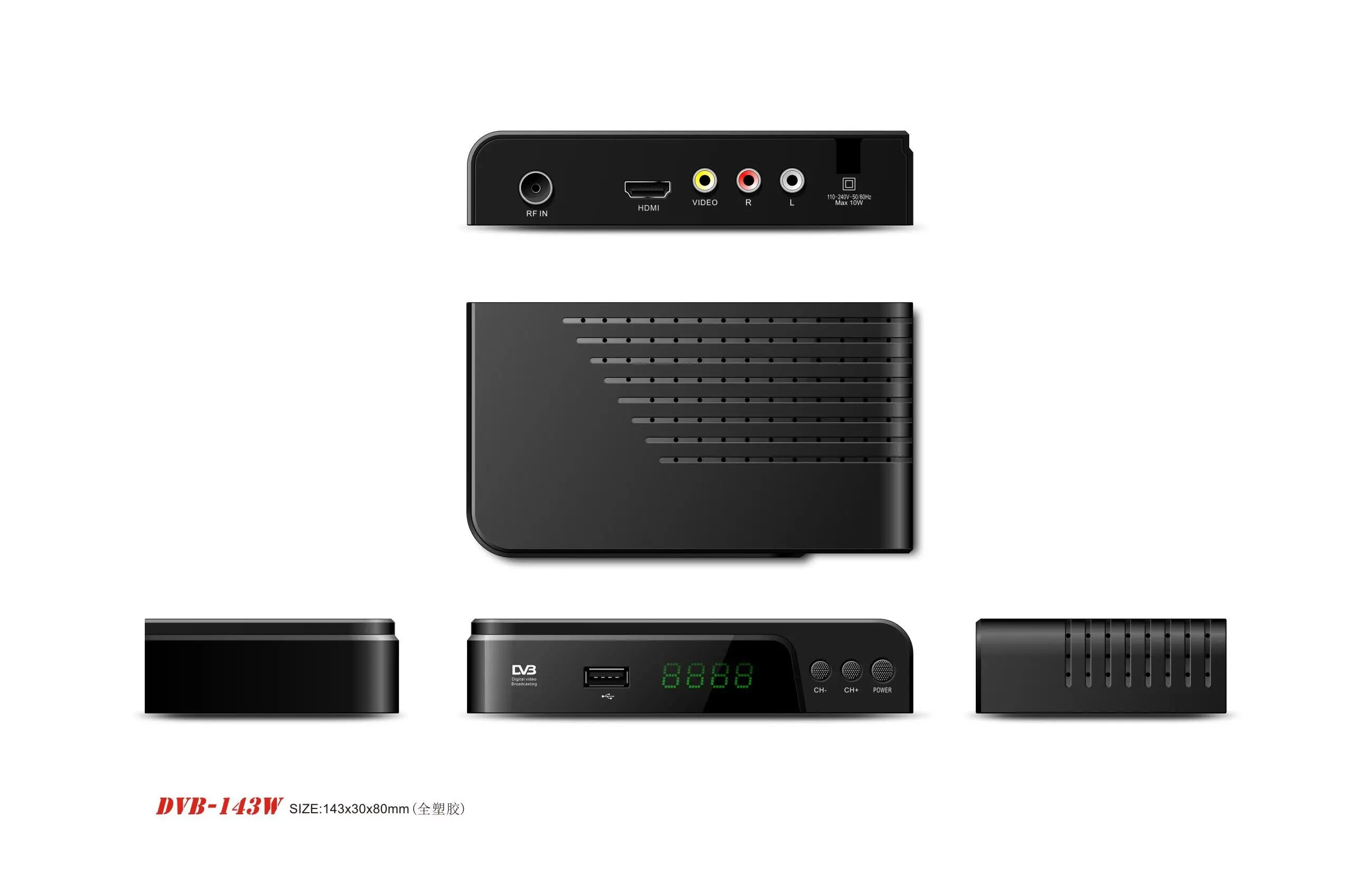

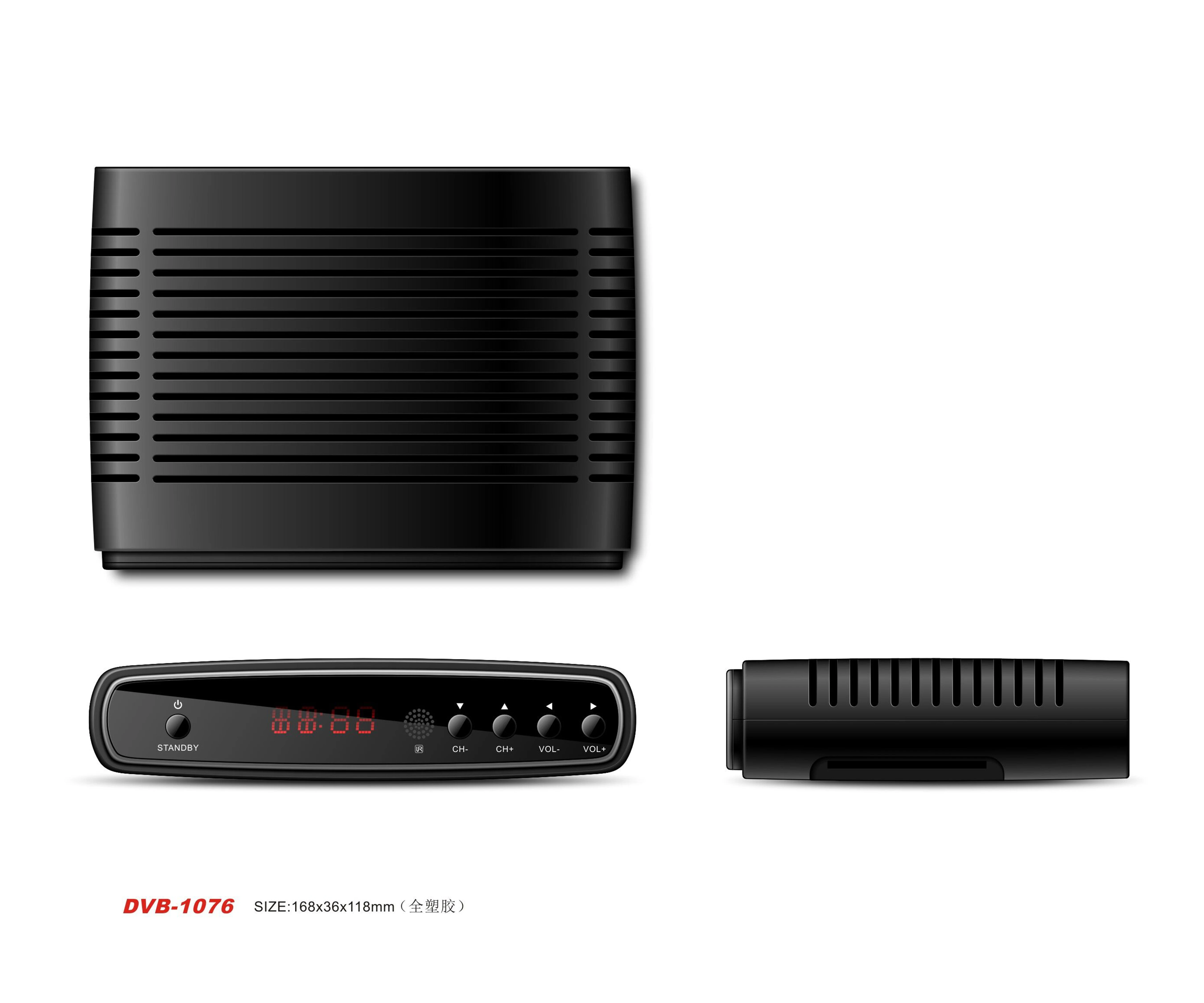

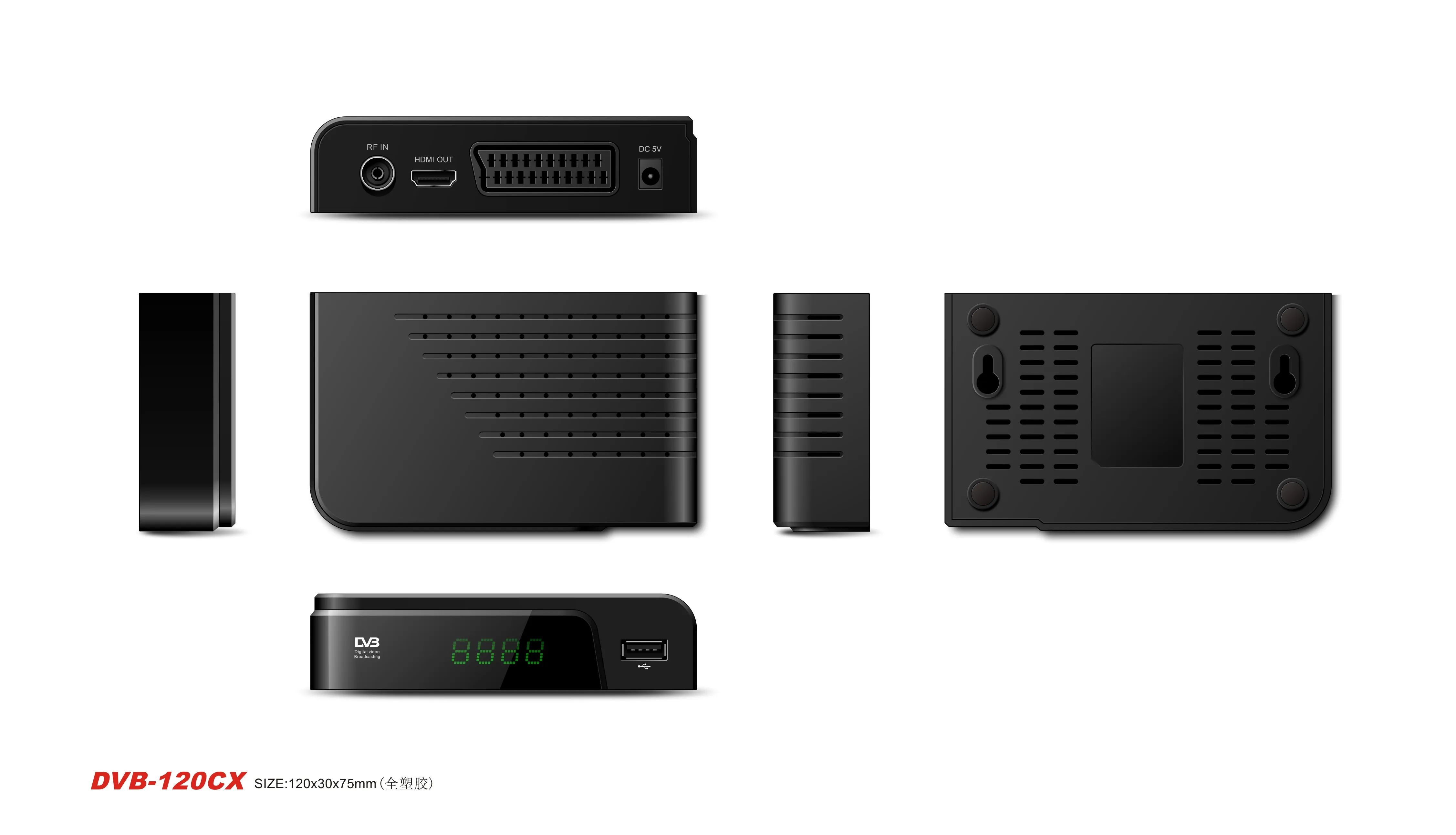

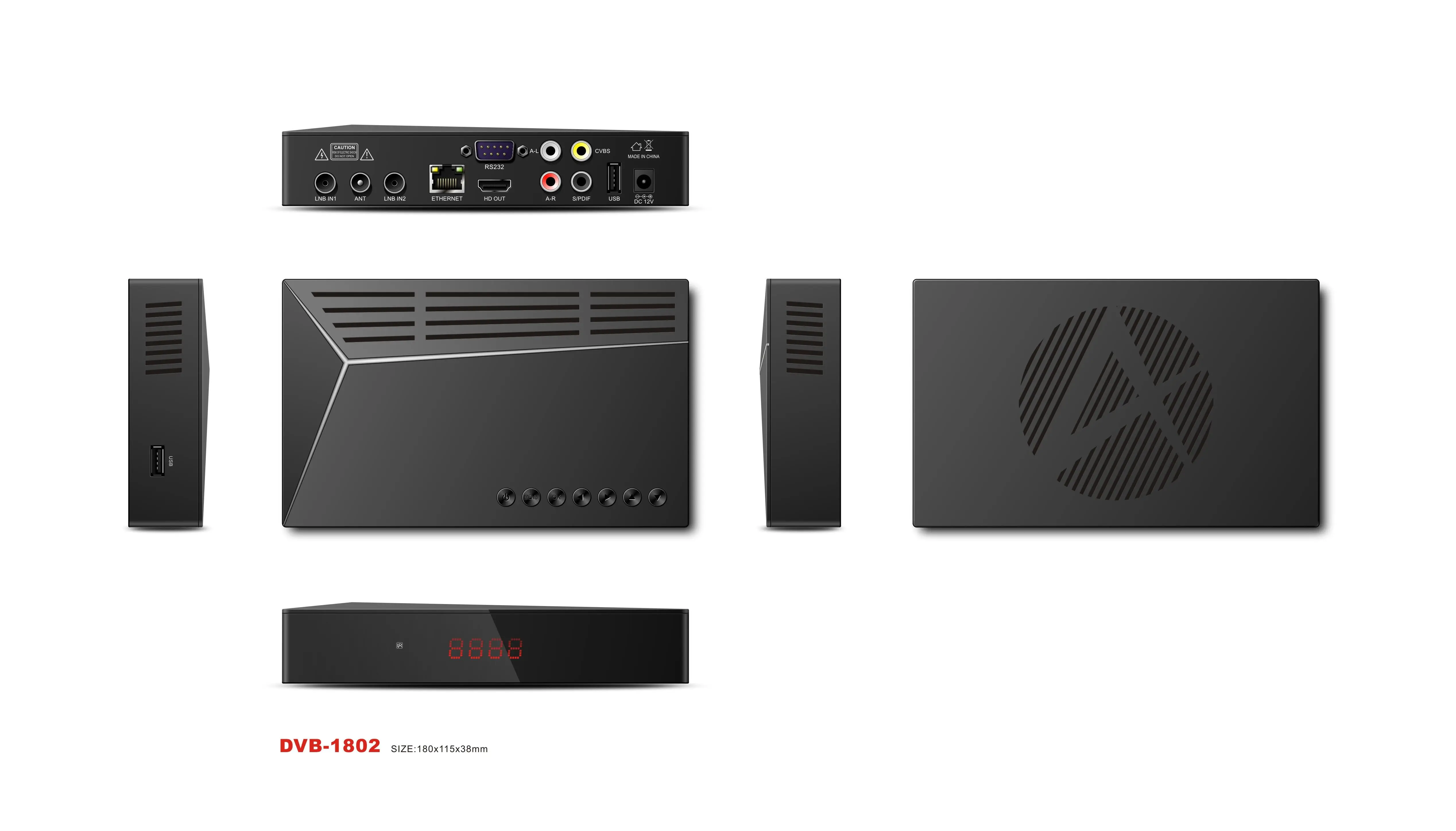

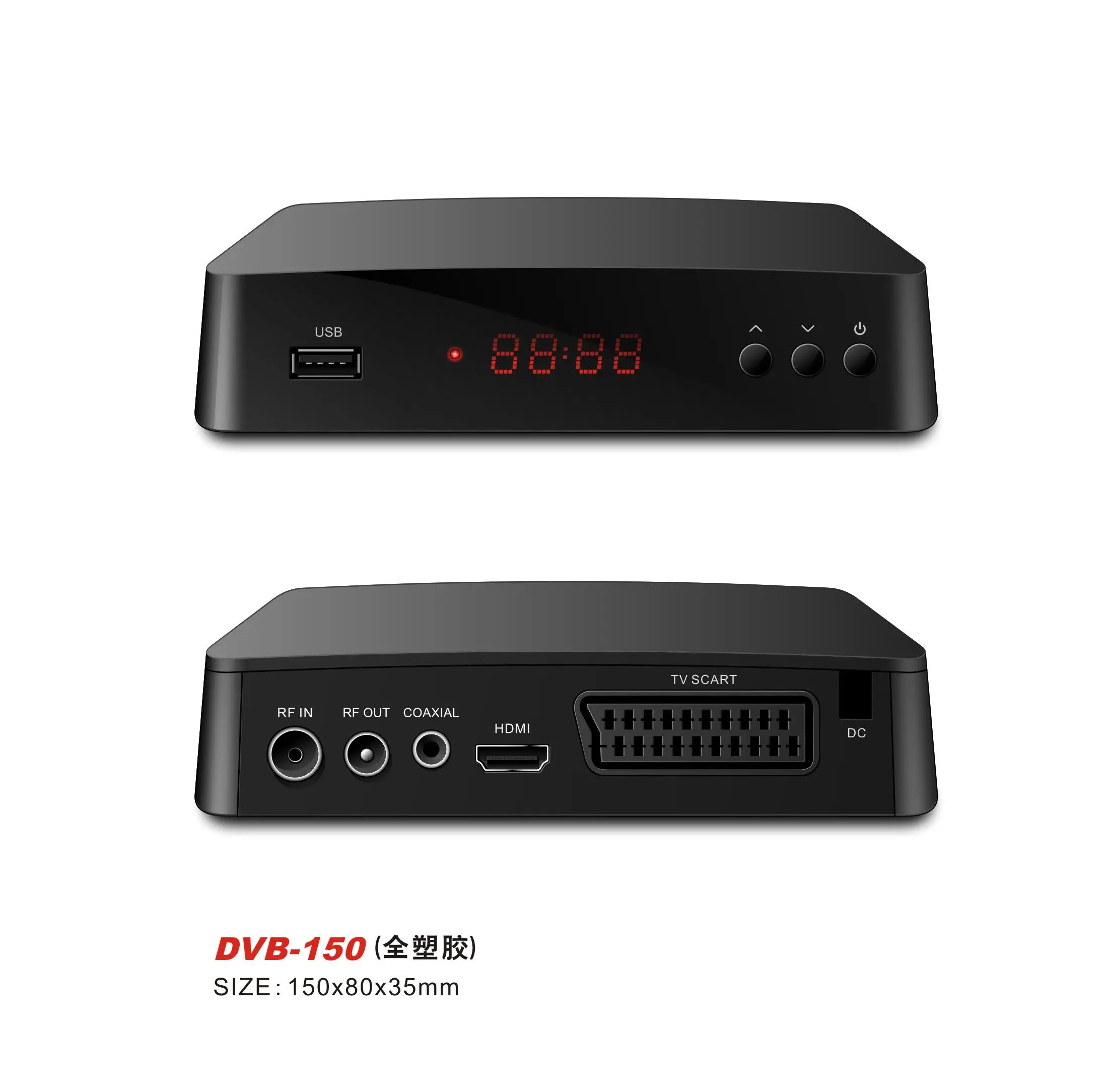

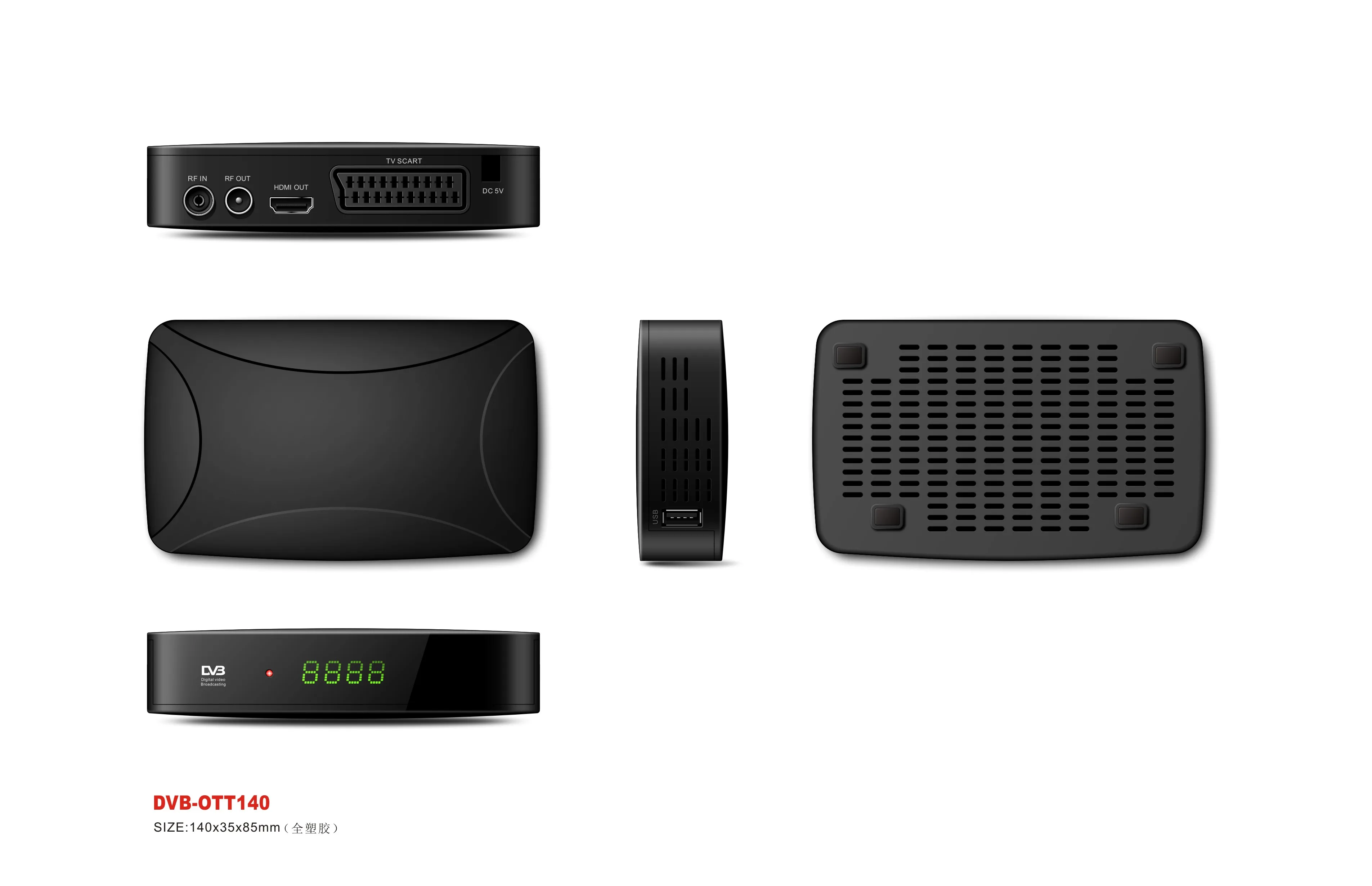

Product show
User interface

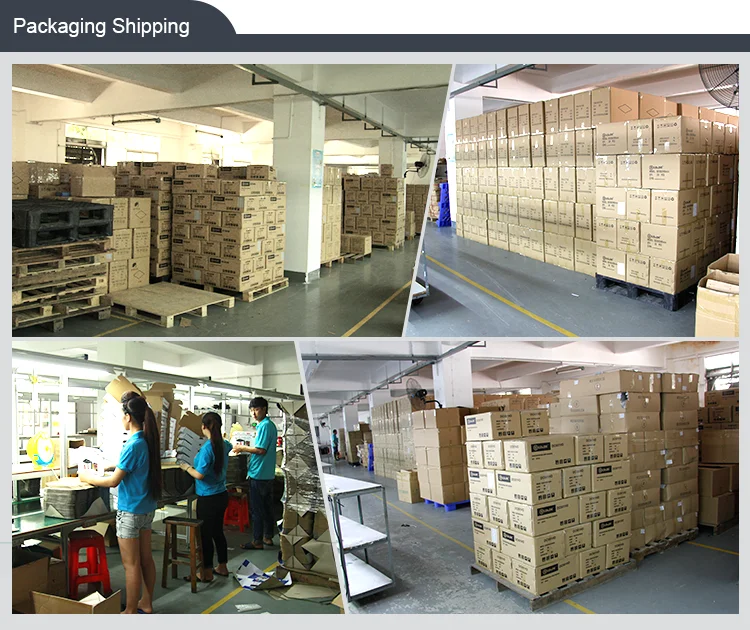

Packaging & Shipping
Our Company
Indasina Technology Co., Ltd., a group corporation composed of factories, is committed to a variety of electronic products and solutions with strong R&D Team and technology back up.
Satellite Receiver System, one of our major industries, is fairly welcomed in Asia, Europe and Middle East Markets. We adopt GX(National Chip), Ali, Montage and MStar solutions for DVB-S, DVB-S2, DVB-T, DVB-T2.
By owning manufacturing and assembly facilities, we control every aspect of production process and quality. That is why we can provide our customers with unprecedented quality, reliability and all-round support. Choose us, you will gain the benefit of unparalleled technical expertise at competitive prices and the most progressive solutions available.
FAQ
Q: How long is the warranty?
A: 1-year warranty since delivered out.
Q: What's the MOQ?
A: 1pc for sample, at least 5000pcs after sample order.
Q:How about the OEM/ODM service ?
A: We provide all kinds of OEM/ODM service,eg:Logo printing on housing,Customized package,Software Customization.
Q: How long is the delivery time?
A: Sample order about 3-5 working days, bulk order about 7-15 working days.
Normally, we ship goods by sea,air and express.
. By sea to your nearest sea port for 10~15 days
. By air to your nearest air port for 5~10 days
. By express(UPS,DHL.FEDEX,TNT...) to your door for 3~6 days
Q: What methods of payment accepted?
A: 1. We can accept T/T, L/C, Western Union, Escrow and Paypal before production.
2. If you have any doubt about payment, please contact us freely.
Q: Why do you choose us?
A: Indasina Technology Co., Ltd.is a qualified DVB Kit manufacturer! We will try our best to provide the products you need, we will provide you with the most satisfactory service. If you want to Know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
