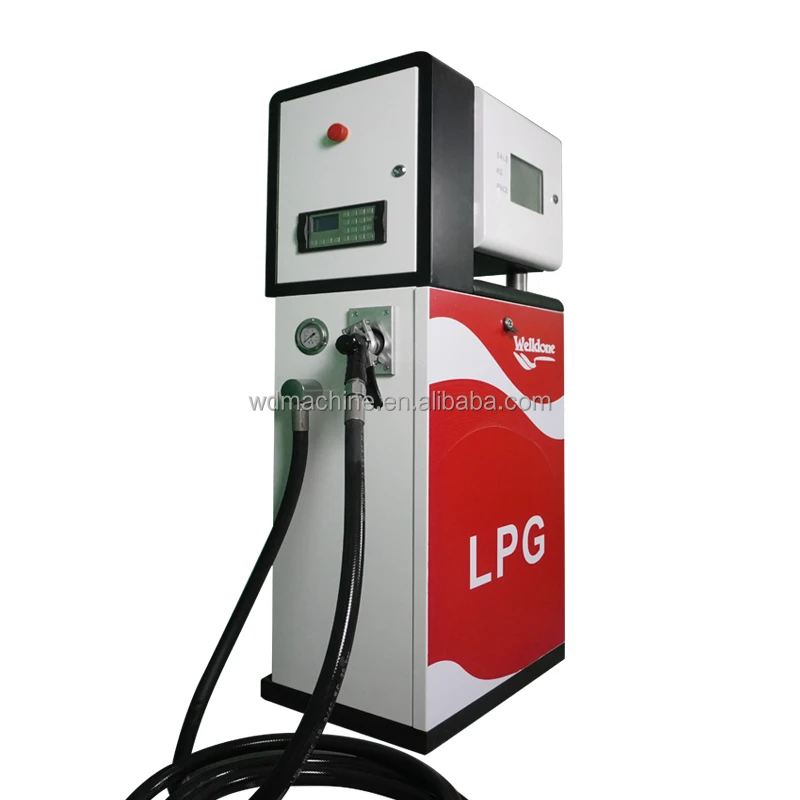

lpg dispenser price lpg dispenser LPG filling station

Product Overview

Description







WD-LPG112B

1 flowmeter+1nozzle+2displays+1keyboard

WD-LPG222B

2flowmeters+2nozzles+4displays+2keyboards



Technical Specifications:

Ambient Temperature:-40°C~+55°C

Humidity:30%~90%

Air pressure:86~106KPa

Power:AC220V±20%(50Hz)

Max. flow rate: 45L/Min

Measurement precision: ±0.5%

Rated working voltage:2MPa

Density preset range:0.5000~0.6999

Gas-filling preset range:0.3~9000 Liter

Rating power:<100W

Unit price range: 0~9999,0~999999(changeable)

Single range:1~999.99,1~999999.99(changeable)

Accumulative range:0~9999999999.99

Automatic temperature compensation function

Automatic proportion adjust for butane and propane.

Electronic Calibration.

Printer(option)

Fueling times limit.

Stop fueling by integer sale.

Can set the decimal point for the display, so can be used in many country with different currency rate.

Leaves the communication ports, so it can communicate with the gas station management system.

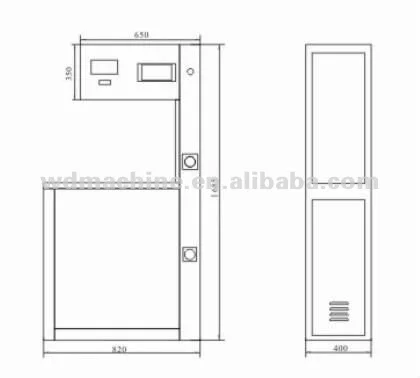

External Dimension :

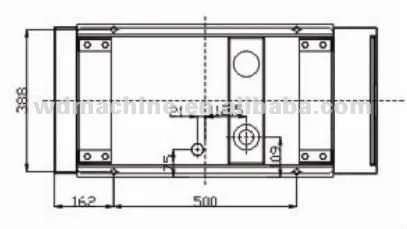

Setting dimension:



  LPG dispenser with one nozzle or two nozzles for you to choose:



Flowmeter	Nozzle	Display	Keyboard
1	1	2	1
2	2	4	2
