Product Overview
Description
4-Scales Packaging Weight Instrument, Weighing Indicator for Industrial Weighing Systems
Main Features:
² Suitable for Increment Ration Packing Scale. Optional Application Modes: Single-scale, Double-scale, Three-scale and Four-scale. Optional Packing Modes: Combination[Multi-hopper Packing], Combination[Single-hopper Packing] and Respective[Single-hopper Packing].
² EMC design with high anti-jamming capability, suitable for industrial environment.
² Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

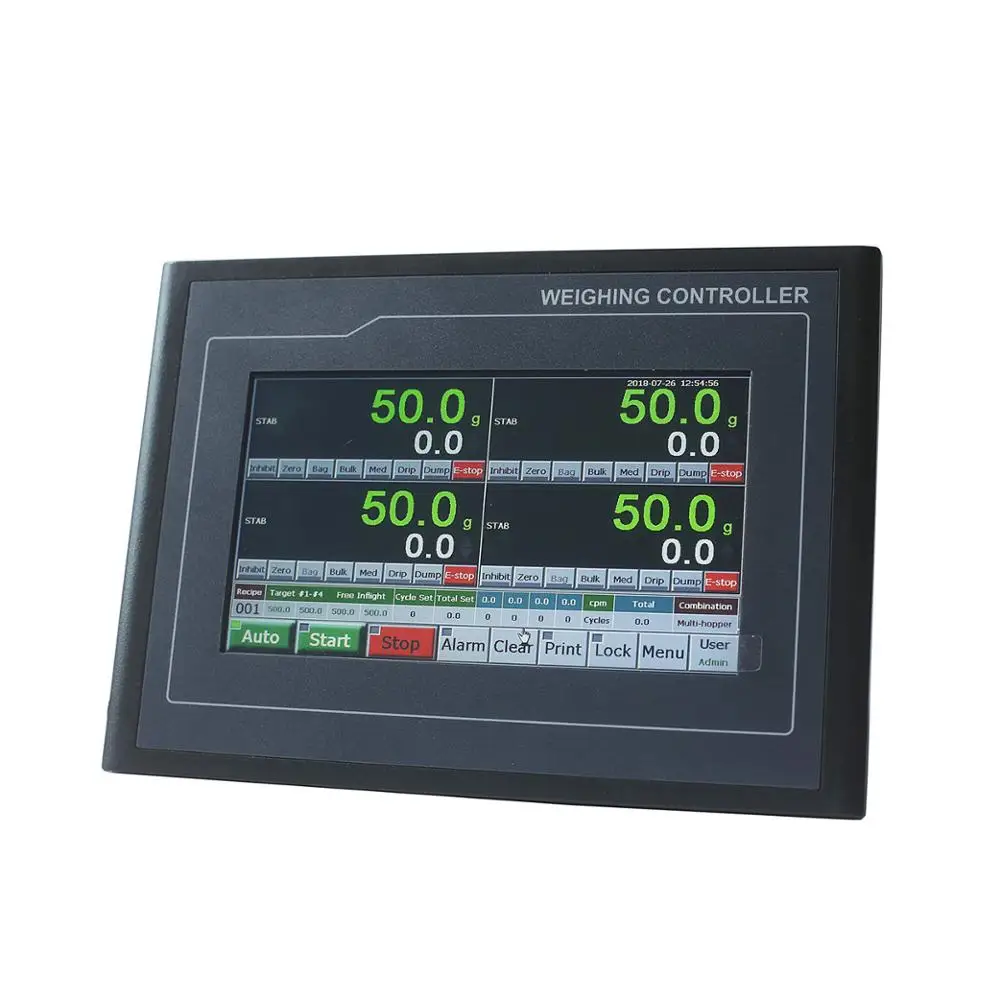

² 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

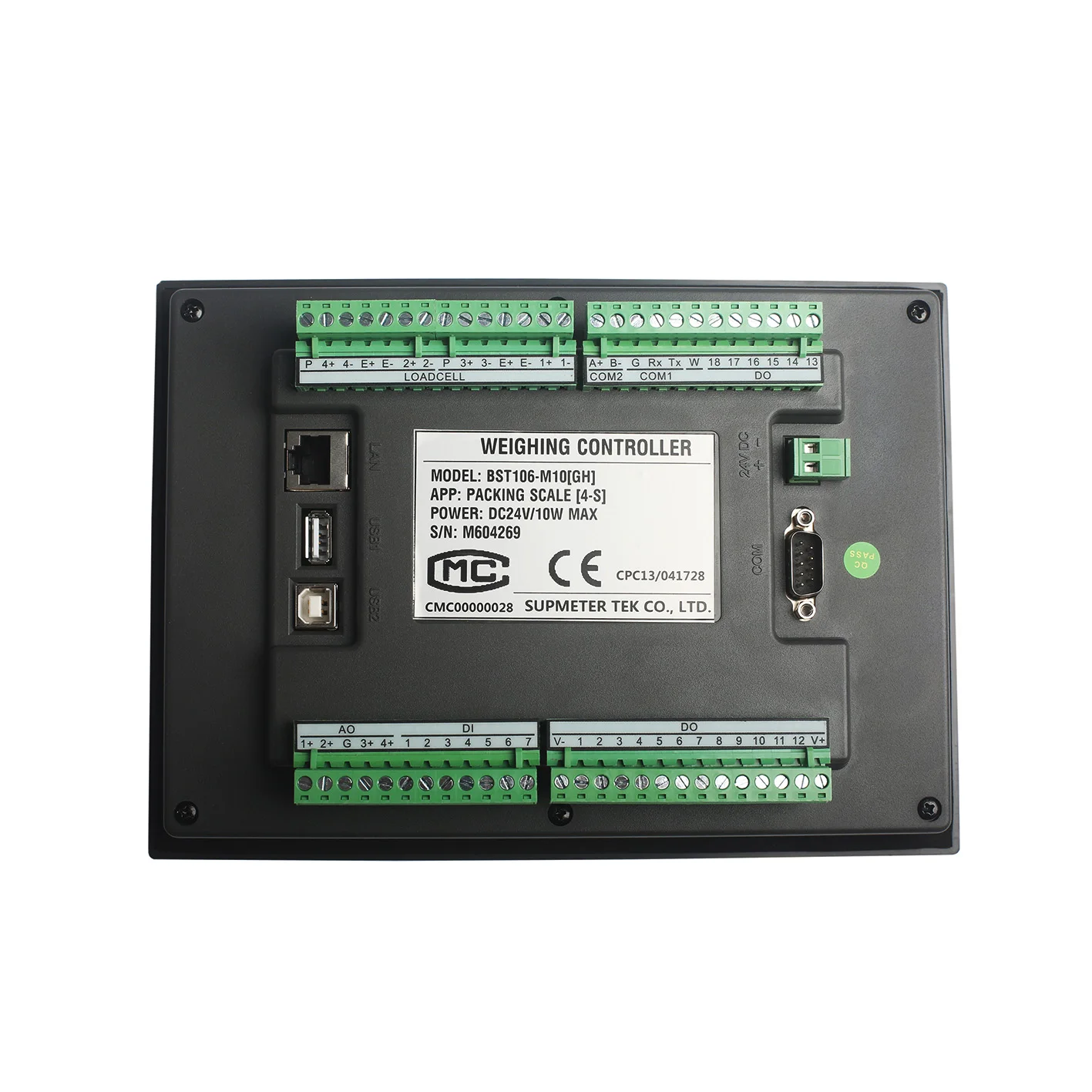

² Loadcell Interface
l 4 Loadcell ports. Max. Connection Quantity: 4×4 Loadcells (350Ω).
l 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
l Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
² I/O Interface
l 7 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
l Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
l 4 Definable analog signal AO[0~10V] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
² Digital Communication Interface
l COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
l COM[RS232] for connecting RS232 Serial Printer.
l USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
² Software Function
l Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
l Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
l Load Calibration and Loss Calibration functions available.
l 100 Recipes for packing control.
l Optional ‘Fall Value Auto Correction’ function.
l Optional ‘Auto Pause for Deviation Alarm’ and ‘Auto Re-feed’ functions.
l Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
l The present Batch Record can be printed automatically and manually.
l Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
l With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

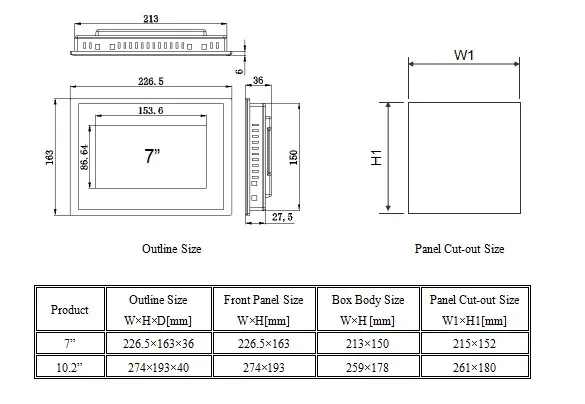

Outline Size

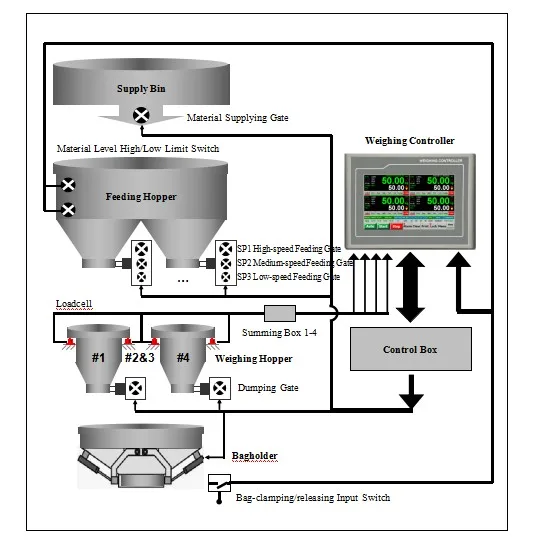

System Diagram
Packing and Delivery
4-Scales Packaging Weight Instrument, Weighing Indicator for Industrial Weighing Systems
