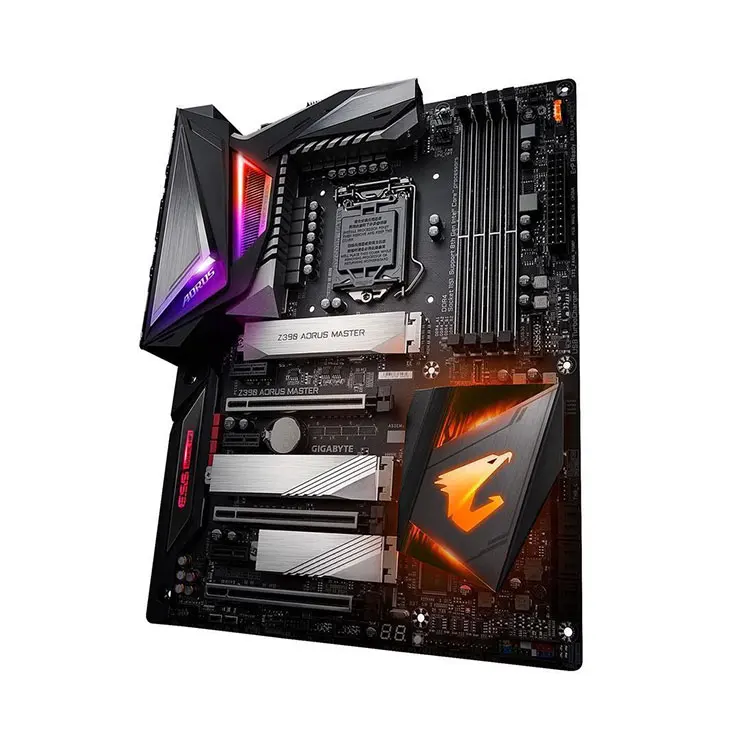

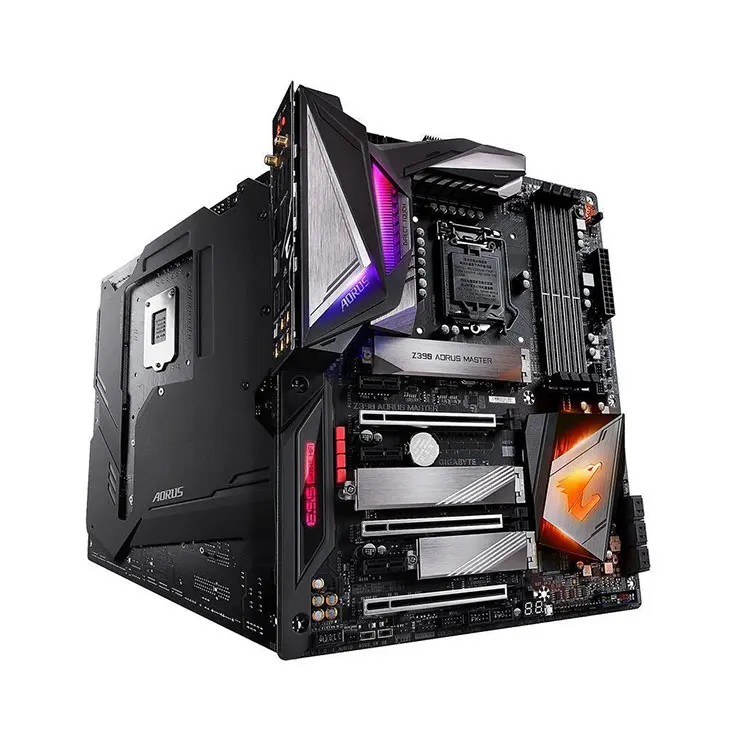

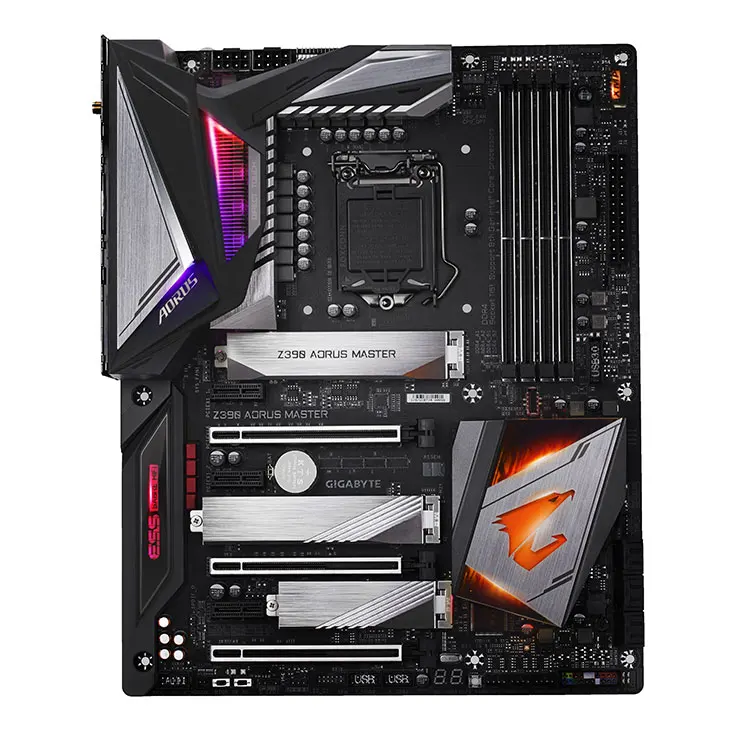

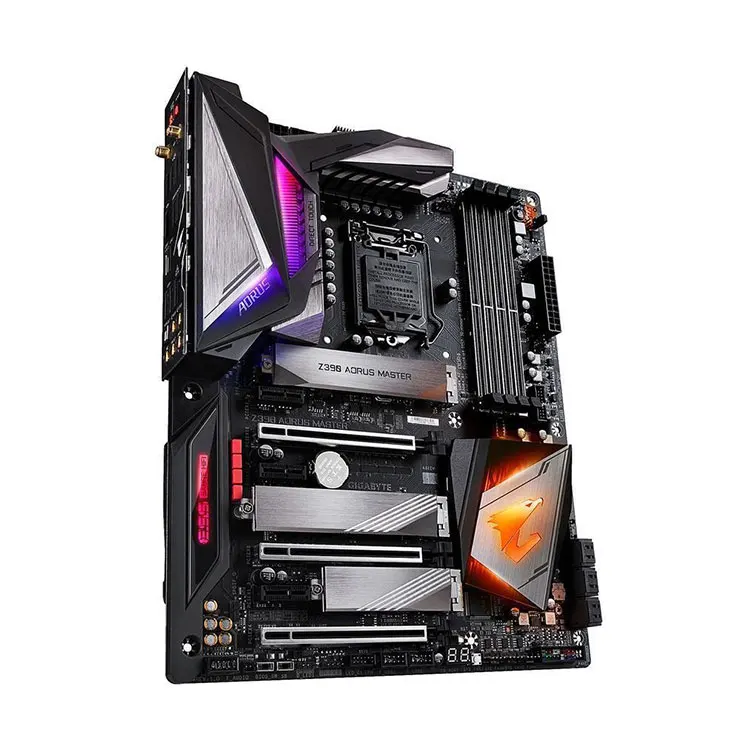

GIGABYTE Z390 AORUS MASTER 64GB DDR4 Intel i9 i7 i5 i3 ATX Gaming Motherboard

Product Overview

Description

Intel Z390 AORUS Motherboard with 12 Phases IR Digital VRM, Fins-Array Heatsink, RGB Fusion, 802.11ac Wi-Fi, Triple M.2 with Thermal Guards, ESS SABRE HIFI 9118, Intel® GbE LAN with cFosSpeed, Front & Rear USB 3.1 Gen 2 Type-C

Supports 9th and 8th Gen Intel® Core™ Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Intel® Optane™ Memory Ready

12 Phases IR Digital VRM Solution with PowIRstage

Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe

Onboard Intel® CNVi 802.11ac 2x2 Wave 2 Wi-Fi

125dB SNR AMP-UP Audio with ALC1220 & High-End ESS SABRE 9118 DAC with WIMA audio capacitors

USB TurboCharger for Mobile Device Fast Charge Support

Intel® Gigabit LAN with cFosSpeed

RGB FUSION with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Front USB 3.1 Gen 2 Type-C™ Header

Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard

USB DAC-UP 2 with Adjustable Voltage

CEC 2019 Ready, Save Power With a Simple Click

CPU

Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

(Please refer to "CPU Support List" for more information.)

Memory

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Dual channel memory architecture

Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer to "Memory Support List" for more information.)

Onboard Graphics   Integrated Graphics Processor-Intel® HD

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.

3 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI)

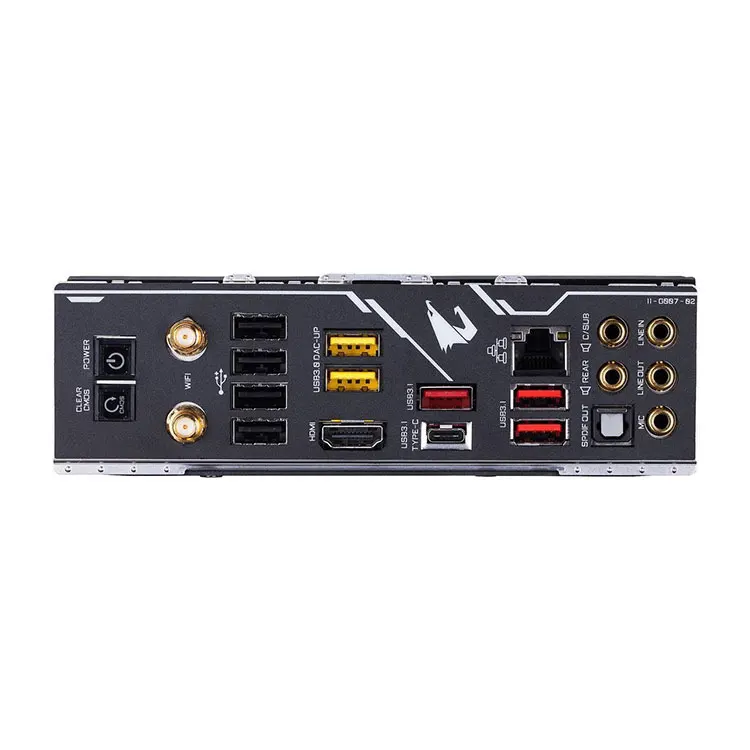

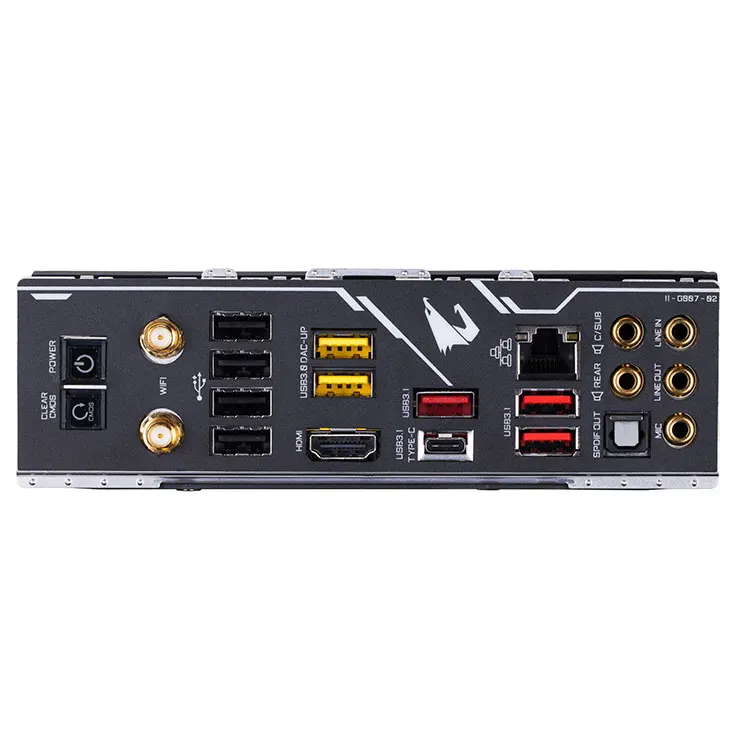

Back Panel Connectors

1 x Power/Reset button

1 x Clear CMOS button

2 x SMA antenna connectors (2T2R)

1 x High Definition Multimedia Interface port

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

3 x USB 3.1 Gen 2 Type-A ports (red)

2 x USB 3.1 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
