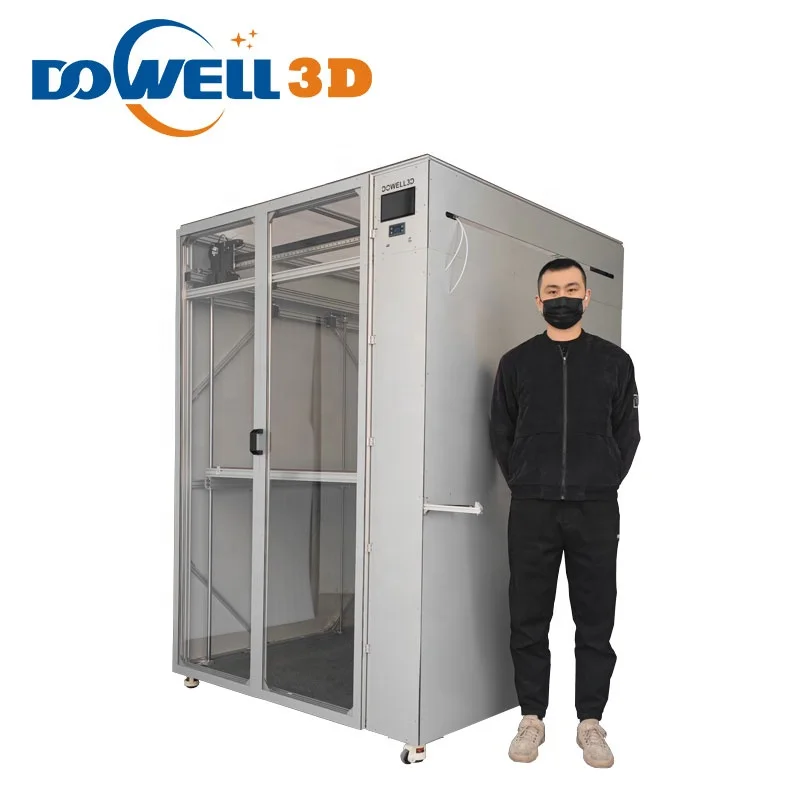

High accuracy high temperature 1000*1000*1600mm Large printing big size professional impresora 3d printer machine
- Category: >>>
- Supplier: Luoyang Dowell Electronics Technology Co. Ltd.
Share on (60809313045):
Product Overview
Description
Product Description
Model | DM10-16 | ||
Printing size ： | 1000*1000*1600mm | ||
Frame: | 40mm aluminum section | ||
Movement of X&Y axis: | High precision linear rail | ||
Movement of bed: | 4 X screw rods & 4 X roller rods | ||
Filament feeder: | Near end | ||
Printing bed: | 6mm tempered glass | ||
Heating bed: | With digital temperature controller | ||
Bed temperature: | 0-100℃ (optional 150℃ ) | ||
Nozzle size: | 0.4, 0.6, 0.8, 1.0mm | ||
Nozzle temperature | 0-420℃ | ||
Operation Interface: | 7” TFT full Color | ||
Voltage: | 110V/220V | ||
Positional accuracy: | 0.02mm | ||
Layer accuracy: | 0.04-0.6mm | ||
Slicing software: | Dowell3d / Cura / or other similar software | ||
Input format: | STL/OBJ/Gcode/JPG | ||
Filament diameter: | 1.75mm | ||
Connection: | U disk/SD Card | ||
Standard functions: | 3D/BL touch auto leveling, filament sensor, auto resume from power off, auto power off, nozzle anti-collision | ||
Customization Options: | 1. Medium extrusion flow rate extruder 2. Dual extruder 3. Dual feeder one nozzle 4. Linux operating system 5. X,Y module movement 6. Constant temperature enclosure 7. Pellet extruder 8. Printing size | ||

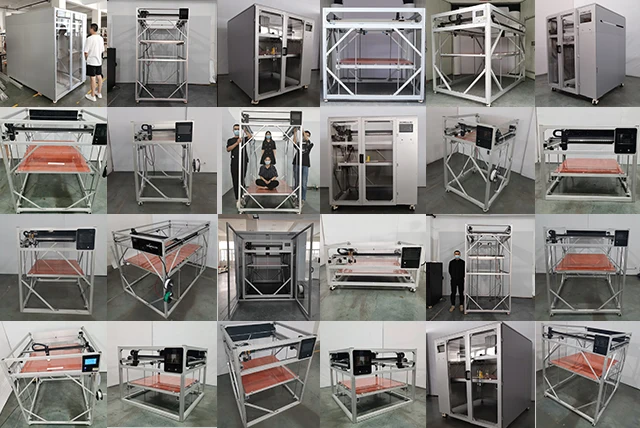

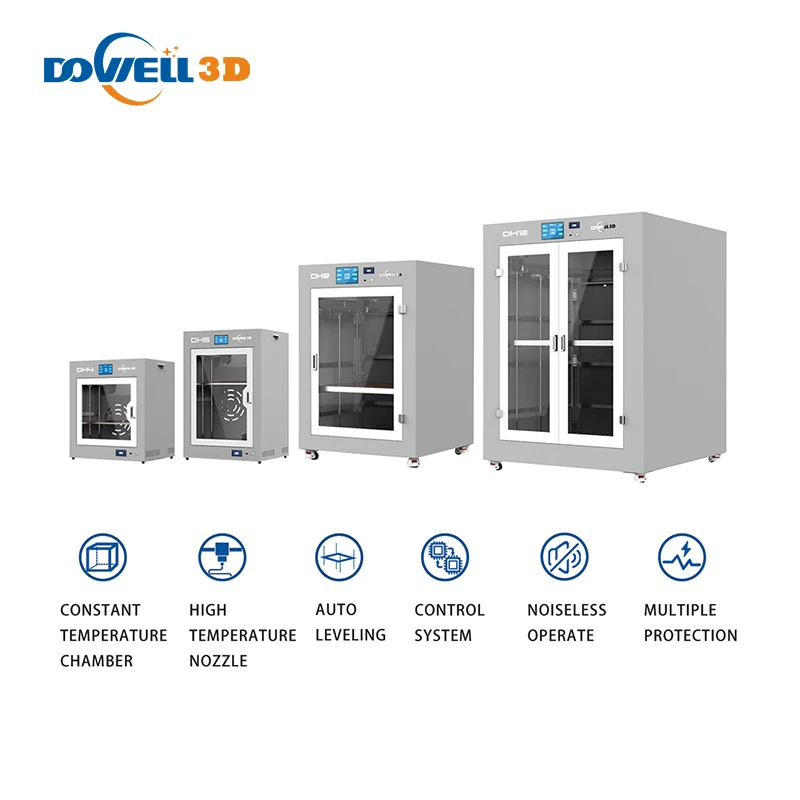

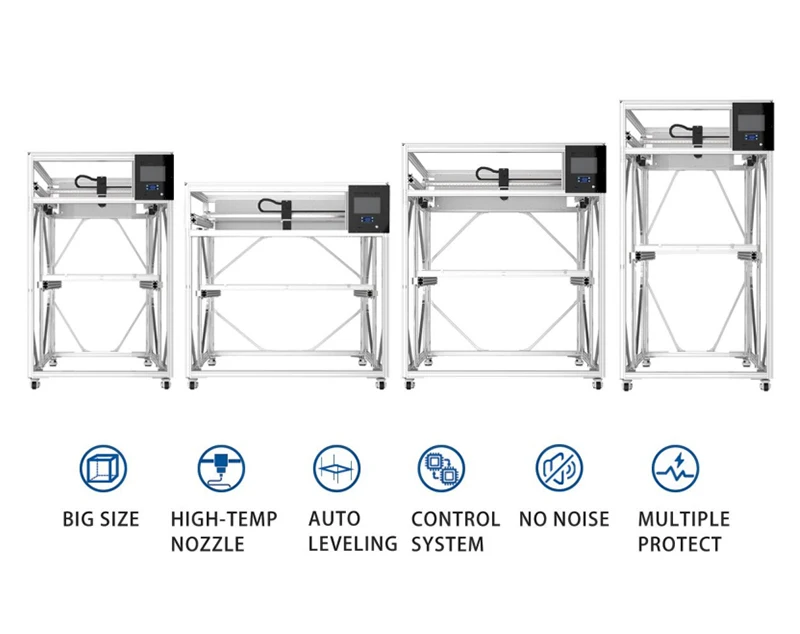

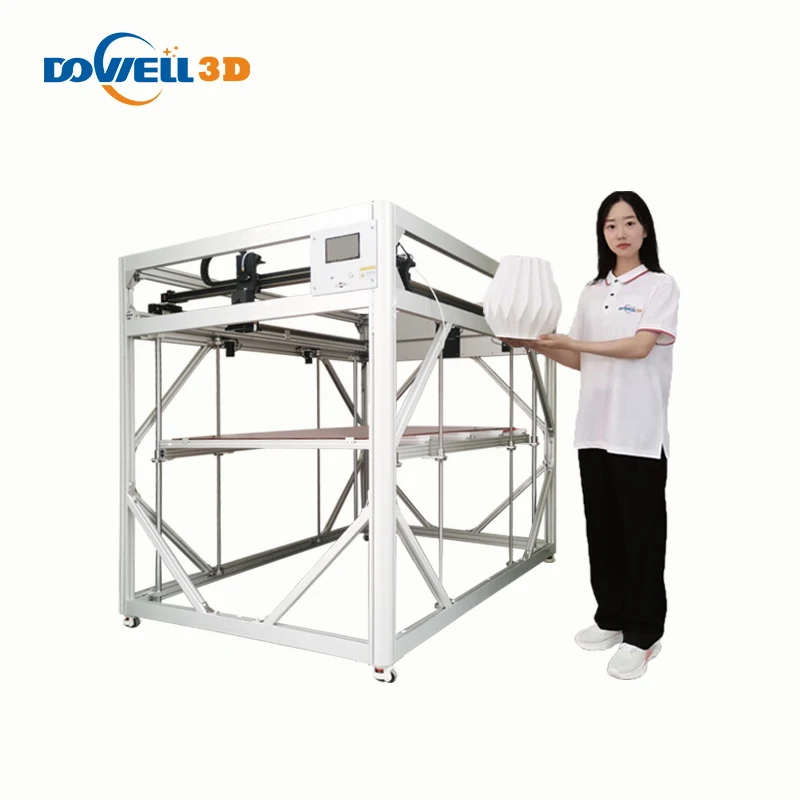

Advantages of Dowell DM series large industrial 3d printer
1, DM series Large printing size from 600*600*600mm to 1950*1200*160mm
2, High-temperature nozzle which can reach 420℃
3, Noiseless operating
4, Self-developed auto leveling function
5, High-performance motherboard
6, Proximal feeding system
3, Noiseless operating
4, Self-developed auto leveling function
5, High-performance motherboard
6, Proximal feeding system
7, Auto resume from power off
8, Filament sensor

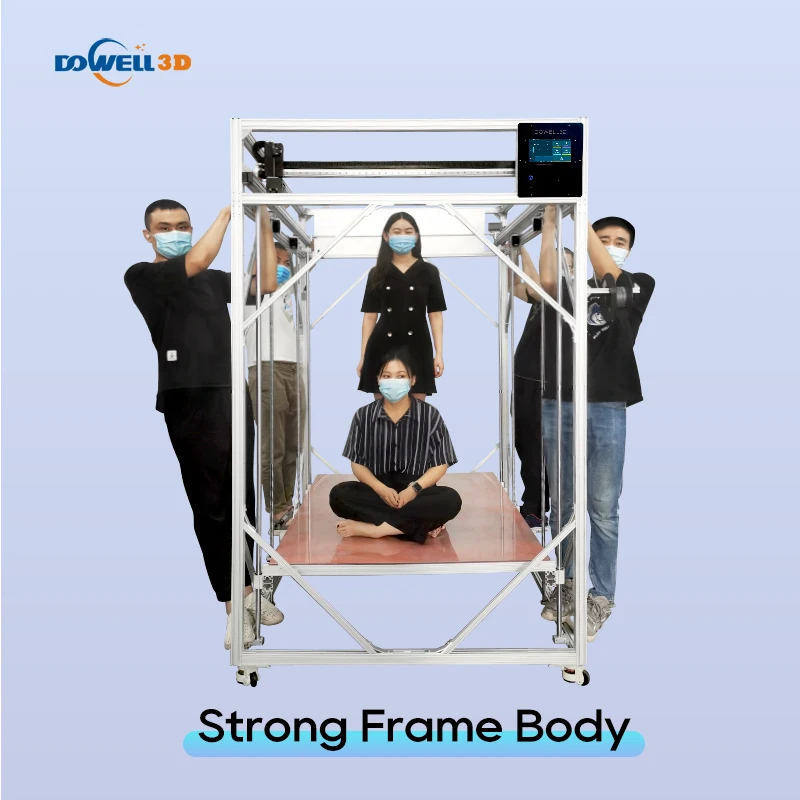

9, Strong aluminum frame body
10, 7 inch big screen
11, 100/150°c heating bed
12, Stable linear rail
13, Fast printing speed

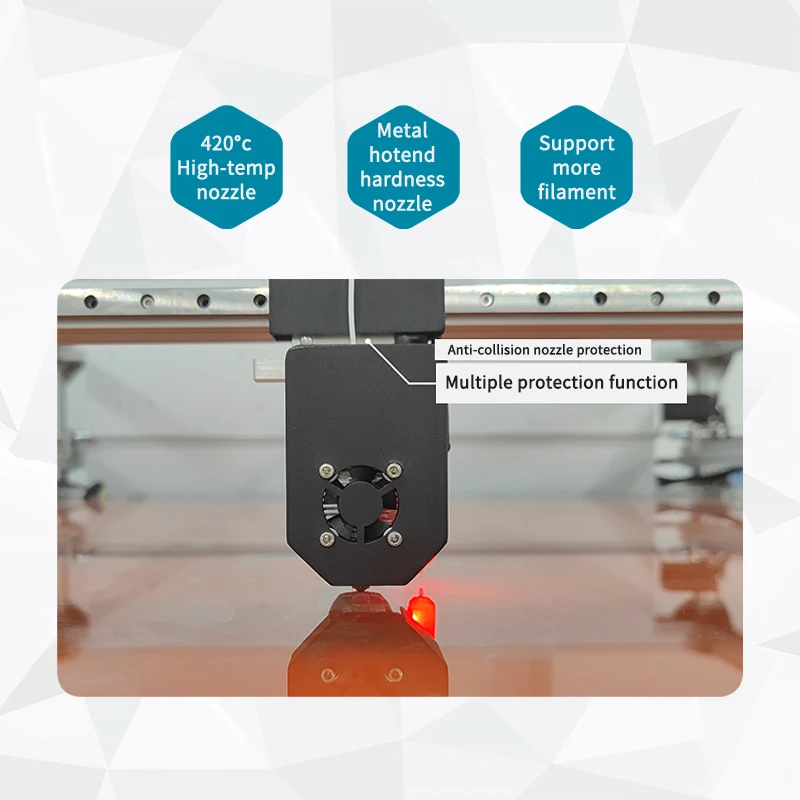

Independently developed 420°c high temperature nozzle, multiple filament printable.
Metal hotend more durable.
Silent drive & strong motor
At the same time with silent and efficient two advantages, effectively reduce work noise

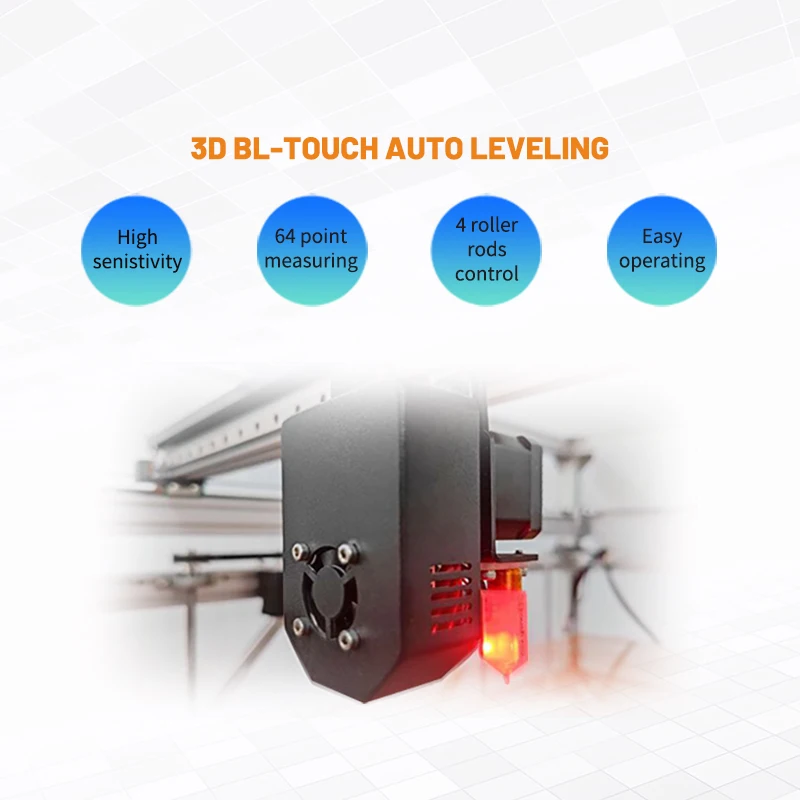

One key auto leveling help you easy operate
1. First, 4 corners auto-level independently.
2. Then 8*8=64 points on the whole bed automatic detection platform flatness. Through the independent 4 screw automatic adjustment to achieve the true automatic leveling.

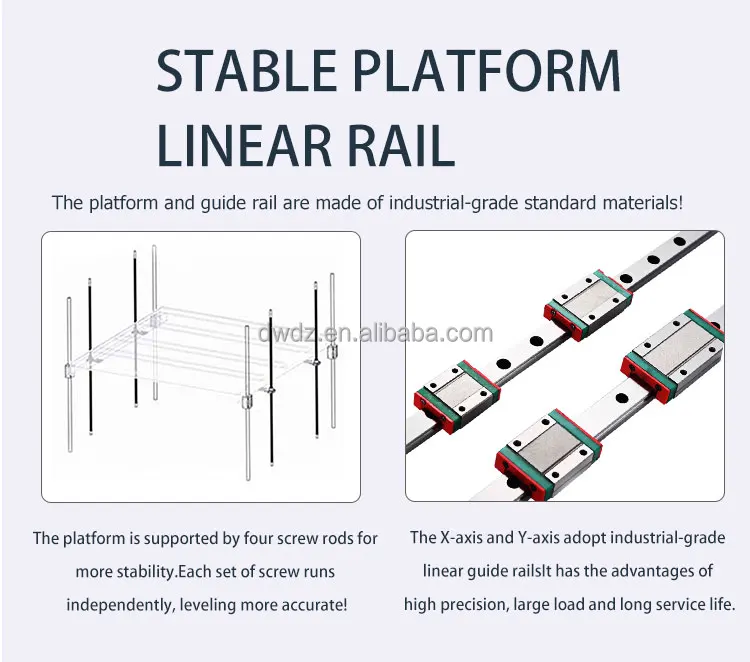

Ball screw & liner guide rails
X axis and Y axis linear guides have high accuracy and long service life.
Z-axis ball screw converts rotary motion into linear motion, with high transmission accuracy and low friction resistance, ensuring the accuracy and stability of the machine.

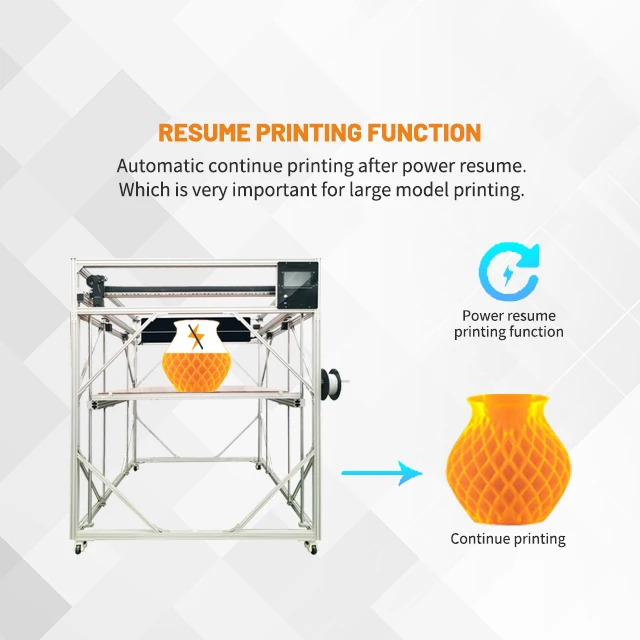

Auto resume printing from power off
The machine will continue to complete the last printing work from the point of suspension after power resume.

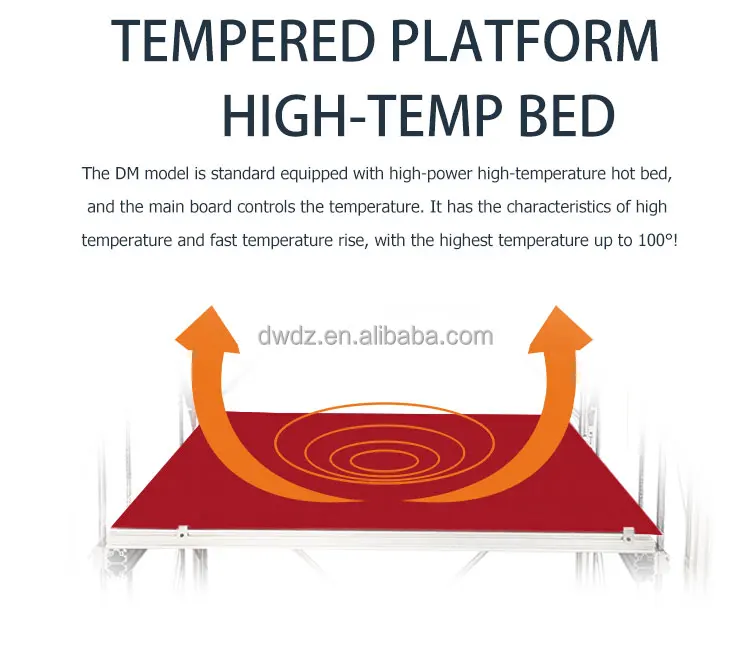

6mm tempered glass platform
Whole bed heated by silicon rubber heater evenly, precise control temperature 0-100 degrees.
Super load capacity more than hundreds kilograms

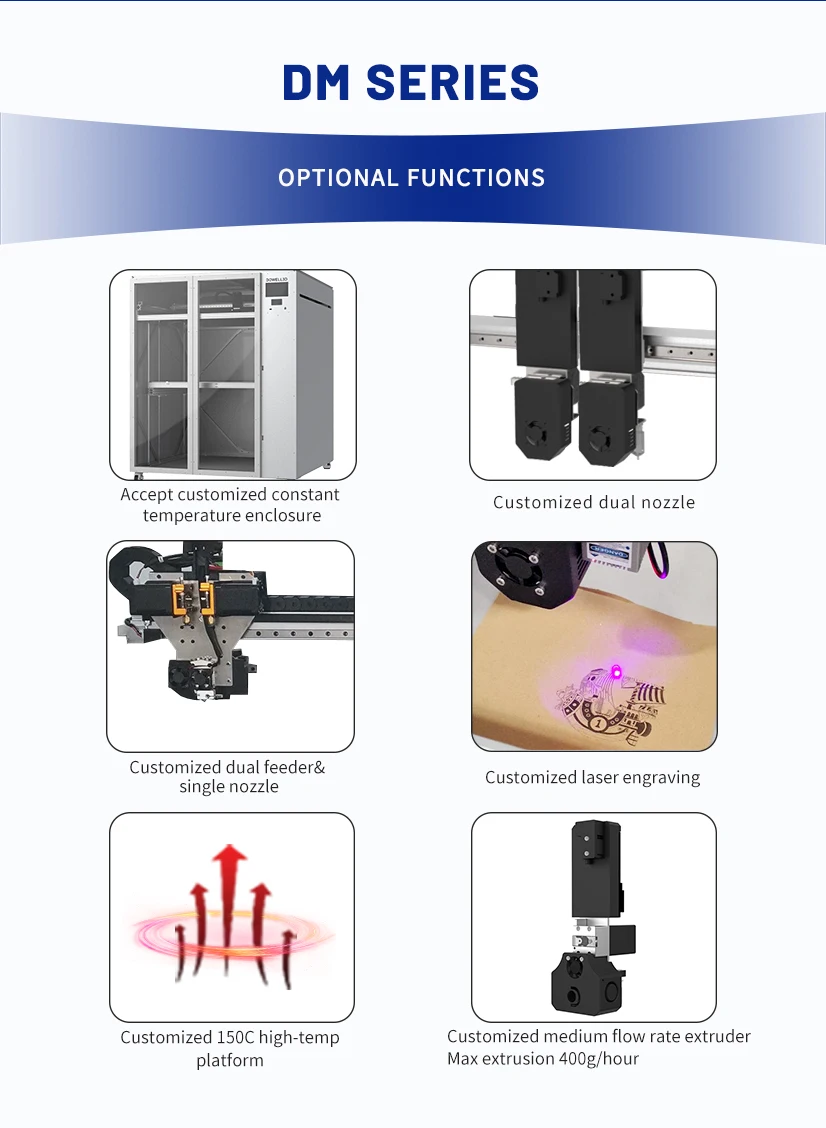

Customization Options
In addition to the basic features, Dowell3d offer customized services to add more fun to your printing work.
Customization Printing Size
Besides the standard sizes 42 models，you can also contact us to customize your preferred print size.

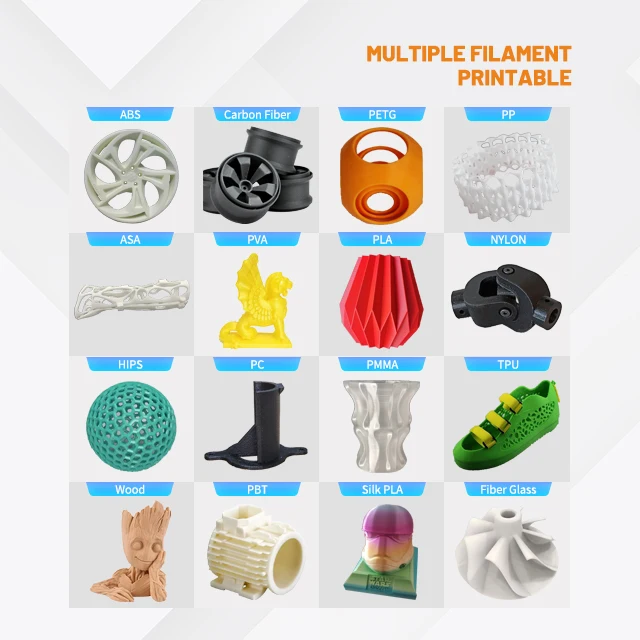

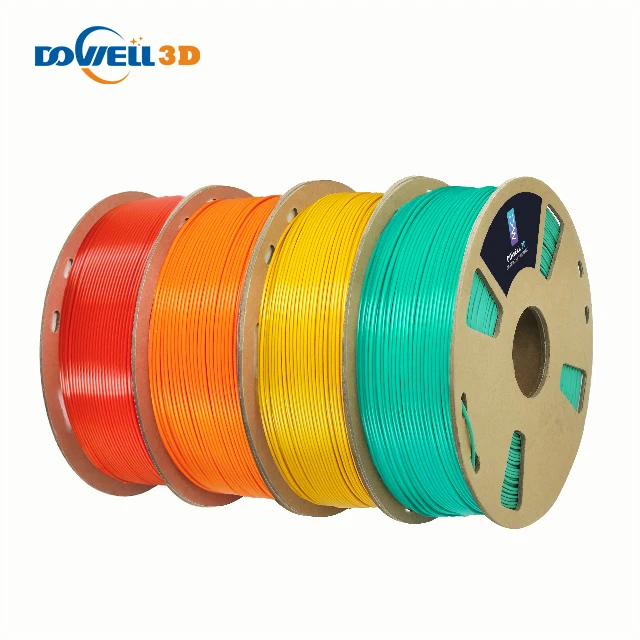

Support Filament
Dowell3D independently developed 420° high temperature nozzle with constant temperature enclosure can print a variety of filament perfectly.

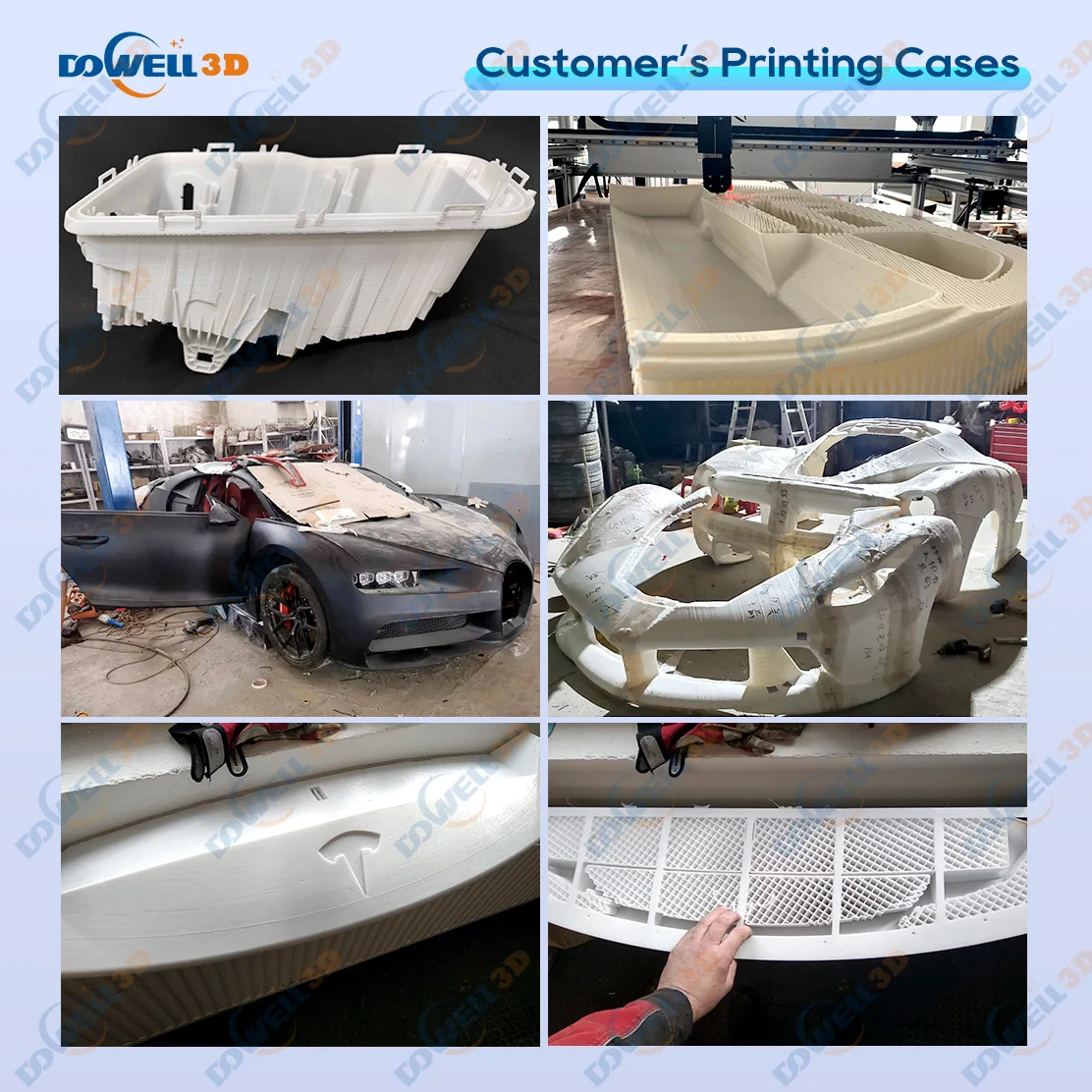

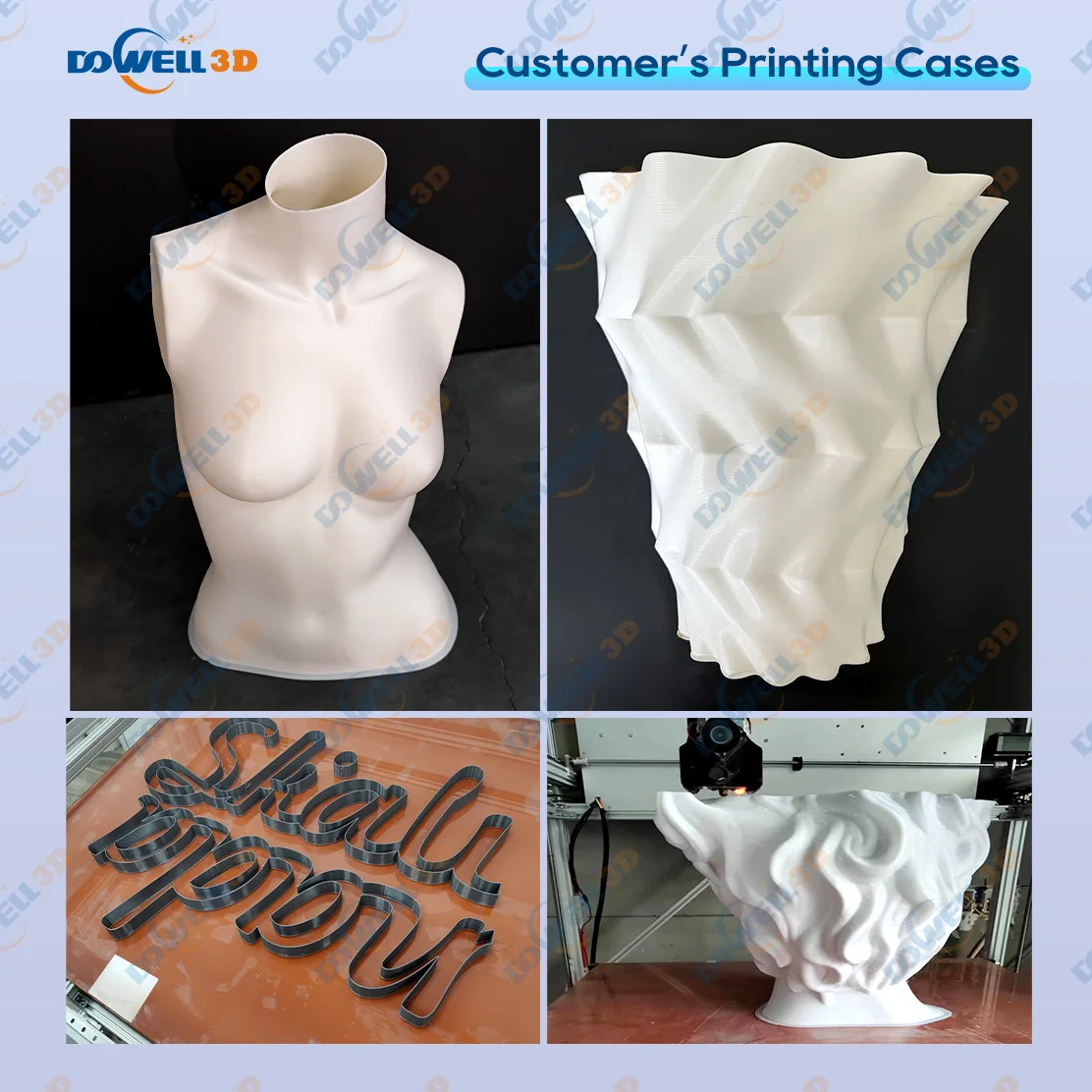

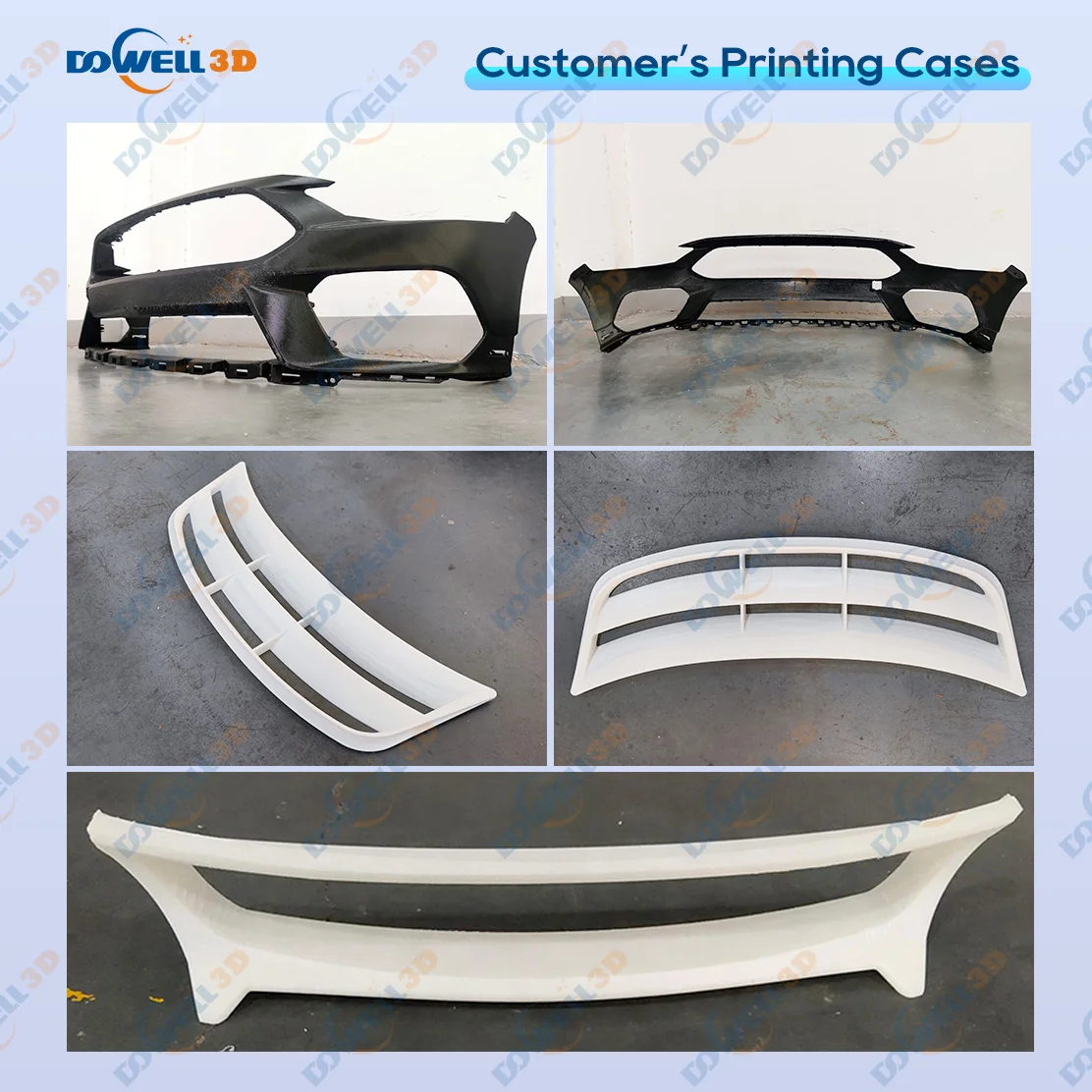

Customer Cases
Recommend Products

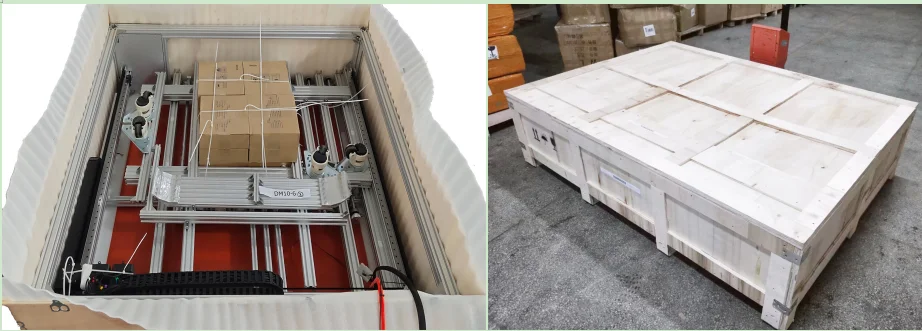

Product packaging
Company Profile
FAQ
1, Are you a factory?
-Yes, we focus on developing and manufacture large industrial 3d printers.
2, Payment method
- T/T (Bank transfer), Paypal, West union, Credit card, Wechat pay, Ali Pay, T/T
3, Shipping method
-DHL, UPS, Fedex, TNT, sea shipping, air freight, by train.
4, What's your lead time?
-If the product you order is our standard model, lead time is around14 days; or else lead time is negotiable.
5, How do you guarantee the quality of the printer?
-We have 100% tests before shipment. We will supply photos and video of tests before shipment. We can guarantee that our 3D printer will have absolutely no quality problems before shipment. Then we will arrange the shipping under the confirming.
