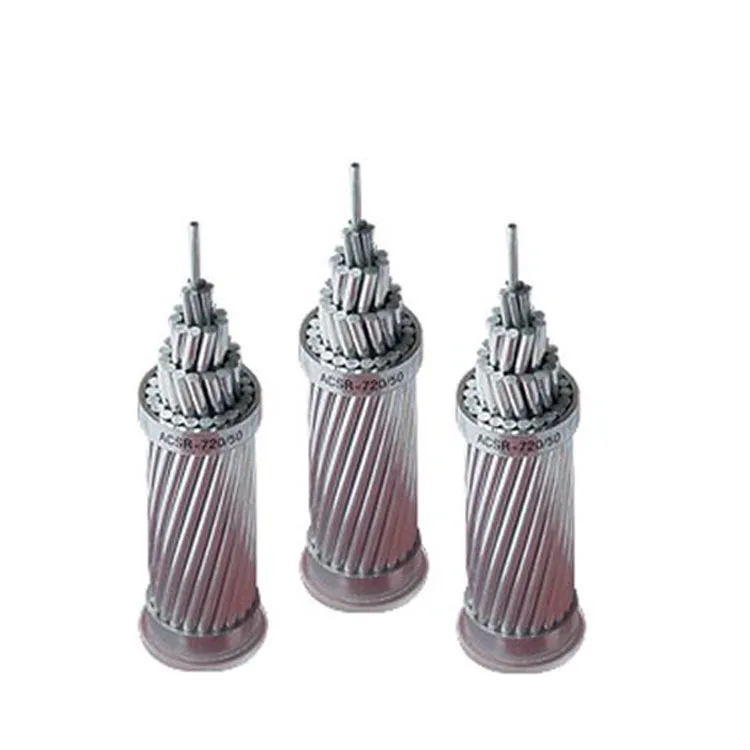

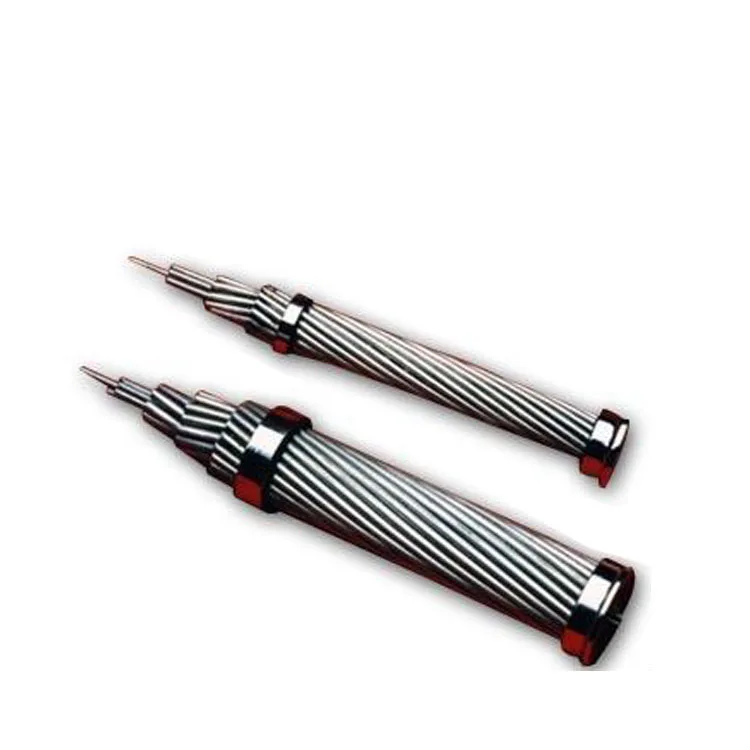

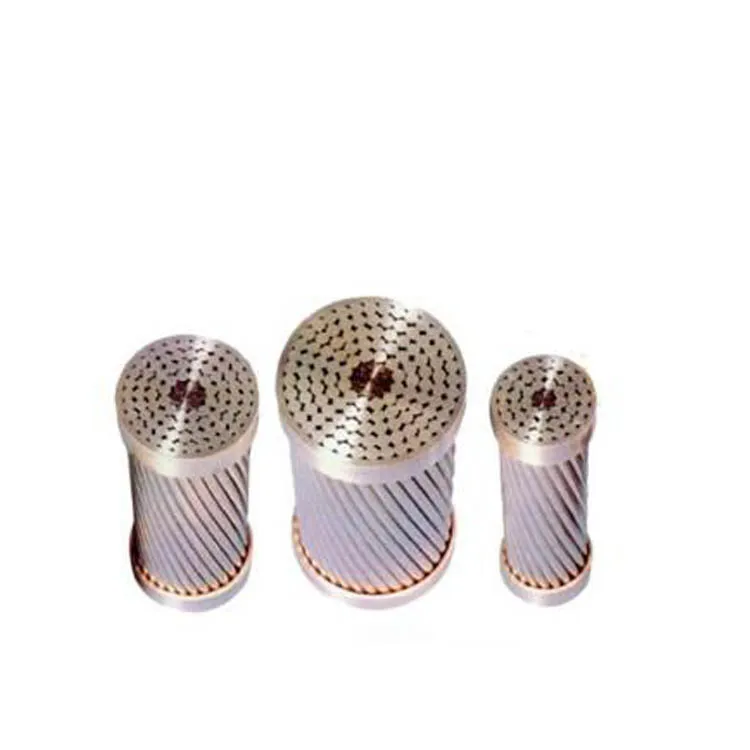

Aluminum Stranded Wire Conductor Steel Reinforced Covered ACSR Cable
- Category: >>>
- Supplier: Ruiyang Group Northeast Cable Co. Ltd.
Share on (60809316572):
Product Overview
Description
Product details
Detailed Description | The product is used in the field of aerial power line. Manufacturing standard: The standard as GB/T1179-2008 it is equal to IEC207-1966 and IEC209-1966. Technical performance and related data: Round aluminum wire should meet the following requirements after stranding: Tensile strength should be not less than GB3955-2008 LY9 min tensile strength value of 95%. The winding performance shall be in accordance with the provisions of LY9 in GB3955-2008. The resistivity of 20℃ is not larger than 0.028264 mm2/m. |
| our service | 1.Quickly and professional response 2. China manufacturer with 8 years experience 3. Excellent quality with reasonable price. 4. Sufficient support for our tendering representatives. 5. OEM service available based on official & legal authorization. 6. Strict quality control system. 7. Faster lead time than our competitors. 8. Cable solutions to your particular requirements. 9. Free sample is available with economic express fee. 10.12 months quality guarantee after delivery. |
Related products
| Type | Description | Area of conductor (mm2) | Structure (No./diameter)(mm) |
| LJ | Aluminium stranded conductors(ASC) | 16 to 800 | 7/1.17 to 61/4.10 |
| LJX | Rare-earth aluminium alloy stranded conductors | 16 to 800 | 7/1.17 to 61/4.10 |

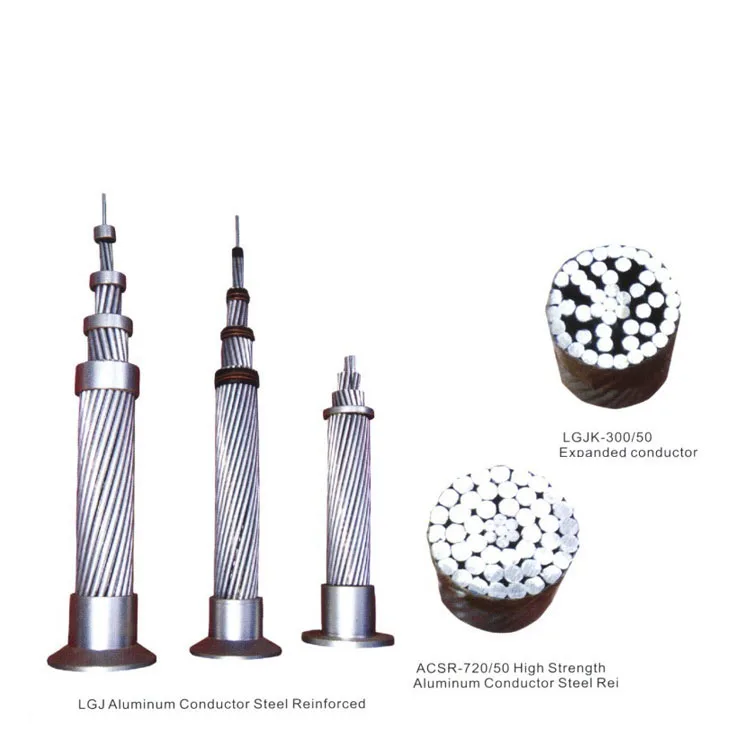

| LGJ | Aluminium stranded conductors steel-reinforced(ACSR) | 10/2 to 800/100 | 6/1.50 1/1.50 to 54/4.33 19/2.60 |
| LGJF | Corrosion-proof aluminium stranded conductors steel-reinforced | 10/2 to 800/100 | 6/1.50 1/1.50 to 54/4.33 19/2.60 |
| LGJX | Rare-earth aluminium alloy atranded conductors | 10/2 to 800/100 | 6/1.50 1/1.50 to 54/4.33 19/2.60 |
