DIY flatbed uv printer a3 size 6 color for 3d mobile phone cover printing machine
Product Application
A3 UV flatbed printer is the ideal solution for DIY Customied printing on the products, which is a multi-functional LED UV flatbed printer that created by DOMSEM and was built with industrial configuration as thicken aluminum profile, water cyculation cooling system. Automatic detect UV curing system, 6 colors and max 2880 dpi printing resolution. Can print on all kinds of surfaces, available in 3D textured and raised printing, suitable for printing on both rigid and flexible material, like phone cases, metal (aluminum, copper etc), alloys, mirror, gifts packaging (wood, carbon paper, metal), tablet cover, USB sticks, DVD disc, industry signs, badge, plastic card, PVC, glass, wood, paper etc.
Specifications
A3 Size Flatbed UV LED Printer
Print head
Original from Epson R330
Print direction
Unidirection/ Bidirection
Print Size
A3+ 420*300mm
Print Resolution
2880*1440dpi/ 1440*1440dpi
Print Speed
180s @ A3 1440*1440dpi
Print Color
6 colors (CMYK+WW)
Max.Media thickness
10cm
Max.Media weight
10kg
Printing interface
USB 2.0 & 100 Base-T Ethernet
Printing software
DS Rip
Computer System
All windows system
Ink type
Rigid UV curing ink, soft UV curing ink
Ink certification
SGS certification
Ink Color
6 Colors (CMYK+WW)
Ink System
Continuous ink supply system
Dry system
UV LED instant system
UV LED wave length
395nm
UV LED lifespan
50000hours
Printing Precision
small then 0.1mm
Cool system
Water circulation

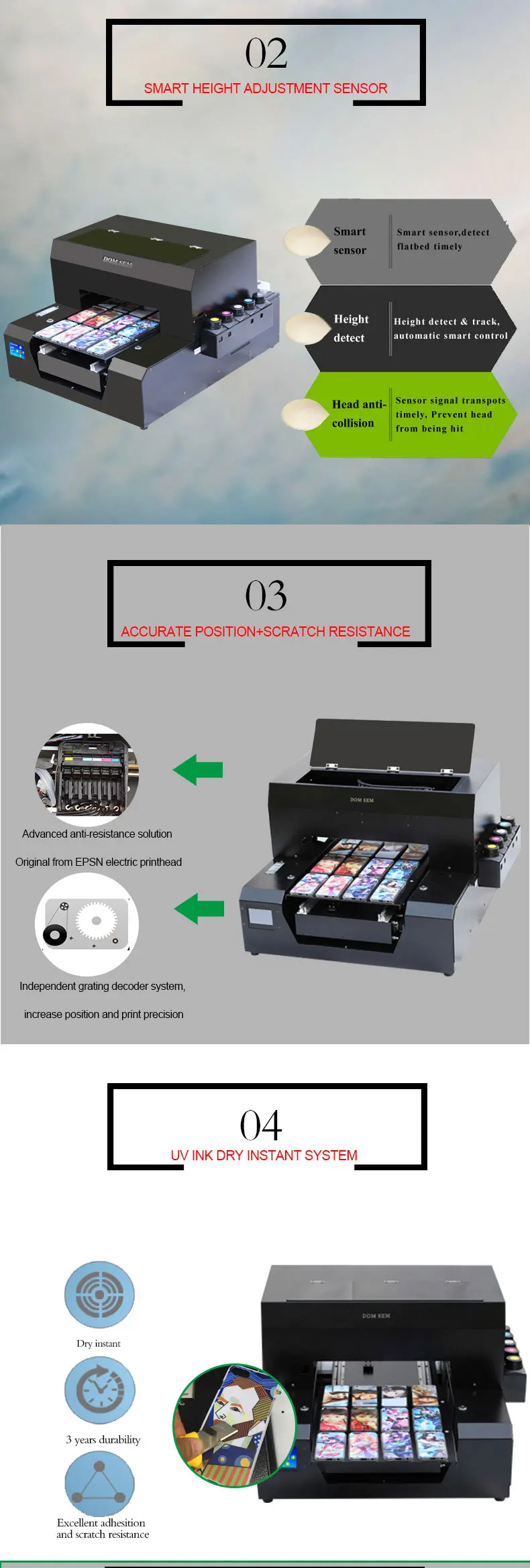

Print Head Height
Automatic Adjustment
Control
Automatic control panel

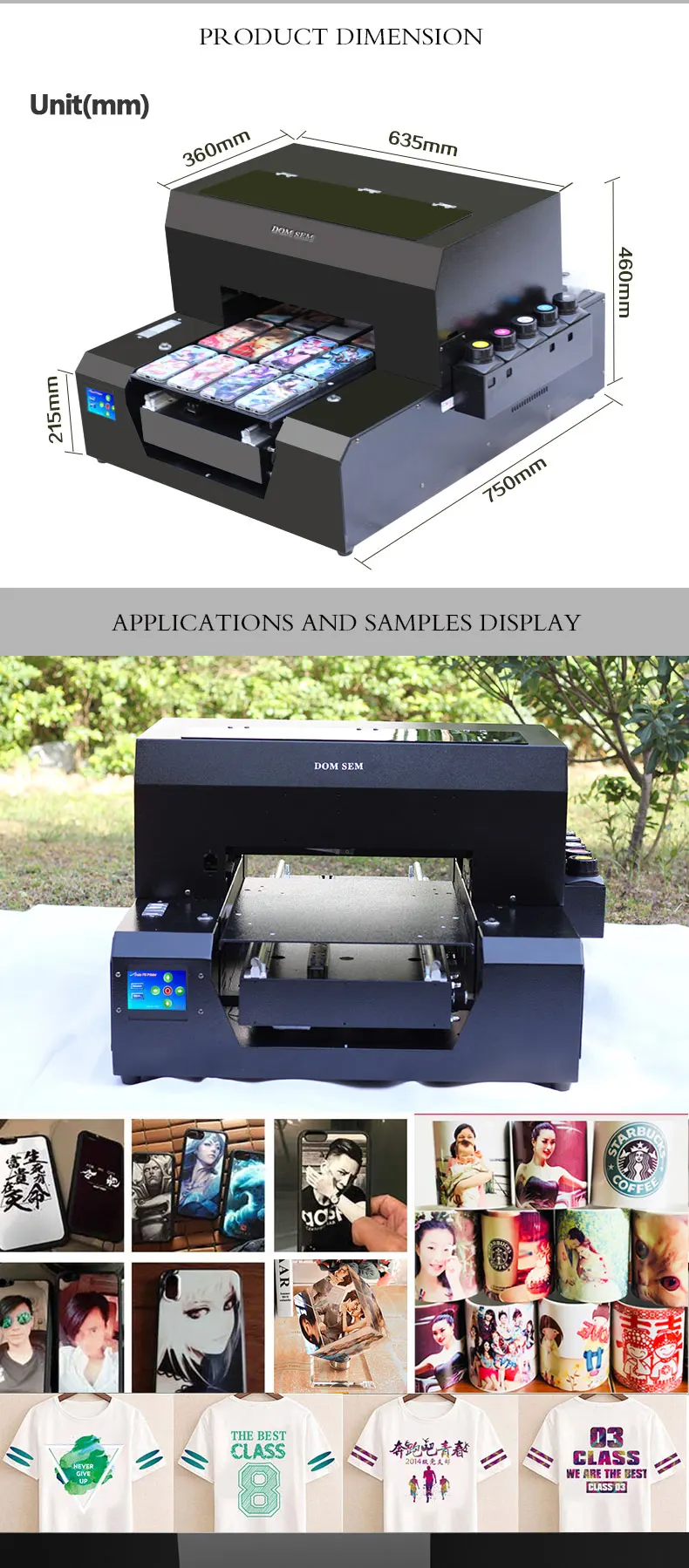

Printer Dimension
L56*W50*H40cm
Net weight
50kg
Gross weight
62kg
Packing size
L86*W72*H50cm
Power consumption
120Watt
Work Voltage
AC100-240V 50-60hZ
Main Features

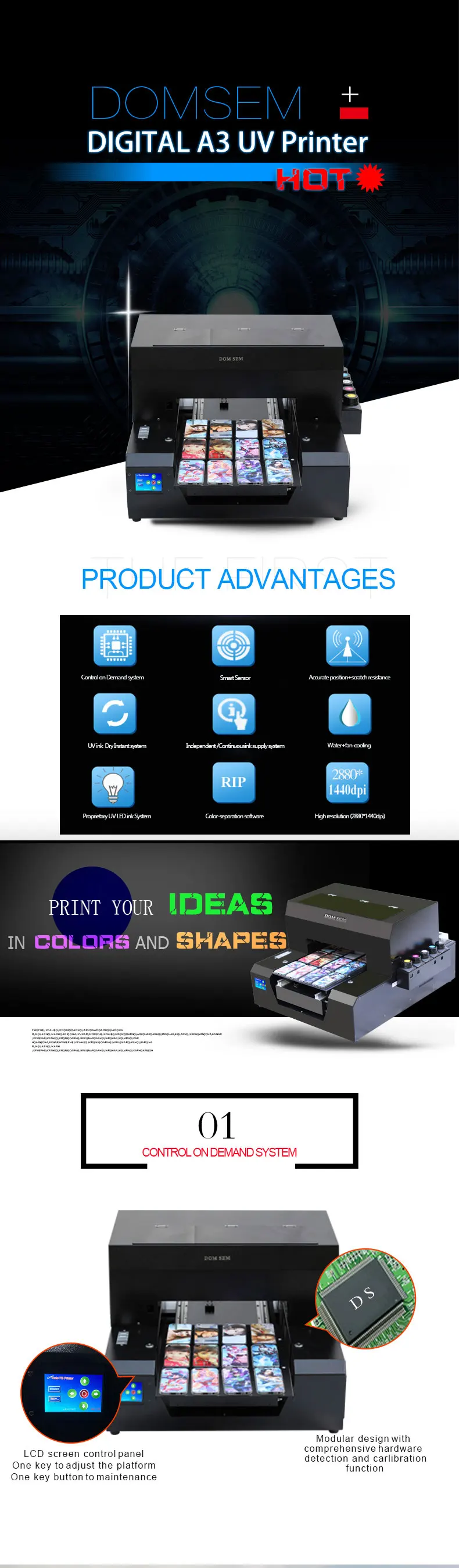

1-Easy Operation:Unique lateral loading platform design, Control on Demand system.
2-Maximize your productivity:Only 180seconds for Full A3 size @ 1440x1440dpi.
3-High Printing Precision:Automatic detect the X (carriage), Y (flatbed) motion pulse and send back the real motion data to the main-board for interpolating. Combine with the closed-loop structure circuit design to enhance the stability of the system and ensure the flatbed printing with one pass printing precision and repeat printing precision.
4-High Resolution Printing:
a. High color density, Wide color gamut, Instant drying.
b. Excellent adhesion to both coated and uncoated media.
c. Superior scratch and alcohol resistance. 3 years outdoor durability.

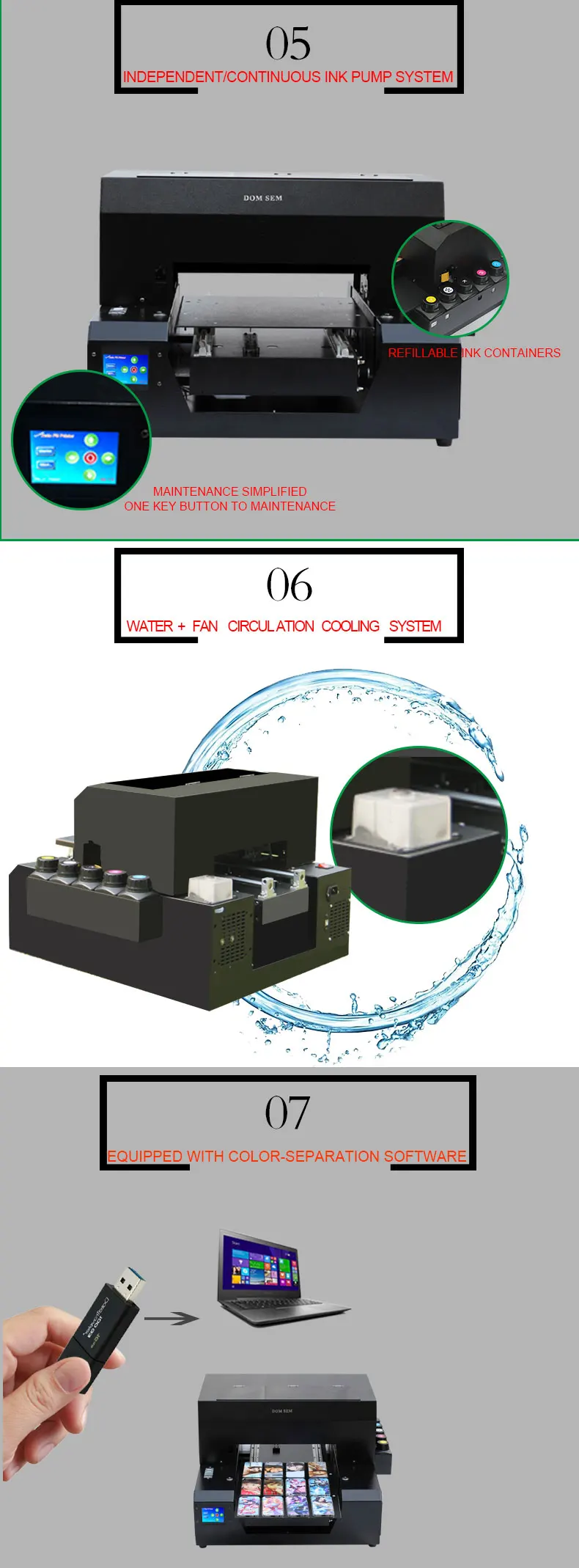

5-Maintenance simplified:
a. Accessible electronic, Components in on integrated compartment
b. Easily accessible ink system from maintenance.
c. Easy to access refillable ink containers.
LCD screen control panel, One key to adjust the platform, One key button to maintenance.
Modular design with comprehensive hardware detection and carlibration function.
DIY flatbed uv printer a3 size 6 color for 3d mobile phone cover printing
