High Purity Dry Milling Disc Jet Mills Micronizer Spiral Jet Mill
- Category: >>>
- Supplier: Shandong Alpa Powder Technology Co. Ltd.
Share on (60809361391):
Product Overview
Description
Product details
High Purity Dry Milling Disc Jet Mills Micronizer Spiral Jet Mill
FEATURES AND ADVANTAGES
▶Available particle size D50:1.5-45μm
▶No dead angle, easy disassembling and cleaning.
▶Free of transmission parts, self-classifying structure.
▶Good particle shape, narrow particle size distribution
▶CIP/SIP design is optional.
▶Meet GMP/FDA requirements.
▶Constant temperature or low temperature, medium-free grinding,especially suitable for materials of heat sensitive, low melting point, sugary, volatile nature.
▶The grinding process is completed by the collision of the materials themselves., Fully self-grinding, So The device is durable and the purity of products is high in contrast.
▶Key parts like inner liner, classifying wheel and nozzle are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring non-contact with metal throughout the grinding for high purity of the final product.
▶No residual material, achieve explosion-proof design, no safety hazards, cleaning is very simple, easy to disassemble and replace parts.
▶Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
▶PLC control system, easy operation.
▶Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials
▶Free of transmission parts, self-classifying structure.
▶Good particle shape, narrow particle size distribution
▶CIP/SIP design is optional.
▶Meet GMP/FDA requirements.
▶Constant temperature or low temperature, medium-free grinding,especially suitable for materials of heat sensitive, low melting point, sugary, volatile nature.
▶The grinding process is completed by the collision of the materials themselves., Fully self-grinding, So The device is durable and the purity of products is high in contrast.
▶Key parts like inner liner, classifying wheel and nozzle are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring non-contact with metal throughout the grinding for high purity of the final product.
▶No residual material, achieve explosion-proof design, no safety hazards, cleaning is very simple, easy to disassemble and replace parts.
▶Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
▶PLC control system, easy operation.
▶Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials

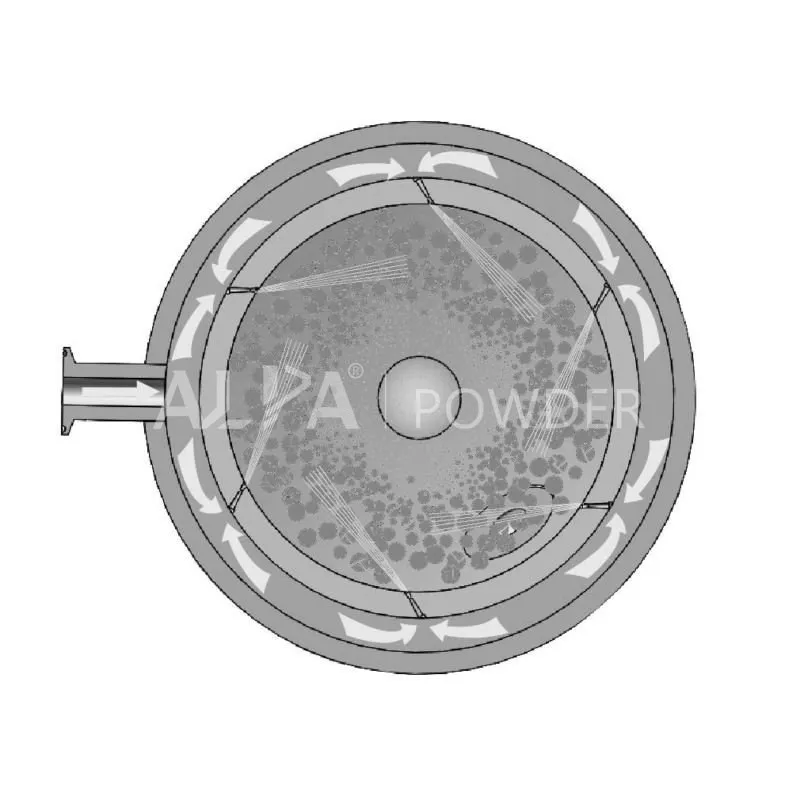

Working Principle
WORKING PRINCIPLE

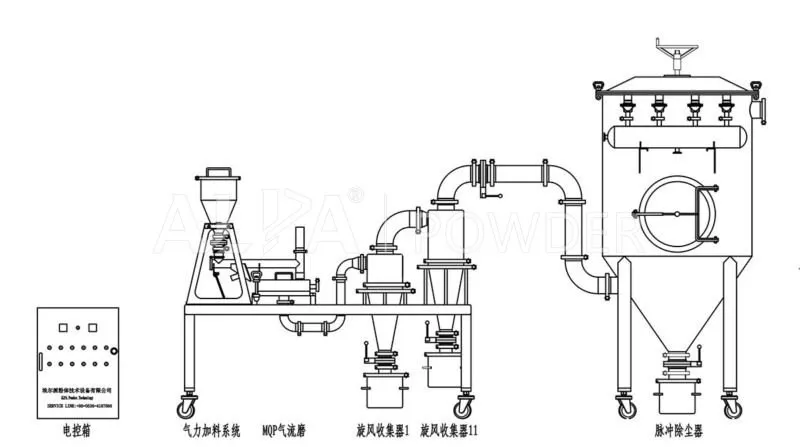

Pharmaceutical jet mill(Medical jet mill,Pharmacia jet mill,pharmacy jet mill) works with cyclone separator, dust collector and suction fan to form a complete grinding system.
Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.
Milled powder would go up to the classifying chamber by the air flow from suction fan. The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.
Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.
Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.
Milled powder would go up to the classifying chamber by the air flow from suction fan. The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.
Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.
Technical Parameters
Technical Parameters
Parameters/ specifications | MQP03 | MQP06 | MQP10 | MQP20 | MQP40 | MQP60 | MQP80 |
Feed Size (mm) | <5 | <5 | <5 | <5 | <5 | <5 | <5 |
Product Size (d97:um) | 8～150 | 8～150 | 8～150 | 8～150 | 10～150 | 10～150 | 10～150 |
Production Capacity (kg/h) | 5～100 | 10～200 | 20～400 | 50～800 | 150～1500 | 300～2000 | 400～6000 |
Air consumption (m3/min) | 3 | 6 | 10 | 20 | 40 | 60 | 80 |
Air Pressure (Mpa) | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 | 0.7～0.85 |
Installed Power (kw) | 26～37 | 47～68 | 68～106 | 145～184 | 276～310 | 402～427 | 520～600 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
Related Engineering
Related Engineering Case
Saudi Arabia a chemical factory
silver paste powder, output 20KG/H, particle size D50:2μm, Jet Mill Production Line
Egypt a factory
output 300KG/H, particle size D90:45μm, 2 sets of Jet Mill Production Line.
