EPEVER Remote temperature sensor RTS300R47K3.81A cable
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (60809411280):
Product Overview
Description
Remote meter With 2m communication cable | Backlight off<15mA Connector type:RJ45 Dimension:114*114mm Net weight:0.19kg Working environment temperature:-20℃~ +70℃ |

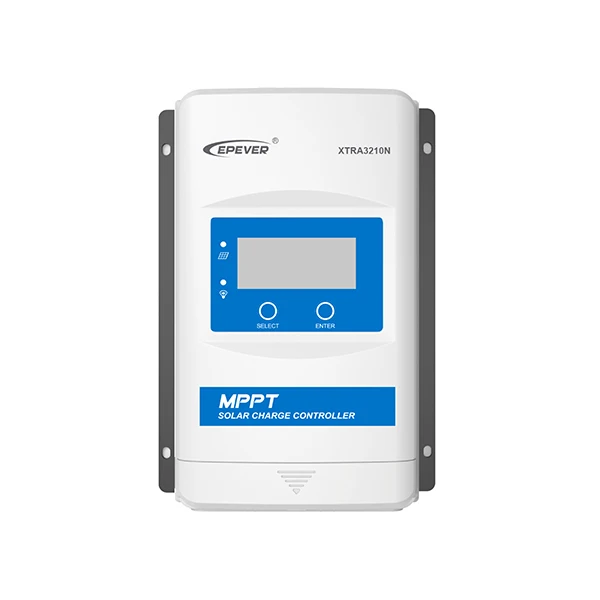

Remote meter | Solar controller XTRA-N series/TRIRON series/ Tracer-AN series/Tracer-BN series Note: Required cables for the above products are shipped with MT75. Powr inverter IPower series(1kw or above, suitable for application 1/3)/IPower-Plus series/NPower series/SHI series |
MT-1 Remote meter With 1.5m communication cable (For dual battery solar controller EPIPDB-COM series) | Connector type:RJ45 Dimension:114*114mm Net weight:0.19kg Working environment temperature:-40℃~ +60℃ |
MT-11 Remote meter With 1.5m communication cable (For dual battery solar controller DuoRacer series) | Connector type:RS485 Dimension:114*114mm Net weight:0.11kg Working environment temperature:-20℃~ +70℃ |
Bluetooth adapter with 2m communication cable (for the controller with RS485 port) | Standby power consumption:0.04W Interface type:RJ45 Overall dimension:51*67*24.5mm Net weight:0.037kg Working environment temperature:-20℃~ +70℃ |
eBox-WIFI-01 WIFI adapterwith 2m communication cable (for the controller with RS485 port) | Standby power consumption:0.2W Interface type:RJ45 Overall dimension:51*67*24.5mm Net weight:0.039kg Working environment temperature:-35℃~ +75℃ |
Logger With 2m RS485/1.5m USB communication cable (for the controller with RS485 port) | Input voltage:4-10VDC(Direct powered by RS485 port)Average power consumption:0.3W Interface type:2 RJ45;1 Micro USB Overall dimension:71*67.62*25.8mm Net weight:0.042kg Working environment temperature:-25℃~ +75℃ |
RC-10 Infrared communication remoter (LS-LPLI ,Tracer-LPLI) | Power supply voltage:3VDC Dimension:138*58*21mm Net weight:0.075kg Working environment temperature:0℃~ +45℃ |
Power supply voltage:3VDC Dimension:138*58*21mm Net weight:0.072kg Working environment temperature:0℃~ +45℃ |
Supper parameter programmer with 3pieces communication cable for USB,TTL and RS485 (for the controller and LED driver with MODBUS protocol) | Power supply voltage:5VDC Self-consumption:<35mA Dimension:109*60*33mm Net weight:0.08kg Working environment temperature:-25℃~ +55℃ |

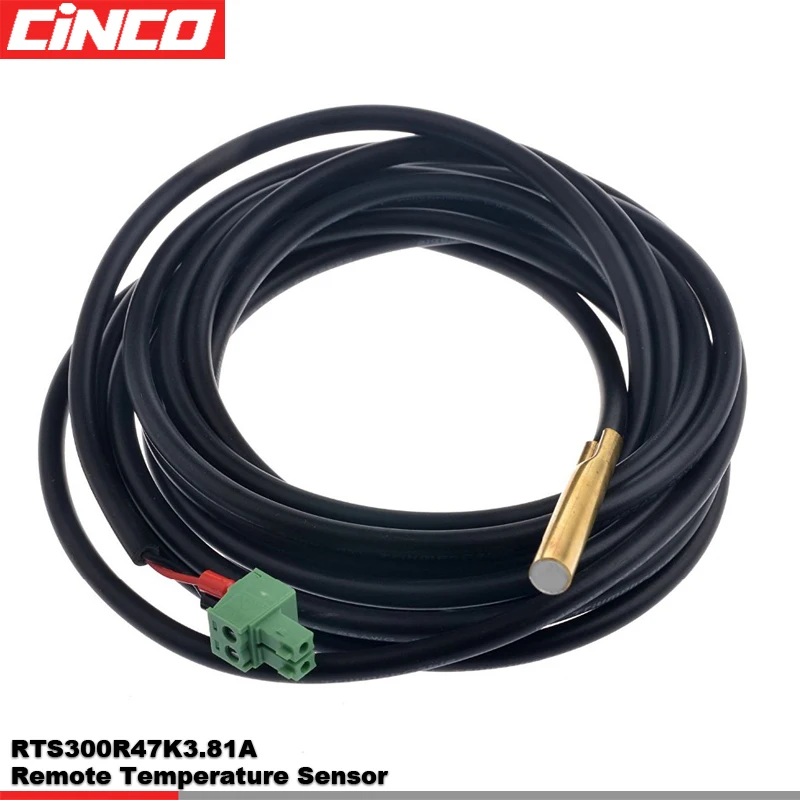

Remote temperature sensor (for the controller with 3.81/2P connector) | Line length:3mRated resistance(Thermistor):47K Connector:3.81Mm/2P Testubg temperature:-55℃~ +125℃ Testing precision:±1℃ |

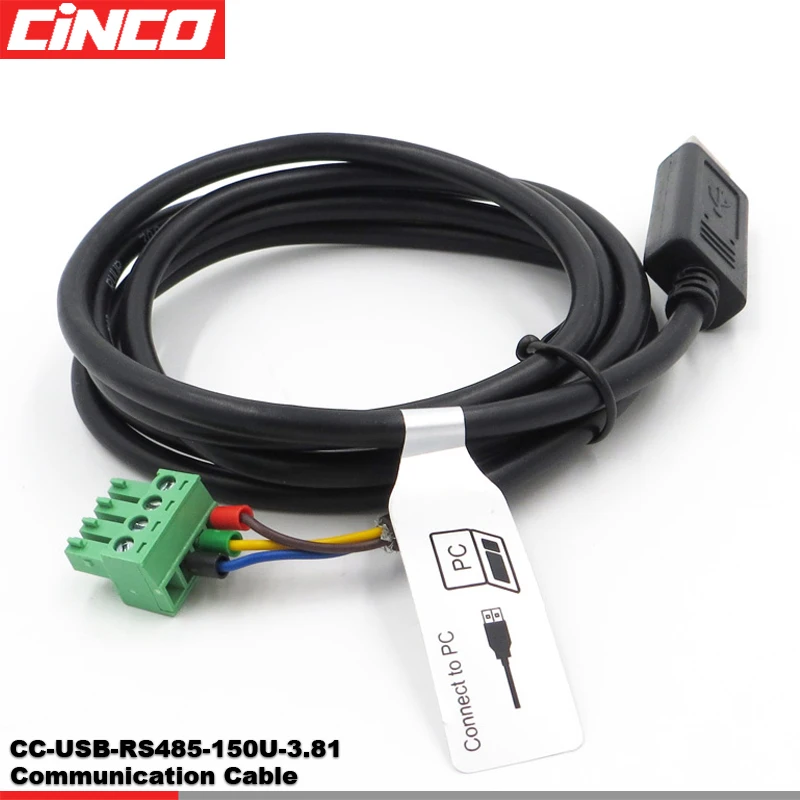

PC communication cable (for the controller with RS485 connector) | Line length:1.5m |
(for LS-BPL,Tracer-BPL,Tracer-LPLI series) | Line length:1.5m |
(for the Android Mobile Phone with OTG function) | Line length:12m Interface type:Micro-USB and USB Working environment temperature:-25℃~ +75℃ |
IAM (for mobile APP) | Connector type:Micro-USB Max communication distance:6m Working environment temperature:-25℃~ +75℃ |
Parallel Adapter For Tracer-AN series 50A-100A | Input voltage:5VDC (Directly provided by the controller) Operation power consumption:0.25W Serial port baud rate:9600-115200(Default) Overall dimension:151.5*69.9*25.7mm Working temperature:-35~55℃ |
