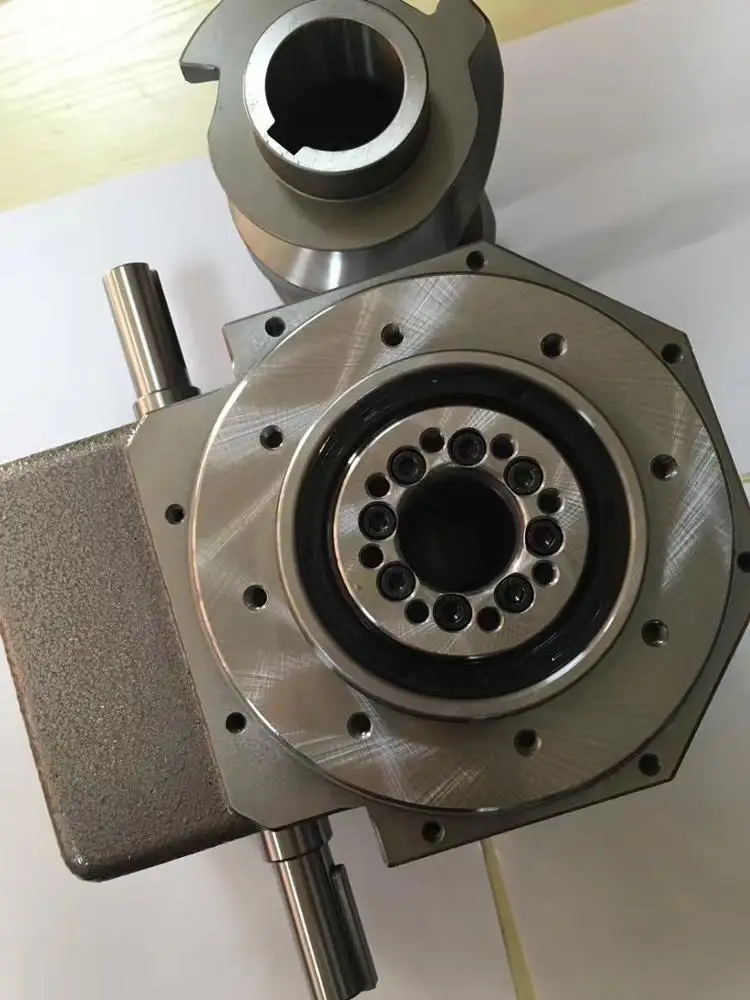

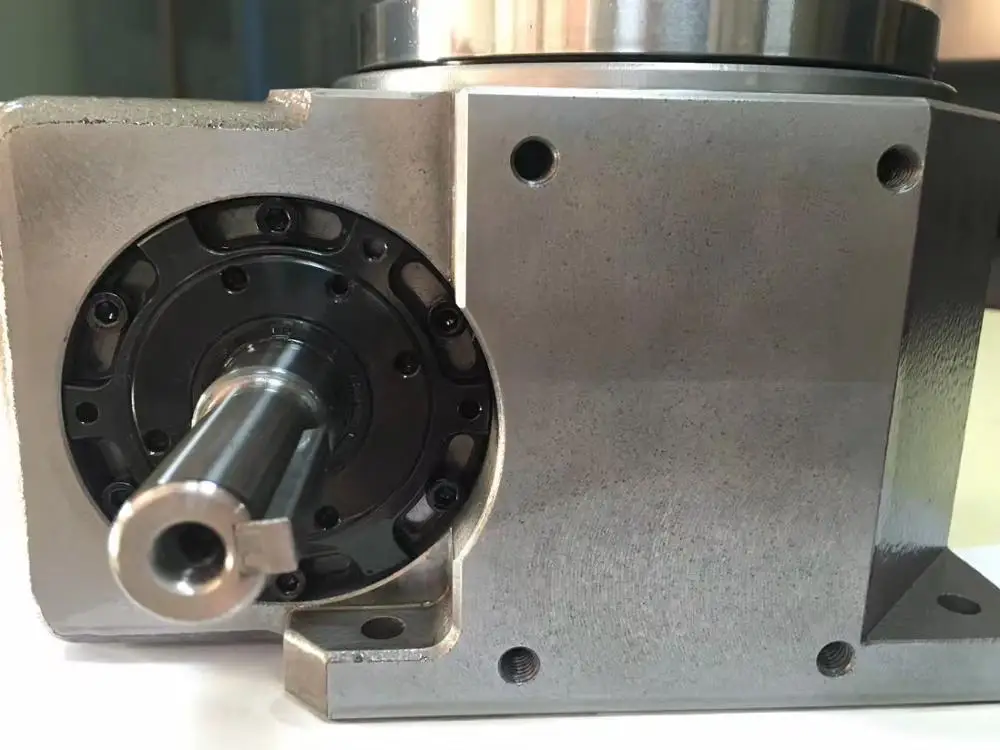

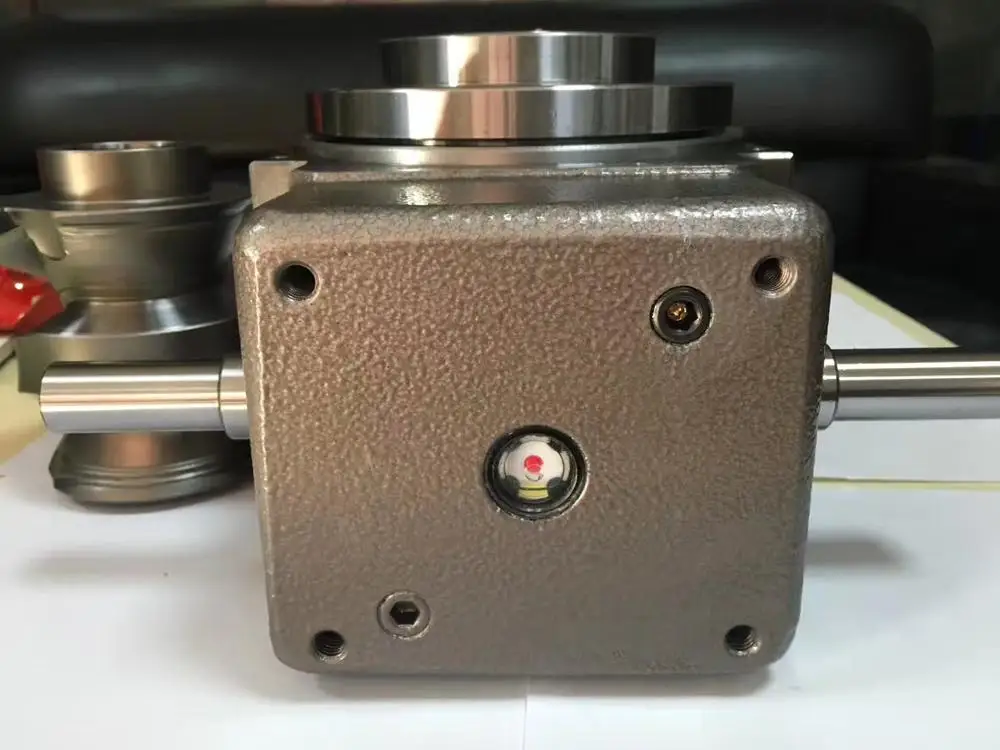

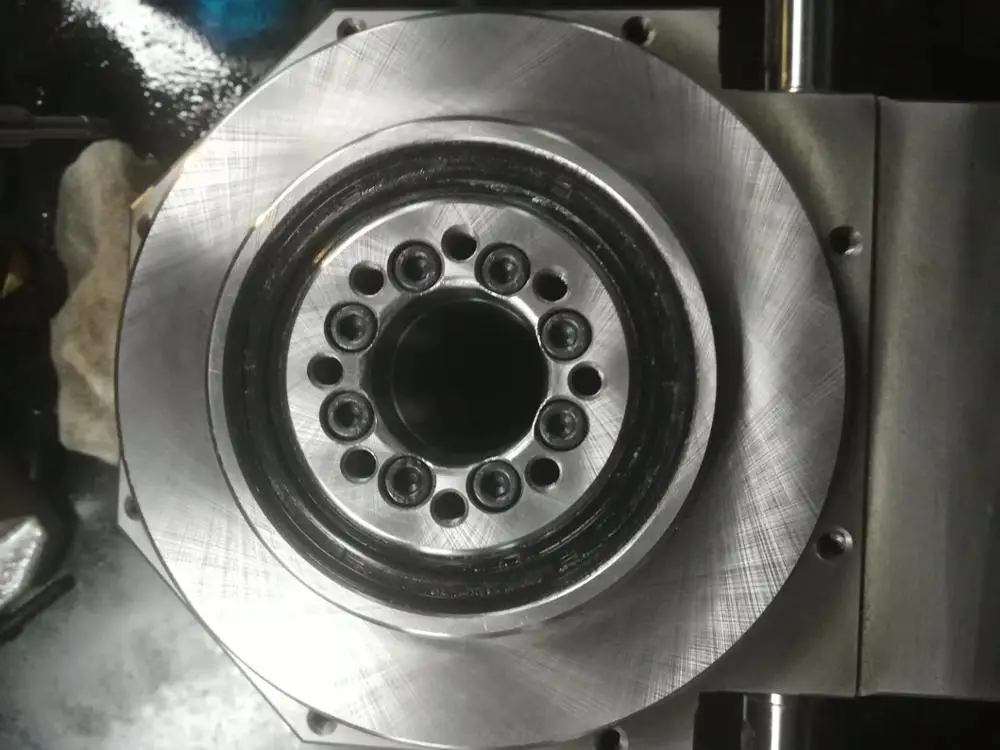

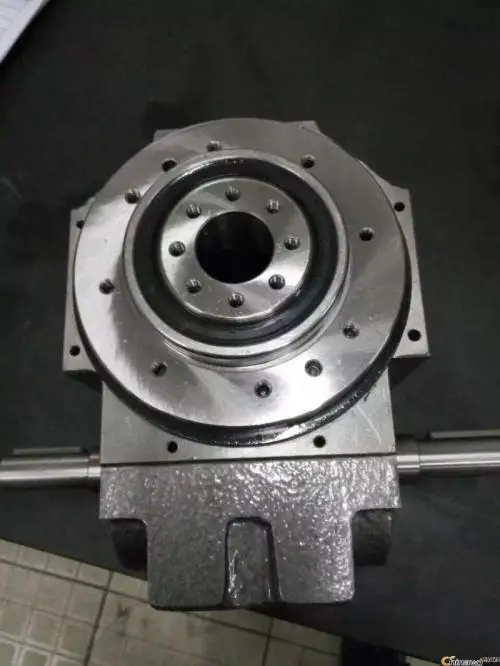

110DT Series High Precision Cam Indexer,Rotary Indexing tables,Cam index higher precision can be made according to requirements

Brand:chengchang

Product certification:ISO9001

Processing customization:Yes

Disk diameter:500-900mm

Bearing weight:0-80KG

Mainly applied to: Automaic assembly machine, printing press

Location and segmentation of equal parts:2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48

Driving angle:90°,120°,150°‘180°,210°,240°,270°,300°

Cam curve: deformation curve, deformation sine curve and deformation velocity curve.

Rotation direction of cam: left and right.

All    Allowable radial load of output shaft (C1):     860 kgf

Max.repetitive torque on input shaft(C5): 25 kgf-m

All     Allowable axial load of output shaft (C2):       420 kgf

CD² on input shaft(Note1): 0.01 kgf-m²

All     Allowable torque of output shaft (Ts): Reference torque table

Indexing accuracy: ±30 Sec.

All     Allowable  radial load of intake shaft (C3):      300 kgf

Weight:50 kg

Ma    Max.repetitive bending force on input shaft (C4): 250 kgf
