Product Description

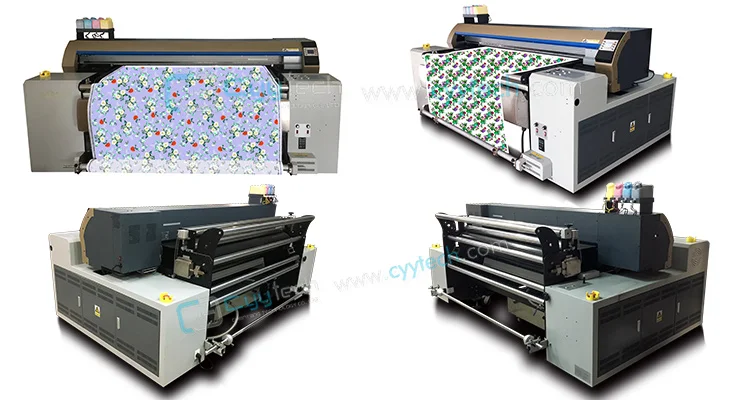

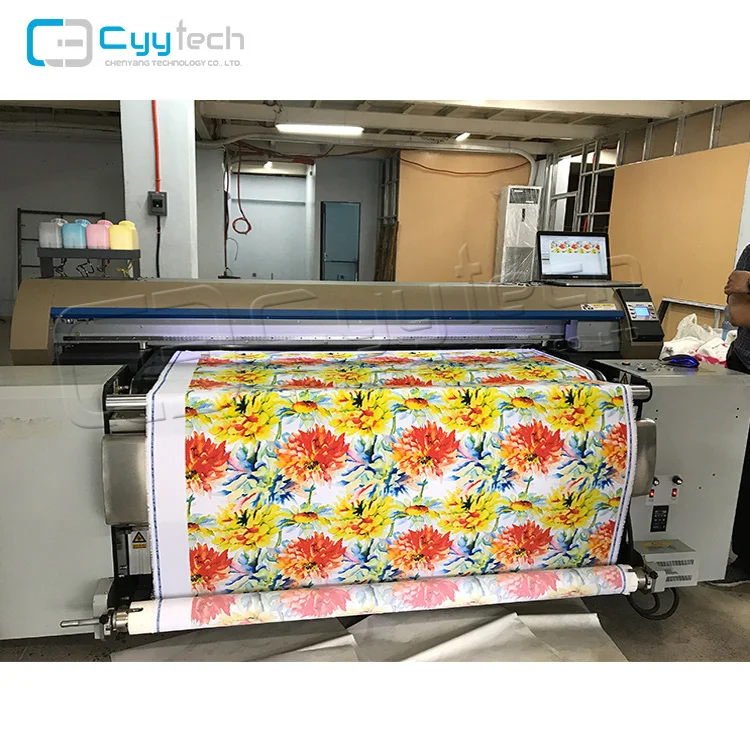

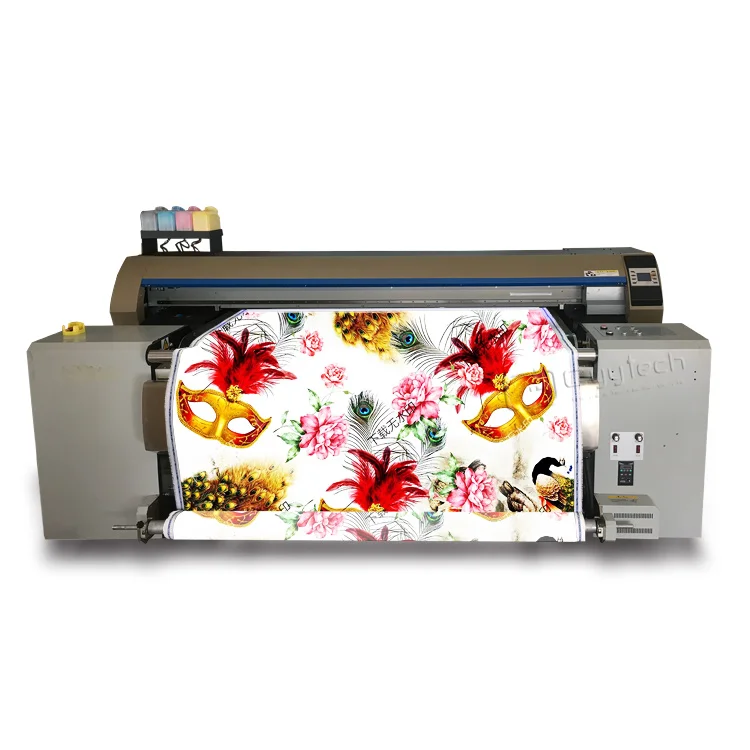

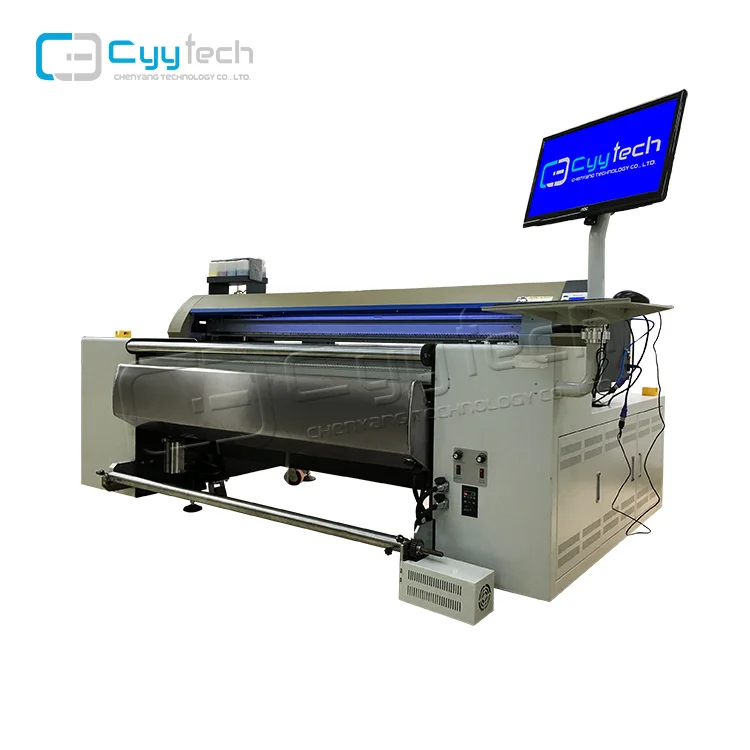

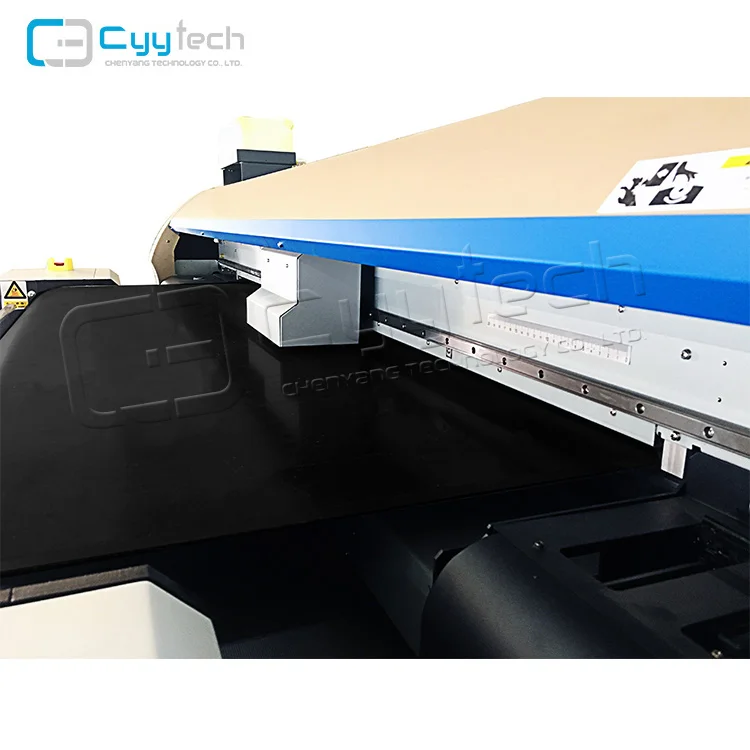

Large format roll to roll belt model digital cotton fabric textile printing machine
Product Model | AJET-1602Z | AJET-1604Z | |||||
Number of printhead | 2pc Panasonic head | 4pc Panasonic head | |||||
Printing width | 1650mm (65inch/5.5ft ) | 1650mm (65inch/5.5ft ) | |||||
Speed | 3Pass | 52m2/h | 104m2/h | ||||
4Pass | 39m2/h | 78m2/h | |||||
6Pass | 26m2/h | 52m2/h | |||||
8Pass | 20m2/h | 39m2/h | |||||
Printer Head height | Adjustable 2~5mm | ||||||
Resolution/Ink droplet size | 3200 dpi (Max) / 3~21 pl VSDI ink dor | ||||||
Heating System | Intelligent sectional embedded heating system | ||||||
Drying System | Heating Fan and Lamp | ||||||
Media | Width: 1600mm | ||||||
Media feeding mode:special belt feeding system and taken-up system | |||||||
Fabrics:T-shirt, sportwear, cloth, curtain, garment, bedsheet, pillow, cushion, flag, cotton, polyester, chiffon, cashmere, canvas , and so on | |||||||
Ink | Textile fabric ink:cyan/magenta/yellow/black | ||||||
Ink Supply Mode: Continue ink supply system | |||||||
Ink Cartridge:4 x 2500ml | |||||||
RIP software | AJET professional textile software | ||||||
Supported Image format: Tiff,JPEG | |||||||
Color Mode:RGB or CMYK | |||||||
Control Software | Control Software (Cn/En) | ||||||
Interface | Internet Cable | ||||||
Operating System | Windows XP , Windows 7 , Windows 8 , Windows 10 | ||||||
Voltage | AC220-240V 50/60HZ or AC110-120V 50/60HZ | ||||||
Power Consumption | for printer Power: 1KW (Max),300W (Printing) | ||||||
Working Environment | Temperature:18-32℃ | ||||||
Humidity:46~65% Non-condensing | |||||||
Main features

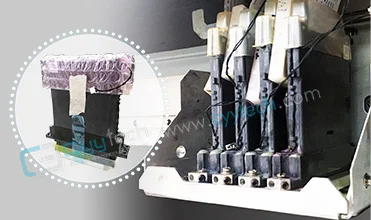

Print head .
Panasonic industrial printhead, minimum dot 3pl ,1600dpi , Inkjet strength stronger , more durable
and has a longer life The average life span is 65,000 - 70000m²

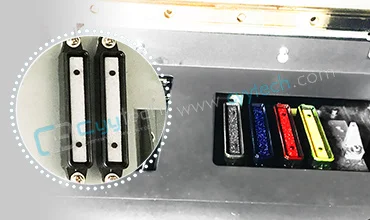

Ink Station .
Contact type Ink station
Captop is made of imported latex,Guaranteed
printheads seal performance and can not air
leakage or dry

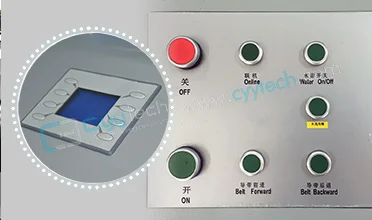

Control Panel .
SMulti-function button and large led display screen
Simple design style,functional and convenient
Support Belt offline work

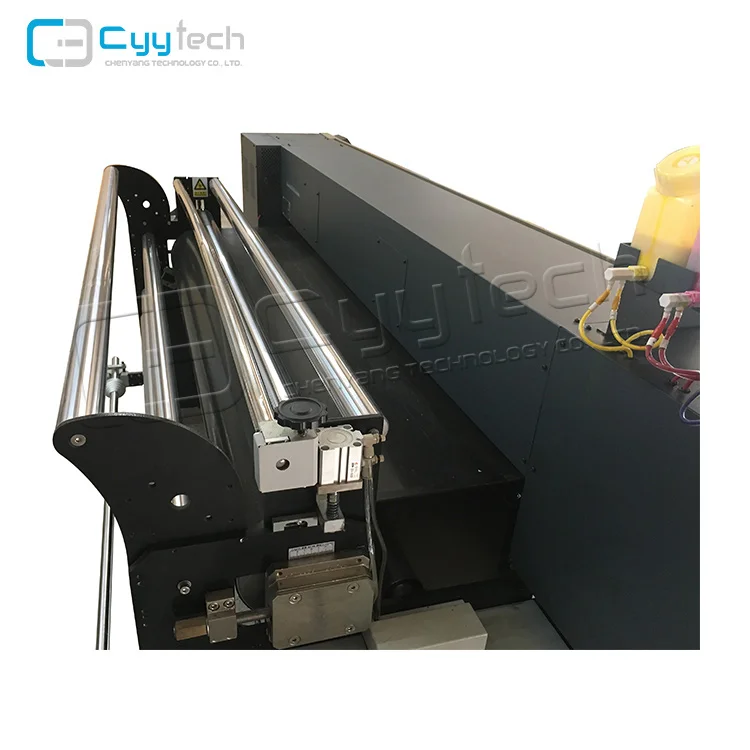

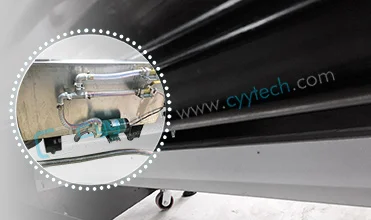

Washing System .
Automatic Belt Wash-up Device , Pneumatic
automatic cleaning, including Belt heating system
Clean Belt residual ink,solve the problem of fabric
staining
Rectify Deviation .
Atomatic Belt rectify deviation system
There is a sensor on each side of the Belt,The
sensor detects the Belt go off course and drives the motor to adjust
Heat Sysem .
Hot air + contact high efficiency heating system
Heat the fabric with hot air first, then direct use high
temperature dry fabric .Hot air and temperature can adjust
Heat the fabric with hot air first, then direct use high
temperature dry fabric .Hot air and temperature can adjust
