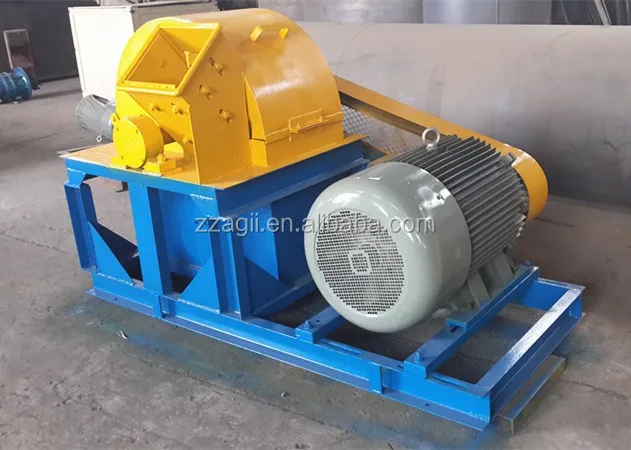

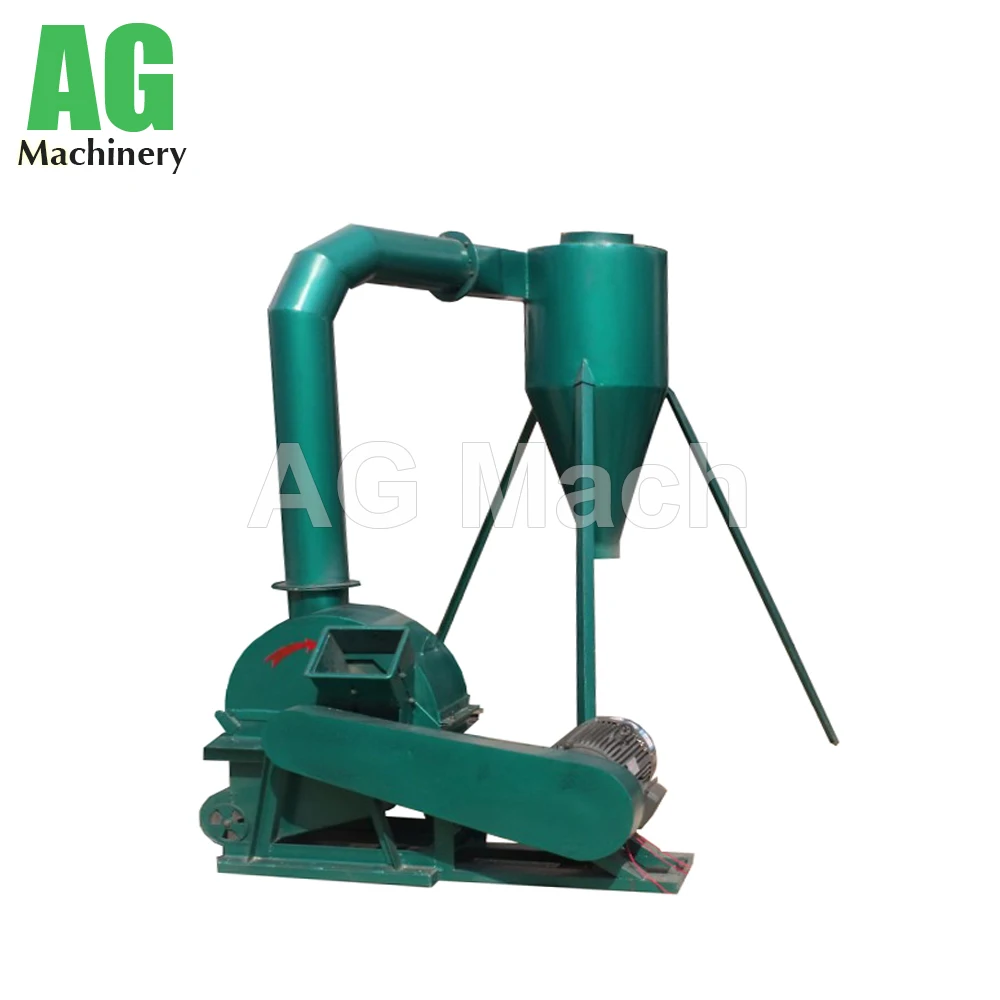

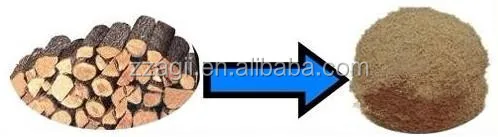

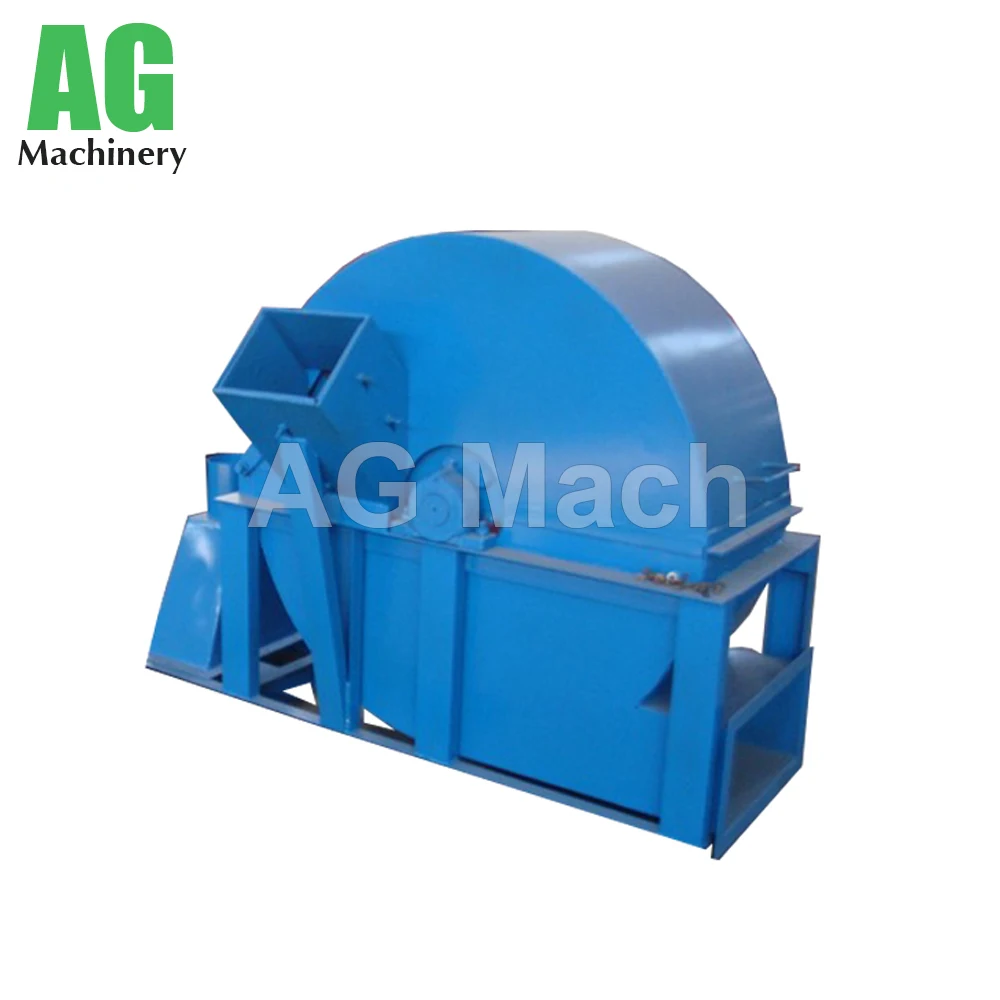

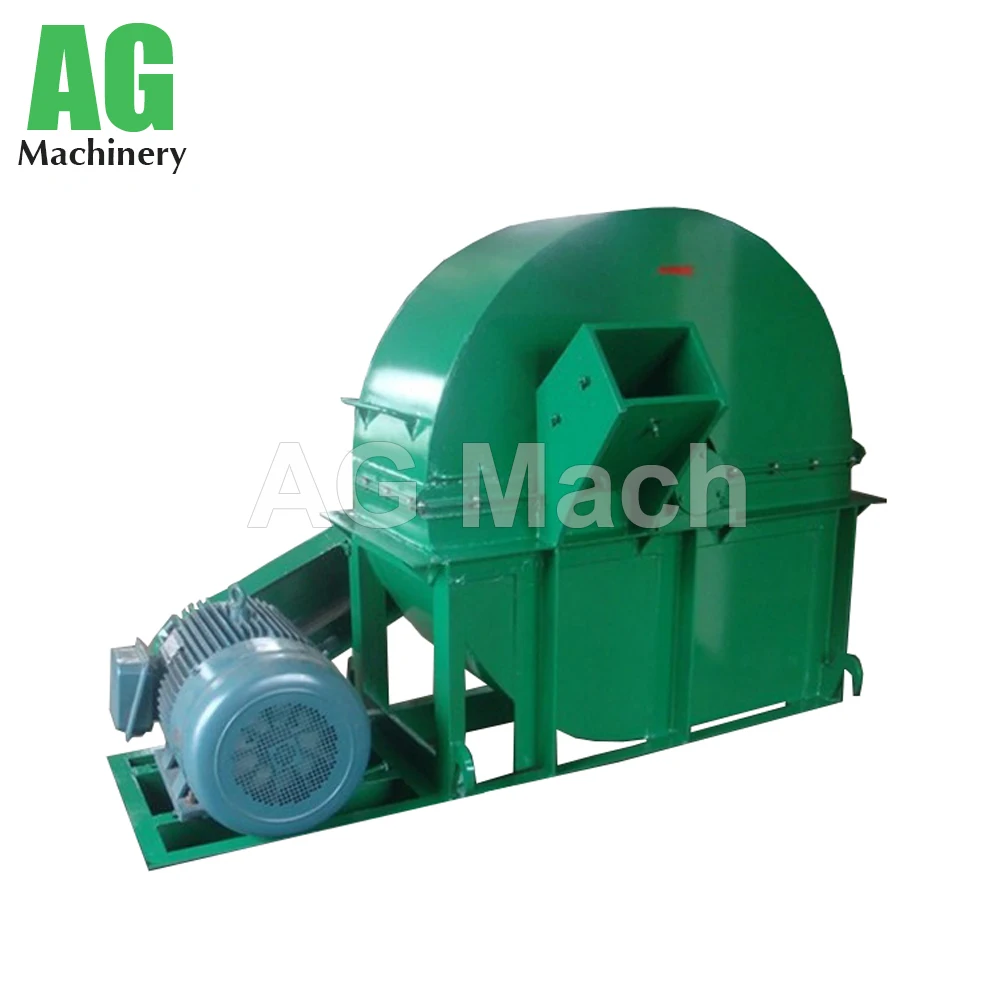

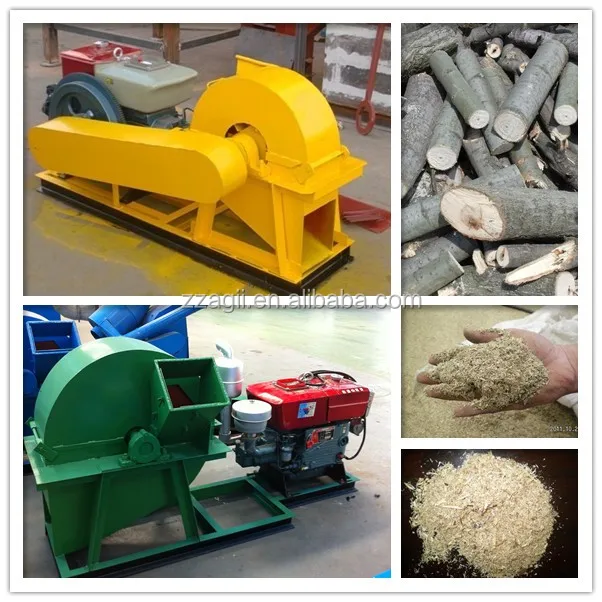

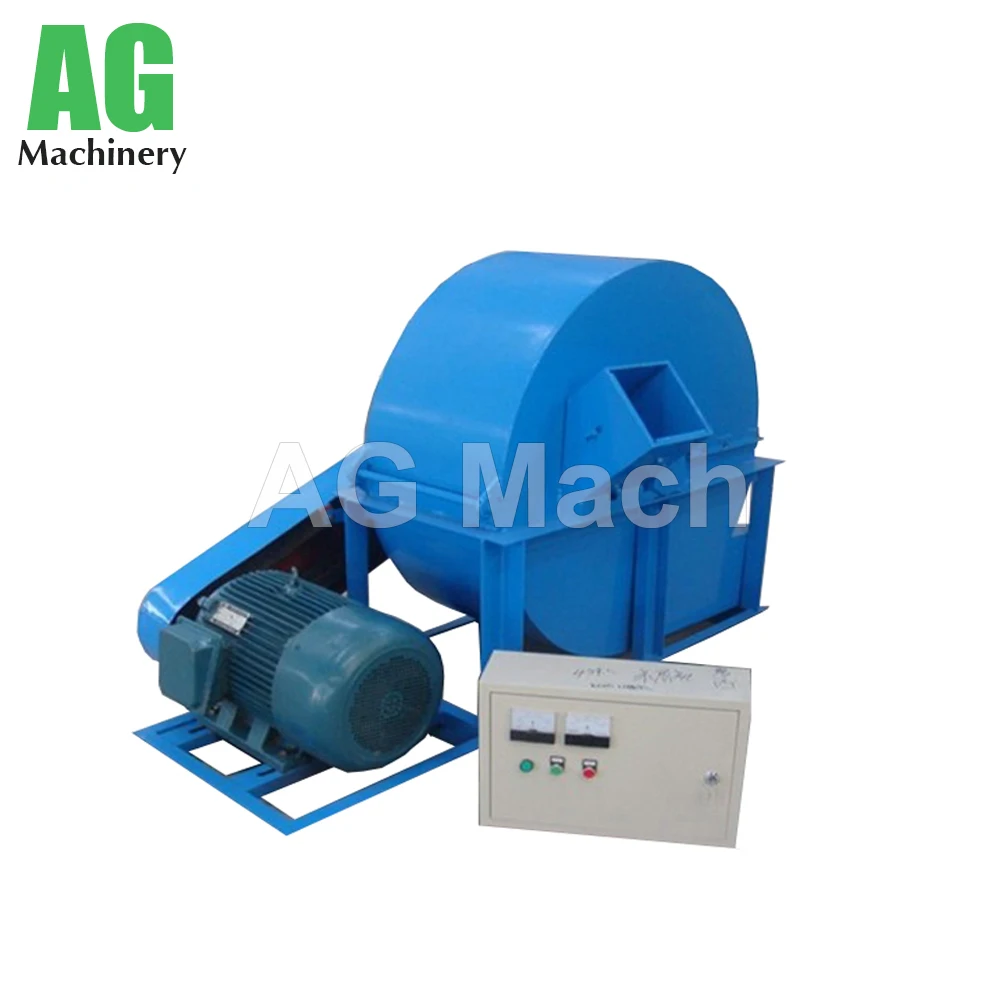

Wood crushing machine biomass wood crusher, it can crush wood logs, wood block and wood waste into sawdust and granular with different fineness. Wood crushing machine is suitable for milling raw material like (tree branch, tree trimmings, cotton stalk, corn stalk, wheat straw etc) with size less than 50mm (diameter). After milled, the output size can reach to 3-5mm after milled, which is suitable for making wood pellets.
Specification | ||||||||
Model | 9FH-400 | 9FH-600 | 9FH-800 | 9FH-1000 | ||||
Power | 7.5KW | 15KW | 30KW | 45KW | ||||
Output | 300-500kg/h | 600-800kg/h | 1000-1500kg/h | 1800-2000kg/h | ||||
Blade Qty | 4pcs | 4pcs | 4pcs | 6pcs | ||||
Spindle speed | 2100 r/min | 2100 r/min | 2100 r/min | 2100 r/min | ||||
Dimension | 1200*550*750 mm | 1400*650*1100 mm | 1900*1000*1450 mm | 2100*1200*1550 mm | ||||
Weight | 300Kg | 520Kg | 950Kg | 1300Kg | ||||



1,It is used for grinding of small wood blocks, chips before pelleting;
2, Multi grinding chamber to increase efficiency by 15%;
3, Multi grinding chamber to prolong service life of screen and beater;
4, Modified rotor to increase stability and avoid overheating from the bearing;
5, Modified screen locking device to make assembling and disassembling easily;
6, Modified design for grinding chamber to reduce airflow resistance and increase efficiency;

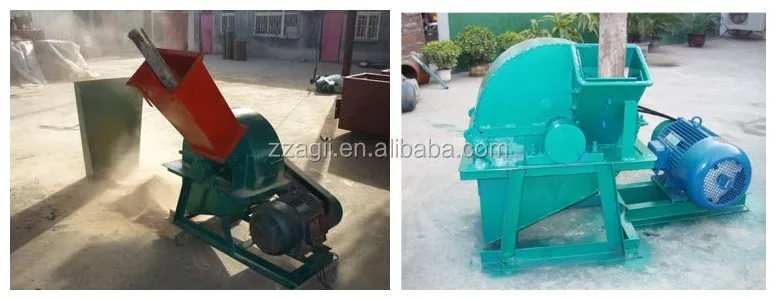

wood waste:

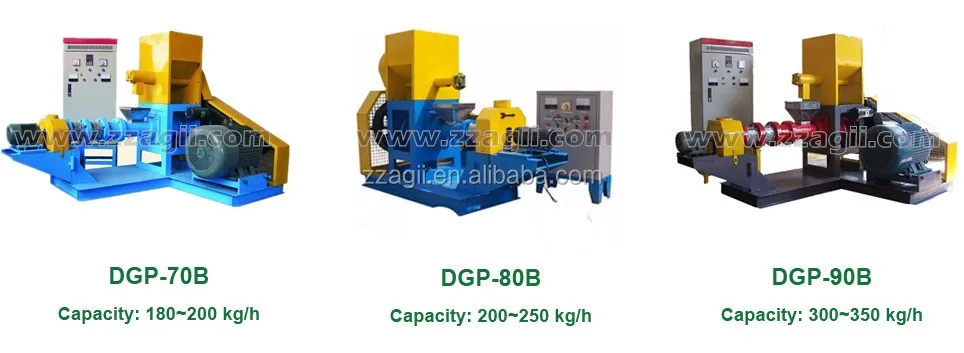

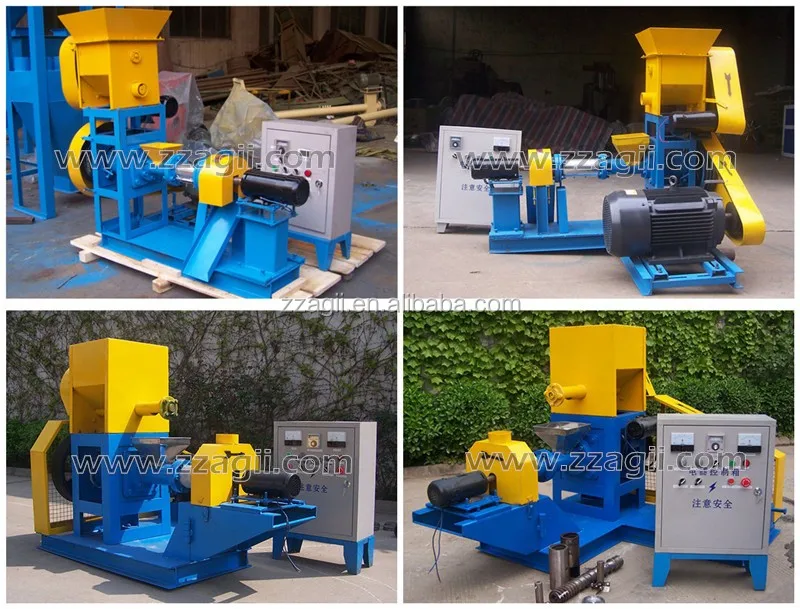

floating fish feed machine:
