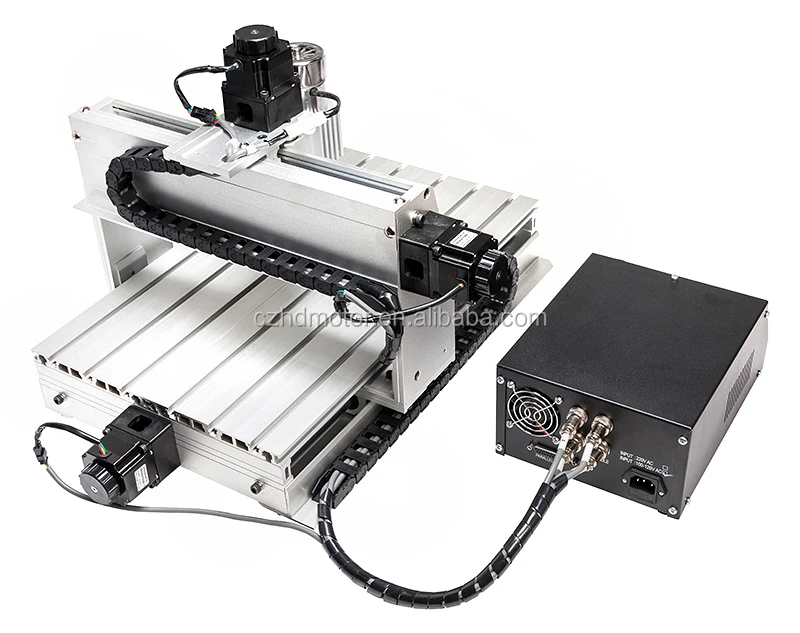

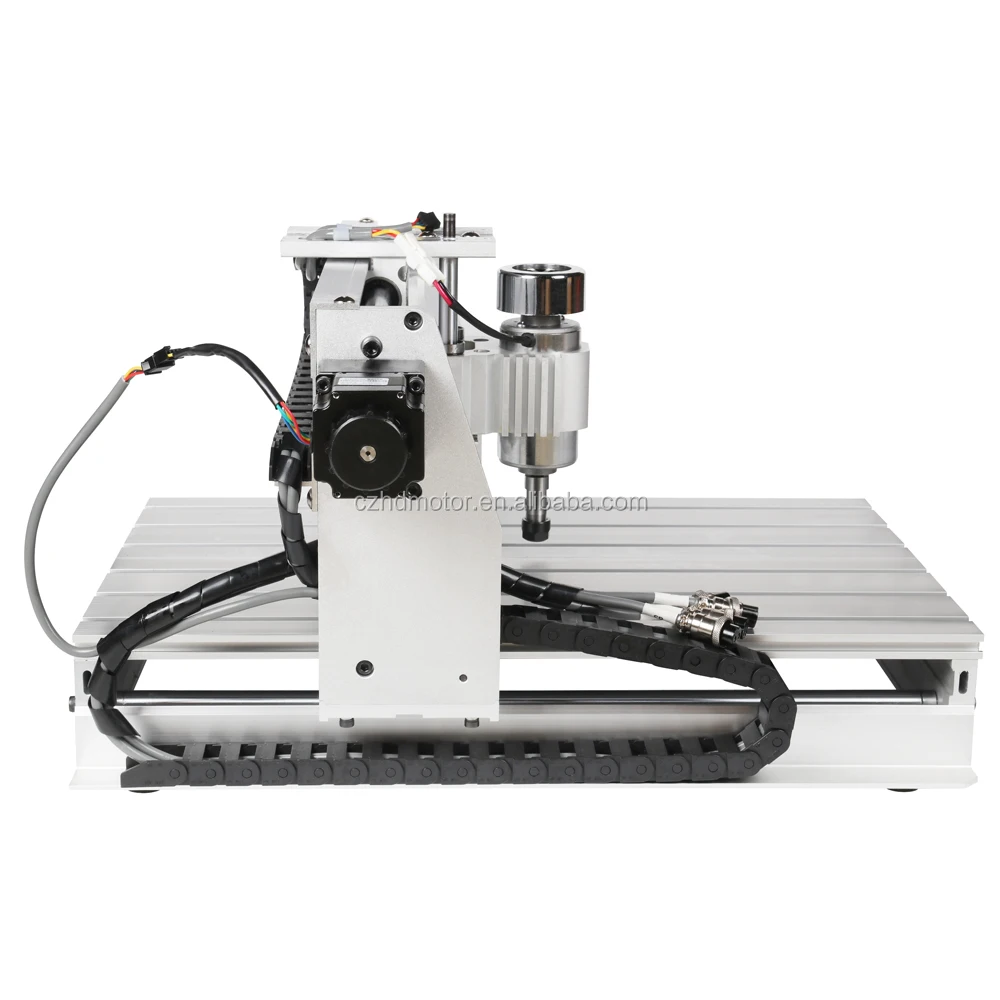

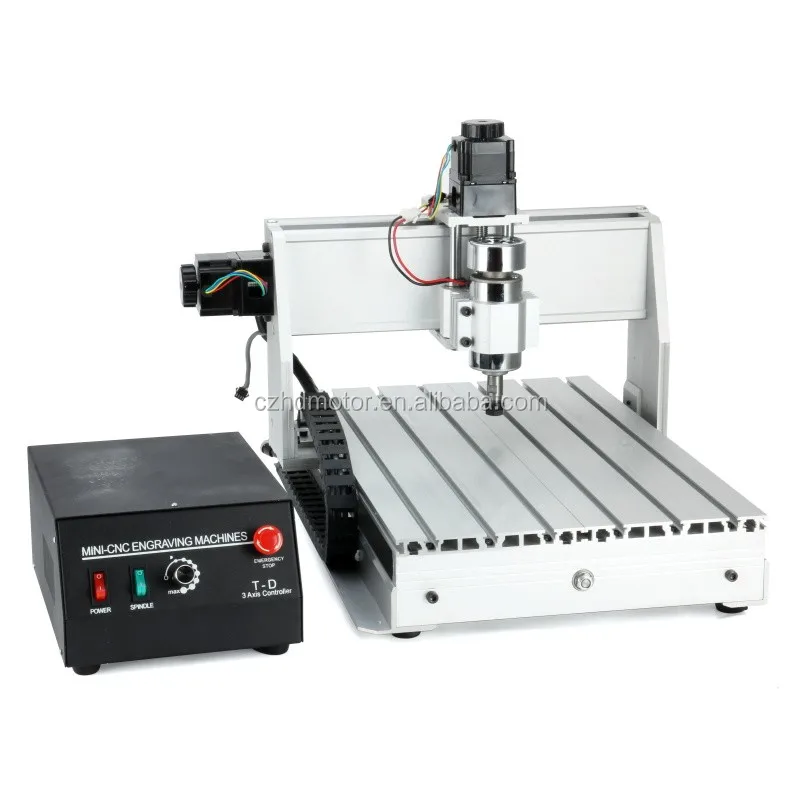

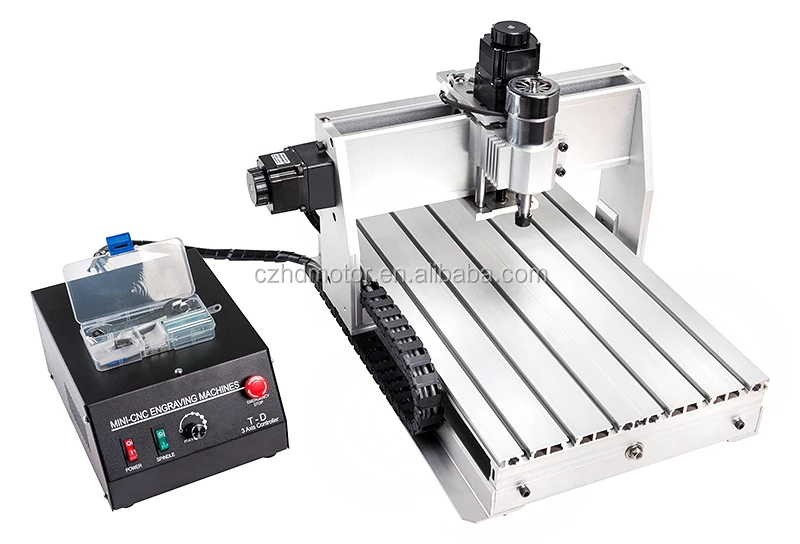

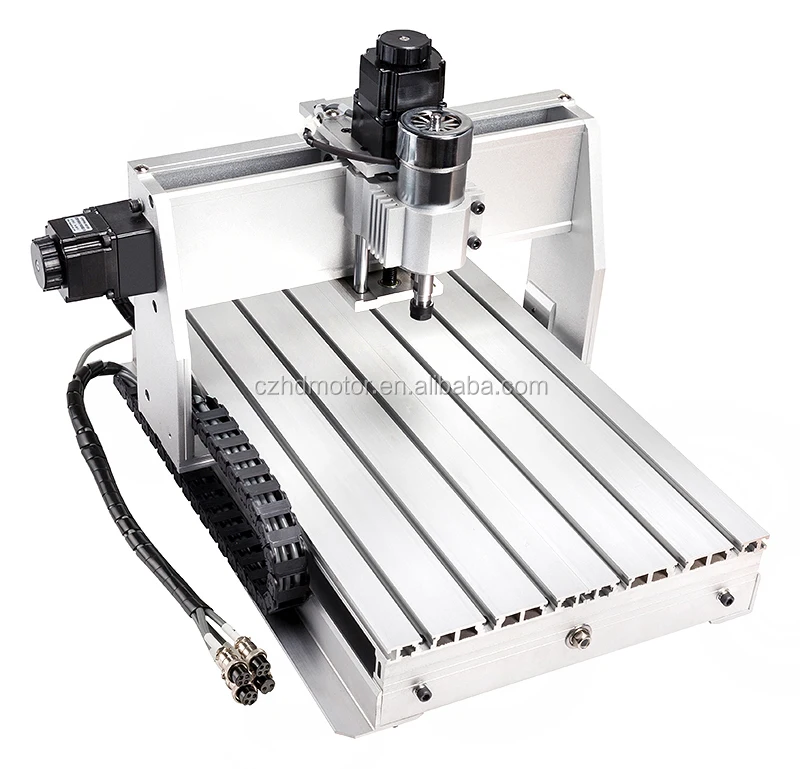

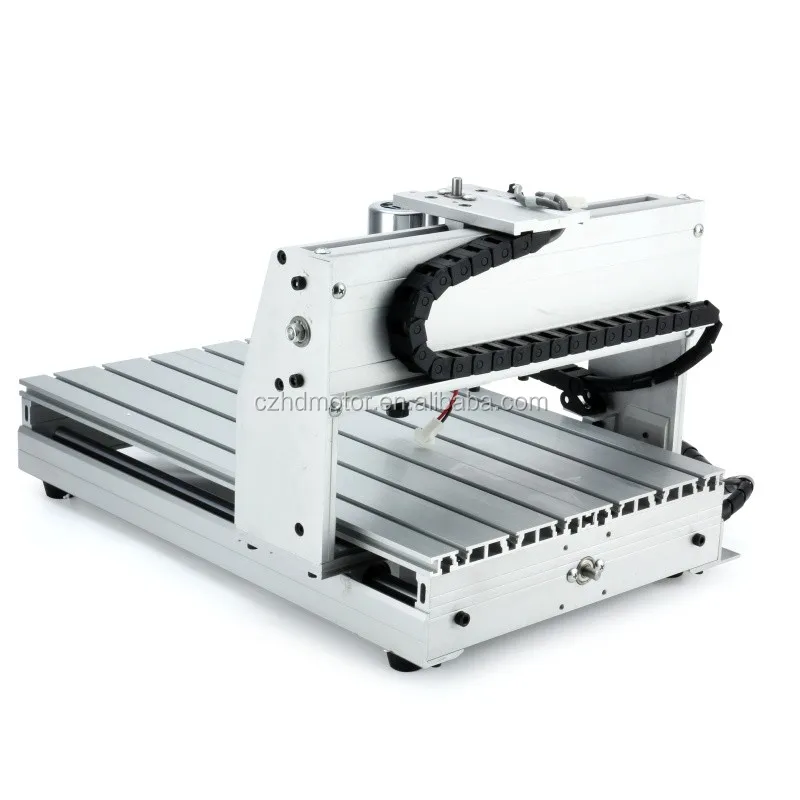

3040 3 axis Mini Desktop CNC Router Machine for wood pcb CNC Router Engraver Milling machine
- Category: >>>
- Supplier: Changzhou Handi Motor Science And Technology Co. Ltd.
Share on (60809506633):
Product Overview
Description
High quality 3D Mini DIY CNC router 3040 3 axis Wood/Advertising working
3040 3 axis small cnc router mini desktop cnc machine with USB port
Product Description
Technical parameter:
Max.stroke | XYZ=290*380*60mm |
Machinable material thickness | ≤70mm |

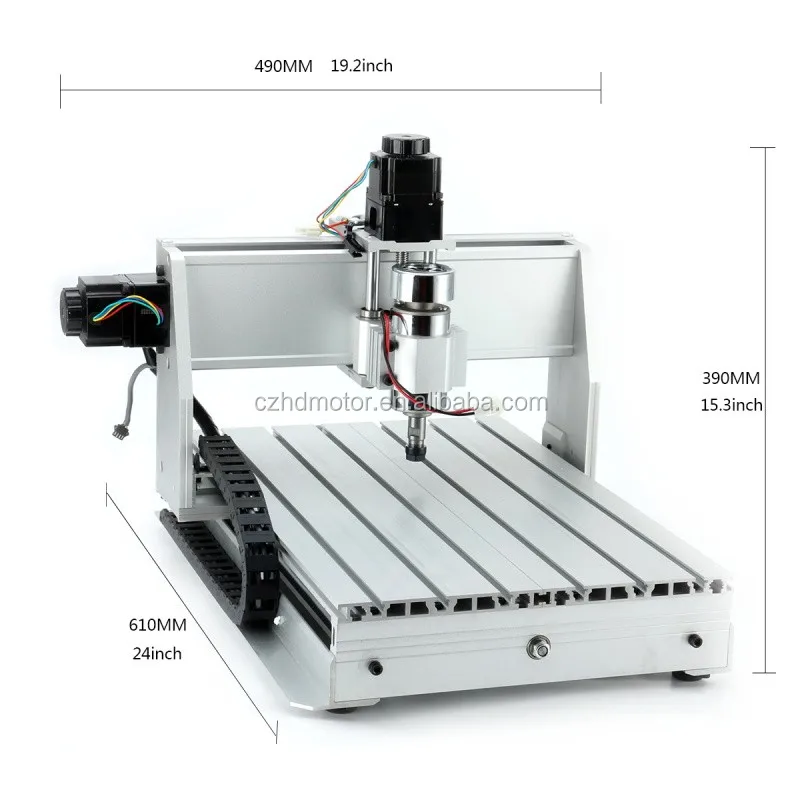

Outline dimension | 525*400*290mm |
Frame material | 6061-T5 aluminium alloy |
Rail type | Chrome plated shaft + linear bearing |
Screw type | T type screw,diameter 12mm,Thread pitch 2mm |
Ball screw,diameter 12mm,Thread pitch 4mm | |
Mechnical resolution | XYZ-shaft:0.0025mm/step |
Positioning accuracy | 0.05mm |

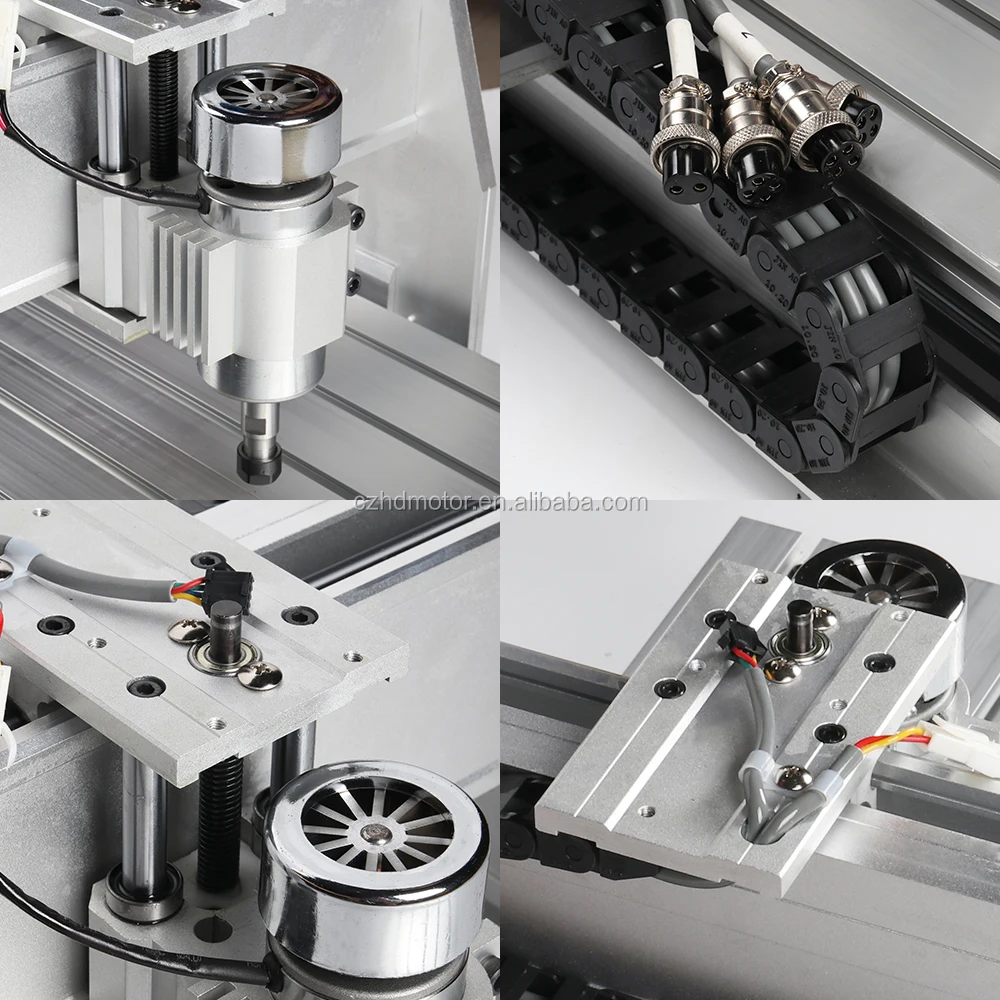

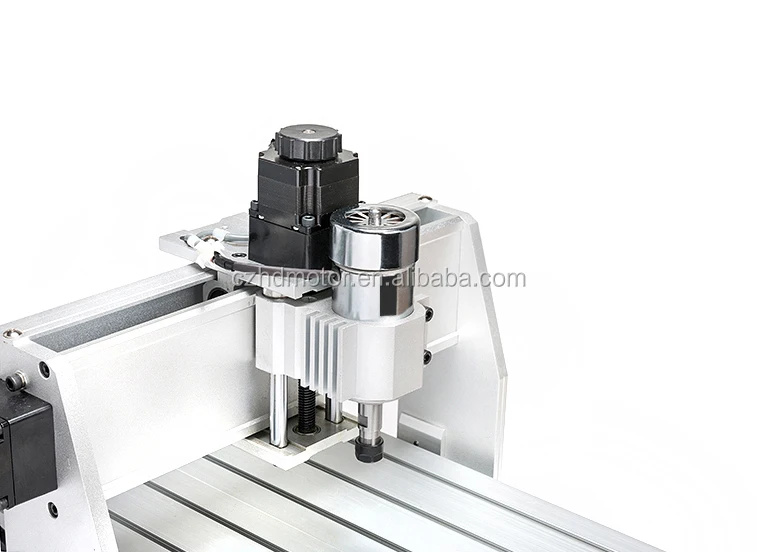

Spindle motor | 300W DC spindle motor |
RPM | 11000rpm/min |
Chuck type | ER11(3.175mm,6mm) |
XYZ motor | Stepper motor JK57HS41-2004XB-01AF |
Stepper drive | High performance, each axis can independent drive |
Feed rate | 1500mm/min |
Communication interface | USB2.0 |
System requirement | WIN-XP or WIN-7 |
Order code | G code/.nc/.ncc/.tab/.txt |
Voltage | Input 85V-240VAC(400HZ) |
Operation environment | Temp.:5℃-40℃;Humidity:35%-80% |
