250DT Series High Precision Cam Indexer, Cam indexing,Rotary indexing tables for Lithium battery automation
- Category: >>>
- Supplier: Cheng Shen Precision Machinery (Shanghai) Co. Ltd.
Share on (60809572320):
Product Overview
Description
Product Description

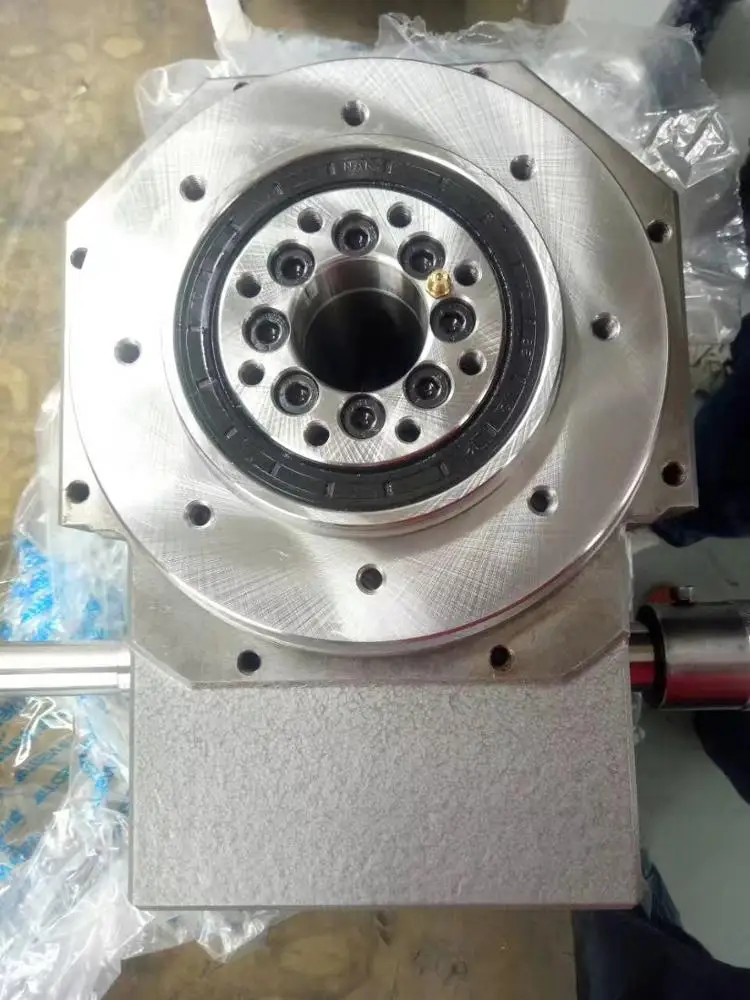

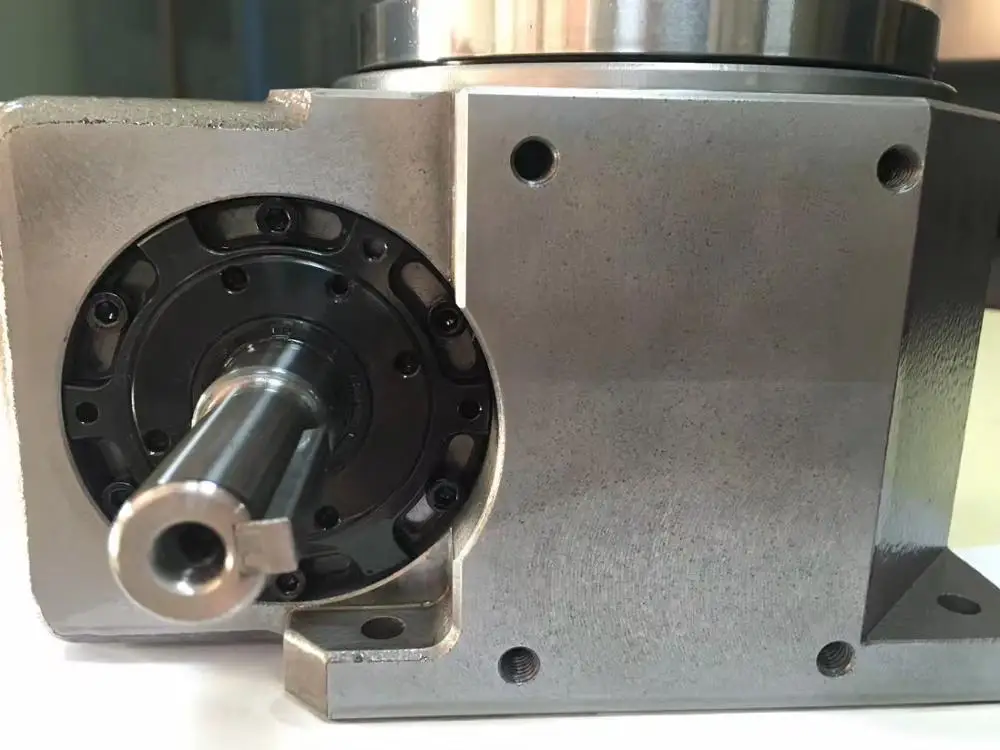

250DT Series Cam Indexer
Product Description:
<
Brand:chengchang | Product certification:ISO9001 | Processing customization:Yes |
Disk diameter:1000-2300mm | Bearing weight:0-1000KG | Mainly applied to: Automaic assembly machine, printing press |
Location and segmentation of equal parts:2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48 | ||
Driving angle:90°,120°,150°‘180°,210°,240°,270°,300° | ||
Cam curve: deformation curve, deformation sine curve and deformation velocity curve. | ||
Rotation direction of cam: left and right. | ||
Standard accuracy:±30 seconds, customizable±15 seconds high precision.
Weight:500 kg torque limiter (TL): 800 lubricant:90-140#
Matching motor: 4.5KW motor speed at 1400 or 1450.
Advantage:
One. Durability

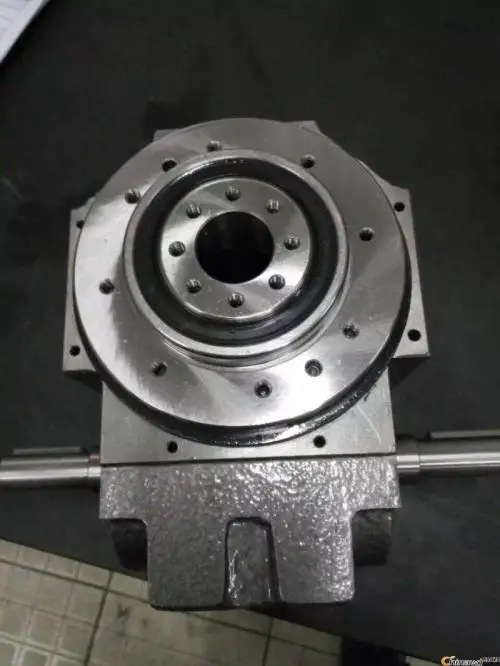

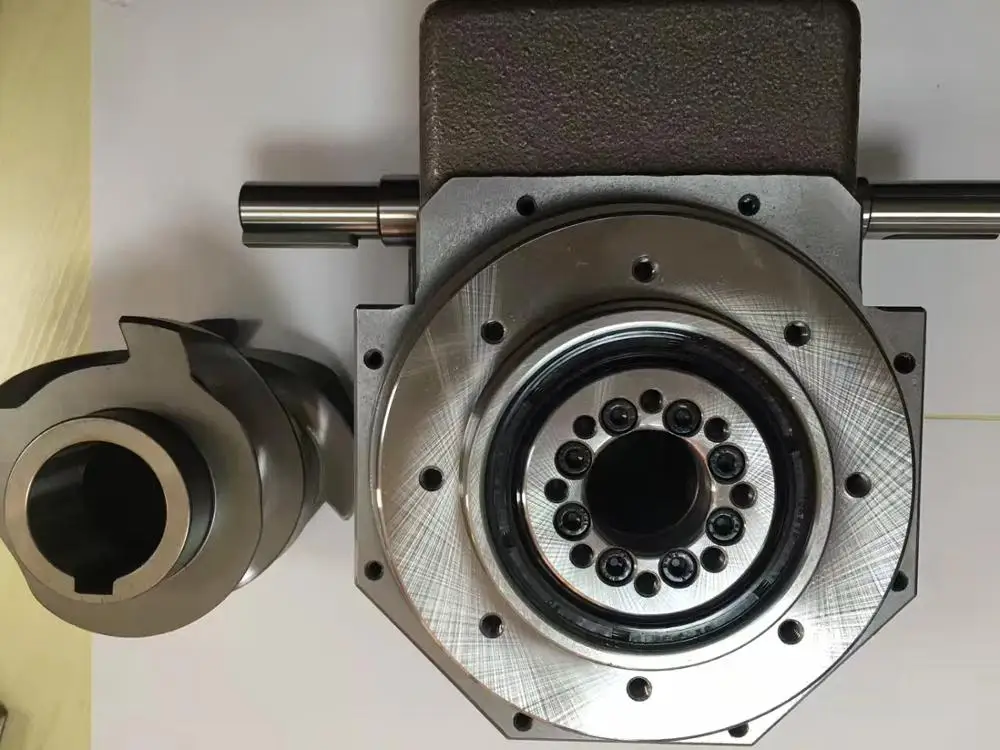

1. cam processing technology is carburizing and grinding, the hardened layer is about 5mm.
2. surface spray paint is diaphragm type dry antirust oil.
3. the internal bearing is imported from Japan, NSK/NTN.
Two. Price concessions. In the same quality, our price is the most favorable.
Three. Large quantities of stock.
Parameter table:
All Allowable radial load of output shaft (C1): 2500 kgf | Max.repetitive torque on input shaft(C5): 670 kgf-m |
All Allowable axial load of output shaft (C2): 1800 kgf | CD² on input shaft(Note1): 0.86 kgf-m² |
All Allowable torque of output shaft (Ts): Reference torque table | Indexing accuracy: ±30 Sec. |
All Allowable radial load of intake shaft (C3): 1900 kgf | Weight:500 kg |
Ma Max.repetitive bending force on input shaft (C4): 2250 kgf |
|
Note1:CD² on input shaft is value dwell ragne . Note2:Value of c1 to c5 are those obtained for safety factor=2.

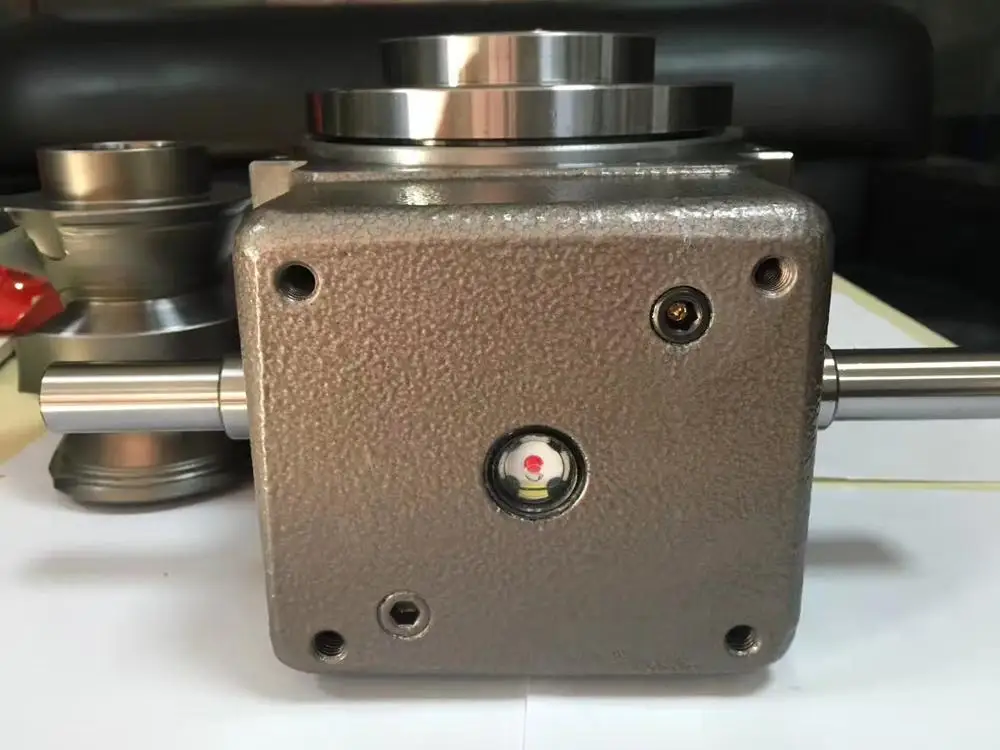

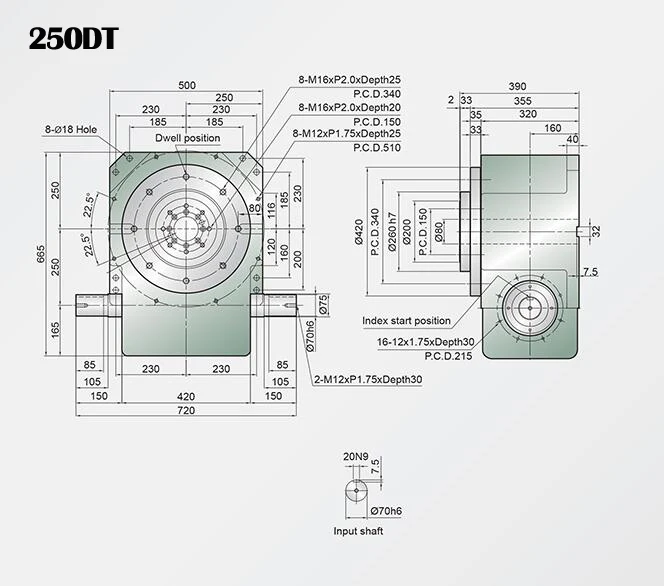

Size diagram:
Adequate Storage
Large scale standard industrial workshop
Advanced production equipment
Precision testing equipment
Application of cam indexer
