Apply to lace clothing, ribbon,trim,filter,lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.
Machine Feature

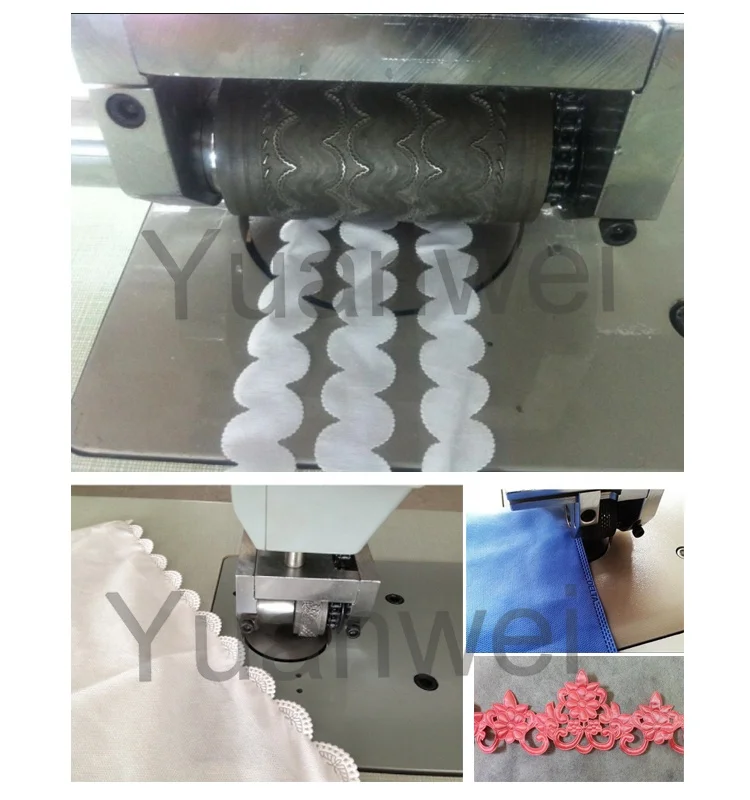

1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;

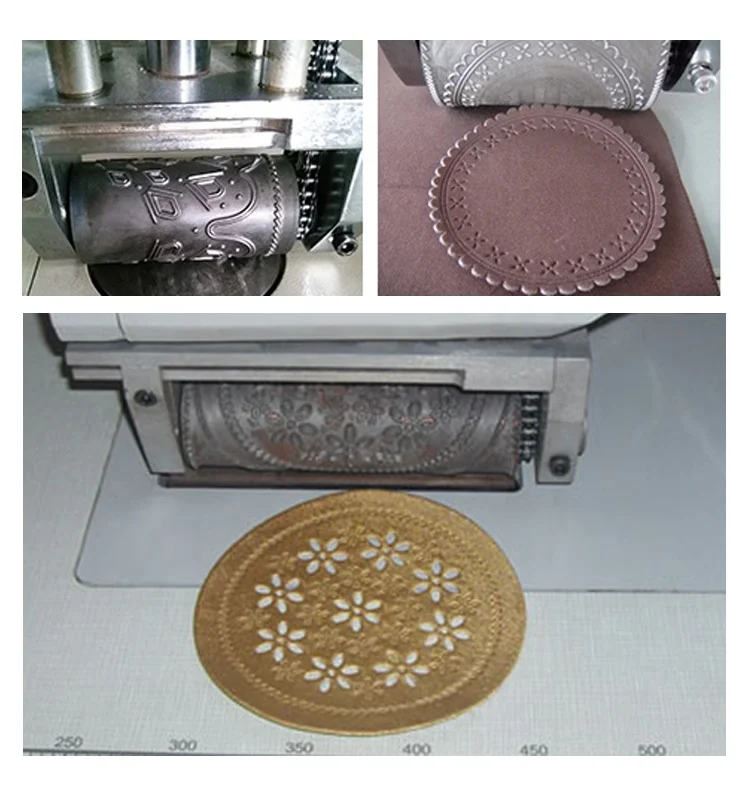

3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.
Machine Characteristics:
1. Horn fixed suspension structure;
2. Motors speed adjustment system;
3. Roller lifting system;

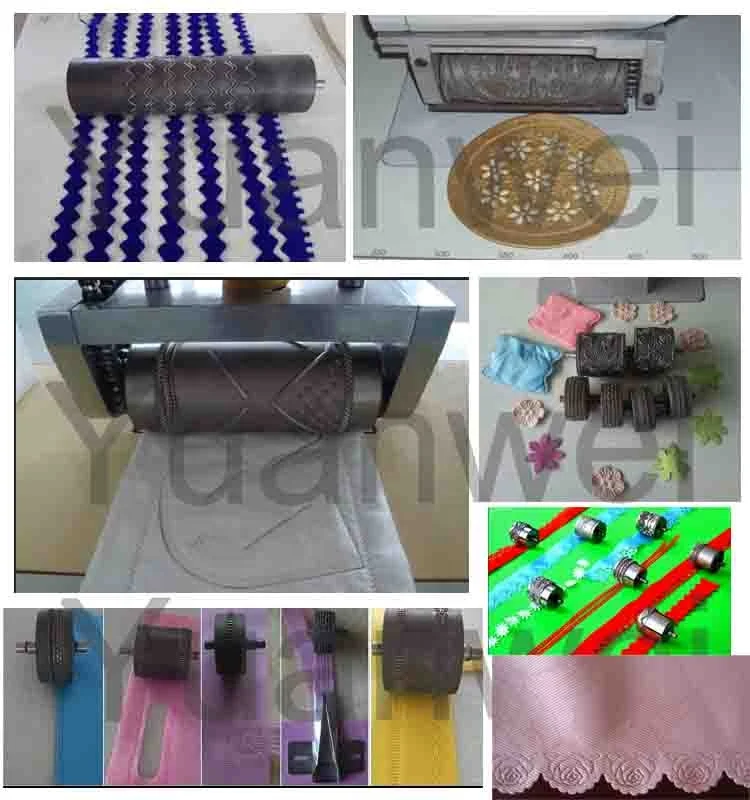

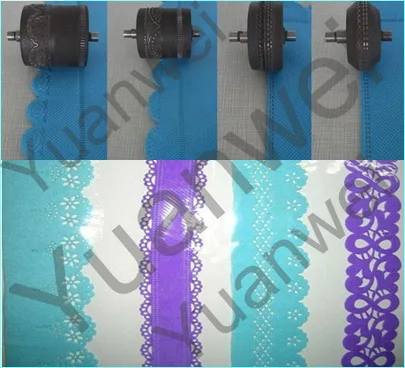

4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.
Model
YW-Ls2012
YW-Ls1522
YW-Ls1526
Power
1200W
2200W
2600W
Voltage
380V/220V 3p
Frequency
20KHZ
15KHZ
15KHZ
Max welding width
60MM
100MM
200MM
Welding speed
5-20M/min
Weight
120KG
140KG
140KG
Dimension
1200*550*1200MM
1200*550*1200MM
1200*550*1200MM

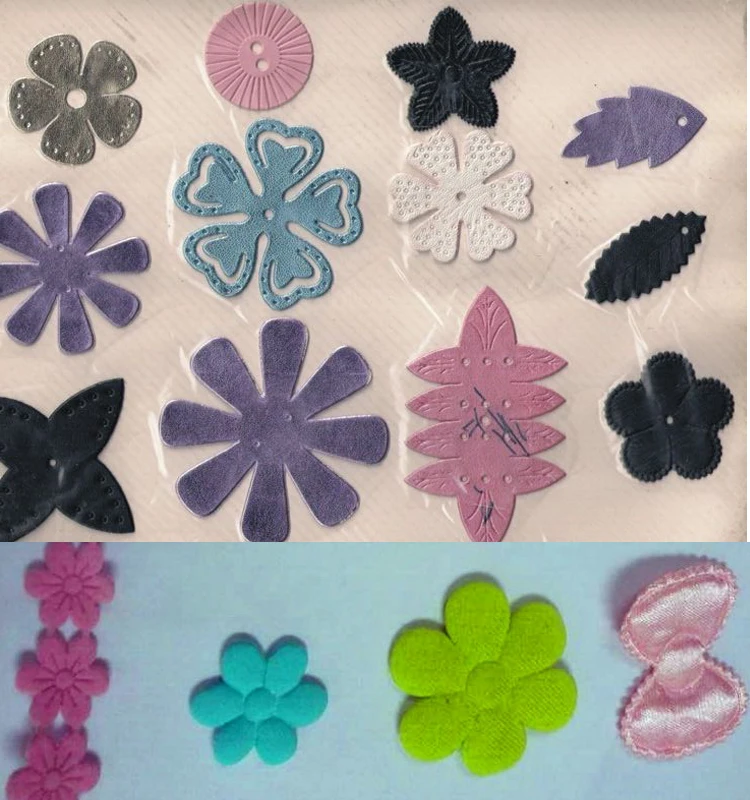

Mould & samples
