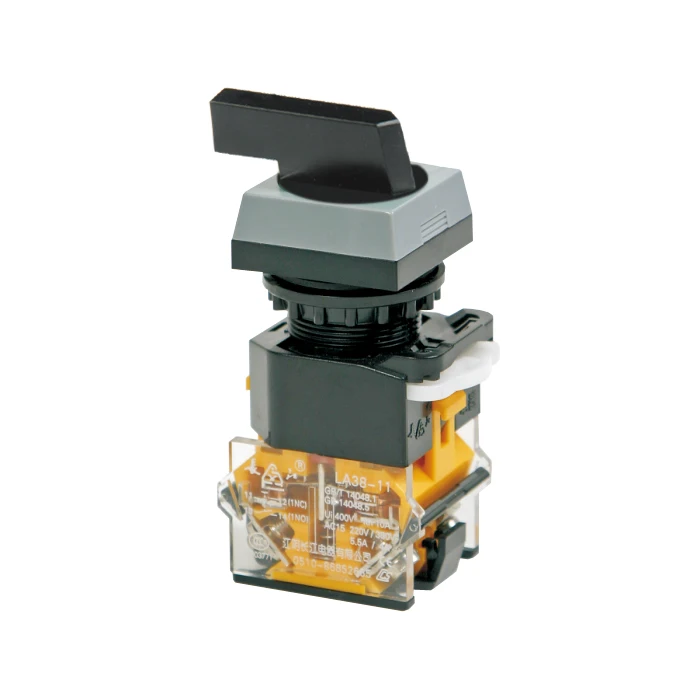

LA38 series 30mm plastic 2 or 3 position rotary switch square head selector push button switch with long handle

Product Overview

Description

LA38 series 30mm plastic 2 or 3 position rotary selector square head push button switch with long handle

China Shanghai institute of electrical science carried out a strict full set type tests for our push button switch products.Products are identified by the experts in the industry.Finally we got the LA38 product model in October 17, 1996. When you are purchasing, please identify the LA38 series button switch produced by Jiangyin Changjiang electric appliance co.,ltd

          Outline





Specifications

Type specification		LA38-**CX2(3)-229B
Name		2 or 3 position rotary switch,long handle (**means contact,10:1NO,01:1NC,11:1NO+1NC,20: 2NO,02: 2NC,and so on )
Products Standard		GB/T14048.5   IEC60947-5-1
Operation Condition	Altitude height		Environment temperature	Storage temperature	Relative humidity		Pollution class		Install type
	≤2000m		-25℃~+55℃	-40℃~+70℃	≤90%		3		Ⅲ
Main technical index	common parameter		Rated insulated Voltage			500V
			Rated impulse withstand voltage			4000V
			Insulated resistance			≥50MΩ
			protection  degree			can customize IP65
			Withstand Voltage			1.89KV/5S
	button parameter		Stipulated hot current Ith			10A
			Contact resistance			≤50mΩ
			Type Rated working Voltage /Current			AC-15		DC-13
						220V/5.5A 380V/4A		220V/0.45A 110V/1A
			Electrical life			100000 times
			Mechanical life			200000 times



                                                                                             Certificate



                                                                                           About us

Our company was founded in 1992, it is a strong capital and continuous innovation manufacturer,This enables us to provide the most advanced and competitively-priced products and services available today.OEM also can available, Customers' designs are warmly welcome.



                                  Company history

1972-1992       Jiangyin transistor factory



1992-1993       Jiangyin Changjiang electronic industrial company



1993-1996       Jiangyin Changjiang electronic industrial corporation



1997-2002      Jiangyin Changjiang electric appliance Co., Ltd.

                       Jiangyin Changjiang electronic industry Co., Ltd.



2003-             Jiangyin Changjiang electric appliance Co., Ltd.







                    Department and production line







FAQ





Q:Why choose us?

A:1. We are the professional manufacturer with competitive price ,and lower freight rate and the faster speed delivery.

   2.Strict quality control.,and every product is inspected 100% by our QC team before delivery.

3.Certified by ISO9001:2015/CCC/CE/ROHS



Q:After-sale service

1. Indicator light:2 years' warranty; switch: 18 months' warranty.

2. Parts replacement for free

3. Free tech support.





Q:How long is your delivery time?

A:Door to door  international express costs 5-7days in general.

.

Q:Do you provide samples?is it free or extra?

A:Yes,we could offer the sample for free charge but do not pay the cost of freight.



Q:What is your terms of payment?

A:We accept Multiple payment methods such us T/T in advance,Western Union,Alitrade assurance and so on.



Q:Is it OK to print my Logo on the product?

A:Yes,we support OEM/ODM service.





Contact us for more details about price,packing,shipping and discount.
