6.4V Rechargeable 18650 1500mAh Li ion Battery Pack with PCB Lithium Iron Phosphate (LiFePO4) 6.4V 1500mAh Battery Pack

Product Overview

Description

Description:



6.4V battery pack  Lithium Iron Phosphate (LiFePO4) – 1500mAh

• High lifespan: two thousand cycles and more
• Deep discharge allowed up to 100 %
• Ultra safe Lithium Iron Phosphate chemistry (no thermal run-away, no fire or explosion risks)
• Embedded BMS (Battery Management System): improve lifespan AND secure the battery
• No Lead, no heavy metal, no toxic element
• Calendar life > 10 years
• Excellent temperature robustness (-20 °C up to +60 °C)
• Constant power during discharge (very low internal resistance)
• Very low Peukert’s losses (energy efficiency >96 %)
• Very low self-discharge (<3 % per month)
• No memory effect
• About 50 % lighter and 40% smaller than the equivalent Lead-AGM battery with the same usable energy



Specification:

• Model: IFR18650 6.4V 1500mAh
• Voltage(V):6.4
• Capacity(mAh):1500
• Type:LiFePO4 battery
• Standard Charge Current(C): 0.2
• Standard Discharge Current(C): 1
• Maximum Charge Current(A): 1.35
• Maximum Discharging Current (A): 4
• Charge Cut-off Voltage(V): 5.0
• Discharge Cut-off Voltage(V): 2.0
• Charge Temperature Range(℃):0~45
• Discharge Temperature Range(℃): -10~50
• Size(mm): 37*18.5*75 (L*W*H)
• Weight(g):102



Application:

• Portable equipment: Laptop, camcorder, PDA, Digital camera, portable DVD etc.
• Electric Vehicle: Hybrid electric vehicle, Pure electric vehicle, E-bike, E-scooter, Golf cart, Electric boat, Electric wheelchair, Elevator.
• Power Tools: Lawnmower, Vacuum cleaner, Electric drill
• UPS: computer, Emergency application, Medical equipment
• Solar Energy: Solar street lights, Solar LED lights
• Telecom System: Communication base, Wireless devices

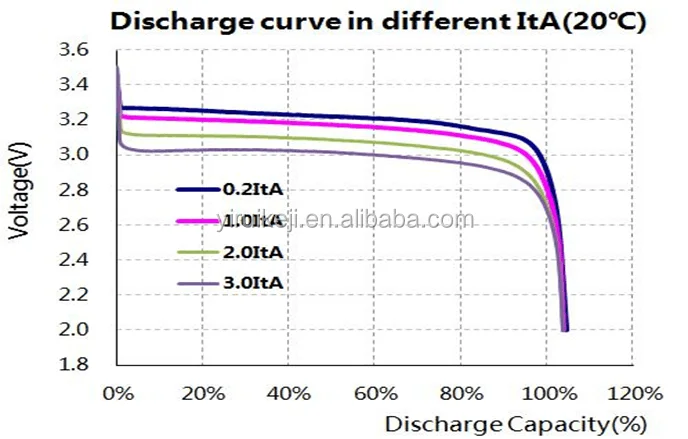

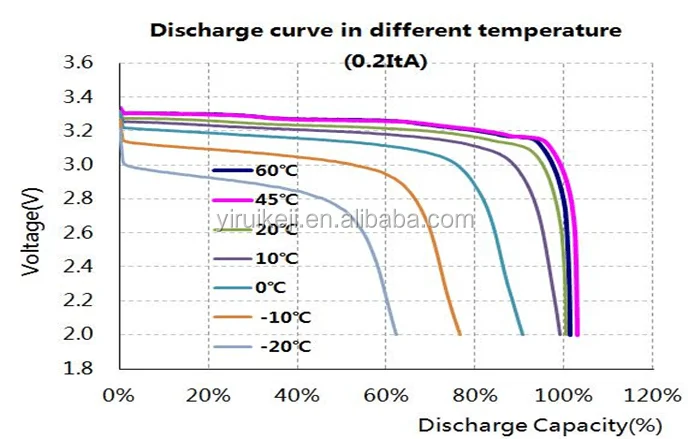

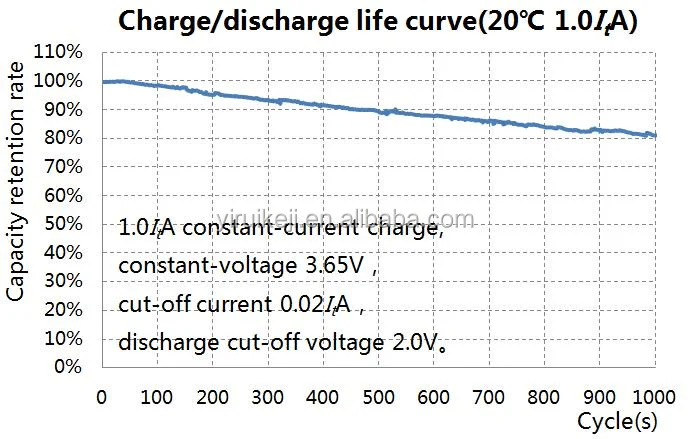

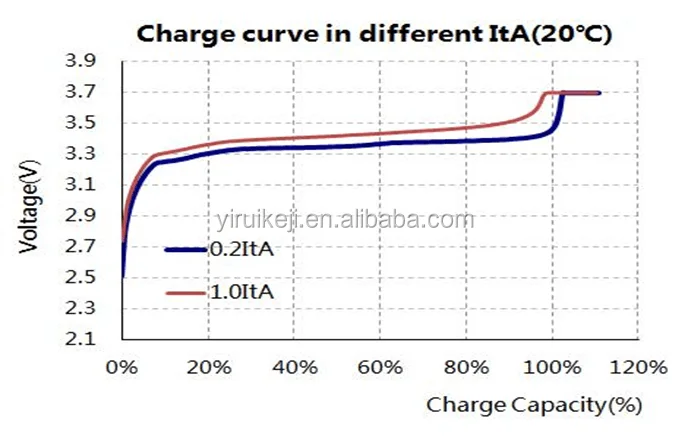

Performance Characteristics:
