Product Overview
Description

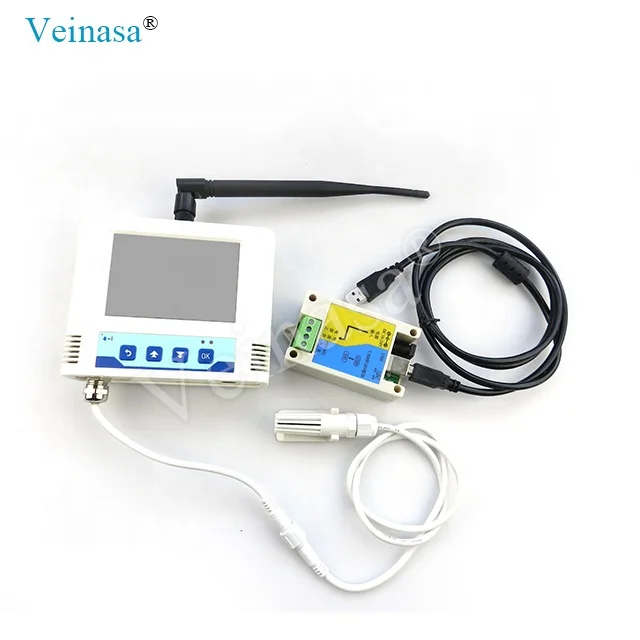

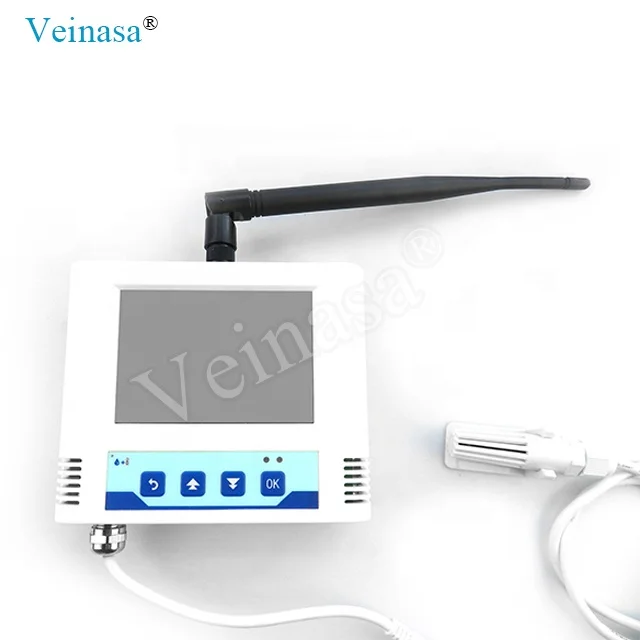

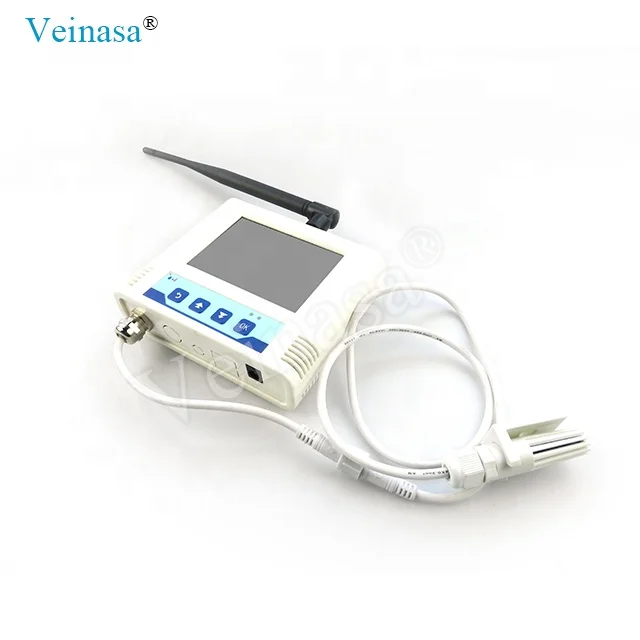

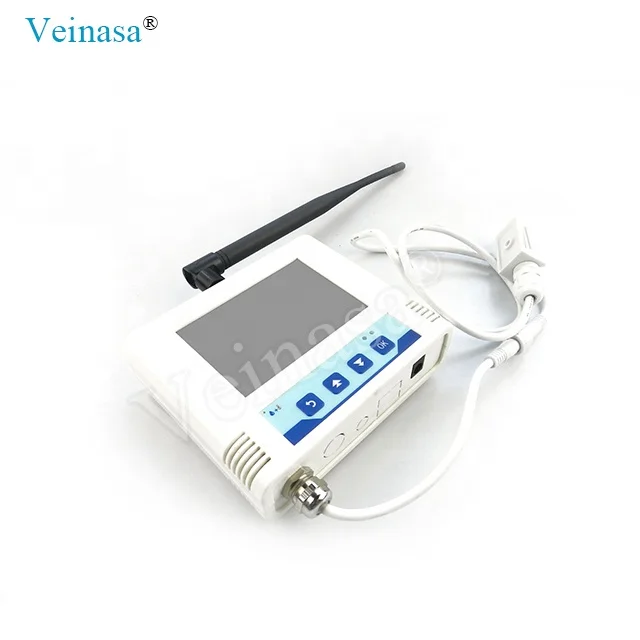

Waterproof Temperature Humidity Sensor Data Logger Temperature Sensor Wireless
Products Description
This series of temperature and humidity transmission recorder adopts large-screen liquid crystal display, with automatic temperature and humidity recording, dual control of temperature and humidity, free limit setting, temperature and humidity with password calibration, RS485 data transmission and other functions. The product adopts the imported high quality temperature and humidity measuring unit imported from Switzerland. The sensor has the characteristics of high measuring precision and strong anti-interference ability, which ensures the excellent measuring performance of the product.
Product Paramenters
DC power supply (default) | DC 10-30V |
Maximum power consumption | 0.4W |
A precision | ±2%RH(5%RH~95%RH,25℃) |
±0.4℃（25℃） | |
B-precision (default) | ±3%RH(5%RH~95%RH,25℃) |
±0.5℃（25℃） | |
Transmitter circuit operating temperature | -20℃~+60℃，0%RH~80%RH |
Probe operating temperature | -40℃~+120℃，default-40℃~+80℃ |
Probe working humidity | 0%RH-100%RH |
Temperature display resolution | 0.1℃ |
Humidity display resolution | 0.1%RH |
Temperature and humidity refresh time | 1s |
Long-term stability | ≤1%RH/y |
≤0.1℃/y | |
Response time | ≤4s(1m/s wind speed) |
≤15s(1m/s wind speed) | |
output signal | RS485(Modbus protocol) |
Time and date | Built-in clock, real-time display |
Alarm function | Built-in buzzer, external sound and light alarm, relay optional |
Recording interval (minutes) | Adjustable interval, default 30 minutes |
Record points | 65535, if recorded by default 30 minutes, can be stored for 4 years |
Record mode | Off / on / automatic |
Storage mode | Automatic loop storage |
Installation method | Wall-mounted |
Product Features
Application Field
Features
1. It adopts the imported temperature measuring unit from Switzerland, which has high measurement precision and strong anti-interference ability.
2. The device built-in memory, real-time recording of temperature and humidity data, the maximum record 65535 groups.
3. Various alarm parameters, communication parameters, time and date can be set through the LCD button.
4. The LCD displays the temperature, humidity, time and date, stored capacity, device address and baud rate in real time.
5. Remote monitoring and setting of parameters such as temperature and humidity alarm parameters, time and date, and recording parameters can be performed through the monitoring platform.
6. Built-in temperature and humidity alarm function, which can set the upper and lower limits of the
1. It adopts the imported temperature measuring unit from Switzerland, which has high measurement precision and strong anti-interference ability.
2. The device built-in memory, real-time recording of temperature and humidity data, the maximum record 65535 groups.
3. Various alarm parameters, communication parameters, time and date can be set through the LCD button.
4. The LCD displays the temperature, humidity, time and date, stored capacity, device address and baud rate in real time.
5. Remote monitoring and setting of parameters such as temperature and humidity alarm parameters, time and date, and recording parameters can be performed through the monitoring platform.
6. Built-in temperature and humidity alarm function, which can set the upper and lower limits of the
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor CXS02B.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather sensor CXS02B.
Q: What’s the common power supply and the power consumption？
A: Common power supply is 220VAC and the power consumption is less than 3W.
A: Common power supply is 220VAC and the power consumption is less than 3W.
Q: What's the lifetime of HTSC00X?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!

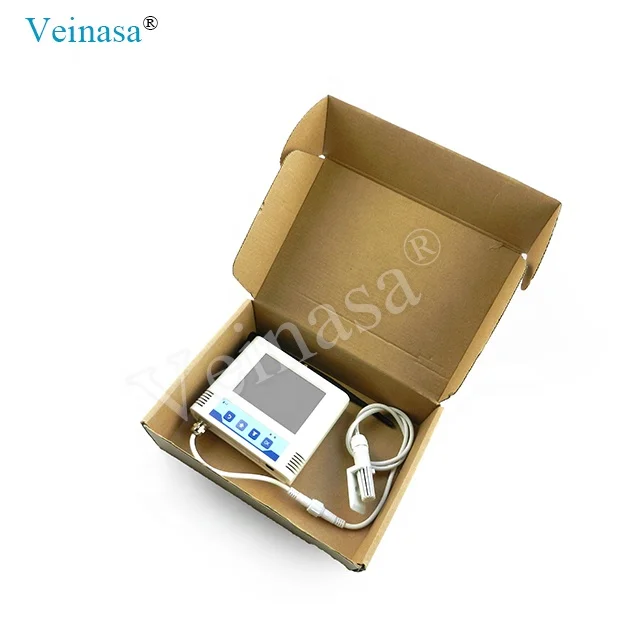

Product packaging & shipping
