P2/P2.5/P3/P4/P5 smd indoor led video panel module, rgb led module
- Category: >>>
- Supplier: Shenzhen LJX Display Technology Co. Ltd.
Share on (60809720440):
Product Overview
Description
Product Description
| Unit Module | Item | Parameter |
| Module number | LJX-P4-16S | |
| Moule size | 256mm x 128mm | |
| Pixel pitch | 4mm | |
| Pixel density | 62500dots/sqm | |
| Pixel configuration | 1R1G1B | |
| Package mode | smd 2121 | |
| Pixel resolution | 64 x 32 dots | |
| Max power consumpion | 28w | |
| Module thickness | 14.85mm(without magent) | |
| 27.15mm(with magent) | ||
| Module weight | 0.504kg | |
| Driver method | constant drive | |
| Driver method | 1/16 scanning | |
| Port type | HUB75 | |
| Brightness | >1400cd/sqm | |
| Bracket | Size | 256mm x 128mm |
| 256mm x 256mm | ||
| Unit Cabinet | Cabinet size | 512mm x 512mm |
| Quantity of module | 8pcs | |
| Power supply | 5v/40A x 2pcs | |
| Thermal discharge | 2pcs cooling fans | |
| Pixel per cabinet | 128 x 128 dots | |
| Best viewing distance | 6m-33m | |
| Best viewing angle | 160°(w)120°(H) | |
| Temperature | storage:-35℃-+85℃ | |
| working:-20℃- +50℃ | ||
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
| Power | Working voltage | 220V±10% |
| Averange power consumption | 140W/sqm | |
| Max. power consumption | 420w/sqm | |
| Current | <20mA(single LED) | |
| Control system | CPU | Pentium 4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Driving device | Constant currentdriver IC | |
| Main technical paramete | Refresh frequency | >400HZ |
| Grey scale | 256levels of each color /16.7 colors | |
| Power switch | Auto matic switch | |
| Display mode | 800*600/1024*768 |
Advantages
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

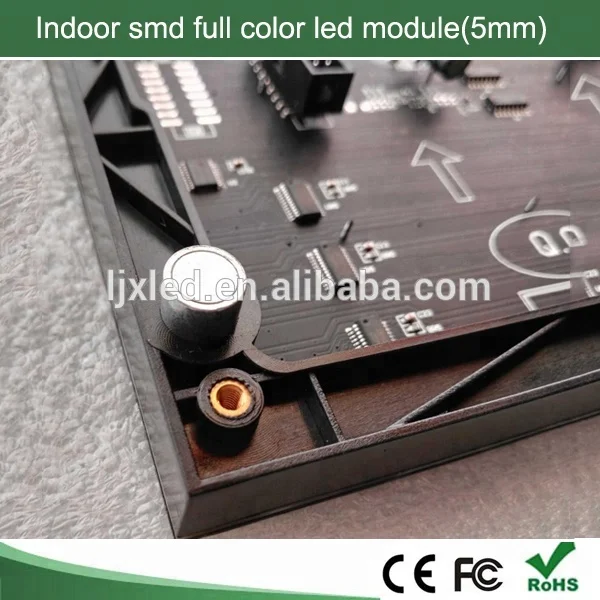

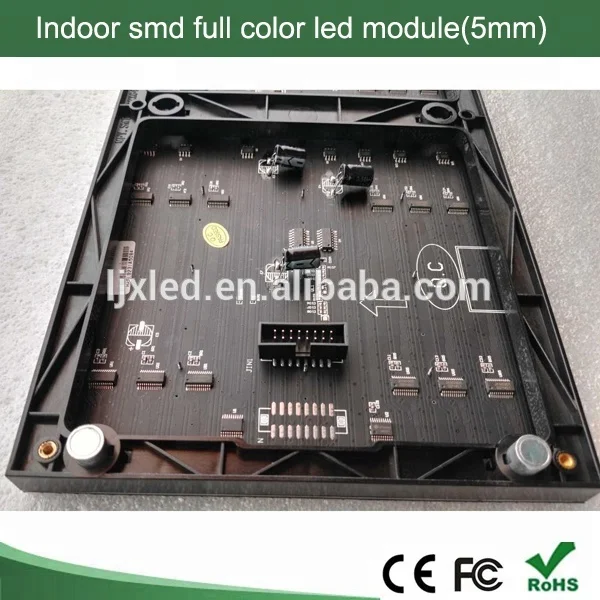

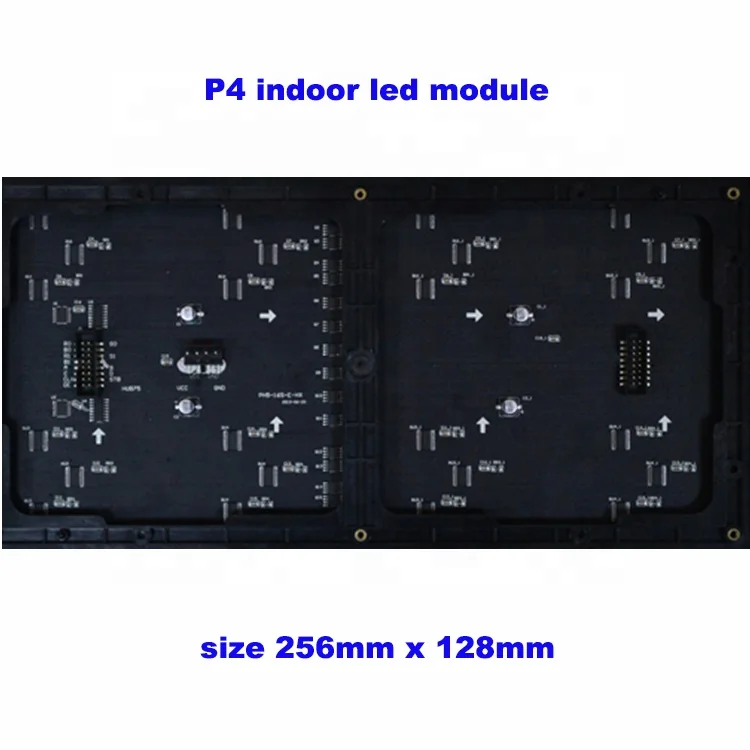

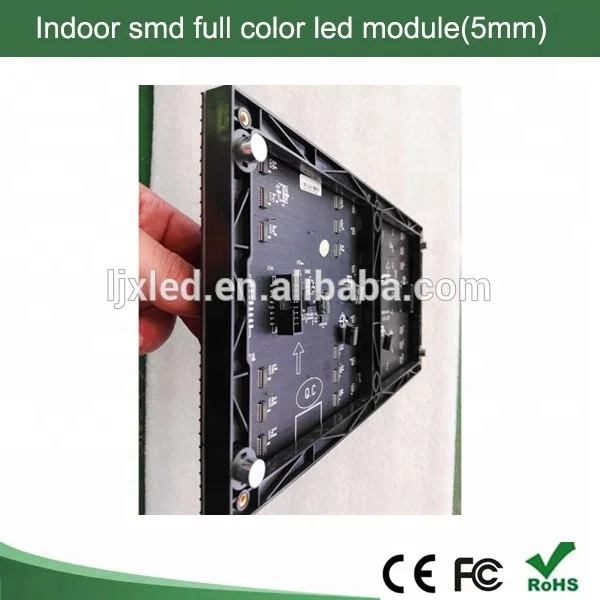

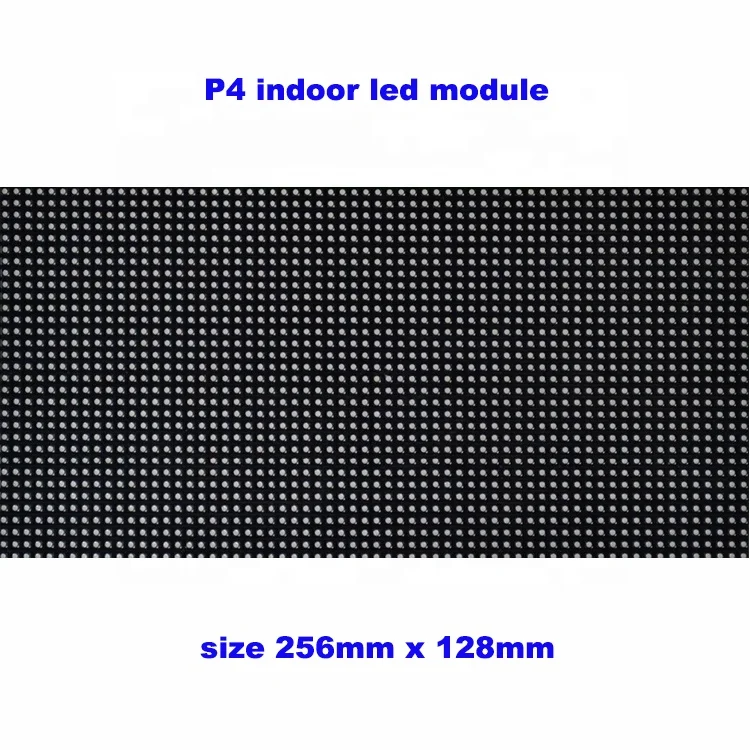

1.P4 smd 2121 rgb led panel module(size 256x128mm)
2. P4 rgb indoor led module size 256x256mm
3.P4 indoor led module (size 320mm x 160mm)
4.Accessories for p4 smd 2121 indoor rgb led panel module(flat cable ,power cable , magnet)

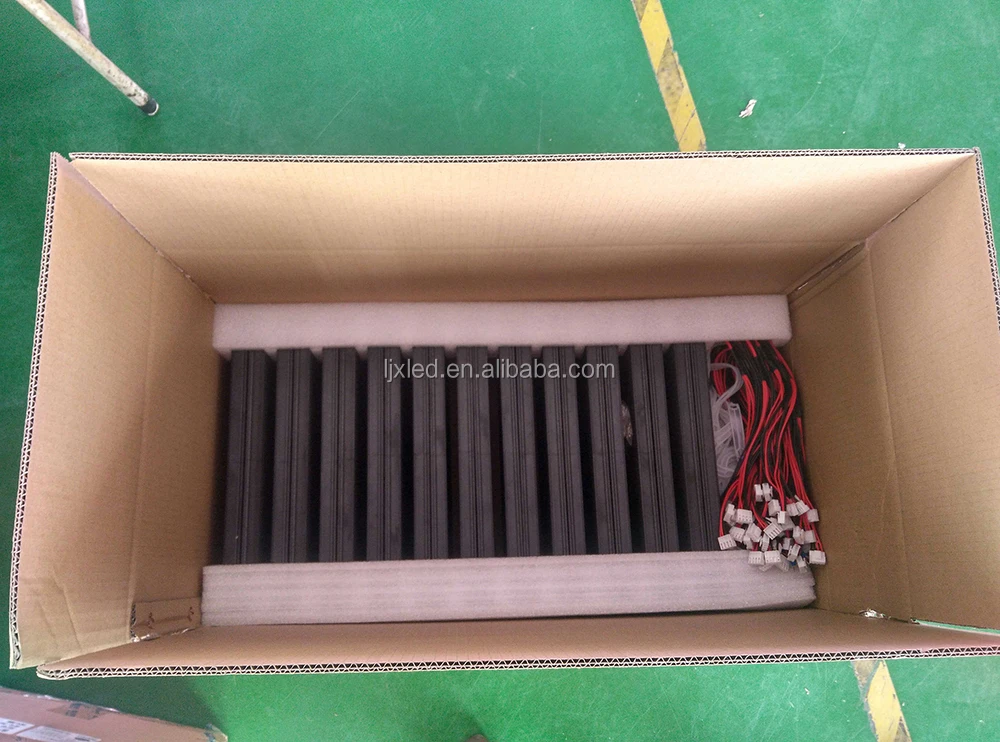

5.Package for p4 module (carton with foam )
6.P4 led display projects
FAQ
Q1: What is the lead time?
A: Sample:3-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.
Q2: Is it all right to make customers’own brand name?
A: That’s all right to make your own brand name.
Q3: Is it available for samples ?
A: yes, of course. sample is free, and you may pay freight cost.
Q4:How to place an order?
1. Sample approval.
2. Client makes 30% deposit or open LC after receiving our PI.
3. Client approves our pp sample, and get the testing report if any necessary
4. Mass Production.
5. Arrange shipment.
