Product Overview
Description

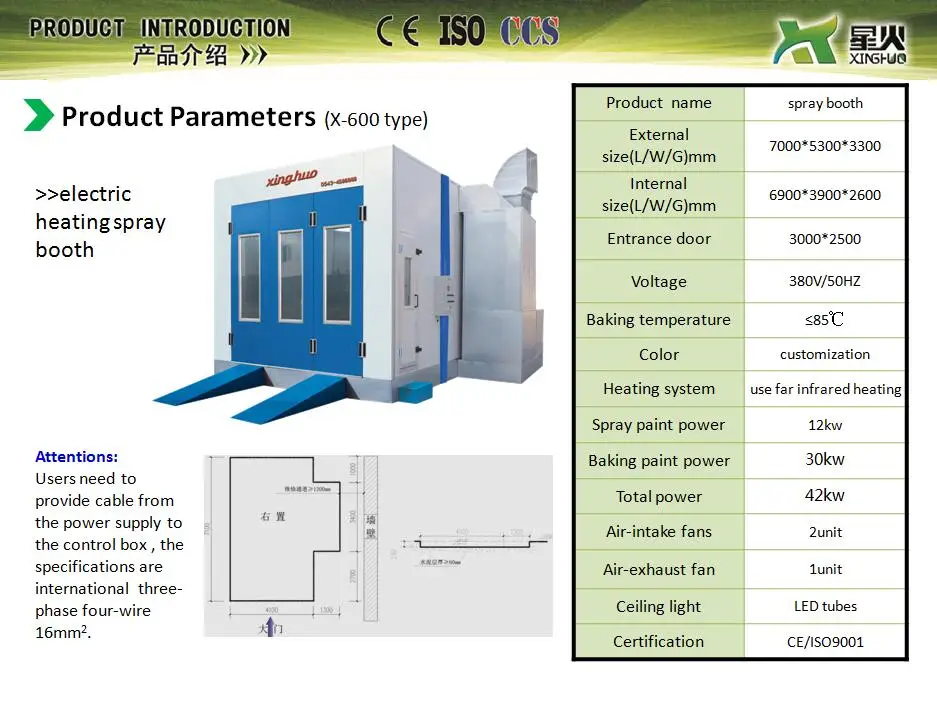

Product Description
| The housing body | The insulation board is 50mm thick. The single-layer color steel plate is 0.5mm. The bulk density of rock wool is 120 kg/cubic meter |

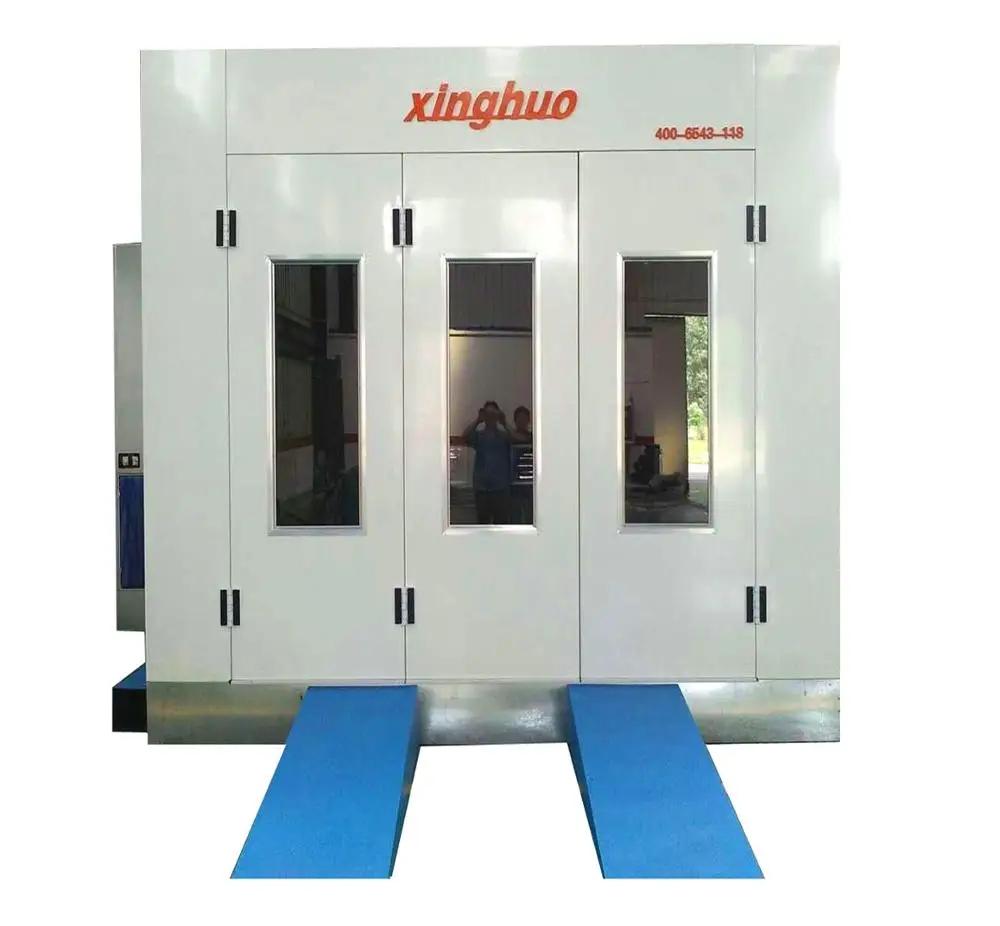

| The door | Folding three doors are designed, the whole sheet metal door is made, the exterior is all aluminum insert lock, aluminum profile glass observation window, easy to observe the spraying and baking paint inside the room;One side of the room has a safety working door, equipped with a safety pressure lock device, when the pressure in the room reaches the limit, the safety door automatically spring open pressure relief, convenient and safe. |
| Heating system | Far infrared electric heating is adopted.The baking lamp is designed as a door to door type, a total of 10 groups, fixed on both sides and the back of the baking room, a total of 30KW, divided into five ways of control, each group of 3KW, can be the workpiece in front, on both sides of the baking, safety and energy saving |
| The bellows | The generating room adopts galvanized steel frame welding, high quality galvanized sheet outer skin, reinforcement treatment, prevent the fan operation to the box vibration, plastic spraying treatment on the outer surface;The box body and the room body are separated by 100mm to avoid the common vibration between the fan operation and the room body. |
| Fan | YDW series fan produced by Siemens technology in yancheng, jiangsu province has low vibration and large air volume.Two inlet fans of 3KW and air volume of 20000m3/h, and one exhaust fan of 7.5kw and DKF fan with air volume of 18000m3/h. |
| Electric control box | The box body is made of cold plate, bent and sprayed with plastic, the components are made of delixi and yuyao electric appliances, equipped with painting, baking paint timing, over temperature alarm, leakage protection, emergency stop and other functions, simple operation, high degree of automation. |
| Lighting | The light box is made of zinc-plated sheet, bent, welded and sprayed with plastic. It is equipped with 32 sets of LED tubes, whose brightness ≥1000 lux, so that there is no double shadow and blind area in the operation area.Lamp tube surface with glass outer cover, frame spray treatment, both can prevent the production of rust, and beautiful generous.The light boxes are evenly distributed on both sides of the spray booth, hanging at a 45-degree Angle on the spray roof. |
| Filtration system | Choose galvanized welded framework (pensu processing) do cotton, filter cotton edge can be inserted into the frame, prevent dropping, design six pieces of cotton, convenient replacement, to enhance the overall strength, the secondary filter aspirant wind, domestic cotton primary filter, the Dutch technology CC - 800 xu upperfilters cotton fine filter, the filter rate 98%, cotton and discharge vents coarse filter paint and debris. |
| The base | Adopt 1.8mm thick coaming to make a ladder structure to prevent the grille sliding and damaging the wall board;Two lines of steel grid plate, steel grid plate use 5×30mm flat iron 8# rebar welding, galvanized;Three lines of decorative board, paint treatment rust.The four sides are folded with high quality zinc plate. |
| Environmental protection device | optional |
| Water-based paint device (not included, optional) | High speed air shower nozzle with adjustable Angle is equipped with large ribs at the top, and the air is supplied independently by 2 0.55kw YDW centrifugal fans.Equipped with independent air duct, independent air supply, independent control. |
| Exhaust duct | Size: 600*600, 0.6mm galvanized board, equipped with 4 meters air duct, 1 elbow, 1 rain cap. |
| Boarding guide board | The above ground type is equipped with two 600*1800mm climbing platform and walking platform, while the bottom digging type does not. |
Company Information
Zouping spark coating equipment co., ltd. is located in zouping city, one of the top 100 economic counties in China
Approved and registered paint room and industrial environmental protection equipment production and manufacturing enterprises, for many years
specializing in spray paint room and industrial environmental protection coating equipment research and development, design, production, sales, with
independent intellectual property rights "spark" brand paint room and industrial environmental protection coating equipment.The company is committed
to the development and promotion of new products, new technologies and new processes.Strive to build the enterprise into a product research and
development, design, manufacturing, installation and debugging and consulting services as one of the high-tech enterprises.
The company connects the industrial key city zibo in the east, shandong province will be adjacent to jinan in the west, south jiqing high-speed,
north by the Yellow River, land
Location, convenient transportation.Since its inception, the company has always pursued "the brand" strategy, the products are adopted a policy of
lifetime after-sales service, the company leading product "spark" brand spray/paint room, with practical, environmental protection, low energy
consumption, high cost performance of technical characteristics, positive response from the international community advocated by low carbon,
environmental protection concept in the service industry, service to the society.In order to meet the market demand, the company has developed the
electric heating type, light oil, waste oil heating, steam heating type, infrared electric heating technology advanced spray/paint coating of
environmental protection equipment such as, the spark spraying/baking booth has been successfully applied in automobile manufacturing, car
modification, engineering machinery, mechanical processing, ceramic products, furniture manufacturing, and other areas of the multiple enterprises,
products are exported to Japan, South Korea, Vietnam, Russia, Congo and other overseas countries.
Company with a special focus on the product after-sales service, formed a technology professional services team, responsible for product after-sales
maintenance, maintenance, service outlets all over the country, the company's practice of "one year warranty, life-long maintenance" commitment to
provide free maintenance product warranty maintenance services, more than warranty period will provide non-profit permanent product maintenance
services.
Certifications
Packaging & Shipping
Our Services
A. All of the machines in our factory can be customized. If you have any other requirements of the machine, please feel free to contact me. We can design it for you.
B: Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before shipment.
C: Delivery time: To effect shipment within 15 days after the receipt of deposit.
D:Warranty time: 1 year. During the warranty time, any defective caused by product’s quality, CHNHC has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL.
FAQ
Q1:What is your terms of packing?
A1:Convenient pack.
Q2:What is your terms of payment?
A1:L/C,T/T,Western Union,MoneyGram.
Q3:What is your terms of delievry?
A1:Shipping.
Q4:How about your delivery time?
A1:One week.
Q5:Do you test all you goods before delivery?
A1:Yes,we do.
Q6:Can you make the machine size and color as our request?
A1:Yes,we can make the machine size and color according to your request.
Q7:OEM is available?
A1:Yes,we can accept OEM.
Q8:What's the advantage of your company?
A1:1.Factory direct sale;2.One year warrnty;3.Advanced microcomputer control system
4.Fast infrared lamps drying system(Diesel or gas drying can be customized )installation
instruction service;5.Installation instruction service;6.Experienced in shipping;7.CE certificate
