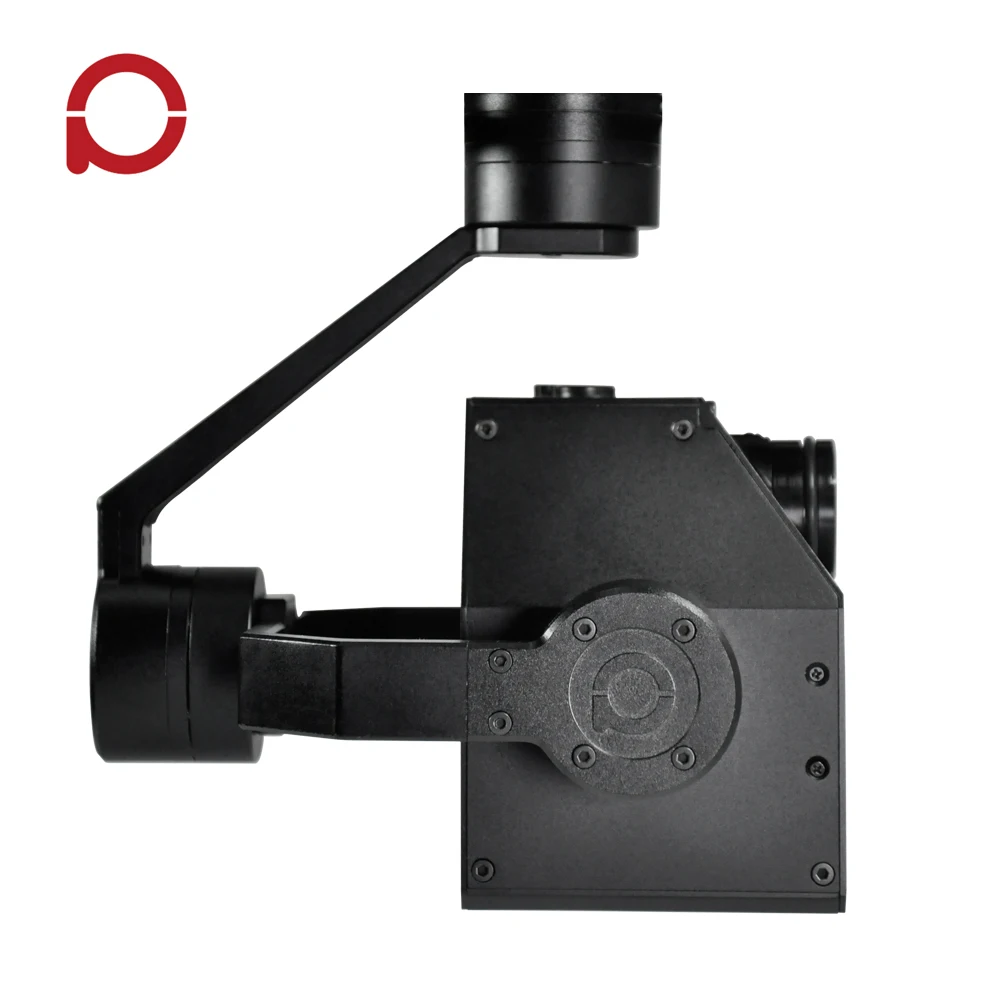

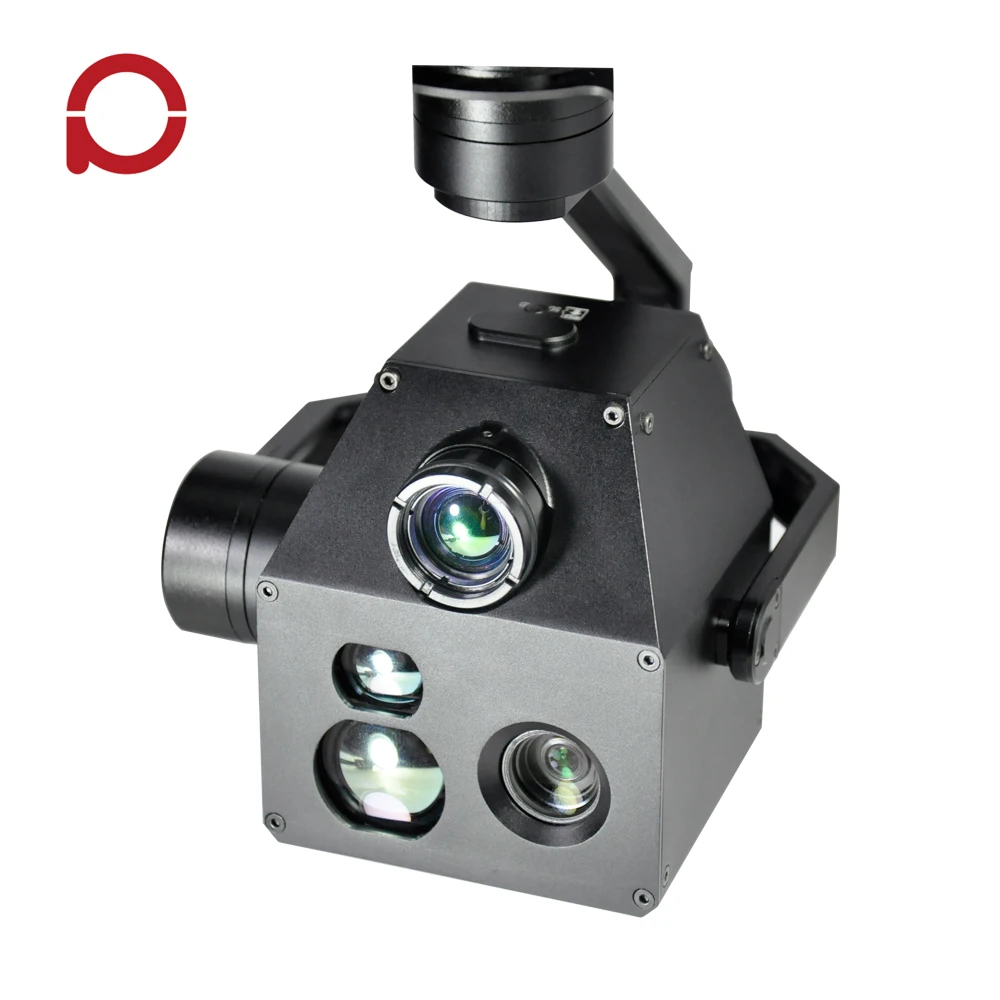

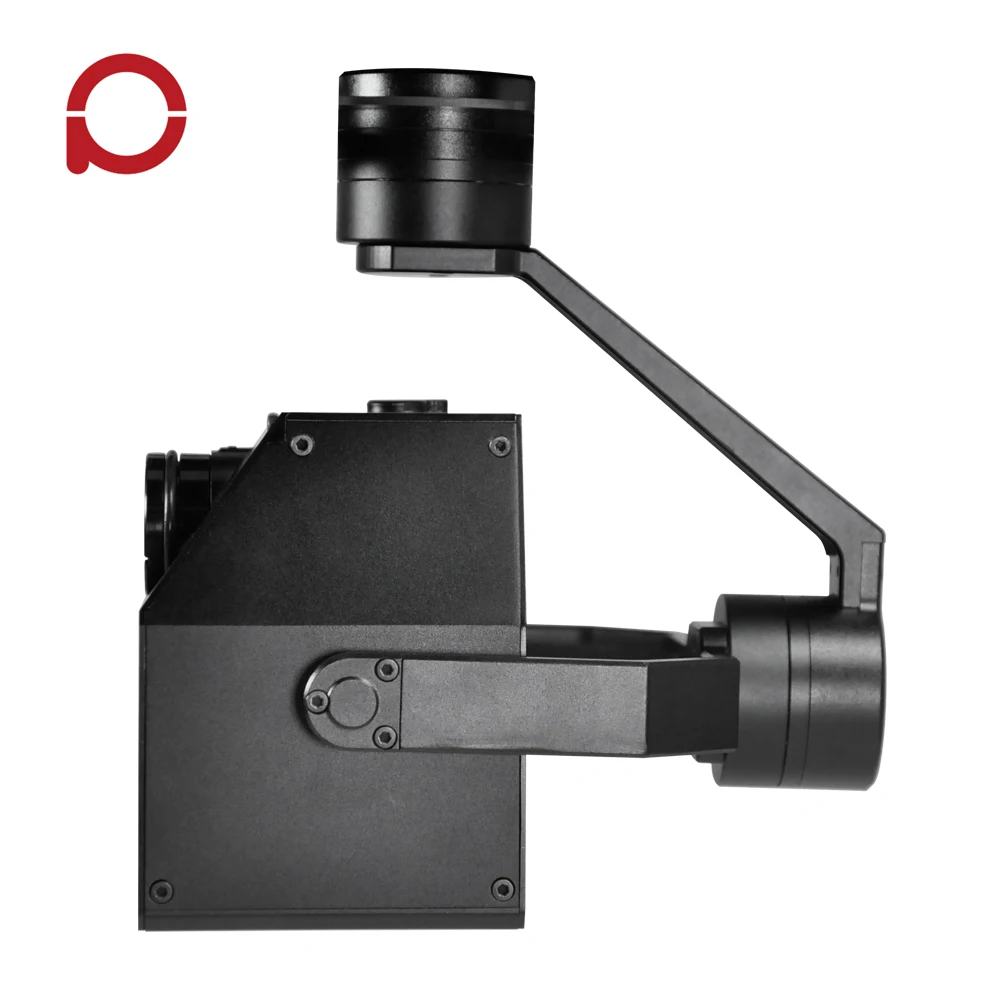

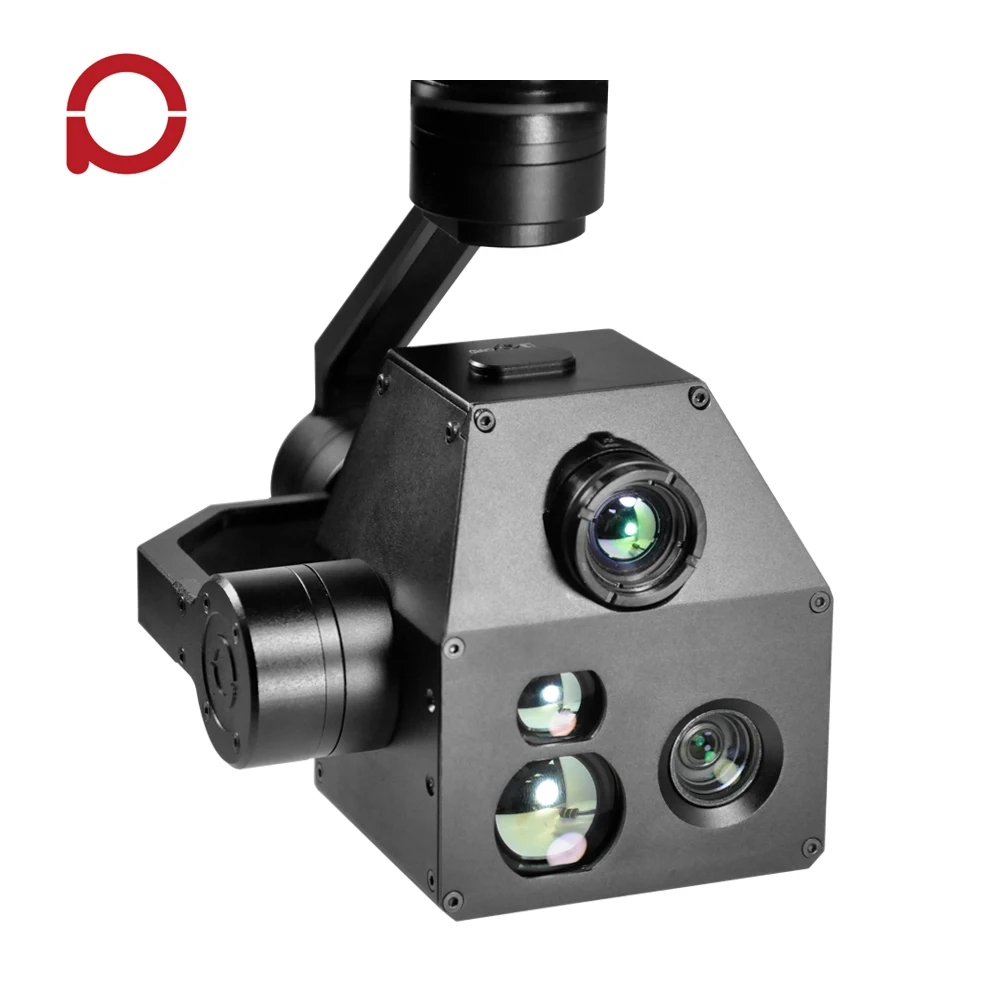

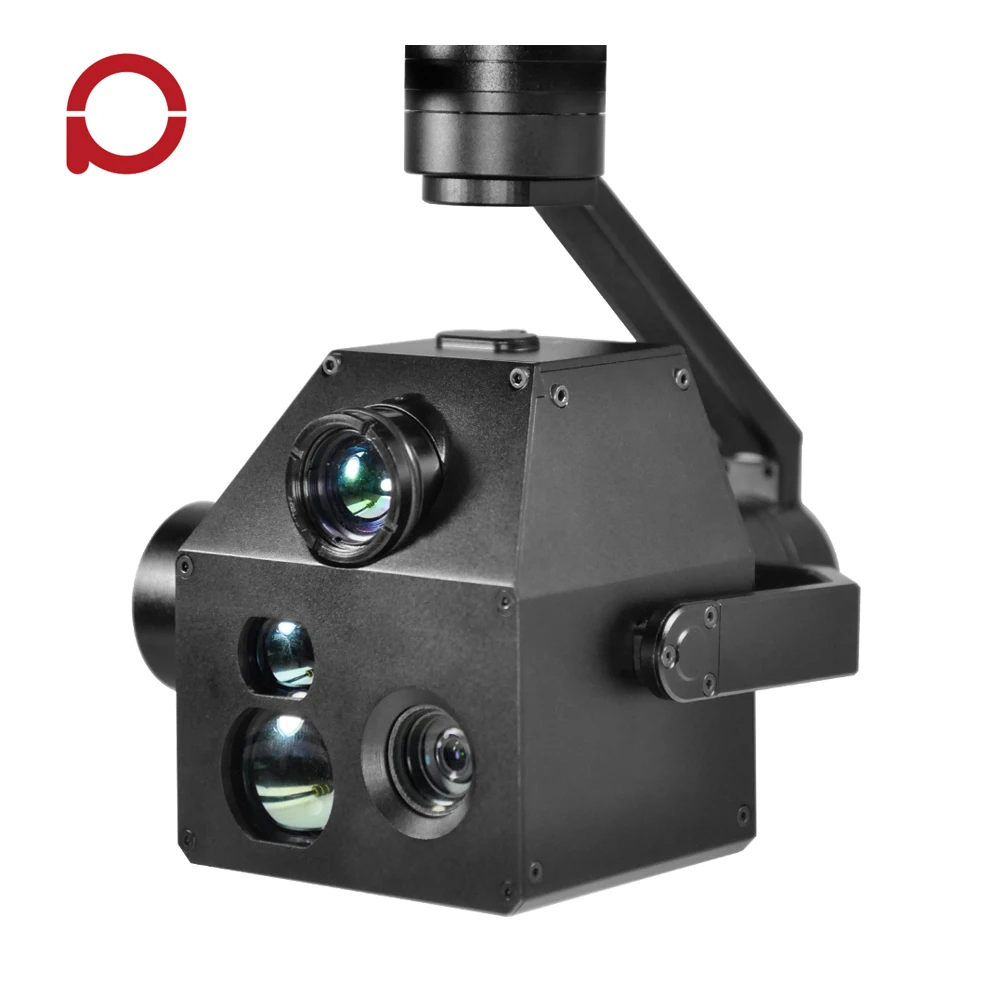

Features high stability, small size, light weight and low power consumption suitable for UAV, helicopter, fixed wing plane and rotary wing aircraft, ect. With laser rangefinder, can resolve and display the longtitude and latitude of object on screen. Can be applied in various domains like military reconnaissance, police law enforcement, public security surveillance, traffic monitoring, power tower and bridge inspection, fire fighting, wildlife spotting, search and rescue etc.
Gimbal spec
Pitch/Tilt
±90°
Roll
±85°
Yaw/Pan
±170°
Vibration angle
Picth/Roll: ±0.01°, Yaw:±0.01°
Camera Spec
Imager Sensor
1/3 CMOS
Picture quality
Full HD 1080 (1920*1080)
Effective pixel
4.08MP
Lens optical zoom
10x, F=3.2~33.6mm
Min object distance
10mm(wide end) to 800mm(tele end)
Virtical viewing angle
Wide 62° ~ Tele 6.5°
Shutter speed
1/1s to 1/10,000s, 22 steps
OSD
Yes
Camera Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
<10ms
SNR
4
Object size range
16*16 pixel ~ 160*160 pixel
Tracking speed
±32 pixel/frame
Object memory time
100 frames (4s)
Laser Rangefinder
Range
1500 meters
Location display
Latitude and longitude
Thermal imager spec
Lens size
19mm
Working mode
Uncooled long wave (8μm~14μm) thermal imager
Detector pixel
640*480
Pixel size
17μm
Color palette
Black, white, pseudo color
Digital zoom
1x, 3x
Thermometry type
Temperature bar (psudo color display) max temp, min temp, FOV center temp
