15 bbl mash tun and boil kettle/whirlpool and 15bbl brite tank

15 bbl two-vessel or three-vessel brewhouse
Mash vessel – with mixer, frequency drive
Lauter tun – false bottom, plough, sparging
Boiling kettle/whirlpool tun- steam jackets or calandria, tangential entry
Pumps with ABB motor
Stainless steel 304 working platform
Plate heat exchanger – 304 or 316 plates
Siemens PLC control system, UL rated control system
15 bbl and 30 bbl fermentation tanks/bright beer tanks
HLT and CLT
Glycol cooling system
CIP system
Grain milling machine
Keg washer/filler
Great quality, reasonable price, excellent service!
Complete engineering support and onsite installation!
Please contact us for more details!

 15BBL beer brewery equipment SS304 mashing system and conical fermentation tank

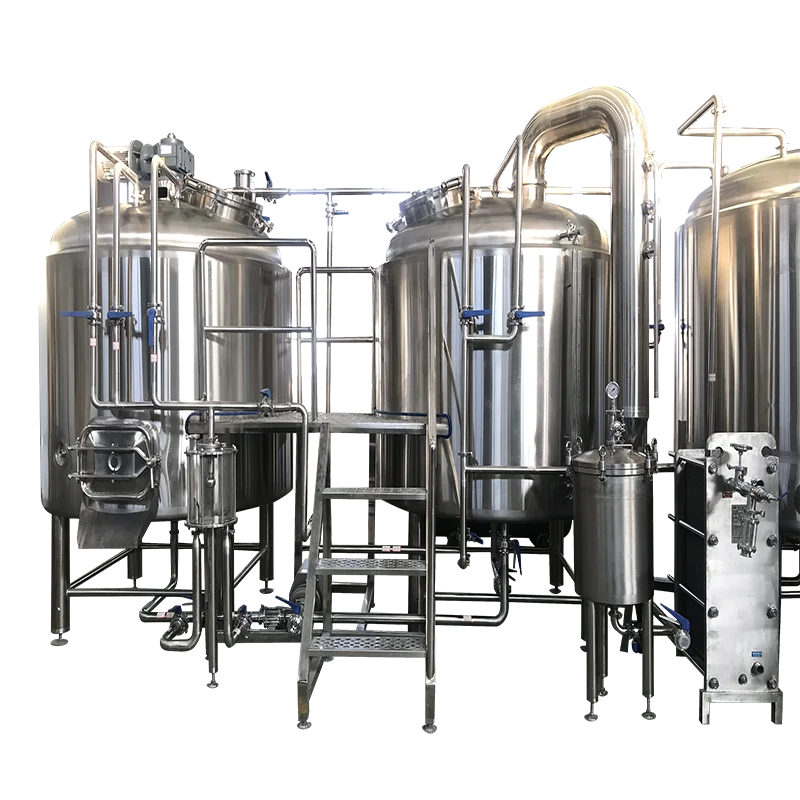

1. Brewhouse system

-Two-Four vessles or combined system.

-Capacity 100L-5000L, 1bbl-40bbl.

- Steam heated, electrical heated or natural gas

-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.

-Lauter tun with rake system, milled false bottom, sparging spray ring, VFD motor, insulated 80mm.

-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.

-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.

-Insulated HLT and CLT with the pipelines and pumps

-External wort balance tank, hops filter, heat exchanger. Wort oxygenation system, working platform.

-All the necessary pipelines and pumps.

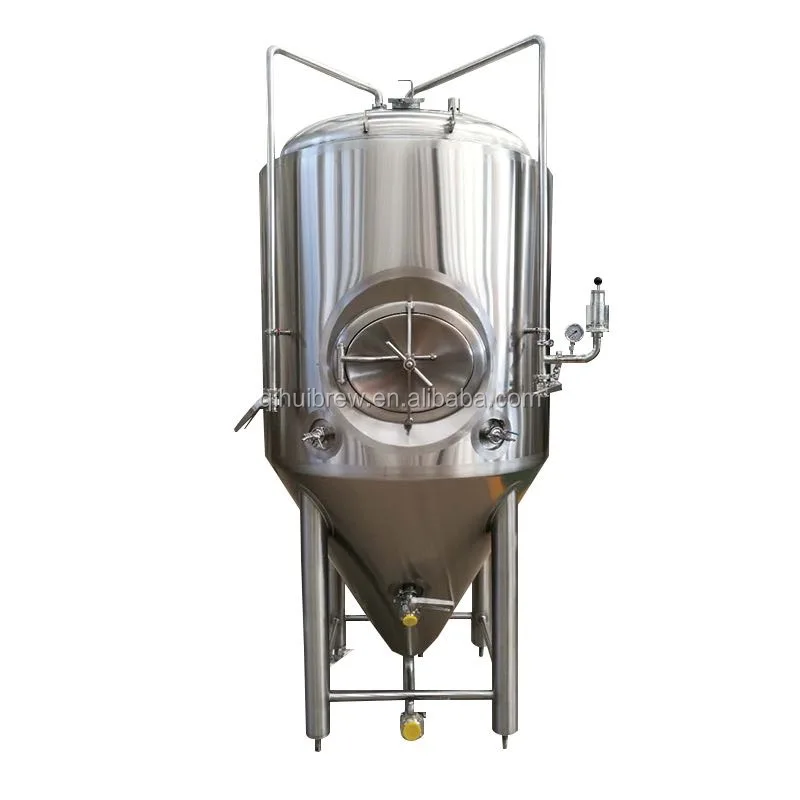

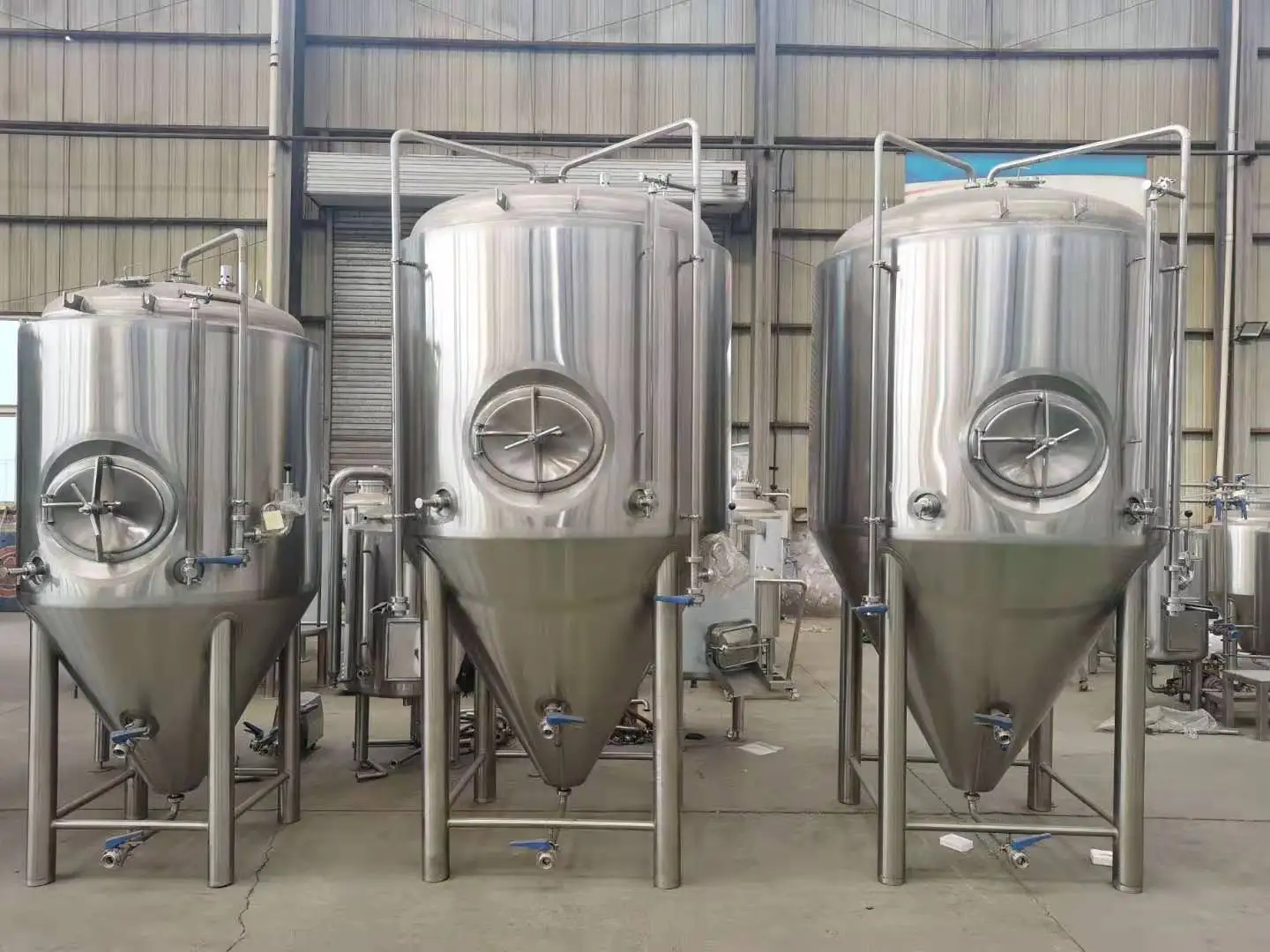

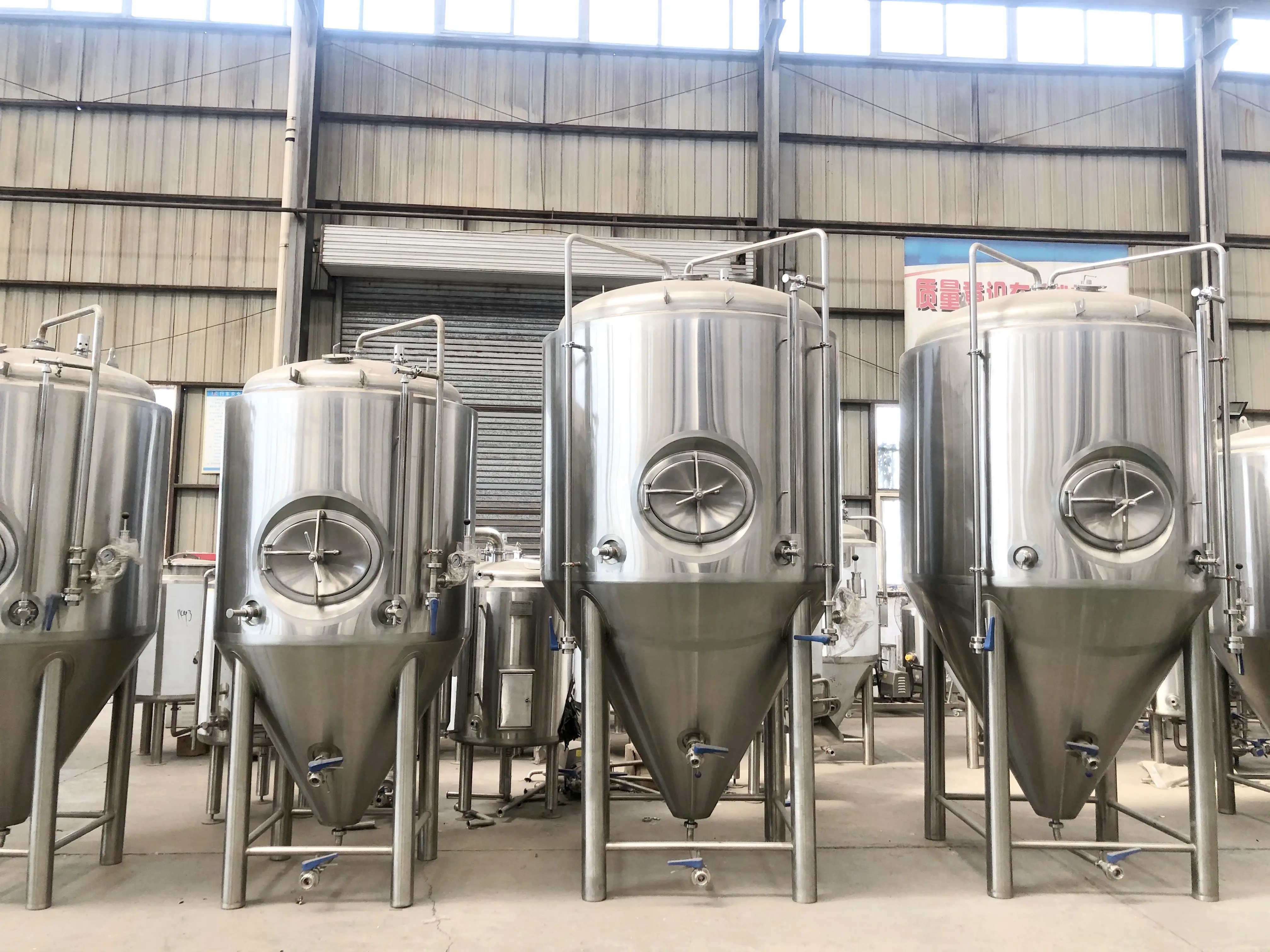

2. Fermentation System- Beer Fermenter and brite tanks

-Usage: fermentation, maturation and storage

1-Domed head and conical bottom

2-Material: SUS 304, inner thickness 3mm, outer thickness1.5mm, Insulation: PU=80mm

3-Top manway

4-Cone bottom, 60 degree

5-Pressure gauge

6-Safety/vacuum valve

7-Working pressure: 0.15Mpa

8-Testing pressure: 0.3Mpa

9-Cooling jackets on both cylinder and cone

10-Inside 360 rotating CIP ball

11. Rotating Racking arm

12-Thermowell, 10mm

13-Temperature sensor, Model: PT100

14-Wort piping and butterfly valves, ø32mm

15-Drainage piping and butterfly valve, ø38mm

16-3 or 4 legs with adjustable bolts

-carbonation stone (optional)

- dry hops port (optional)

3.Cooling System

Description: Air-cooled type chiller + Ice water tank or Glycol tank

Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank

4.Control System

-PID or PLC system

-SIEMENS program S7-200, Siemens touch screen.

-Penumatic valves for optional

5. CIP system

1) Alkali tank with heating function

2) Sterilization tank

3) CIP pump

4) Control cabinet
