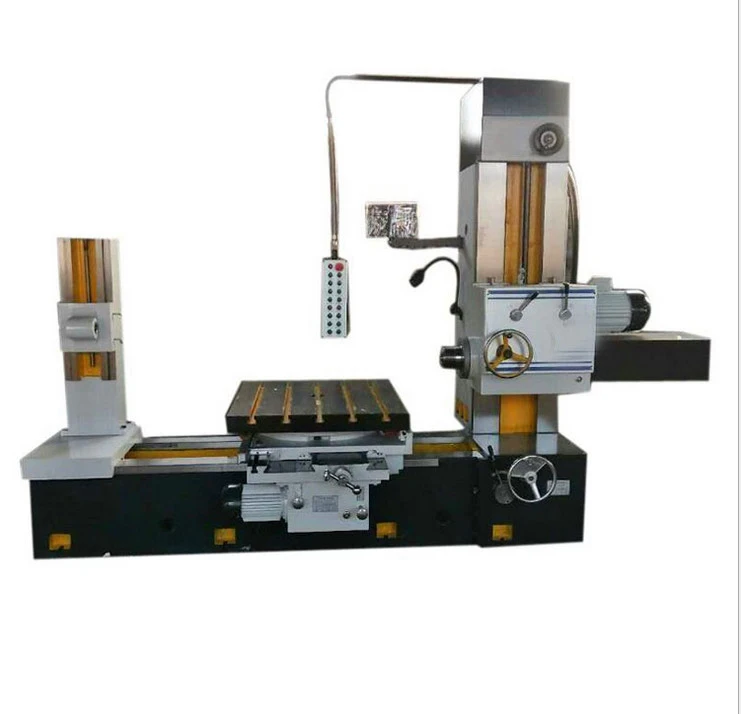

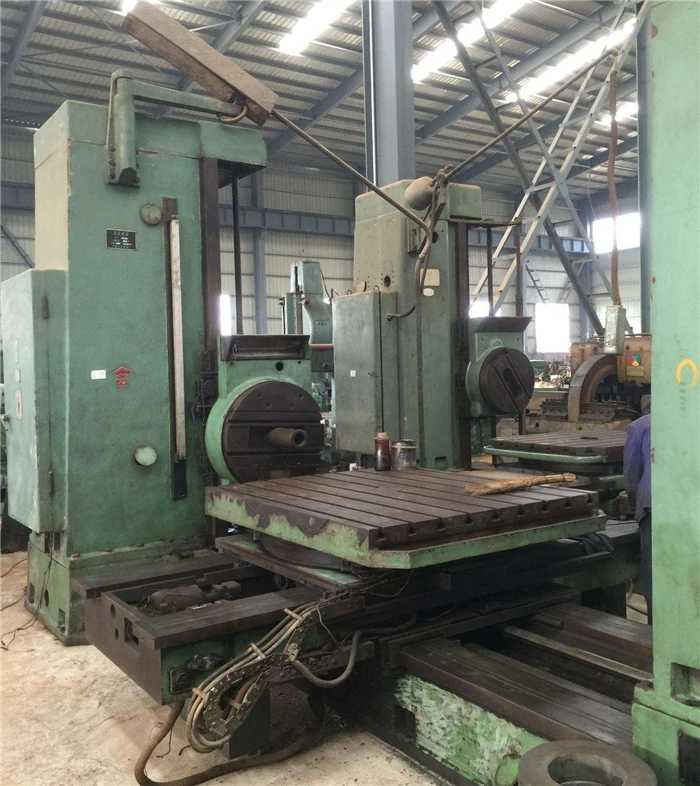

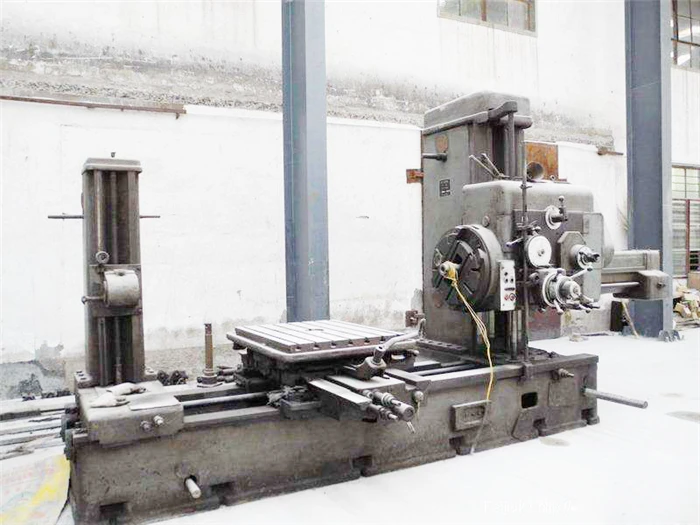

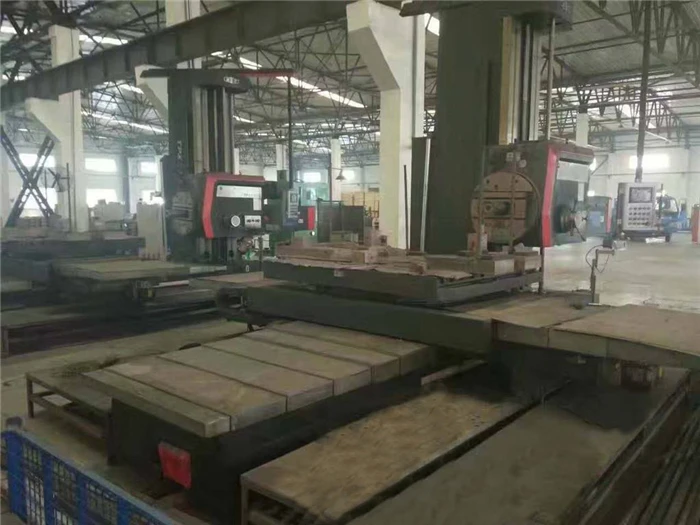

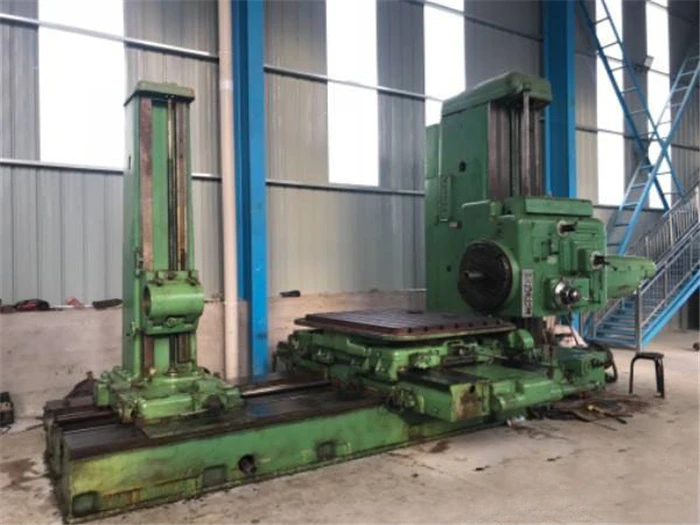

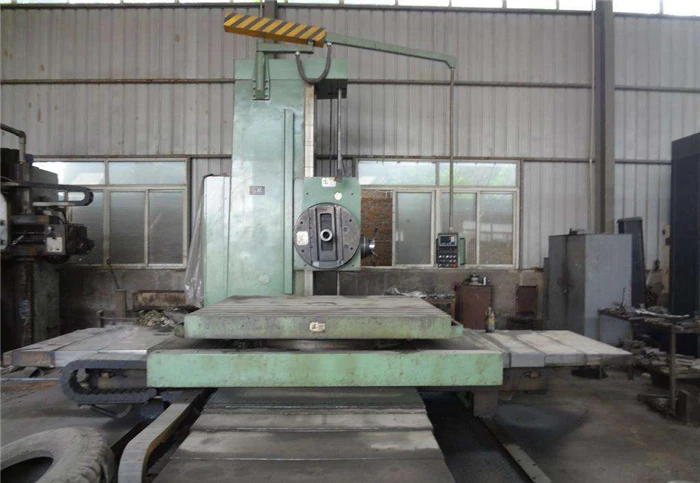

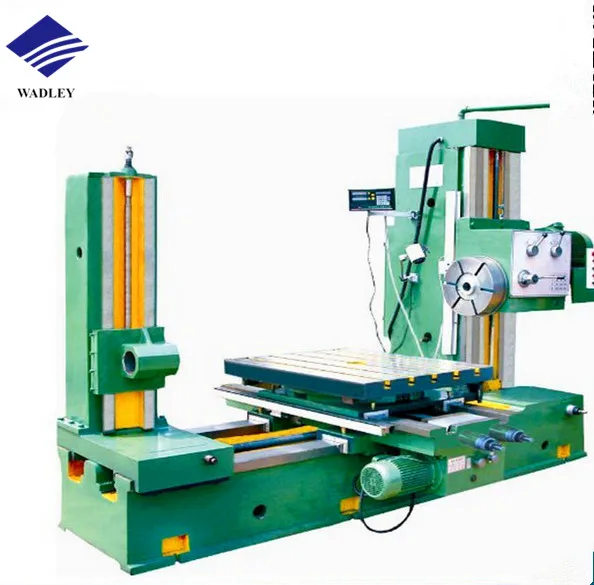

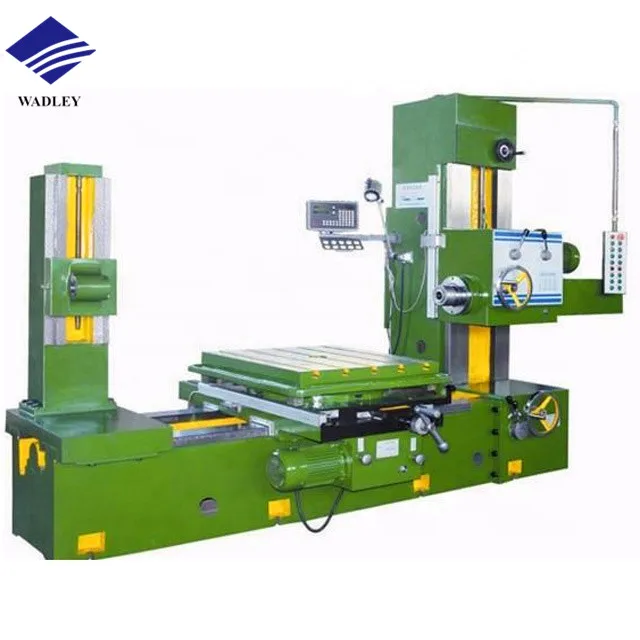

Horizontal boring and milling machine for metal processing

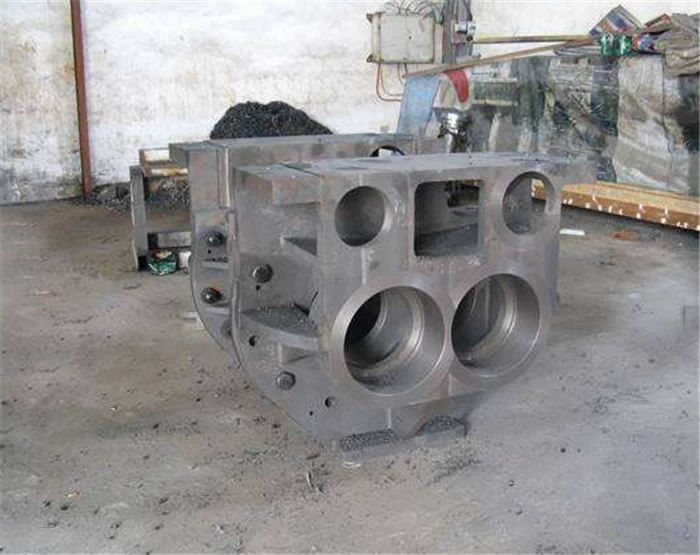

The main function of the boring machine is to boring various holes and hole systems on the workpiece, which is especially suitable for the processing of porous box parts. In addition, it can process planes, grooves, etc.

The main working scope of the boring machine is:

(1) The workpiece can be drilled, reamed and reamed in general processing on the boring machine.

(2) It can boring holes or hole series of various large and medium-sized parts.

(3) It can use the boring machine spindle to install a milling cutter or other milling cutters to mill the workpiece. .

(4) On the horizontal boring machine, you can also use the flat rotary table and other machine tool accessories to boring large holes, large end faces, grooves and some special boring processing such as threads.

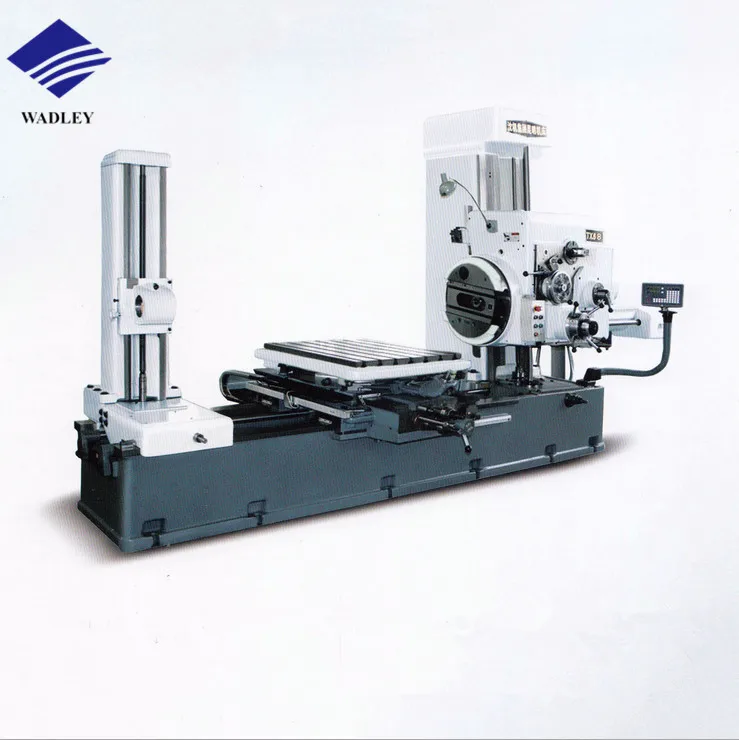

1.2 Product performanceTPX6111B/3 type horizontal milling and boring machine features: the machine has small deformation and good rigidity, which is extremely beneficial to the improvement of machining accuracy.

Product model introduction:

T P X 61 11 B /3

T: Machine tool category, milling and boring category

P: Machine function, with fixed flat rotating disk

X: Digital display

61: Machine tool structure, horizontal

11: The first main parameter, the spindle diameter is 110 mm

B: Major improvement

/3: Increase stroke

Excellent performance of TPX6111B/3 horizontal boring machine.

The spindle has a three-layer structure, with good rigidity, stable cutting performance, and a wide range of speed;

The main shaft speed change and feed adopt hydraulic preselection, which is convenient to operate, labor-saving and high-efficiency; it improves the degree of automation;

The headstock lifting, vertical and horizontal movement of the worktable and the distribution and clamping of the rotary motion are all controlled by the button station, which has good interlocking performance, saving time and effort, and convenient and reliable operation;

 4×90 degree worktable adopts optical sight, high positioning accuracy;

All moving parts are clamped by hydraulic-diamond block booster mechanism, which has large clamping force and reliable clamping;


The machine tool is assembled by senior staff, and the casting is HT250 cast iron
1. The basic parts of the host are made of high-quality cast iron (anti-vibration and wear-resistant), and other parts are made of high-quality customers
2. High speed, high precision, high rigidity, superior to similar machine tools
3. With fast movement speed, three-axis linkage, surface processing accuracy and surface roughness can be improved, especially for batch processing of high-speed and high-precision products of medium and small models.
Comprehensive introduction to machinery
1. The main part includes: bed, worktable, column, beam, ram, etc.
2. It is composed of screw rod and servo motor respectively, X, Y, Z three-axis transmission system
3. Each transmission is lubricated by the lubrication system to reduce frictional resistance and increase the service life of the machine
4. The bed and beam are driven by linear rails, and the ram is moved by hard rails.
