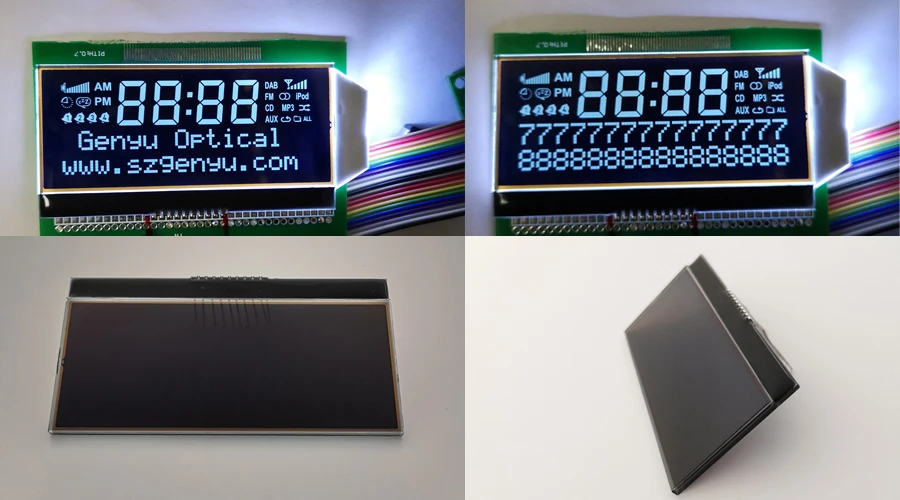

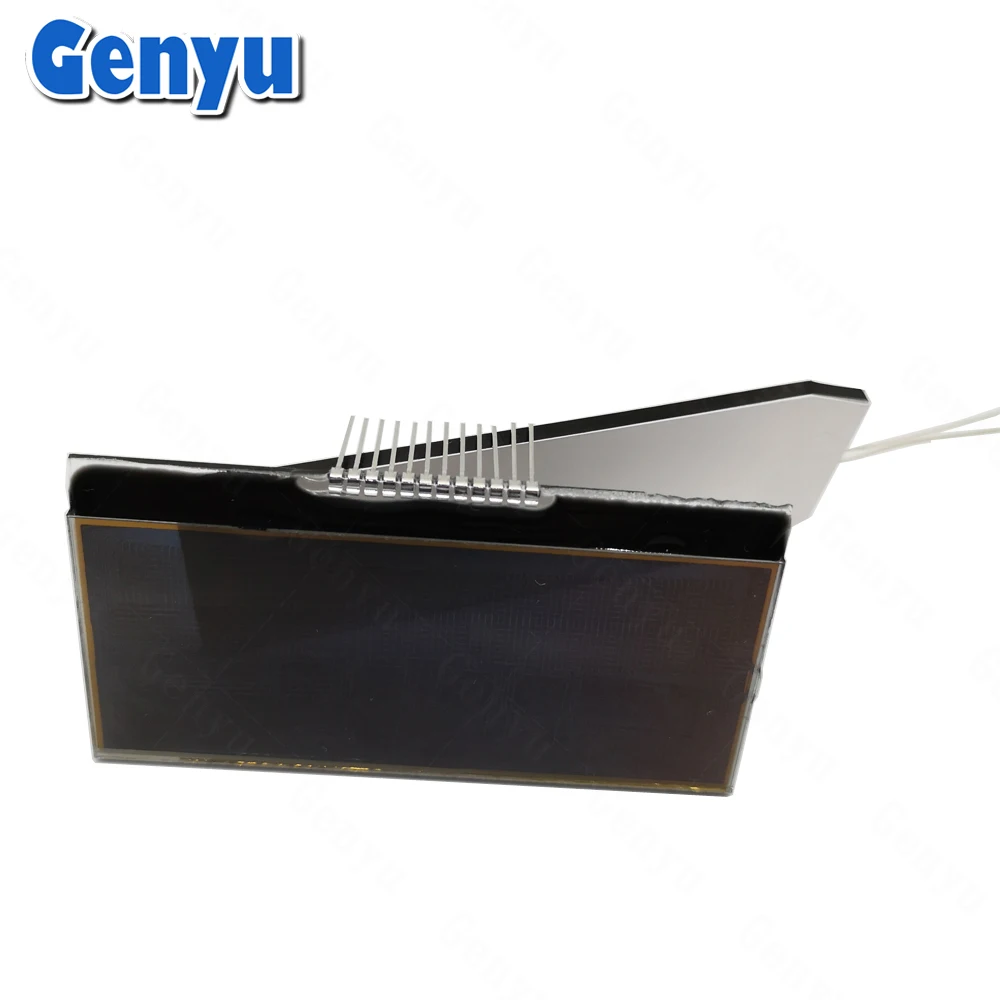

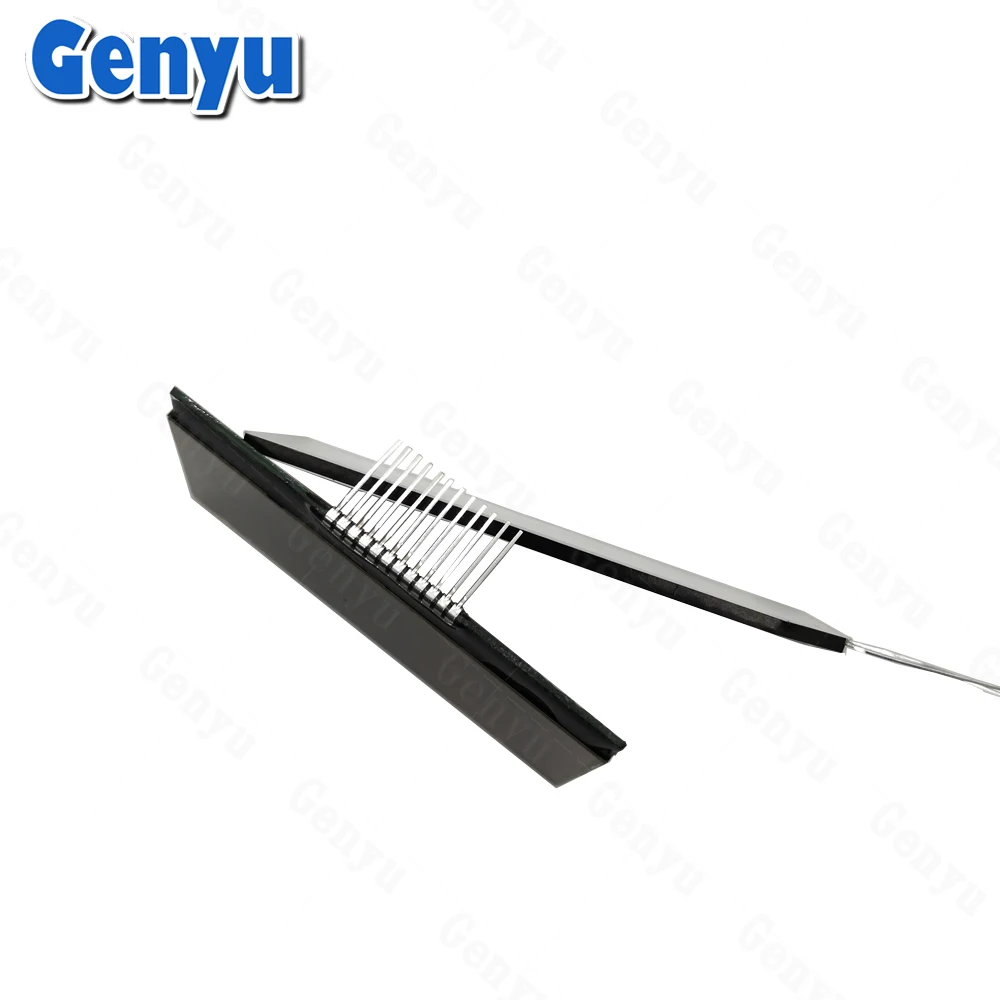

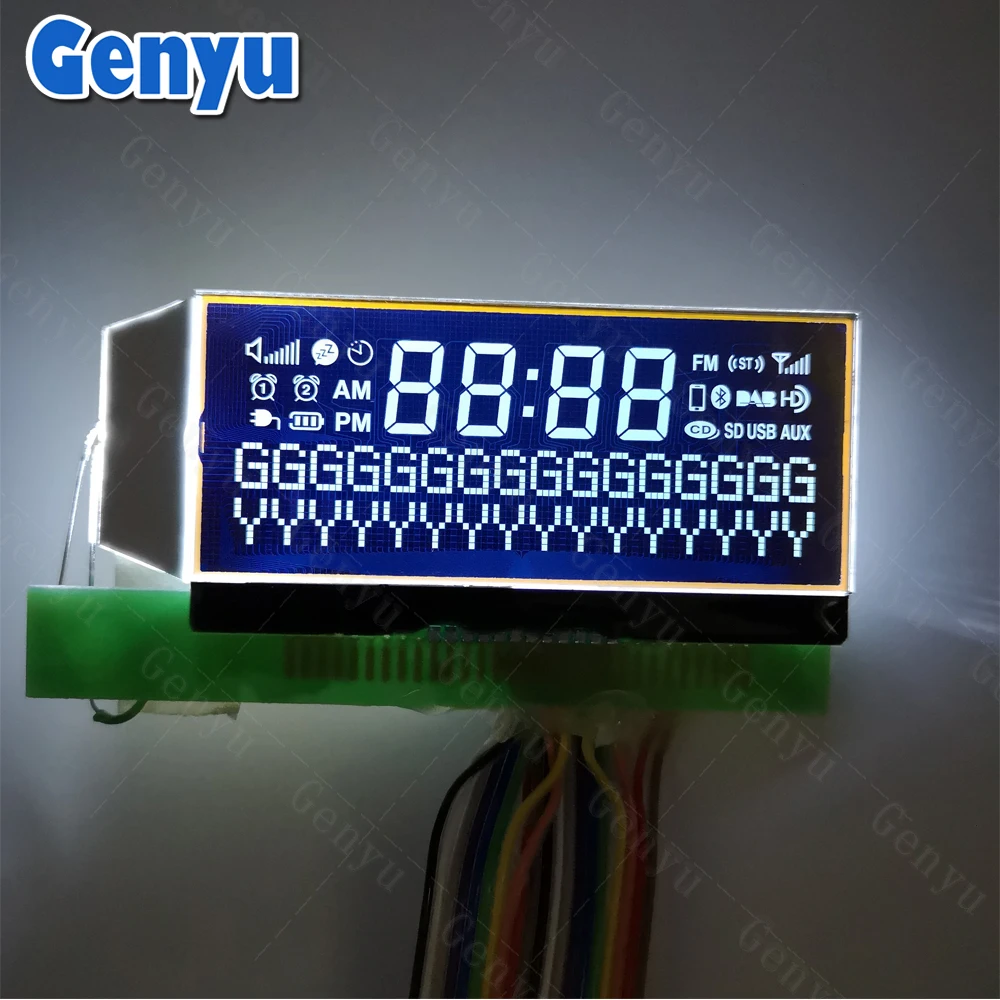

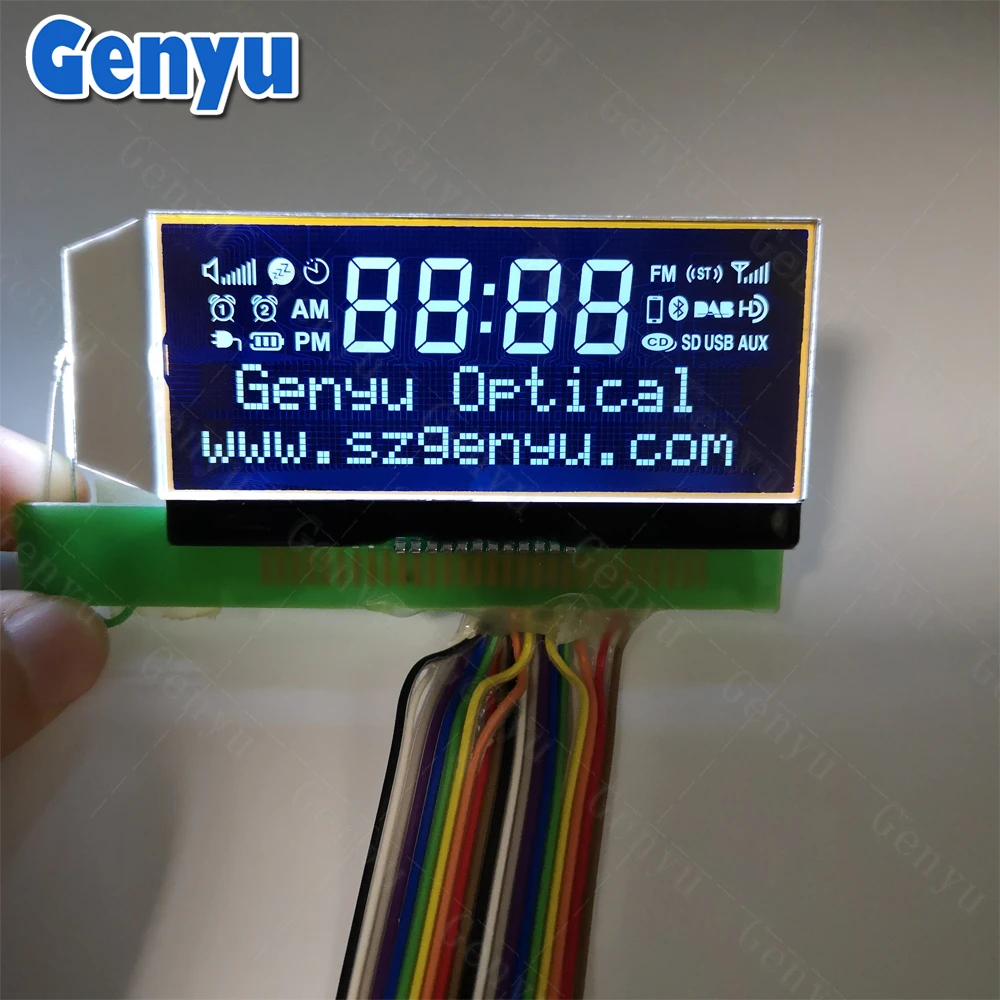

16x2 Black bottom white word screen 1602 Character lcd Module for Radio

1. FEATURES
  Display Mode: DFSTN

  Polarizer: Transmissive / Negative

  Dot: 16x2 character

  Color : White words Over blue Background
  Viewing Direction: 12 O’Clock
  Connection : 12 pins

  Drive IC : ST7032I

  Drive Mode : 1/16 Duty, 1/5 Bias.

 Operating TEMP : -20℃~+70℃

 Storage TEMP : -30℃~+80℃

  Drive Mode : 1/16 Duty, 1/5 Bias.
  ROHS Compliant

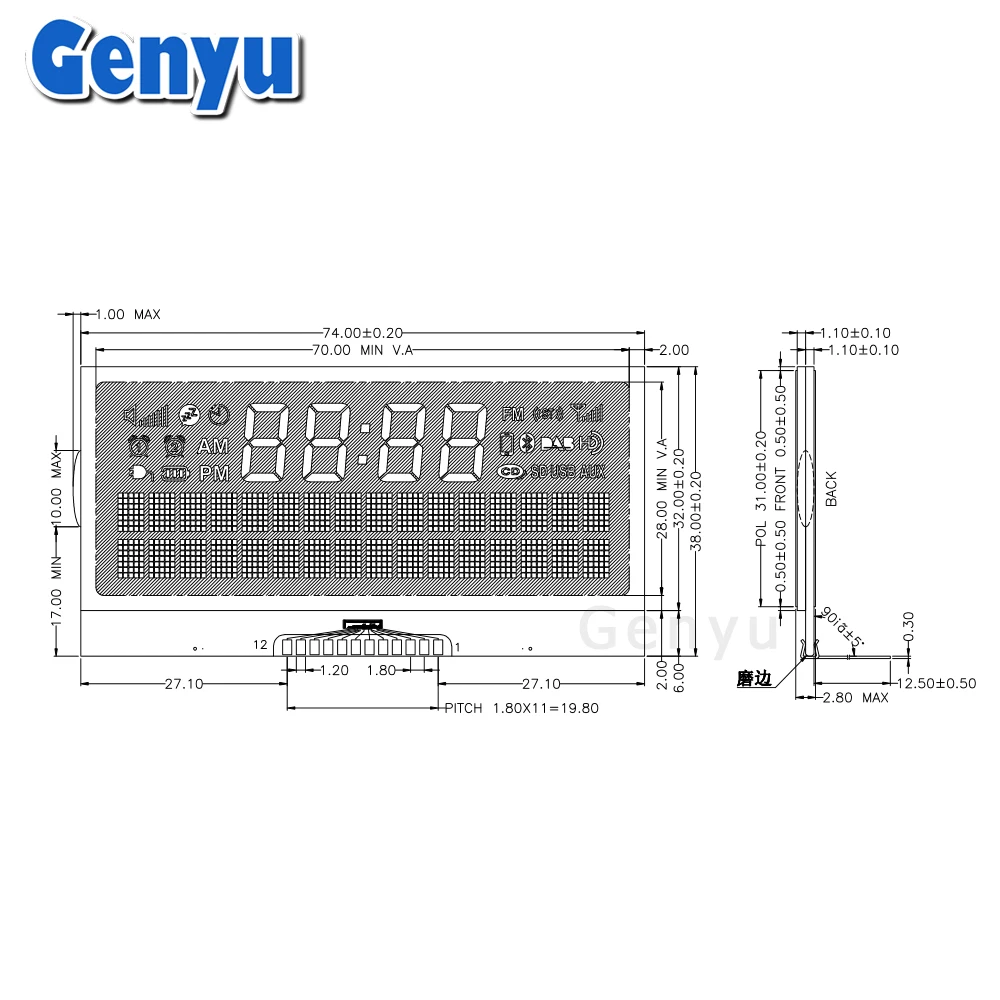

2.MACHANICAL SPECIFICATIONS

  Diagonal size: 2.9 inch

  LCD Dimension: 74*38*2.8 mm
  View Dimension: 70*28 mm

Application: Radio

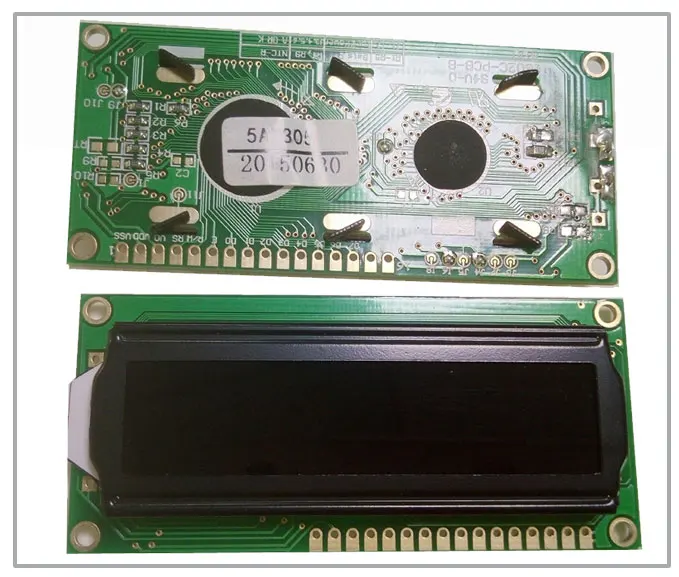

Display type : 16x2 character and 7 segment display

Want more ?

We can customize the size, color, backlight, driver IC, connection mode ...

Please tell us your request, can be customized.

Contact us , my friend, just click here!

 ♣ Similar product ⇓ 16x2 Character lcd module

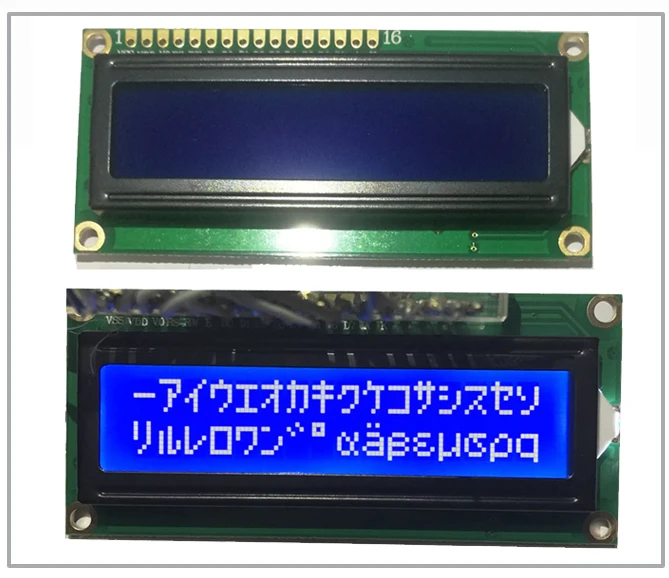

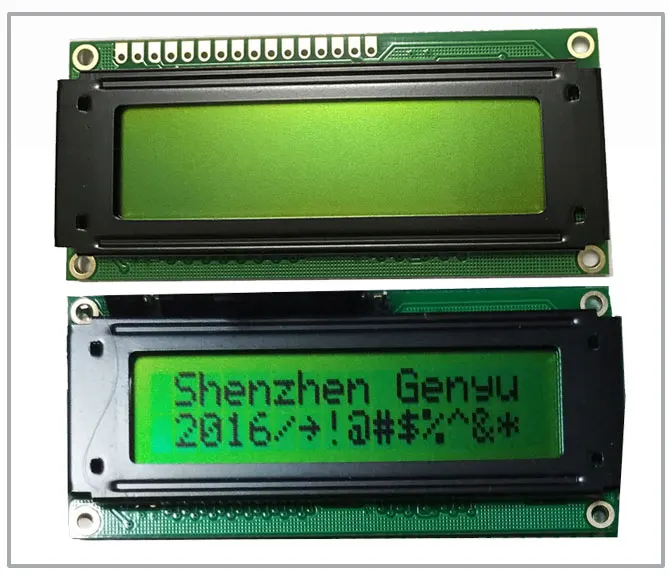

∴ GY1602A (STN / Transmissive / Negative, BLUE)

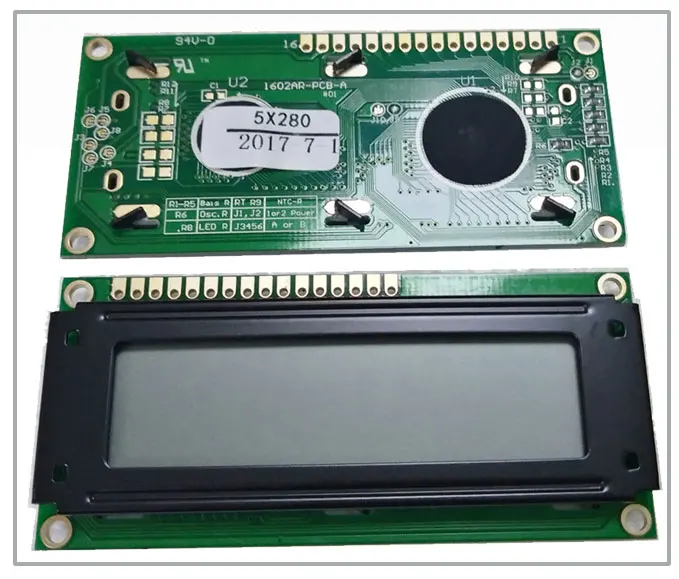

∴ GY1602AR-5x280 (TN / Positive / Refective, Grey )

∴ GY1602C-5x305 (FSTN, Negative, Transmissive, Blue )

∴ GY1602AR-5Ax425 (STN, Positive/ Reflective, Yellow-Green )

         • Own lcd glass line.
        • 5 COB Module lines.
        • 7 COG automatic lines and one semi-automatic line.
        • TN, HTN ,STN ,FSTN ,DFSTN ,FFSTN ,VA .
        • Customizable dimention,Backlight ,connector, PCB.
        • More than 10 years of technical experience.
        • Fast delivery time.

Genyu Technology ( HK ) Limited
Shen Zhen Genyu Optical Co.,Ltd


1. All products are for real description, buyers to buy our products, we will provide detailed instructions and examples of procedures.Such as have a need to provide technical support in the process of development, can contact us at any time.

2. All products before shipment, I will do the aging test of products company and one hundred percent of the visual and electric logging, buyers can rest assured purchase.

3. Our all products are guaranteed supply for a long time, if the product upgrades, will notify users in advance, and upgrade the product can be compatible with the old product.

4.The warranty period of the product is 12 months
