1km 10km Long Distance 5.8GHz 300Mbps Point to Point Wireless Bridge Wi Fi Outdoor CPE

Product Overview

Description

 Economic 5.8GHz 300Mbps Wireless Wi-Fi Bridge Outdoor CPE with WDS-Bridge mode for Video Data Transmission





CPE180H is an high performance but economic 5.8G outdoor CPE/Wi-Fi Bridge with 300Mbps data rate. Comply with IEEE802.11a/n standard, Atheros chipset, it provide stable long range Wi-Fi networking. What’s more, with 13dBi high gain antenna, the Wi-Fi distance more than 1000 meters.



Meantime, CPE180H support Gateway, AP, WDS, Wi-Fi Repeater operation mode, with WDS button bridge, easy to establish PTP, PTMP connection, then it support Power over Ethernet, 24V passive PoE, with LED light show signal strength, easy to find a suitable installation place, save much human work and cost.



Besides that, it can access into cloud server for device remote management, maintenance, make this device is widely used in CCTV, Village long range data transmit, Park, Squares...

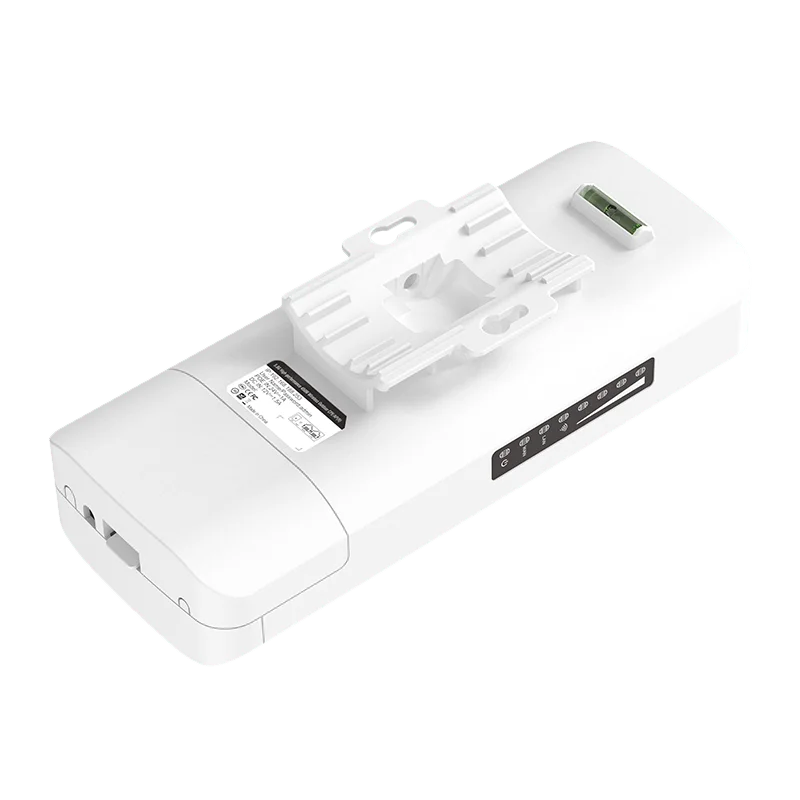

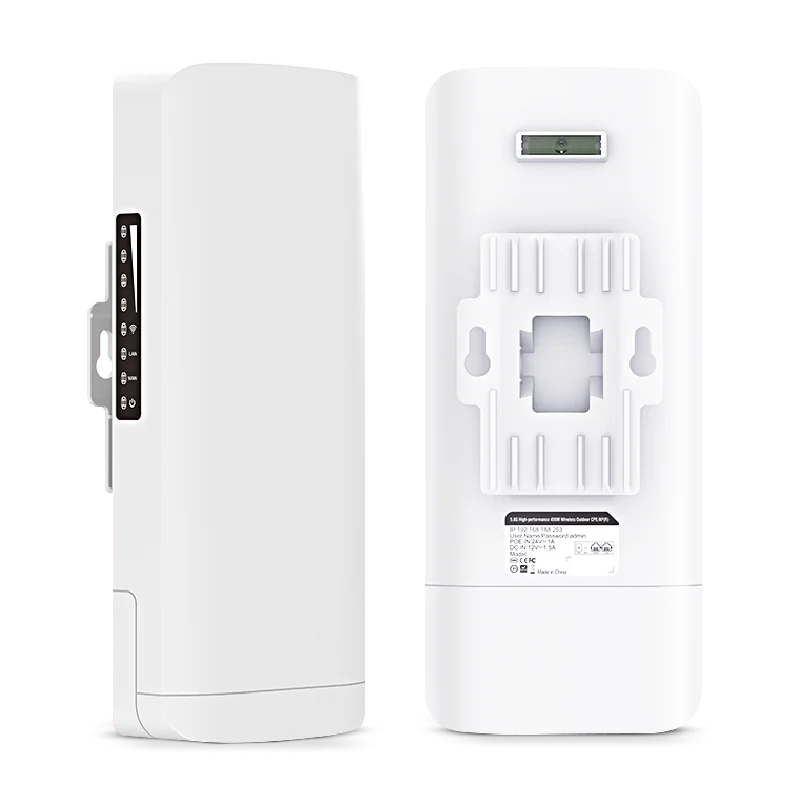

ABS waterproof, dust proof and sunscreen shell, temperature adaptive and board protective .

CPE180H with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -30℃ to 55℃. Suit for any country.



300Mbps high speed, Atheros industrial chipset, wider application

CPE180H comply with IEEE 802.11a/n standard, 300Mbps high speed, with Atheros industrial solution, it is a Wi-Fi bridge with low power consumption, strong security. With AP, WDS operation mode, widely be used in voice, video, data transmission in long range wireless monitor industrial.

13dBi High Gain Antenna, Long Range Wi-Fi Device in market.

CPE180H with 11dBi high gain antenna, the Wi-Fi range is more than 1000 meters, it is the device with very stable performance in long range, but competitive in price.

5GHz frequency, more channels, lower latency, higher stability

CPE180H with full frequency of  5020~6100MHz, more than 100 channels available, it avoid the same frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.

Multiple operation mode: Gateway, AP, Repeater, WISP, WDS-Bridge

With operation model of Wi-Fi repeater, it is a Wi-Fi device to bridge the exist Wi-Fi signal and transmission out for more range.

With operation of  Gateway/ AP, it provide wireless signal for end users.

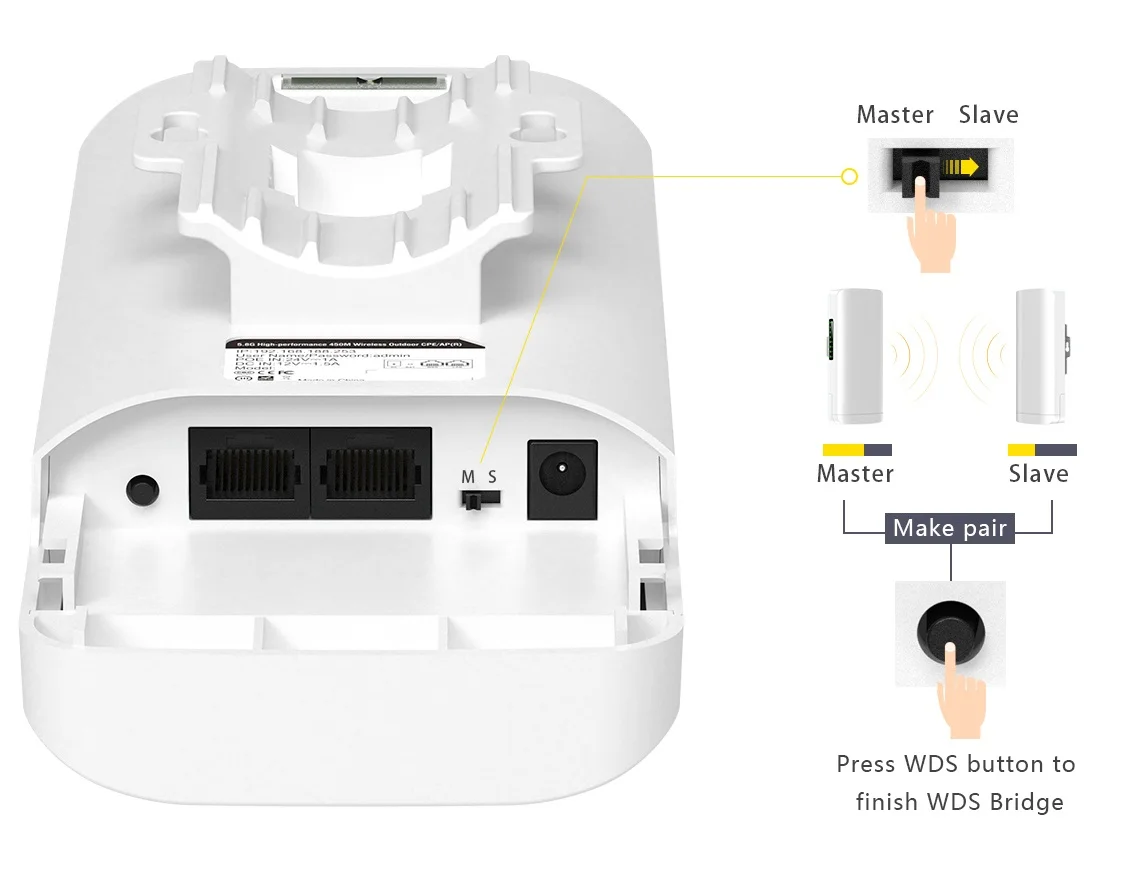

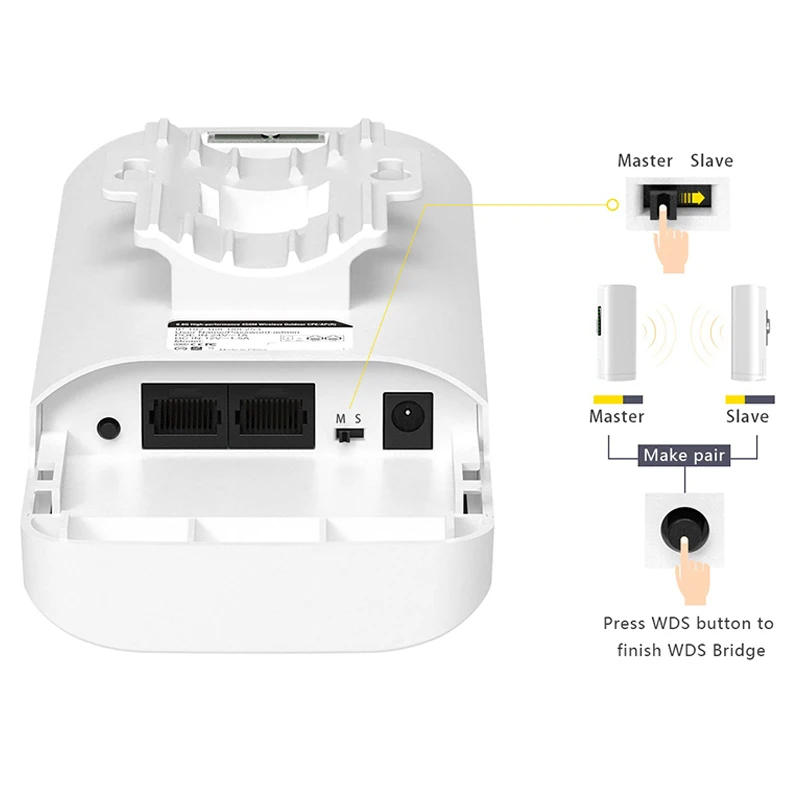

With WDS mode and WDS button bridge, easy to do WDS connection by press the WDS switch button, no need to access into GUI.

Support Power over Ethernet, Cost Save

The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with 24V PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Easy configure and install, remote control

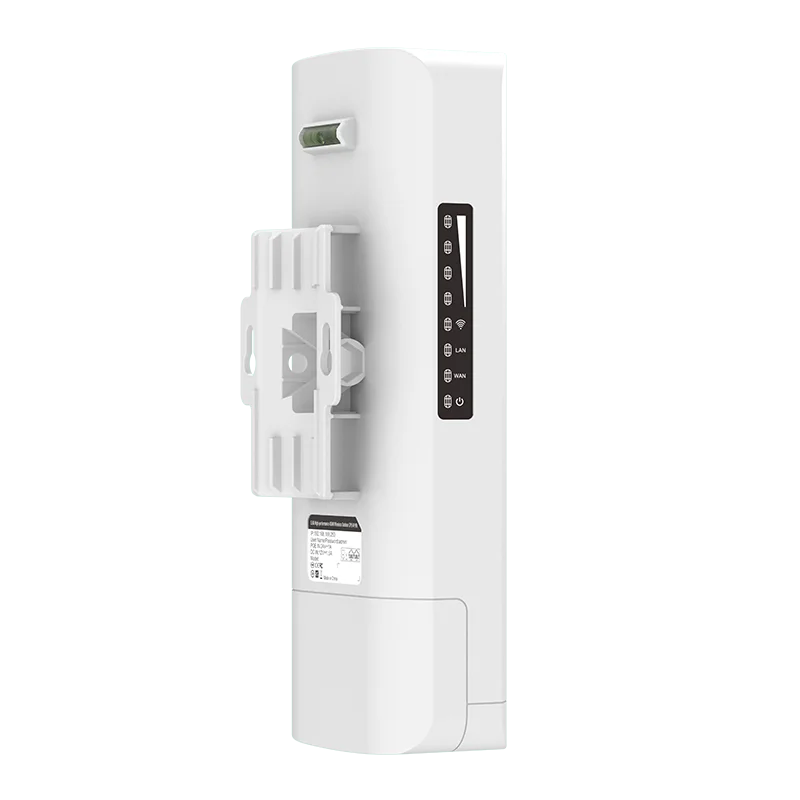

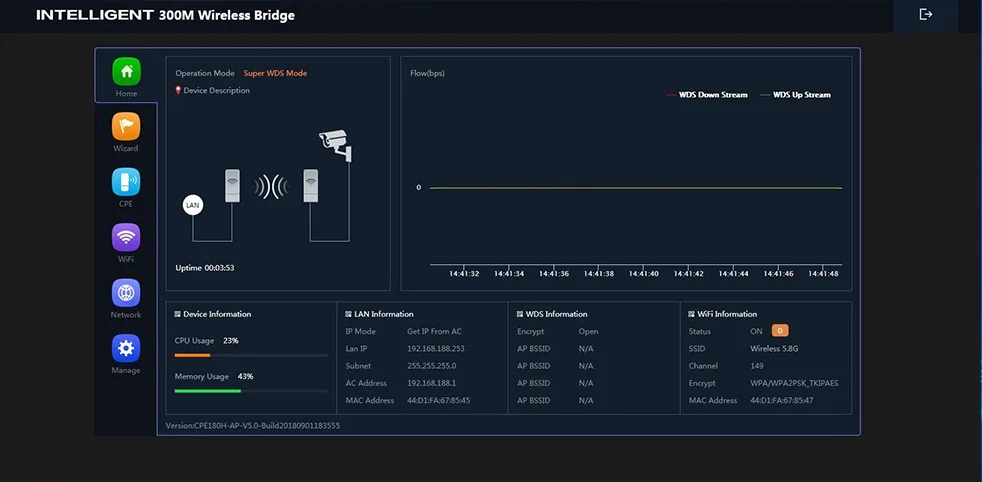

CPE180H with humanized GUI configuration steps, simple to complete the entire system configuration, supply more efficient service for your networking. With LED signal lights to show signal strength, easy to find a suitable place of outdoor CPE, then firmware comply with Cloud Management System, which helpful in central management and remote maintenance, save much human work and cost, more professional in outdoor wireless networking solution.



Standard	IEEE802.3, IEEE 802.11n, IEEE 802.11a
Chipset	Atheros AR9344
Frequency	5020~6100MHz,
Channel	CH4~CH220
Modulation	OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Data Rate	11n: up to 300Mbps 11a: up to 54Mbps
Protocol	CSMA/CA, CSMA/CD, TCP/IP, ICMP, NAT, PPPoE, DHCP , Wired static , Wifi Client , UDP, DDNS
Operation Mode	AP, Gateway, Bridge, Repeater, WDS
Security	64/128bit WEP WPA(AES,TKIP with IEEE 802.1x) WPA2(AES, TKIP with IEEE 802.1x)
RF Output Power	802.11a	54M	17±2dBm	6M	20±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	19±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	18±2dBm
Receive Sensitivity	802.11a	54M	-72dBm	6M	-90dBm
	802.11n HT20	MCS7	-70dBm	MCS0 .	-88dBm
	802.11n HT40	MCS7	-68dBm	MCS0 .	-86dBm
EVM	802.11a_54M: ≤-25 dB;  802.11n_MCS7: ≤-28 dB
PPM	±20ppm
Antenna	13dBi MIMO Panel antenna
Size(mm)	208mm * 86 mm * 43mm
Working Temperature	-30°C ~ 55°C
Storage Temperature	-40°C  ~ 70°C
Humidity	5% ~ 95% (Non-condensing)
Interface	1 * RJ-45 WAN Port, 24V PoE support 1 * RJ-45 LAN Port, 24V PoE support 1 * Reset Button 1 * DC Jack 1 * WDS Switch Button, press to do WDS connection
Power	Output: DC12V/0.5A POE 24V/0.5A
Max Power Consumption	< 5W
LED Light	Power, Wi-Fi, WAN, LAN, Signal Strength
