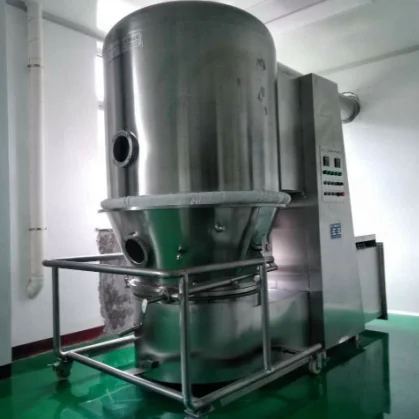

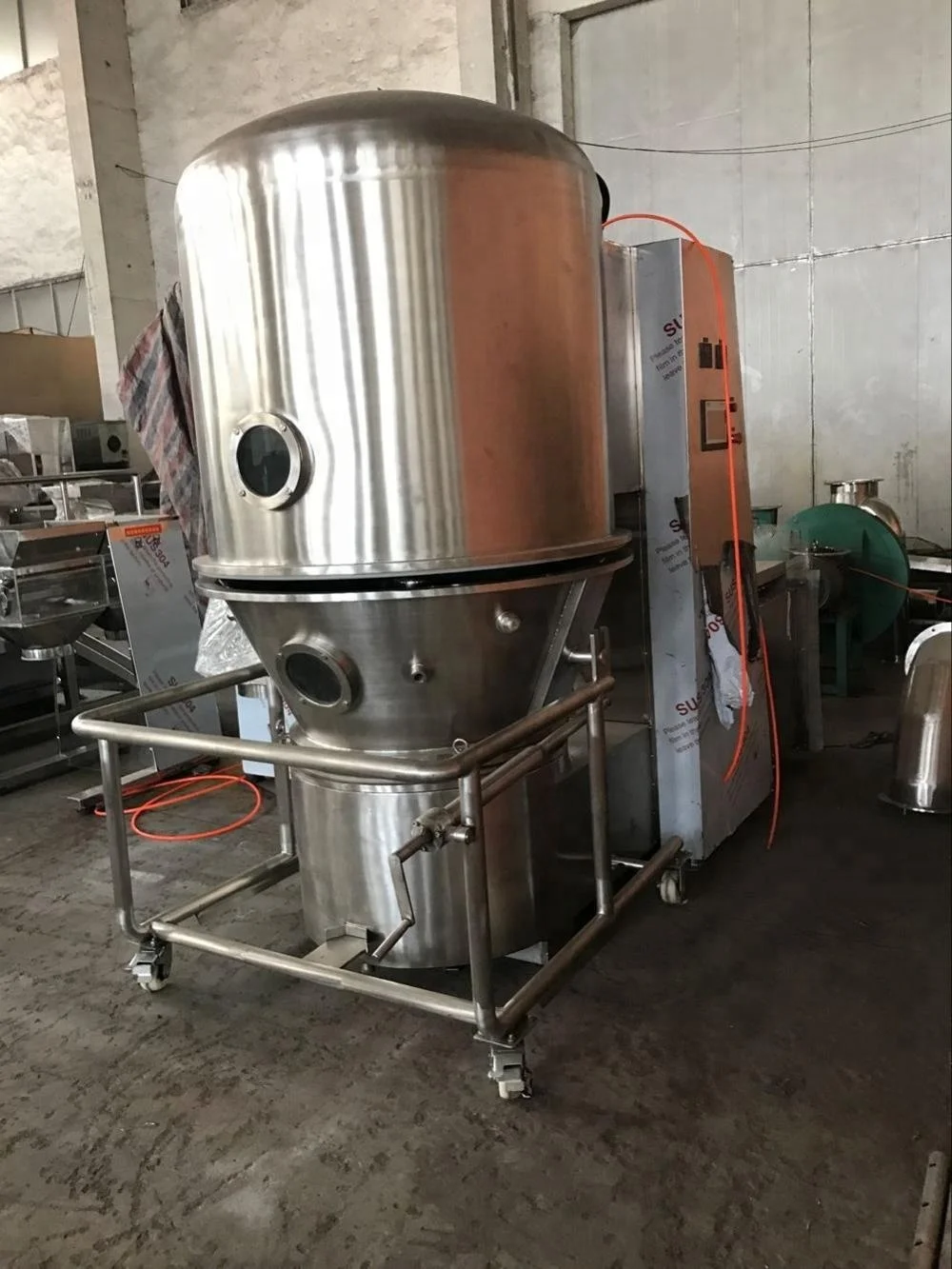

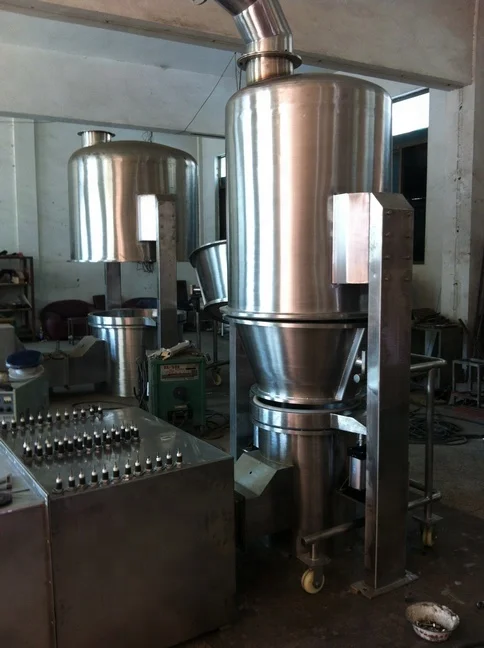

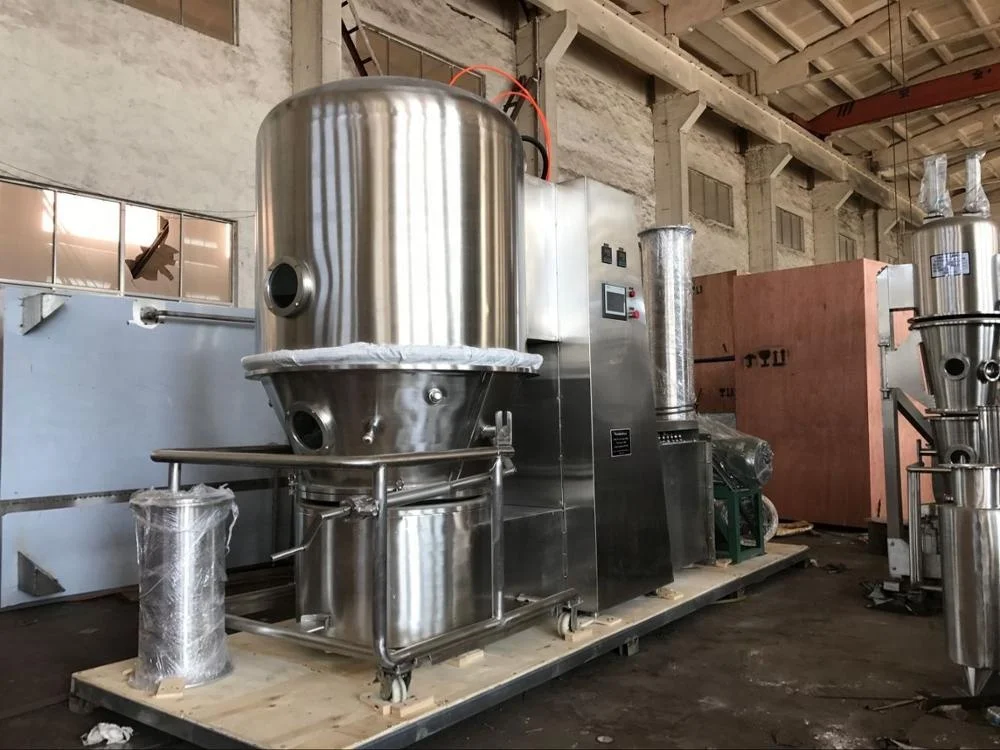

Vertical efficiency fluid bed dryer GFG series fluidized bed dryer from Shanghai Tianfeng

Share on (60809815097):


Price:

Quantity:


Product Overview

Description



Product Description


-_03





Product Application




    The advantage of fluid bed dryer  technology rests with maintaining evenness and recurrence of product quality, which reflects an ideal balance between production efficiency and product quality. In the process of fluidization, the materials floats above the air, with surface in full contact with the heated air,and the materials therefore is evenly eated and reaches an ideal state for heat exchange thus to have a high efficiency. Configurated with proper spraying system and through further structural improvement, the fluid bed then becomes a multi-purpose processing facility in combined functions of drying, granulating, solution coating, and powder dressing.Final product usually instant solute granule.


Technical Parameter

























































































































 Specification


30


60


90


120


150


200


300


500


800-1000


Volume of container( L )


100


220


300


420


500


670


1000


1500






By URS


capacity( kg/ batch )


30


60


90


120


150


200


300


500


pressure  Mpa


0.4-0.6


Consumption of steam( kg/h )


70


140


169


211


241


282


366


465


pressure  Mpa











0.6














Consumption of compressive air( m 3 /min )


0.3


0.6


0.6


0.6


0.6


0.9


0.9


1.1


Power of fan( KW )


5.5


11


15


18.5


22


22


30


45


Temperature( °C )


normal temperature ~ 120 °C automatism adjust


Yield of material( % )


>99


Content of final moisture( % )


0.2 can dry to 0.2


dB Noise


 No more than 75dB Separated of fan


Installation size for reference


The same as FL model






*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon

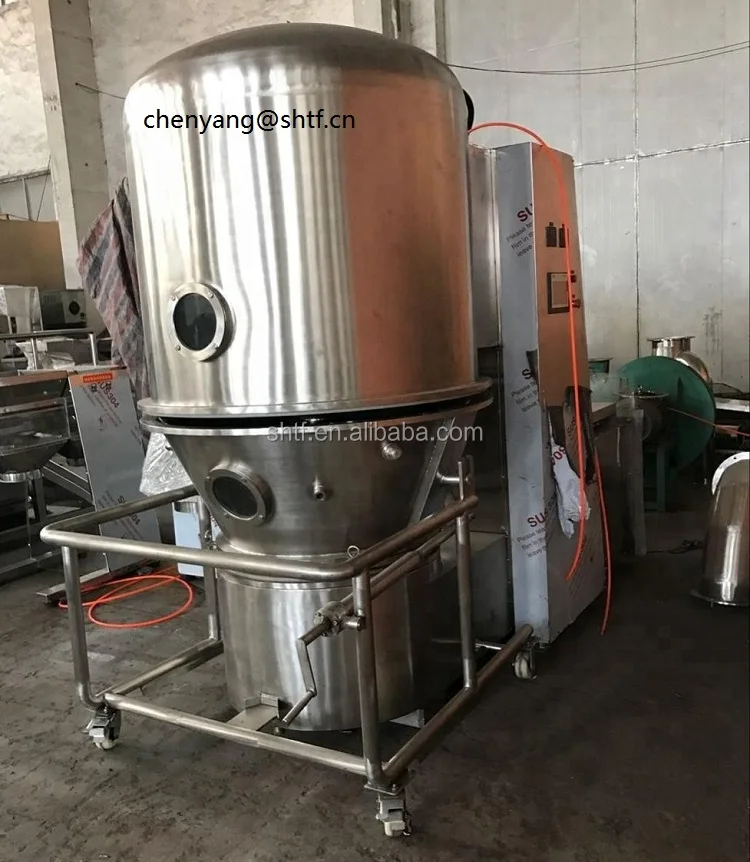

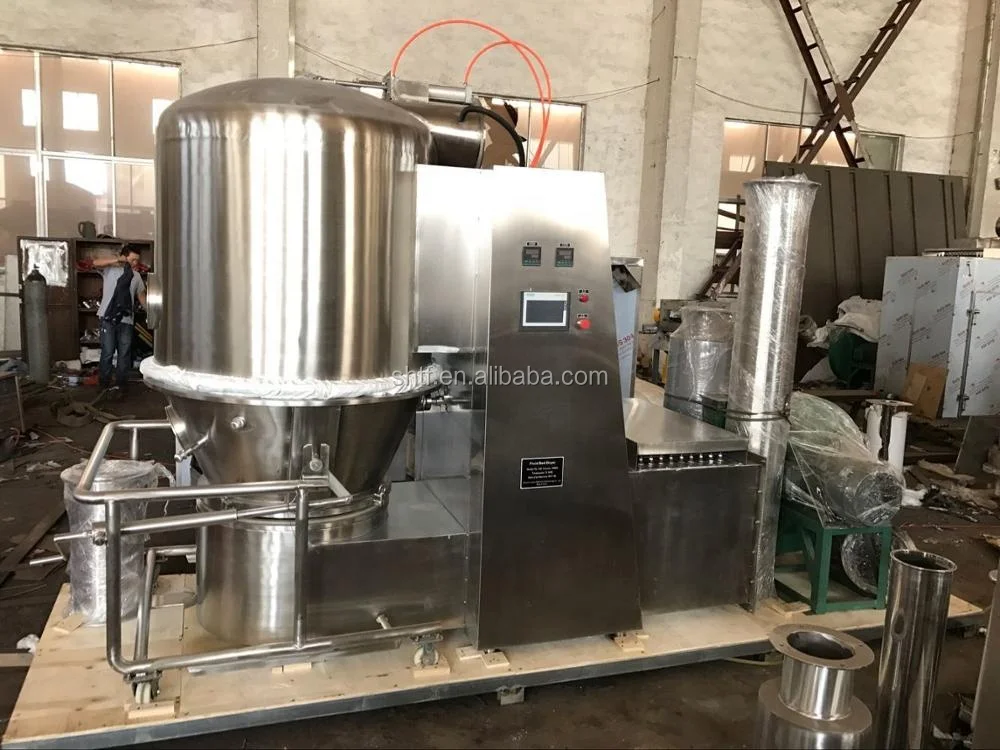

Vertical efficiency fluid bed dryer GFG series fluidized bed dryer from Shanghai TianfengFG (4)FG (2)



More products







Packaging & Shipping


packing and shipping


Export standard plywood package are supplied with well packed. We can make the packages according to customer's request. Sea packages or Air packages are both available.





Our Services


One station service to make sure our customer get good products and good service.


(1) Professional advice and rich experience help to choose machine.


(2) Warranty time: All machines are guaranteed for one year.


(3) Any problem: If you have any questions or any demands, we will reply you within 24 hours


except the special reasons once you enquiry us.


(4) Additives: installation book, Manual book, tool box will be sent with machine.


Product Quality


All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.


Spare Part Replacement


First screen for free, discount if more order.


Technical Service


We can provide design, installation and debugging services or remote maintenance teaching.


Delivery The Cargo To Nearest Port


We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.


Detail Product Information


Provide picture, video, instruction and product brochure.


Reply Timely


24 hours hot line ,we will reply email within 12 hours.








FAQ


1. What about your machine quality?
    Our factory has more than 30 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported to many countries and areas; already got customer’s good reputation.



2. What about your machine price?
    Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get reasonable and satisfied price!



3. How can you ensure the machines' quality after we put the order?
    Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself, or by the third party inspection organization that contacted by your side.





 <<To know more information about our company>>





Company Information


Shanghai Tianfeng Pharmaceutical Machinery Co., Ltd. has made elaborate designs and products, on the basis of absorbing features and advantages of similar products both at home and combing with national GMP standard.We have successfully developed the brand of TDP, DP, THP, ZP, ZPW series tablet presses; CFQ, CXJ, TSG, QVC series assistant machine of tablet presses; CH, V, HD series mixers; YK, ZL, LG, HLSG series granulators; GF, Dl, CW series crushers; RXH series drying machines; BY series sugarcoating machines; ZLK series high speed granulator and various dies, which are suitable for pharmaceutical, food, chemical, electronics and metallurgy industries.
