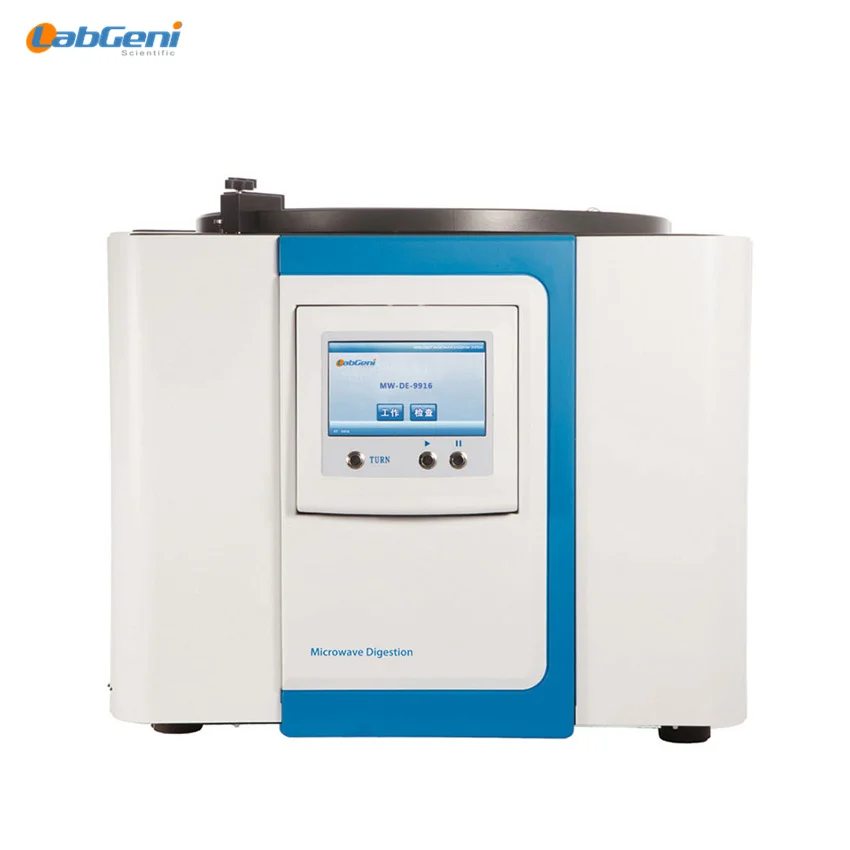

Closed Intelligent Microwave Digestion Extraction Equipment System

Product Overview

Description



Applications:
Food, cosmetics, pharmaceuticals, feed, environment, soil, mining, textiles and so on.

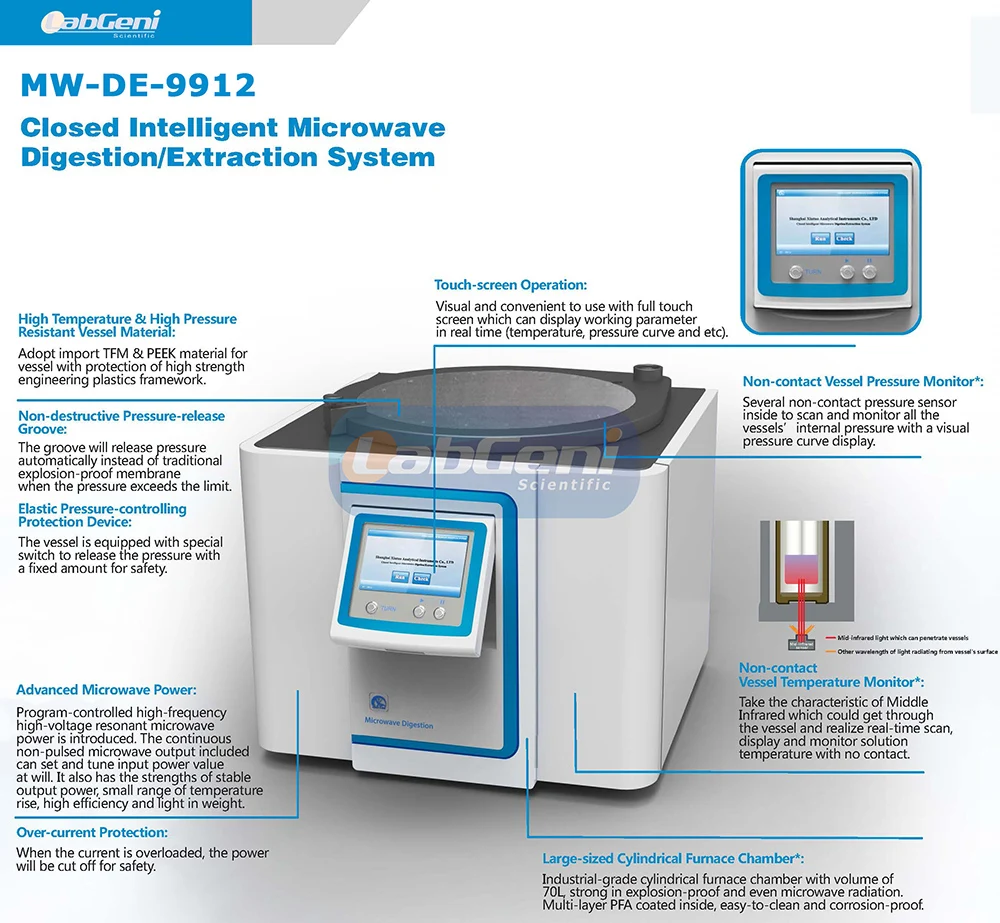

Description:

1. Program-controlled High-frequency Resonant High-voltage microwave power;


2. Industrial-grade Double -magnetron Microwave


3. Stainless Steel Cylindrical Furnace, multi-layer PFA coated Inside ensure long product life time and easy-to-clean


4. Can process 1~16 tank at one time, overhead-type rotatable furance door design, easy to load and un-load vessel with lift-type sample tray

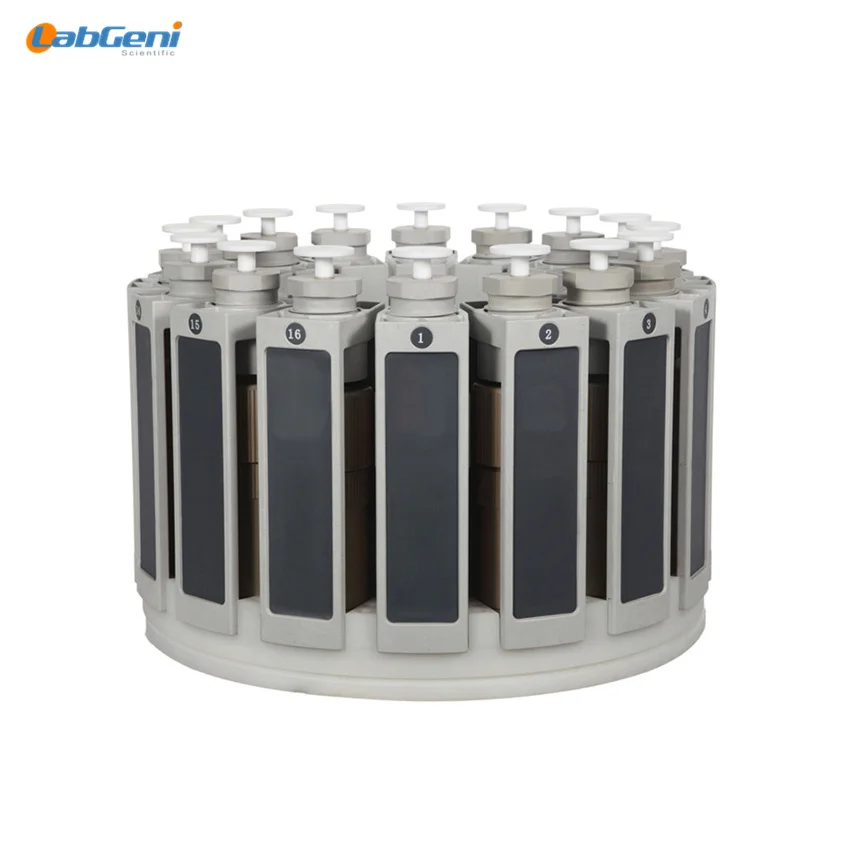

5. Frame-style High-pressure Digestion Vessel, PEEK for exterior vessel, TFM for inner vessel

Working Mode
1) Able to create, edit and save more than 256 kinds of digestion methods.
2) Maximum 10 digestion steps setup for every method.
3) The intelligent heating rate control mode and thermostat control mode are built in.
4) The automatic cooling mode is also built in, cooling stop condition is adjustable.



Temperature Monitor
Special Non-contact Middle Infrared Temperature Monitor, real-time scan and monitor ample solution temperature with a visual temperature curve display.



Pressure Monitor
Non-contact Pressure Sensor Monitor, Developed from technologies of Phial-form Metal Clips with High Elasticity, Optical Ranging System and etc. The Pressure Sensor could real-time scan and monitor every vessel's pressure with a visual pressure curve display.



Multiple safety Precautions
More than 10 active and passive security functions including:
1) Industrial-grade Cylindrical Furnace Chamber and Overhead-type Explosion-proof Door Design.
2)Real-time monitor of temperature and pressure for every digestion sample.
3) Over-pressure alarming limit.
4) Elastic pressure-controlling protection device.
5) Overheat and over-current protection.
6) Abnormal noise detection protection.
7) System failure self-check and warning.
8) High-temperature and high-pressure resistant framework for digestion vessel. 9) Non-destructive pressure-releasing groove.
10) Three powerful centrifugal exhaust fans (exhaust capacity, 5.8m3/min) to protect operator from harmful gas.



Intelligent Control
Visual and convenient to use with full touch screen, Display working parameter any in real time(temperature, pressure curve and etc);  Standard RS232 interface provided for the connection with PC.



Technical Parameter:

Model		MW-DE-9916	MW-DE-9912
Power & frequency	Input power	3000W	3000W
	Output power	0-2400W adjustable	0-2000W adjustable
	Microwave frequency	2450MHz	2450MHz
Microwave Furnace Chamber	Chamber Volume	75L	70L
Sample	Digestion tank volume	100ml	100ml
	Tank quantity	16 pcs	12pcs
	Load mode	Lift-type Sample Input Platform	Lift-type Sample Input Platform
Temperature-pressure Measurement system	Temperature range:	RT ~ 400℃( ±1℃)	RT ~ 300℃( ±1℃)
	Pressure range:	0 ~ 10Mpa (±0.01MPa)	0 ~ 10Mpa (±0.01MPa)
High-Pressure Digestion Vessel	Working Pressure	0~6Mpa	0~6Mpa
	Maximum Pressure	≥15Mpa	≥15Mpa
	Working Temperature	0-250℃	0-250℃
	Maximum Temperature	≥300℃	≥300℃
	Power	110/220V AC, 50/60Hz	110/220V AC, 50/60Hz
Dimensions & weight	Dimensions	650×630×570mm	650×630×470mm
	Weight	70 kg	70 kg
