DMA860H engraving machine driver 86 stepping motor driver DMA860H
US $12.00-$19.00
Поставка различных режимов рабочего напряжения серии BLDC B, бесщеточный драйвер с поддержкой CAN 2.0B протокола для двигателя
- Category: Motor Driver >>>
- Supplier: Changzhou Fulling Motor Company Limited
Share on (60809823866):
Product Overview
Description
Product Description
Functions:
Supply voltage | 18VDC~60VDC |
Operating current | Continuous current: 20A, Peak current: 40A (Ambient temperature below 25℃) |
Power range | ≤1200 W |
Speed range | 100~20000rpm |
Adapted motor | Brushless DC hall motor(120°) |
Working mode | Hall speed closed – loop mode(Factory Default) , Open – loop mode(Optional) |
Speed adjustment mode | Support external potentiometer speed control, external voltage speed control and PWM velocity command, Communication(CAN/Serial port) |
Protective function | Over voltage protection, Under voltage protection, Over current protection,Over temperature protection, Soft – Start and hall signal fault alarm function. |
Working environment | No corrosive, flammable, explosive, conductive gas, liquid and dust. |
Heat dissipation mode | Natural cooling or external radiator. |
Dimension | 150mm×82mm×45mm |

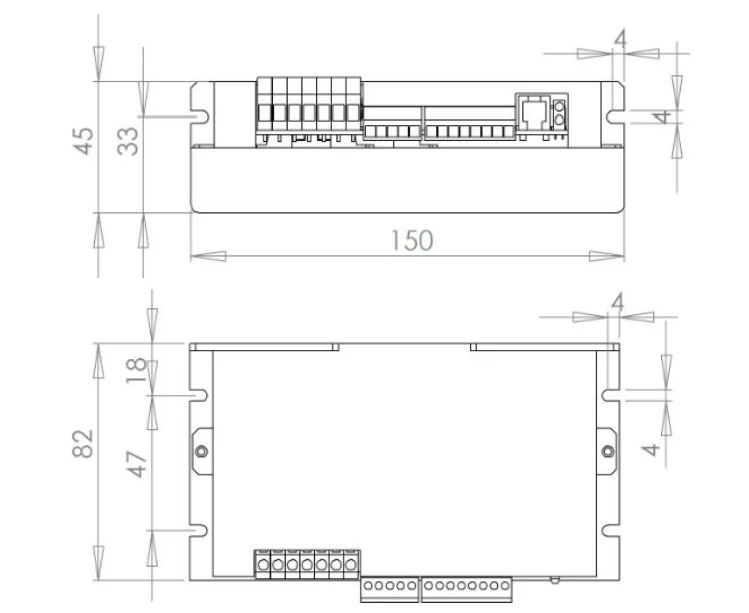

Installation dimension
Related Products
Company Information
Our Services
Packaging & Shipping
FAQ
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: No Moq , 1PC OK . Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
