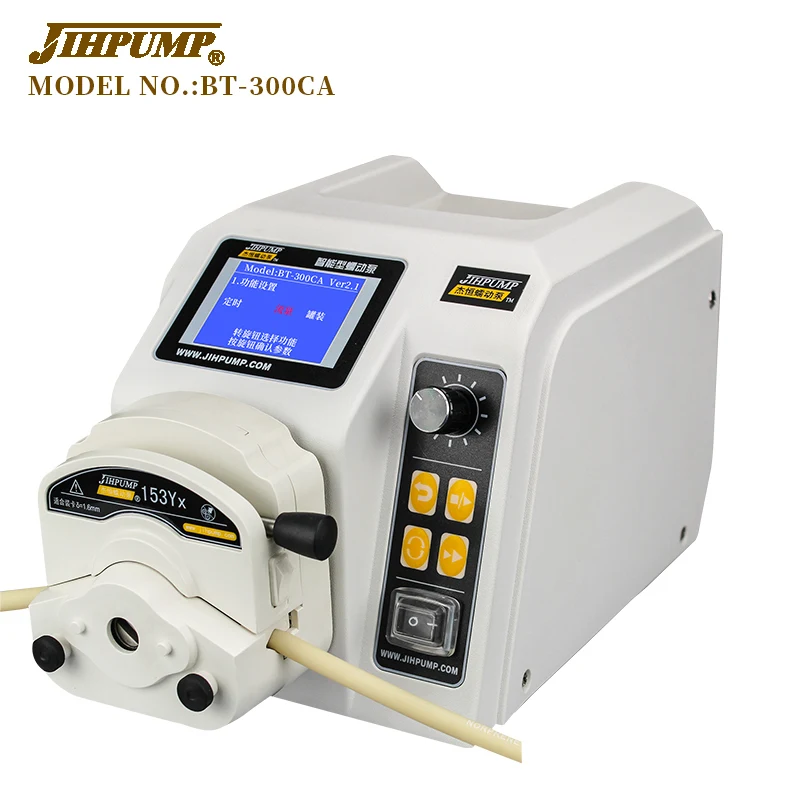

JIHPUMP rs485 Industrial Peristaltic Pump Dual Multi 2 4 8 Channel Head for Water Liquid Dispensing Dosing
JIHPUMP rs485 Industrial Peristaltic Pump Dual Multi 2 4 8 Channel Head for Water Liquid Dispensing Dosing
JIHPUMP rs485 Industrial Peristaltic Pump Dual Multi 2 4 8 Channel Head for Water Liquid Dispensing Dosing
JIHPUMP rs485 Industrial Peristaltic Pump Dual Multi 2 4 8 Channel Head for Water Liquid Dispensing Dosing
JIHPUMP rs485 Industrial Peristaltic Pump Dual Multi 2 4 8 Channel Head for Water Liquid Dispensing Dosing
JIHPUMP rs485 Industrial Peristaltic Pump Dual Multi 2 4 8 Channel Head for Water Liquid Dispensing Dosing
JIHPUMP rs485 Industrial Peristaltic Pump Dual Multi 2 4 8 Channel Head for Water Liquid Dispensing Dosing

JIHPUMP rs485 Industrial Peristaltic Pump Dual Multi 2 4 8 Channel Head for Water Liquid Dispensing Dosing

Share on (60809840610):


Price:$500.00 - $600.00

Quantity:


Product Overview

Description



Chongqing Jieheng Peristaltic Pumps Co., Ltd.


1.Peristaltic Pumps Professional Manufacturer and Supplier.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.




Lilian He(Europe , North and South America) :
April Huang(Asia and Africa) :
WhatsApp:+8618983834629
WhatsApp:+8615703016080
Skype：+8618983834629
Skype：jihpump
Email：alan@jihpump.com
Email：april@jihpump.com


Product Discription

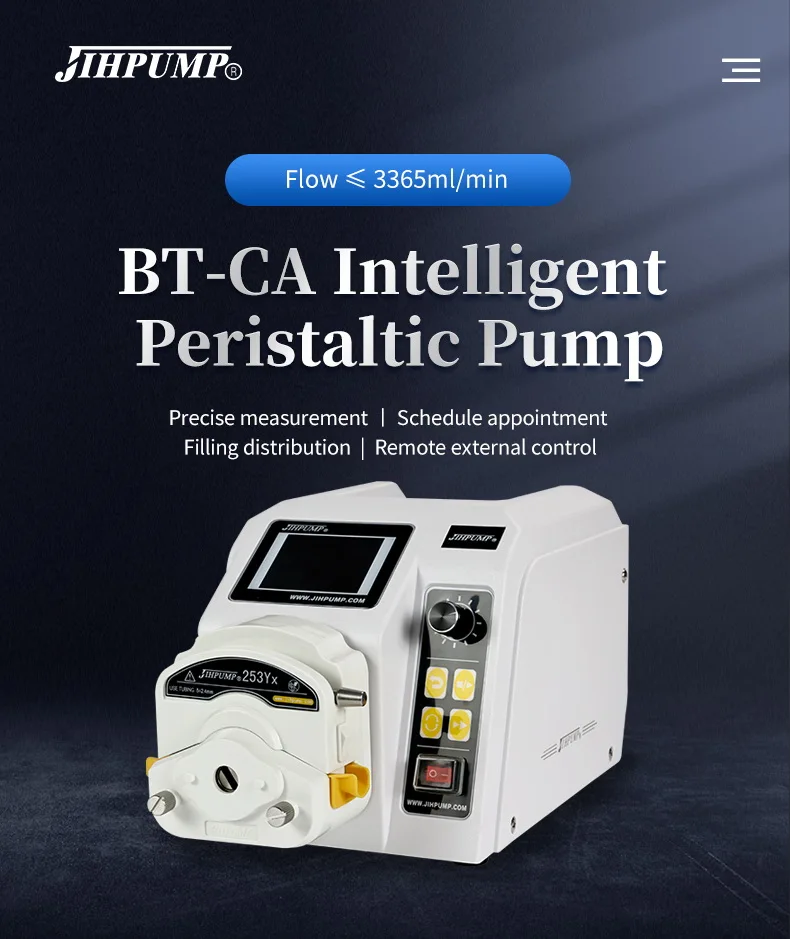

BT-CA series  Peristaltic Pump Features

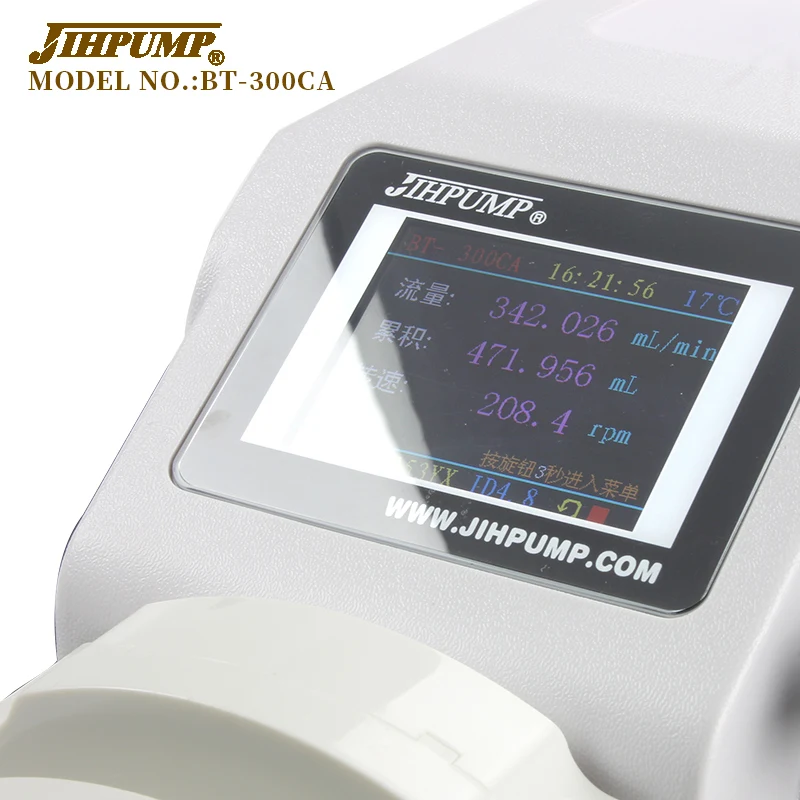

Graphic LCD display
Button knob control
Simultaneous display of speed and flow
Parameter power- down memory
Precision Stepper Motor
Precise speed control

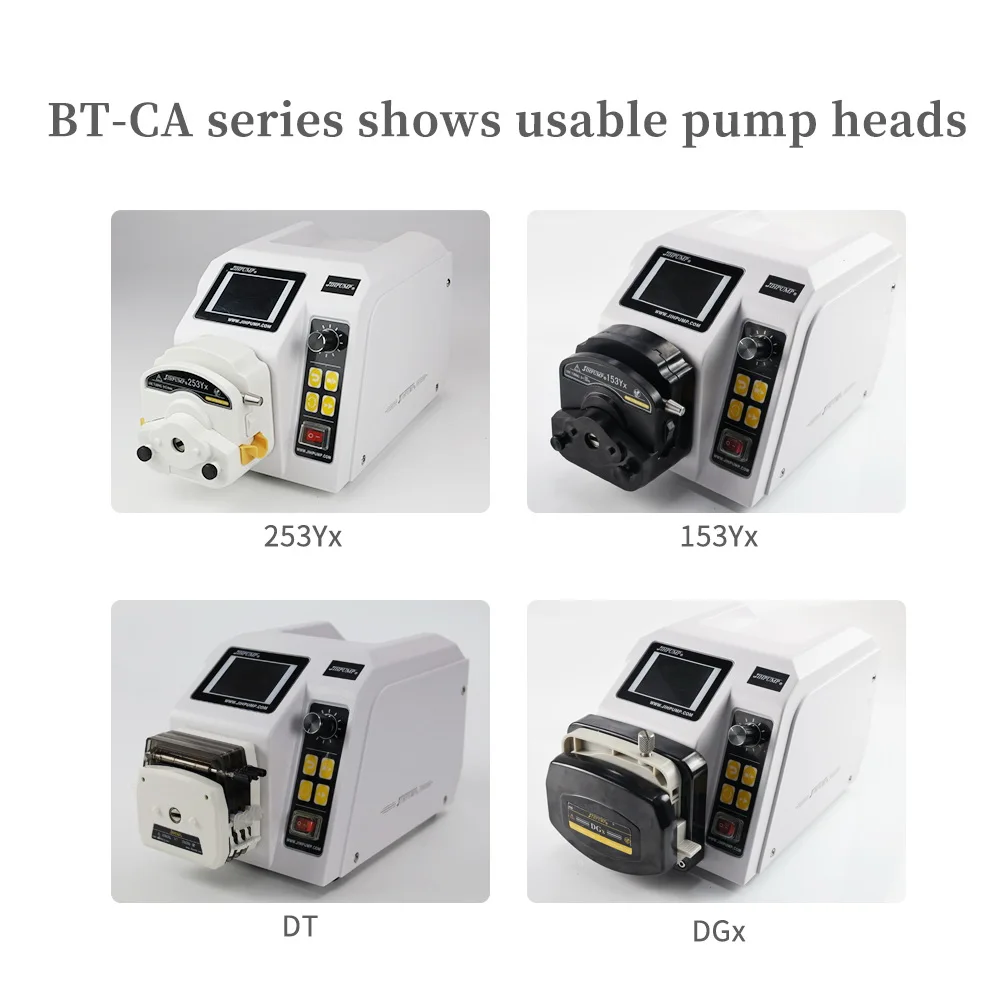

Various pump heads available
Smart Flow Calibration


Hot Sale Products










Product model
BT-CA Series
Project
BT-100CA
BT-300CA
BT-600CA
Adjustable speed range
0.1～100r
0.1～300r
0.1～600r
Velocity resolution
0.1rpm
Outlet pressure
≤0.17MPa
Control mode
Membrane key + coding switch
External control mode
Foot switch、0～5V、0～10V、4～20mA、 ModBus communication protocol
Applicable power supply
AC 100～240V，50/60Hz， 1.0A
AC 100～240V，50/60Hz， 2.0A
Operating power
≤48W
≤54W
Drive weight
3.2KG
3.8KG
Degree of protection
IP31


Reference flow (unit: ml/min)

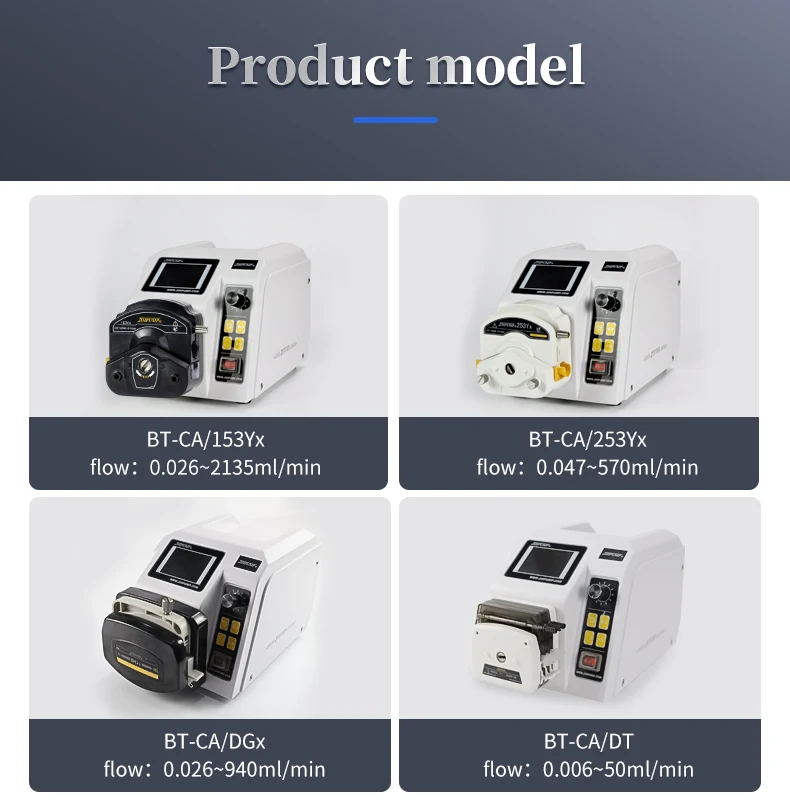

Pump head model
153Yx
253Yx
Tube number
Motor speed
14#
16#
25#
17#
18#
15#
24#
35#
36#
100rpm
26
85
175
270
425
170
265
385
500
Number of pump heads in series
≤6
≤5
≤4
≤3
≤2
300rpm
75
260
530
835
1340
525
830
1180
1490
Number of pump heads in series
≤6
≤4
≤3
≤2
≤3
600rpm
145
515
1080
1770
2135
1085
1695
2640
3365
Number of pump heads in series
≤6
≤4
≤3
≤2
≤3
Pump head model
314D
DGx
DT
 Tube number
Motor speed
14#
16#
25#
17#
18#
14#
25#
1*1
2*1
100rpm
28
85
185
275
390
26
155
6
20
Number of adaptive channels
1
≤4
≤12
600rpm
155
520
995
1100
1250
145
940
/
Number of adaptive channels
1
≤2
1
/
Flow rate description
1. The flow is measured by transporting clean water at room temperature of 23 ℃ without pressure at the inlet and outlet; 2. Total flow in multiple series ≈ flow of single pump head * number of pump heads in series; 3. Total multi-channel flow ≈ single channel flow * number of channels.

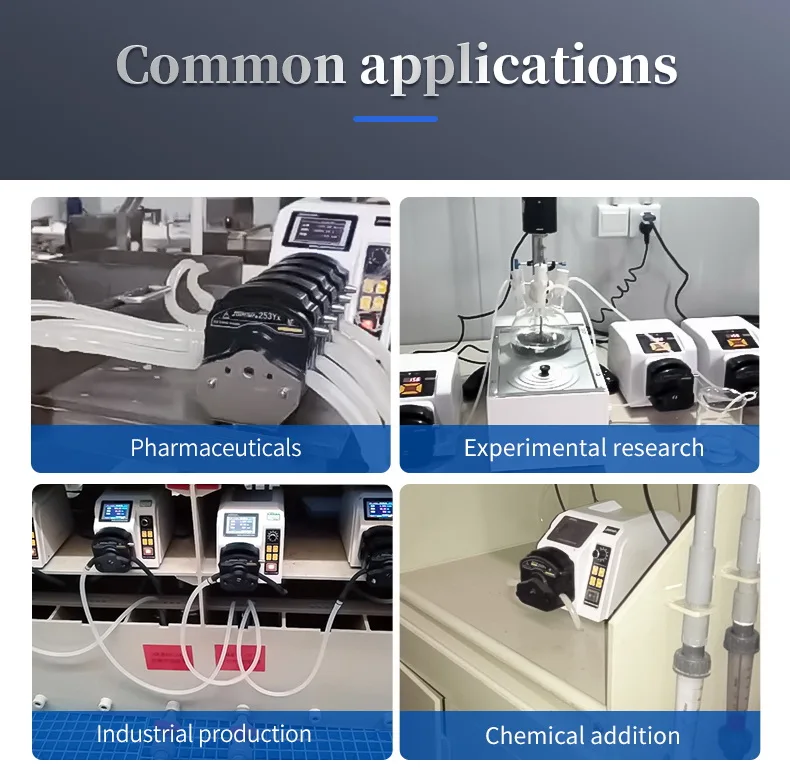

Common Applications: Pharmaceuticals，Experimental research , Industrial production , Chemical addition, Fine chemicals, ect .
Applications Industry: medical diagnosis ，Environmental protection instrument , Analytical Instruments , inkjet ink , washing cleaning , food and drink ，Experimental research，Pharmaceutical machinery，Smart Appliances ，industrial machinery etc JIHPUMP peristaltic pump , peristaltic pump 24v.
JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.
More application consulting customer service

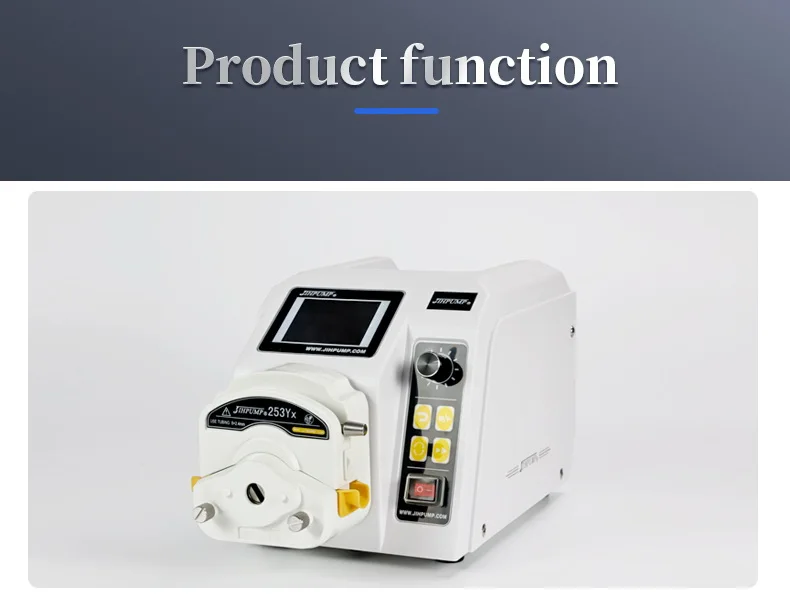

Stable & accurate
The stable, accurate and easy to operate peristaltic pump makes your experiment and production more convenient.

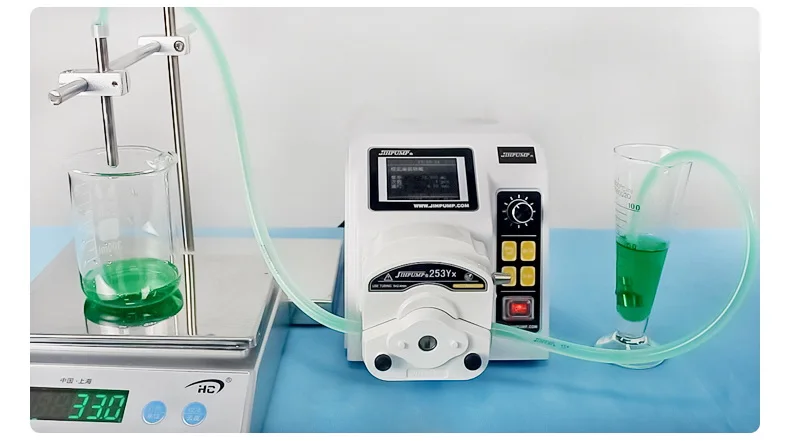

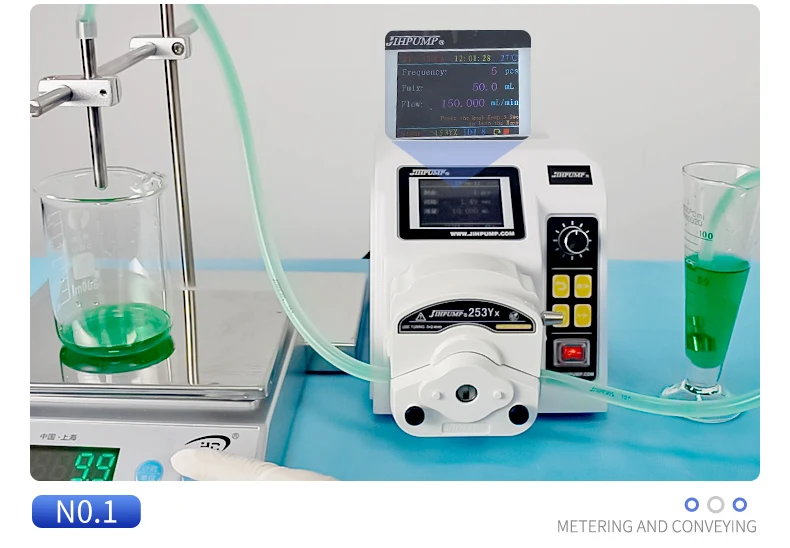

Metering and conveying function
Realize accurate measurement and transmission of fluid, and the speed regulation accuracy reaches 0.1rpm.

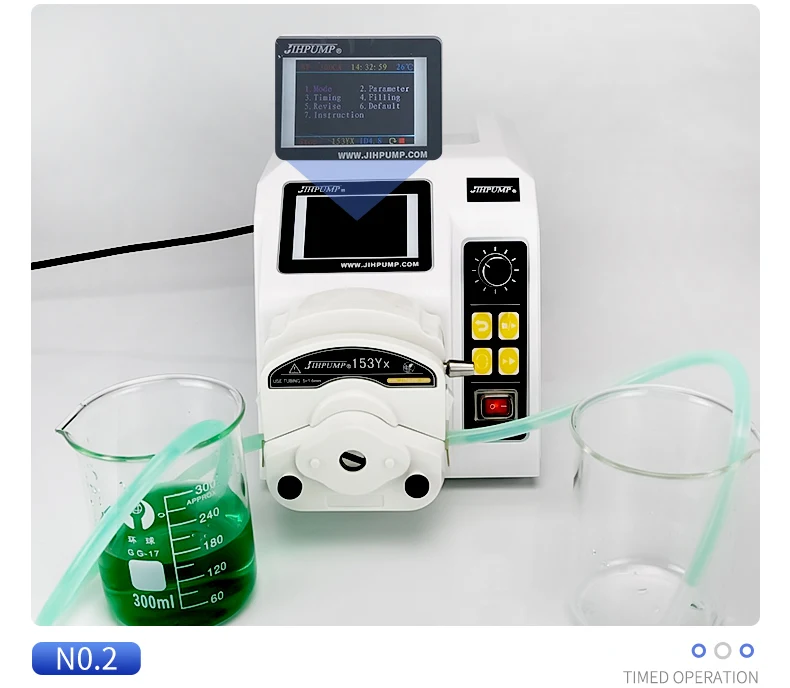

Timed operation function
It has delayed start and stop operation, and can set clearance operation time and operation times.

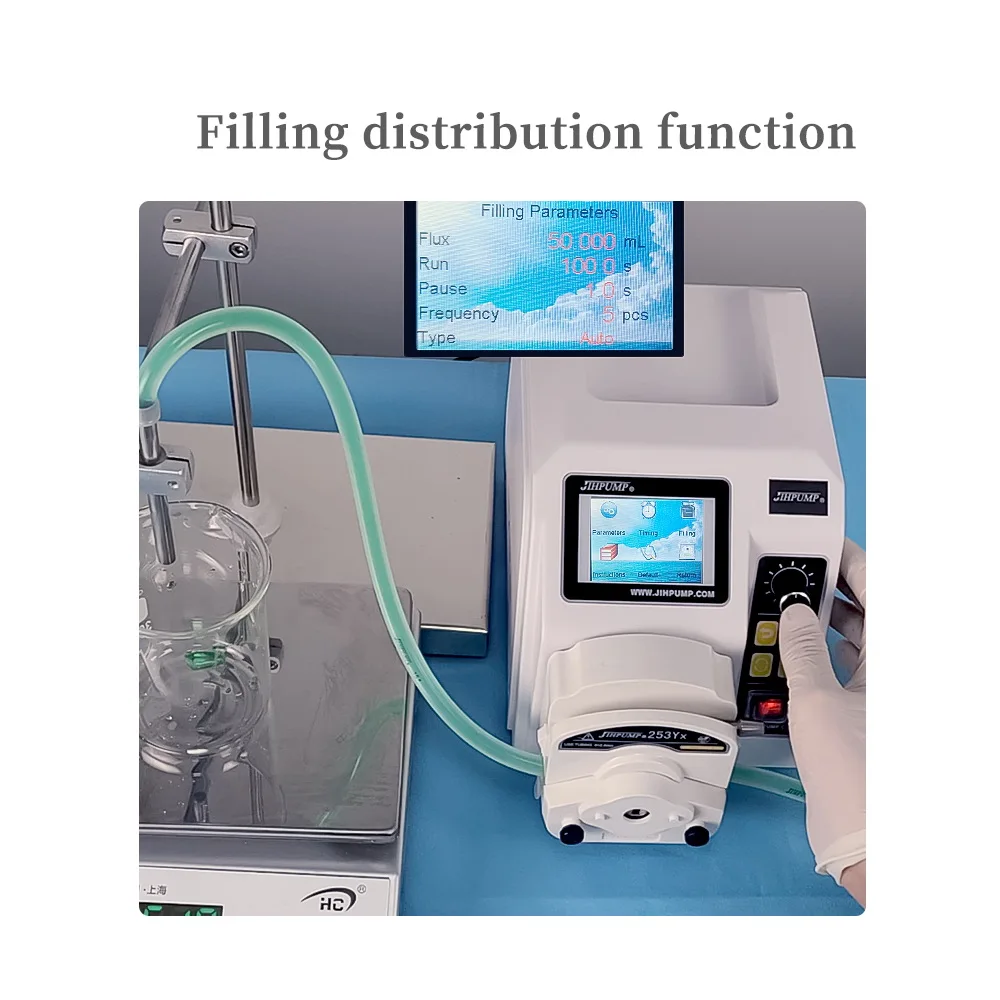

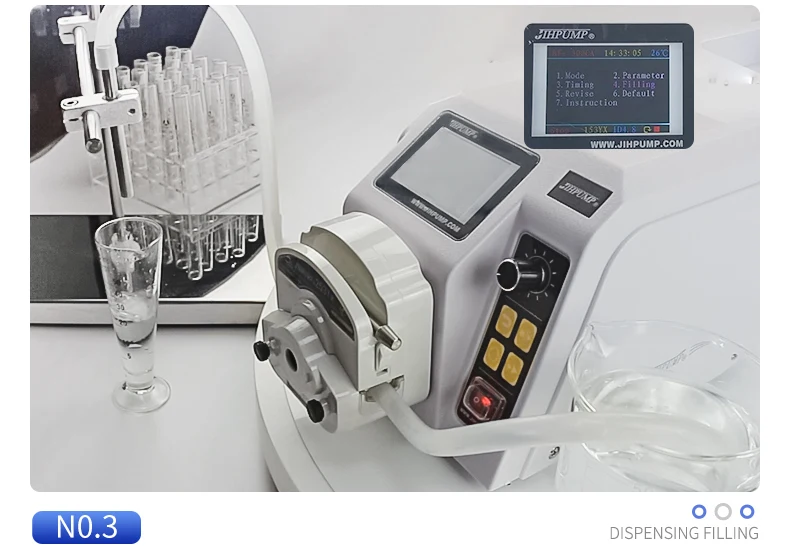

Assign filling function
1. You can set the allocated filling times, filling time, stop time and filling volume.
2. The sub packaging can be automatically operated according to the set parameters, the infrared proximity switch can be selected to realize semi-automatic filling, or the foot switch or external switch can be selected to control the filling start..

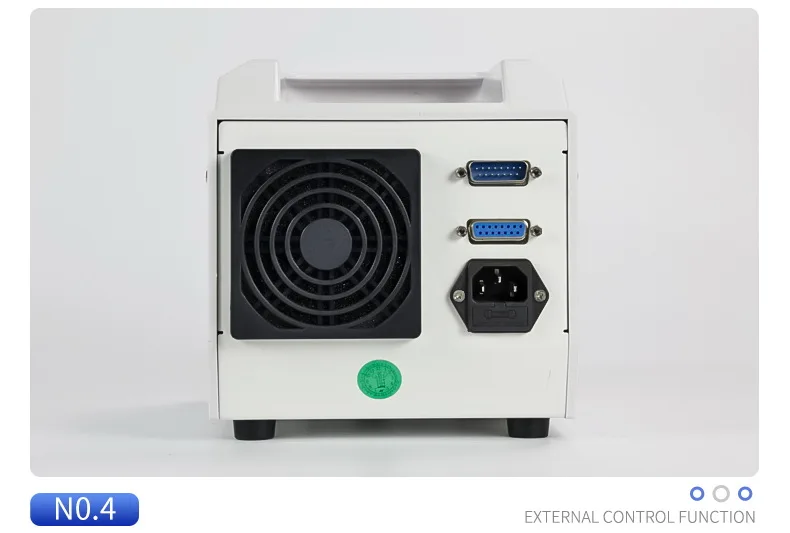

External control function
Integrated with industrial control PLC to realize remote online multi unit network control Analog quantity interface: start / stop, direction, speed (0~5v, 0~10v, 4~20ma) Digital interface: RS485 digital communication Output interface: start stop and direction status with relay output.




01

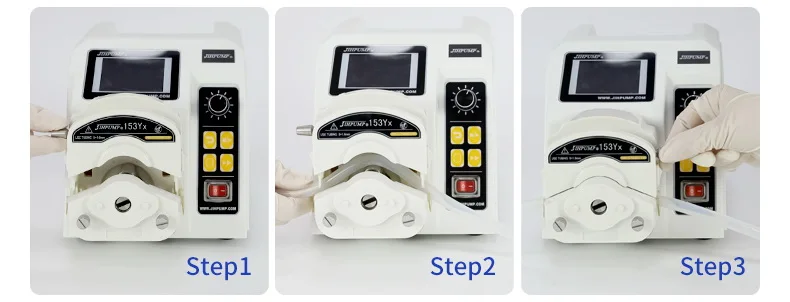

Easy to install pump head, easy to operate, no tools for maintenance, and only three steps for pipe replacement..




02

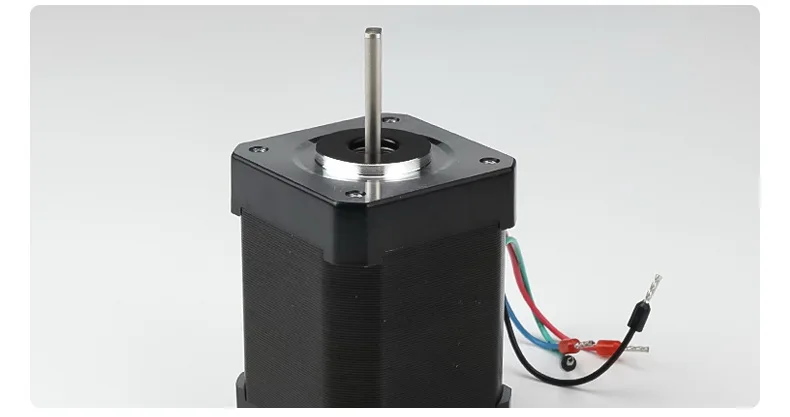

Precision stepping motor and microprocessor control module Built in intelligent algorithm software to achieve accurate and
fine operation control of 0.1rpm.




03
Intelligent flow calibration program, easy calibration, continuous accuracy.




04

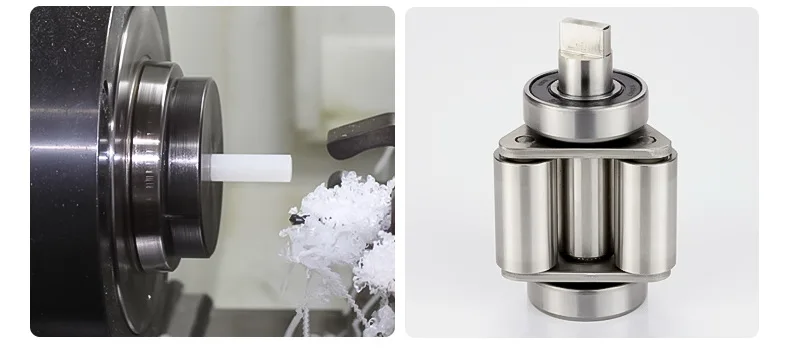

304 stainless steel roller Fine machining with full-automatic high-precision CNC lathe, Adopt waterproof stainless steel bearing, long-term wear-resistant without rusting, so that the operation is more smooth.
.




Company Profile


JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective,high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents,laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.
