Universal 2D 360 degree surround camera panoramic waterproof parking sensor system with 4 Car rear view camera

Universal 360 degree panoramic waterproof parking sensor system with 4 Car rear view camera

Description:

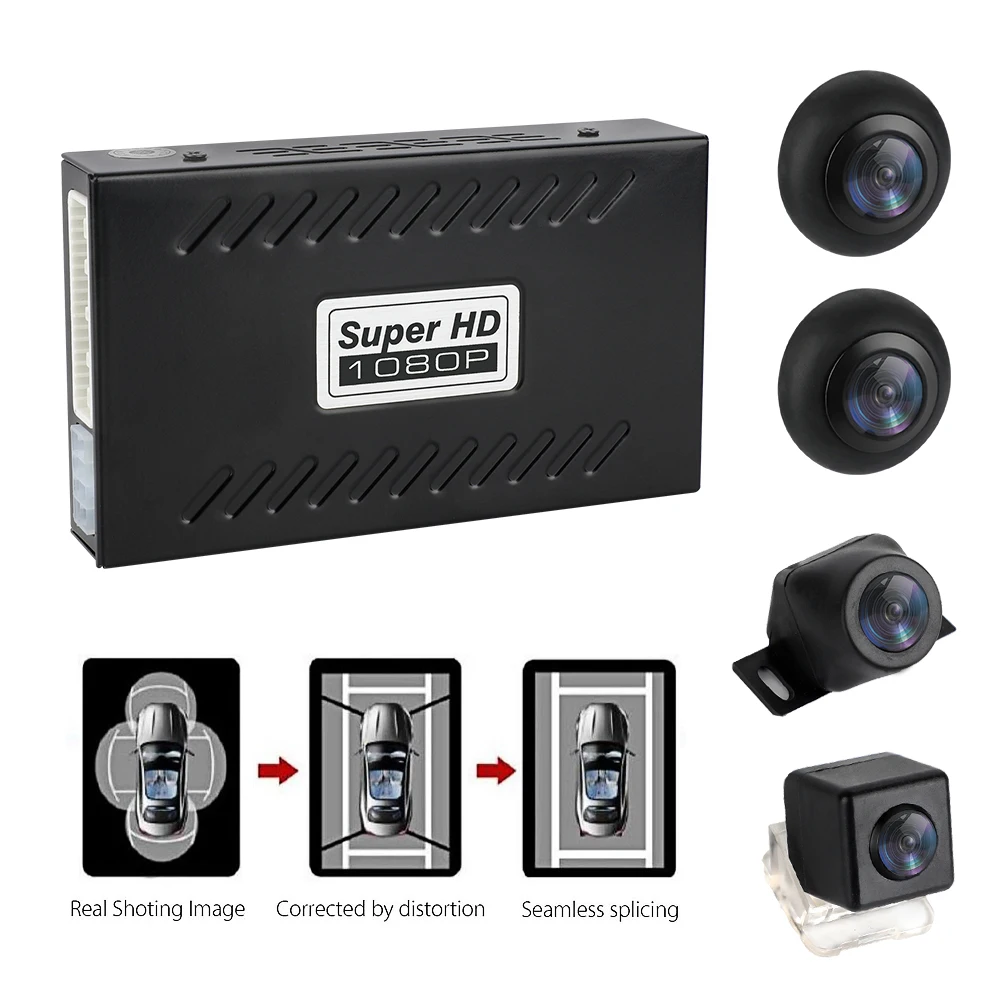

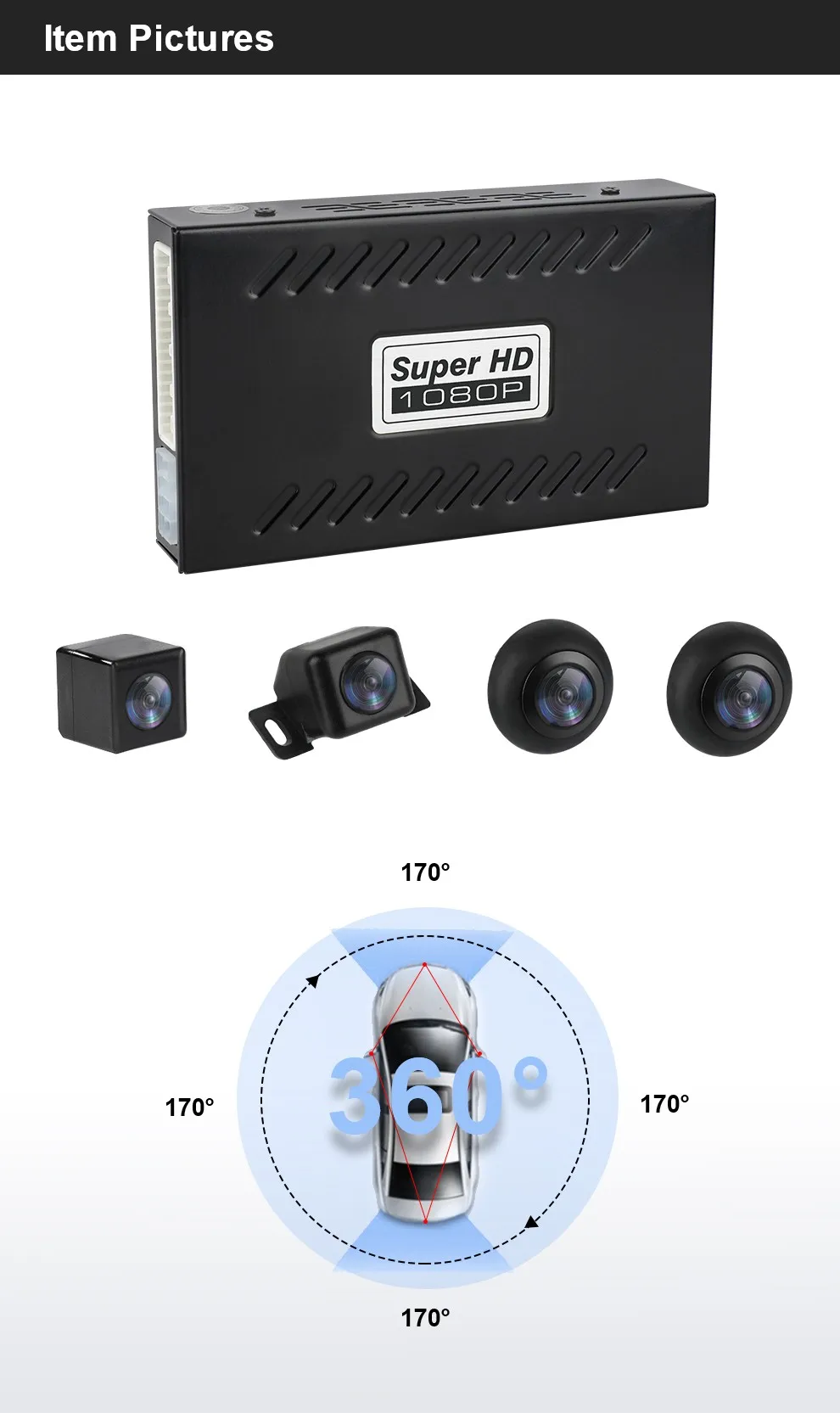

This 360 degree view car camera system is a support technology that assists drivers to park more easily by better understanding the vehicle's surroundings through a virtual bird's-eye view from above the vehicle. It helps the driver visually confirm the vehicle's position relative to the lines around parking spaces and adjacent objects, allowing the driver to maneuver into parking spots with more ease. The system can display the bird's-eye, front and rear views, making it possible to check the vehicle's 360-degree surroundings simultaneously with either the front and back


Product parameter:

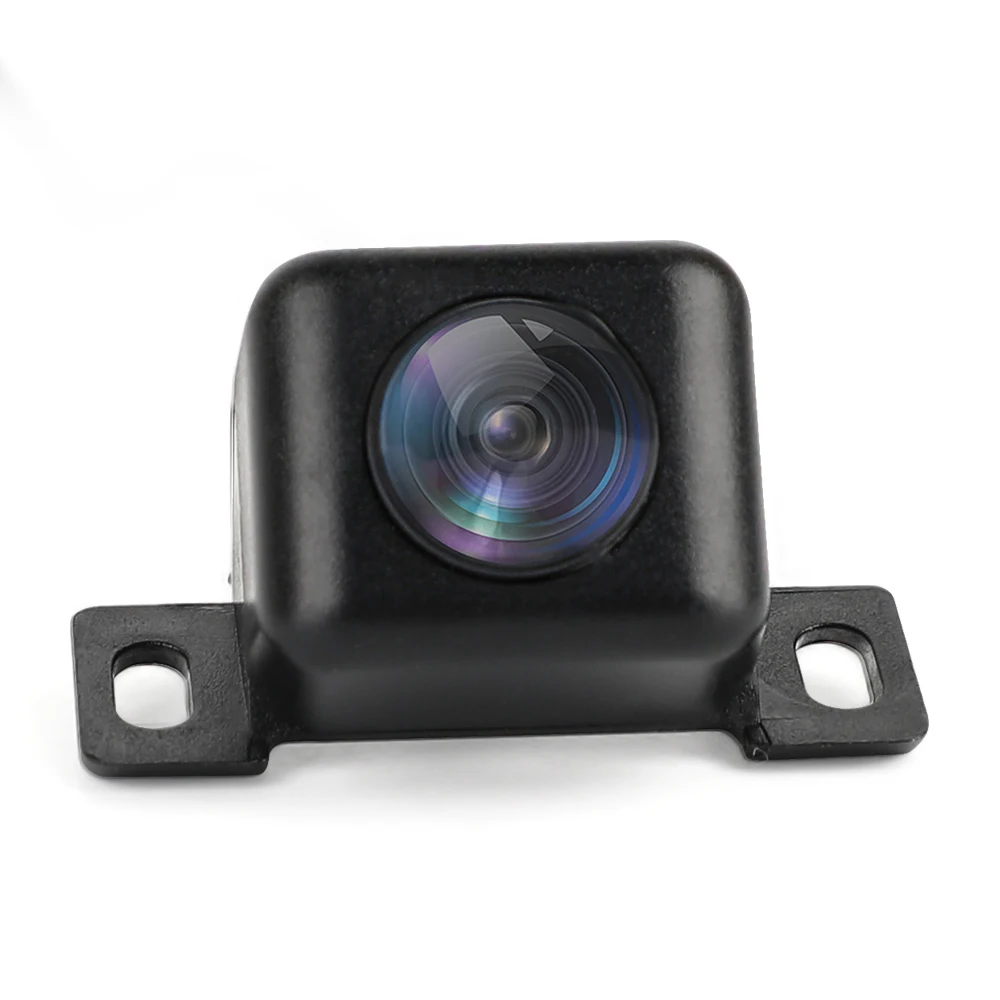

Camera:

1. image sensor: PC1099

2. optical size: 1/3 inch

3. Pixel pitch: 5.0 * 7.4um

4. Effective pixel: 720 (h) * 480 (v) pixel

5. Horizontal resolution: 580 television lines

6. Video format: NTSC

7. dynamic range:> 72db

    Ratio 8. S / N:> 48db

9. Minimum illumination: 0.1 Lux

10. viewing angle: 170 °

11. Video output: 1.0 V and 75Ω

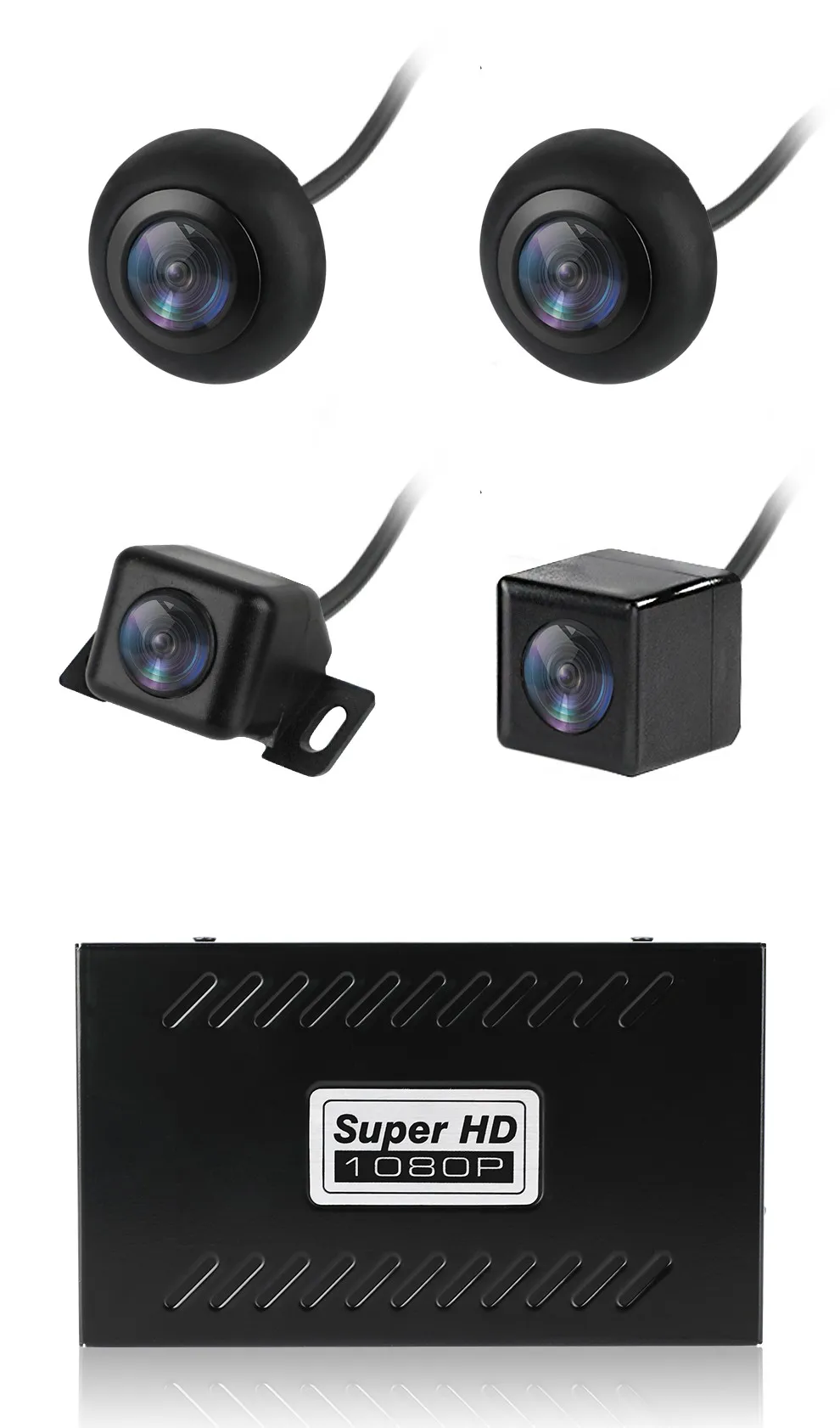

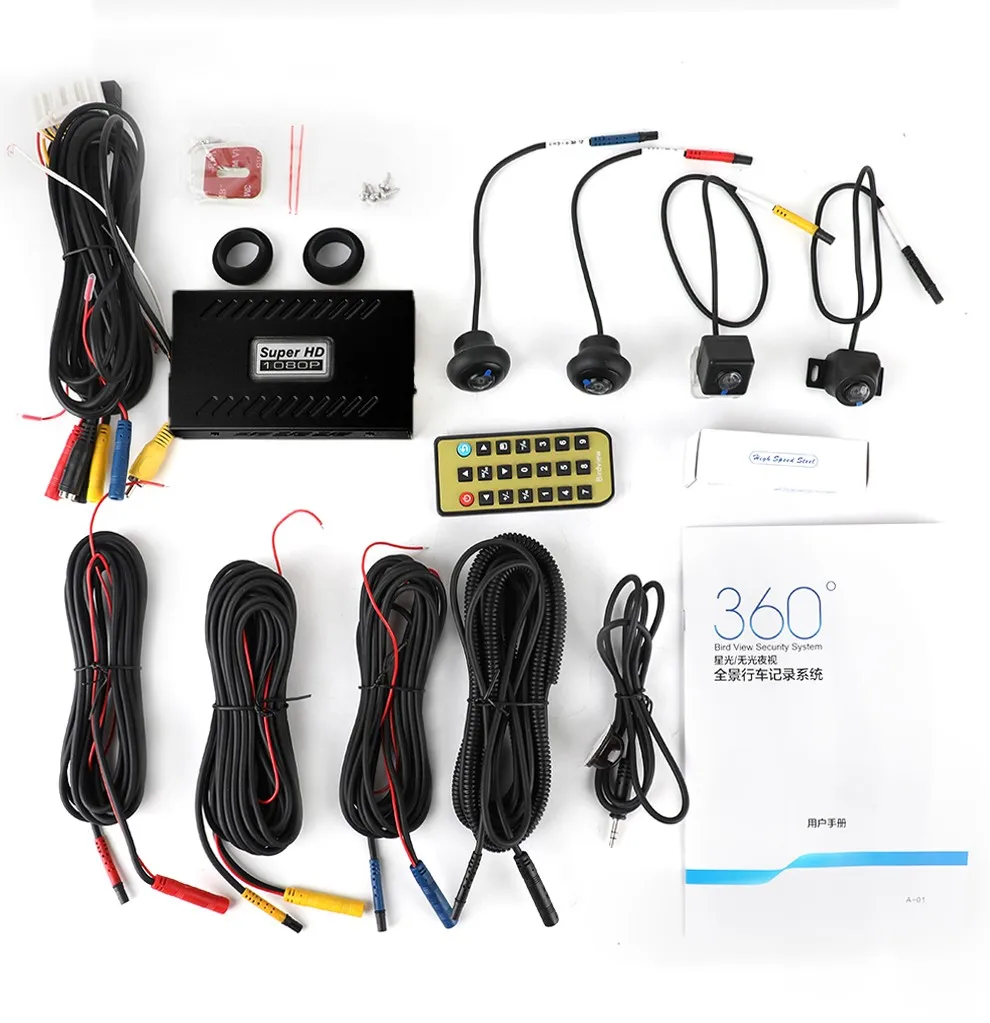

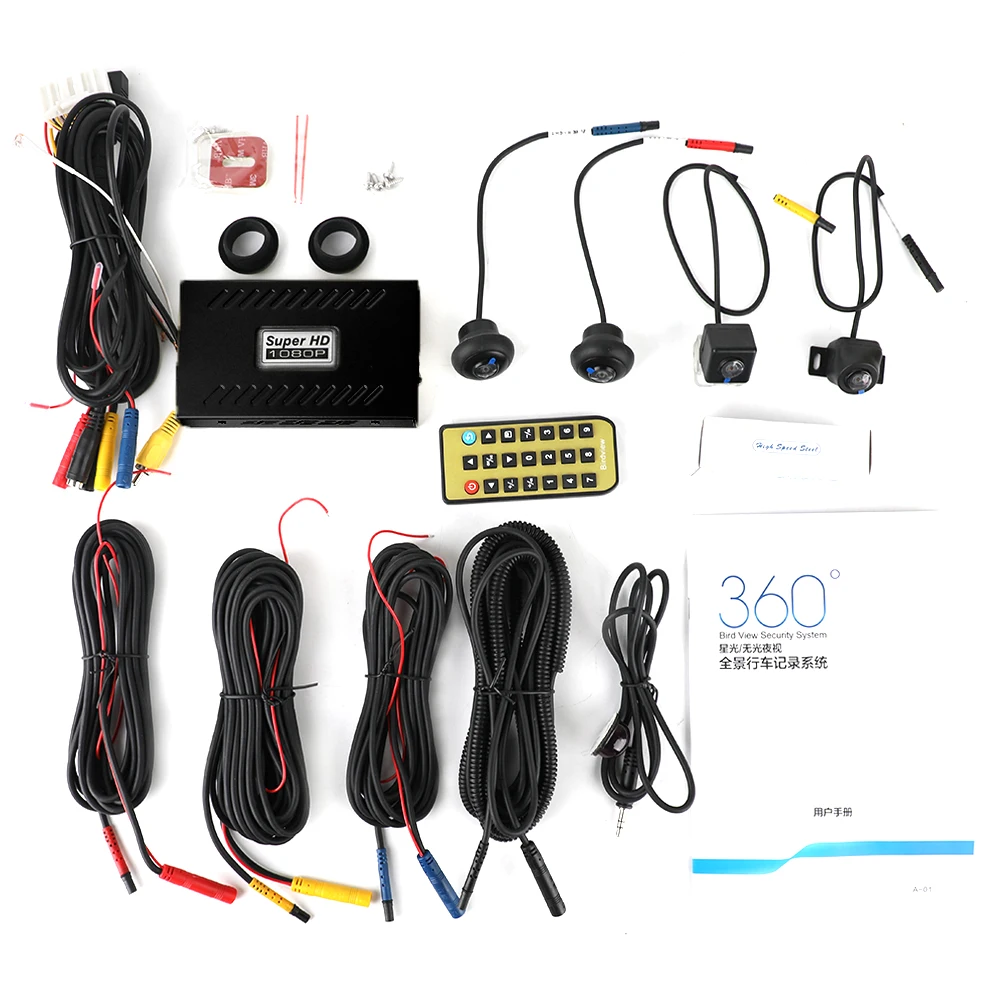

Package includes:

1 x Control Host

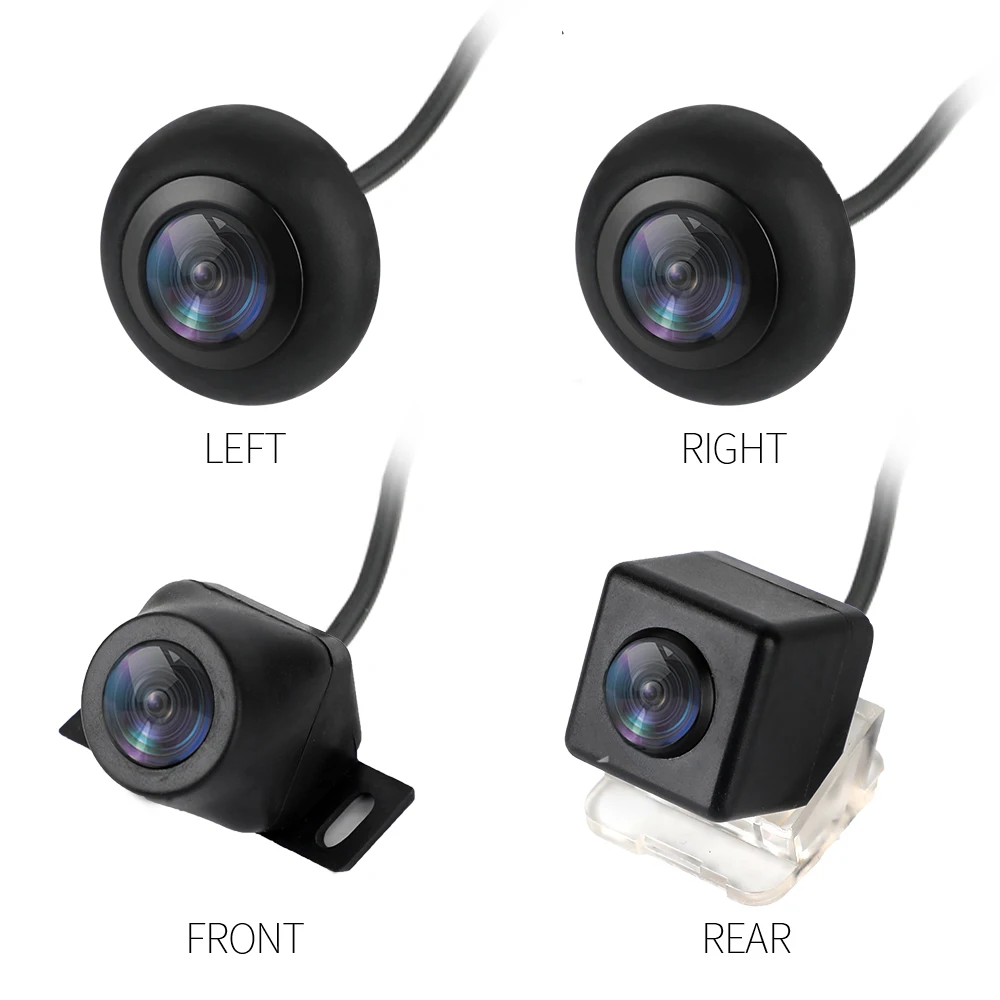

4 x camera (front, rear, left, right)

4 x camera extension cable

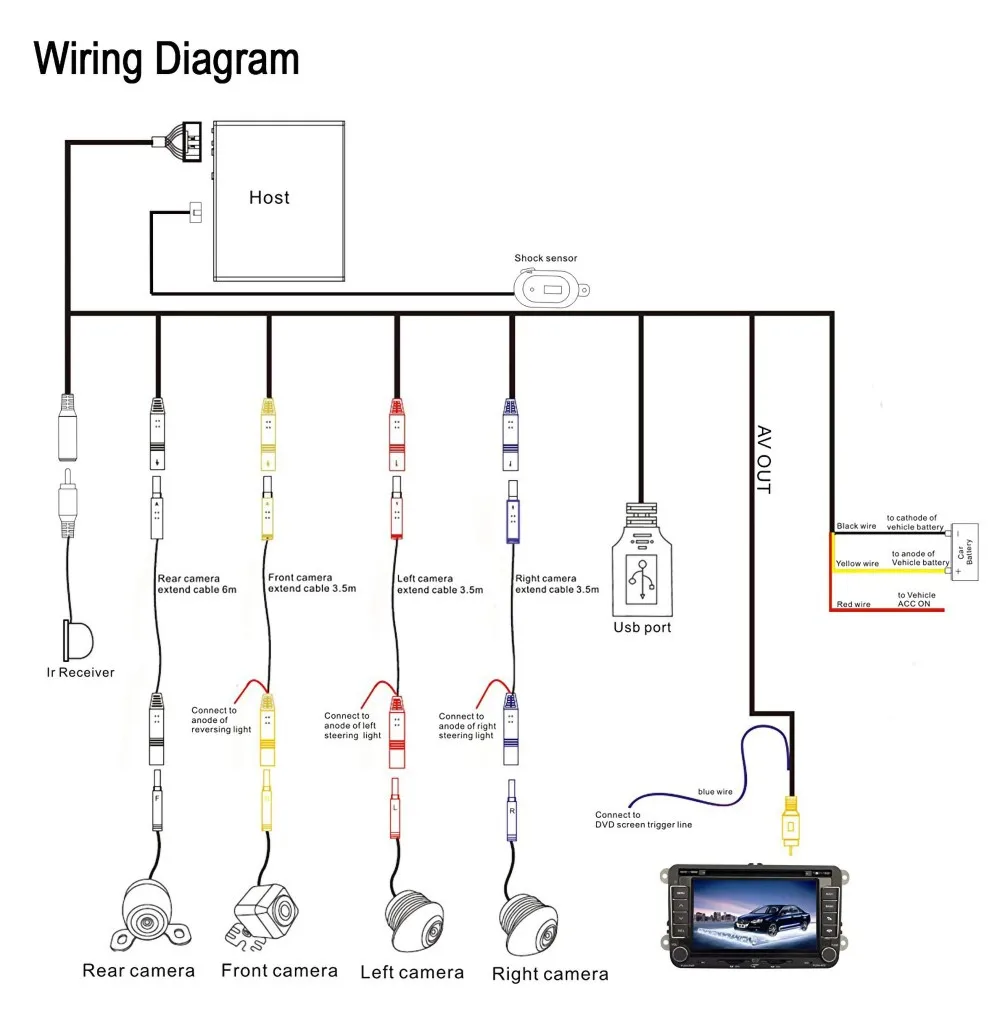

1 x electrical wiring

1 x Video output cable

1 x infrared receiver

1 x remote control

1 x hunter

1 x User's manual

1 x installation package (cable connection, double-sided sticker, screw, bracket, threaded tube)
