Low Price UHF RFID Animal Ear Tracking Tag

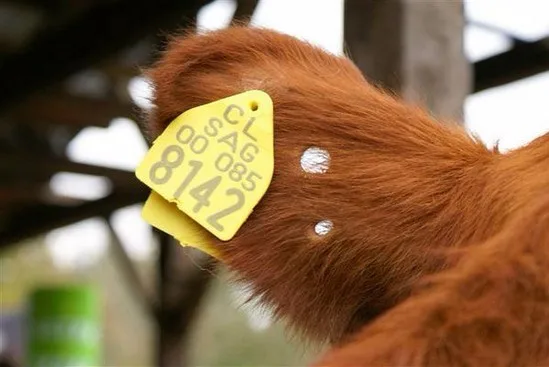

Ear tag can be used in large or medium size livestock or animals, such as pig, cow, lamb, horse, deer, dog and so on.

It can be widely applied in all the field of information management for animals and livestock, such as breeding population, epidemic prevention and quarantine control.

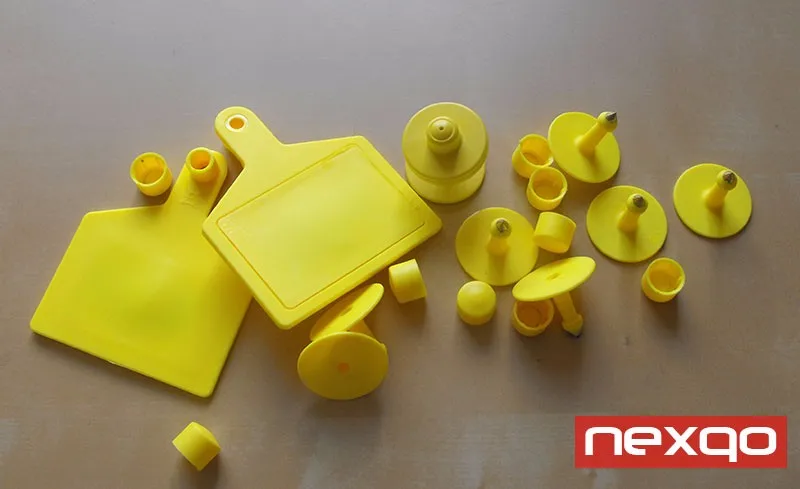

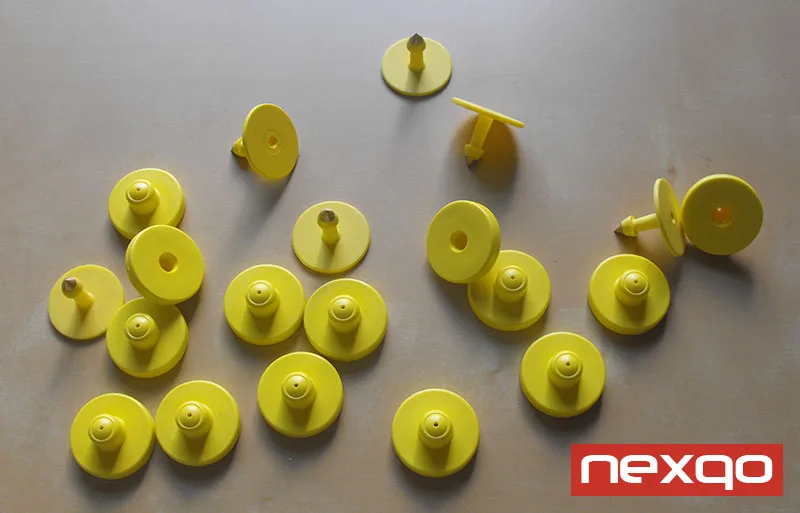

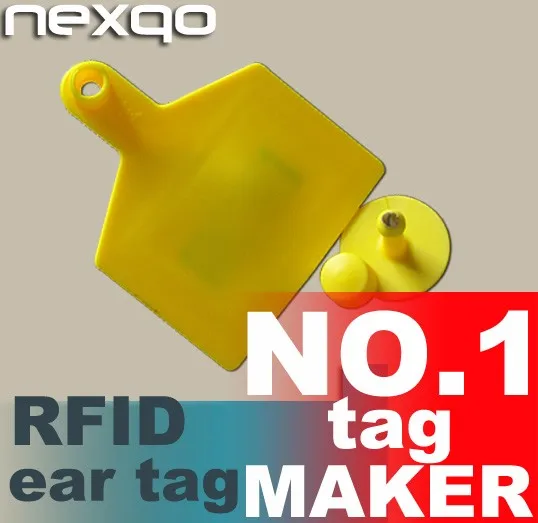

Basically, there are 2 parts in ear tag, which is male tag and female tag.

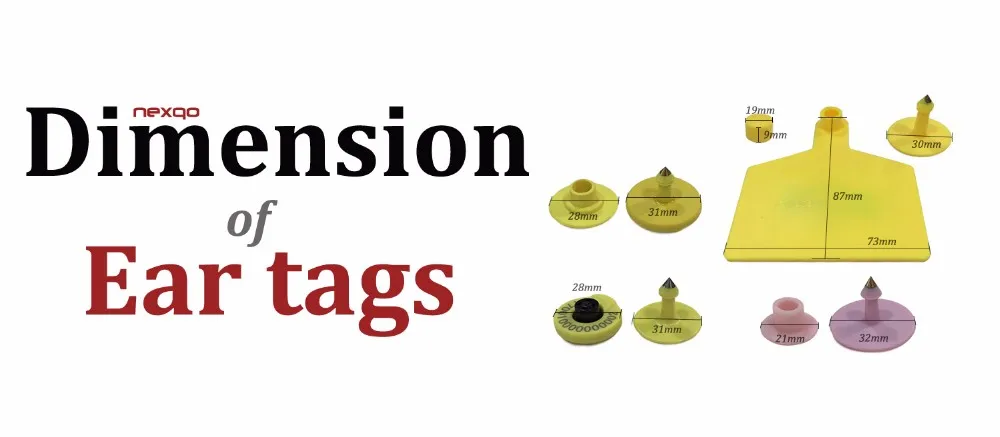

We have 2 different colors and size for making tag.

Yellow:
1. Male tag: Diameter 30 mm, thickness: 1.35mm (1.18 “, thickness: 53 mil)
     Female tag: 72*45mm*2.85mm (2 19/20*1 4/5” thickness: 112 mil)
2. HDX Male tag: Diameter 31 mm, thickness: 2 mm (1 1/10”, thickness: 78.7mil)
     Female tag: Diameter 28 mm, thickness: thick 14.5mm, thin 6.15mm (1 1/10”, thickness:               57/100” 6/25”)

Pink:
1. Male tag: Diameter 32 mm, thickness: 1.35mm(1 1/4” thickness: 53 mil)
2. Female tag: Diameter 21 mm, thickness: 2.85mm (41/50” thickness: 112 mil)

RFID system for ear tags (2 categories):
LF: 125 KHz or 134.2 KHz; UHF: 860-960 MHz

Frequently-used chips for ear tag are:
A. LF (125 KHz or 134.2 KHz)
1. EM4200 (Memory size: 128 bits)
2. ATA5577 (Memory size: 363 bits)
3. Hitags256 (Memory size: 256 bits)
4. TK4100 (Memory size:64 bits)

B. UHF: (860-960 MHz)
Frequently-used chips for ear tag are:
1. Higgs 3 (Memory size: 512 bits)

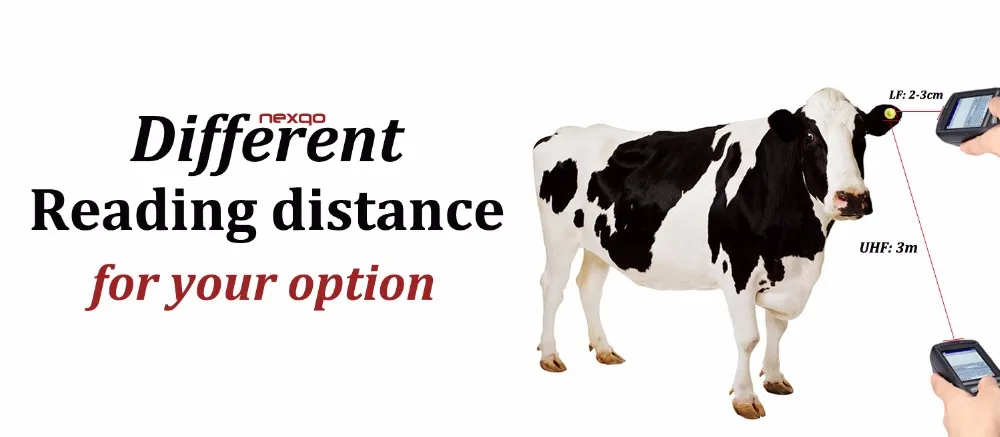

Reading distance:
LF ear tag: Up to 2-3 cm (depend on the size of the tag)
UHF ear tag: Up to 3 m (antenna and reading system dependent)

1. Ear tag can be written some data in it base on the memory size of the chip.
2. Nail the ear tag into animal’s ear with Universal total Tagger or Ultra Retract-O-Matic.
3. RFID reader can detect the ear tags and help to transmit information to the computer for          animal management.

Available Crafts:

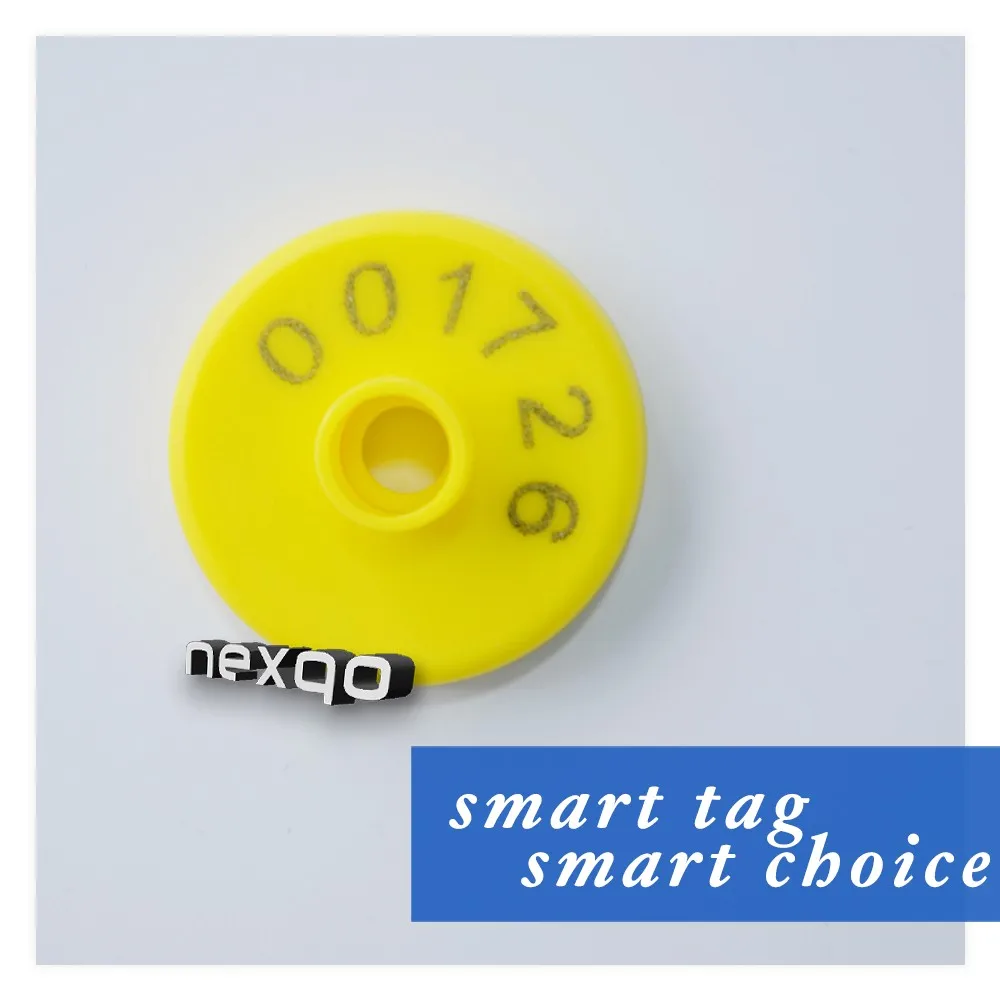

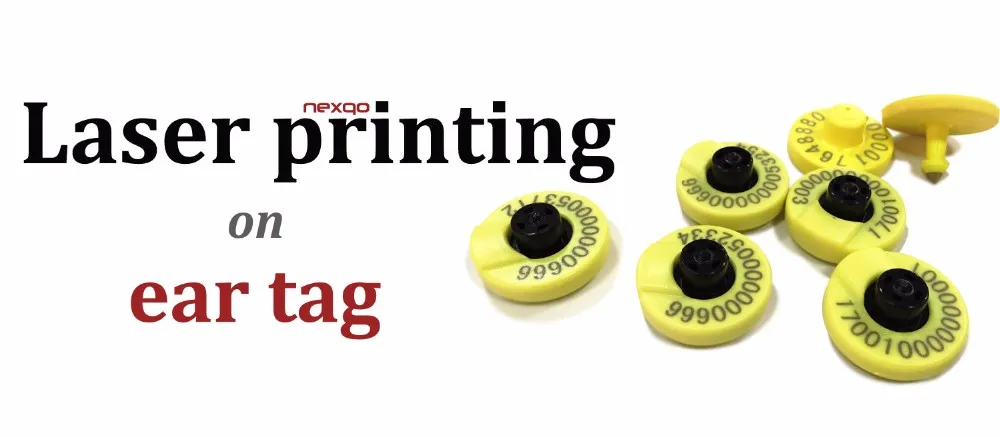

Last 8 ID Digit Laser Marked Number.

Physical/Environment:
With tamper proof design and polyurethane material, our ear tag can work in -10℃ to 60 ℃, resist +/- 5KV peak.

And it could be worked for 3-5 years.

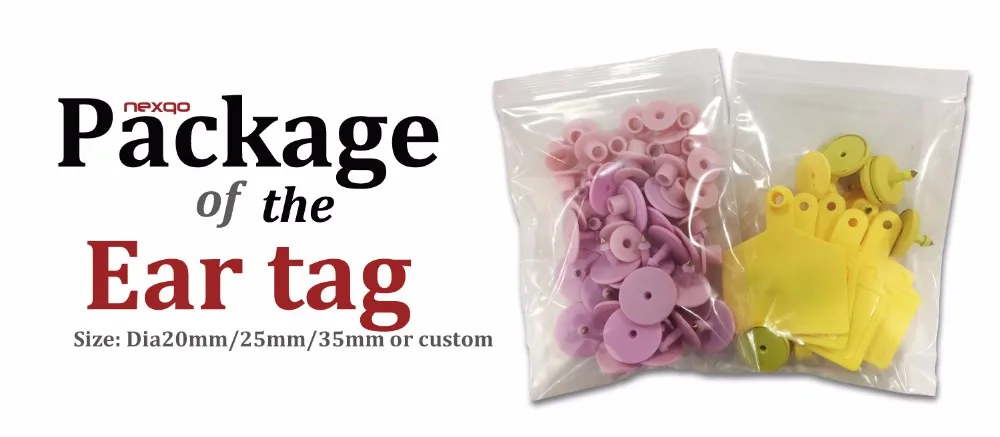

To make sure cards can be delivered without any damage, Nexqo uses top standard packaging. All bags, Paper boxes and cartons are made of high-quality material.

Usually, the ear tag is packed into bag and box.
