DPP 110 Mini Semi Automatic Alu Alu Pill Blister Packing Machine Small Manual Capsule Blister Pack Sealing Machine
- Category: Blister Packaging Machines >>>
- Supplier: ZHEJIANG CAPSULCN IMP&EXP CO. LTD
Share on (60809915735):
Product Overview
Description
Products Description
Model | DPP-140 |
Blanking frequency | PVC-AL: 10-40 times/min AL-AL: 10-30 times/min |
Adjustable scope of feed travel | 30-120mm(adjustable) |
The max forming area and depth | 150mm×120mm×26mm |
Wrapper: ALU | Length: 160mm, thickness: 0.02-0.035mm |
Wrapper: PVC | Length: 160mm, thickness: 0.25-0.5mm |
Wrapper: PTP | Length: 160mm, thickness: 0.02-0.035mm |
Wrapper:Dialysis paper | Length:160mm, specification:50-100 gram |
Power of forming heating | 2.4KW |
Main motor power | 1.5KW |
Capacity of air compressor | ≥0.2m3/min Pressure: 0.5～0.7MPa |
Weight | 960Kg |
DPP-140 is a flat-plate aluminum-plastic blister packaging machine which integrates many functions including PVC feeding, PVC heating, PVC forming, PTP feeding, sealing of PVC and PTP, batch number printing, indentation line making, etc. It is suitable for all kinds of capsules, tablets, sugar coated tablets, honey pills, injections, ampoules, etc. CapsulCN The products have the characteristics of long shelf life, good sealing performance, beautiful appearance, safety and hygiene, conforming to the GMP production standards.
Features:
1. It utilizes plate-type heating plate for heating. PVC sheets can be formed by positive pressure by heating to just about 105℃. It completes all actions of heat sealing, batch number printing, indentation line pressing, automatic conveying, sheet cutting off, automatic stop and alarm, etc.
2. It utilizes frequency conversion stepless speed regulation, with blanking frequency 10~55 times/min.
3. It adopts the screw rod drive device. The packaging size of various sheets can be adjusted on the guide rail of the machine base at will.
4. The pneumatic roller traction device is controlled by PLC, with simple structure and accurate operation. The traction stroke can be adjusted within the range of 10 to 500mm, which expands the application range of the machine.
5. The molds for positive gas forming, heat sealing and indentation are fixed by pressing plate, with reliable positioning and convenient replacement.
6. If it is equipped with a universal feeder, the filling rate can reach over 99.5%. A dust suction interface can be installed to clean away dust caused in the process of feeding tablets.
7. The machine base and the machine body are separable. The whole machine is small in size and it has advantages of light weight, compact structure, simple operation, convenient transportation and maintenance.
2. It utilizes frequency conversion stepless speed regulation, with blanking frequency 10~55 times/min.
3. It adopts the screw rod drive device. The packaging size of various sheets can be adjusted on the guide rail of the machine base at will.
4. The pneumatic roller traction device is controlled by PLC, with simple structure and accurate operation. The traction stroke can be adjusted within the range of 10 to 500mm, which expands the application range of the machine.
5. The molds for positive gas forming, heat sealing and indentation are fixed by pressing plate, with reliable positioning and convenient replacement.
6. If it is equipped with a universal feeder, the filling rate can reach over 99.5%. A dust suction interface can be installed to clean away dust caused in the process of feeding tablets.
7. The machine base and the machine body are separable. The whole machine is small in size and it has advantages of light weight, compact structure, simple operation, convenient transportation and maintenance.

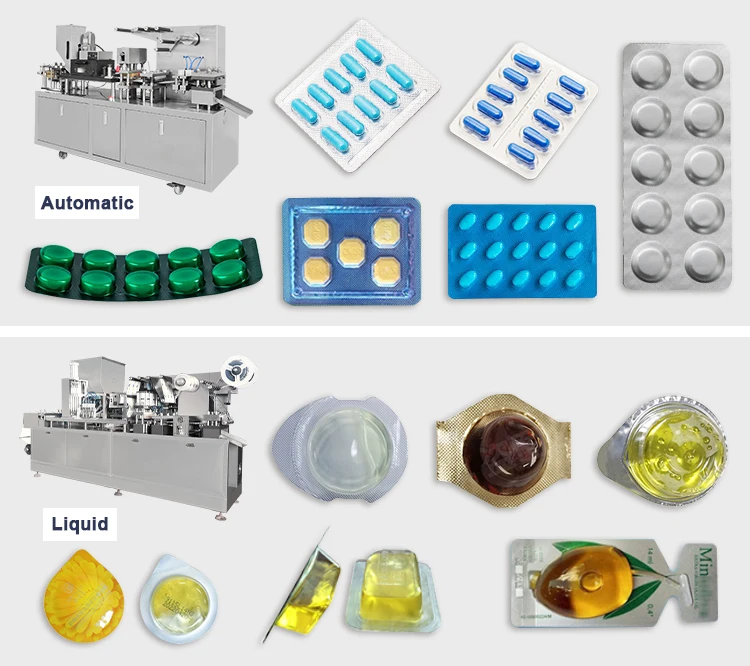

Main Application

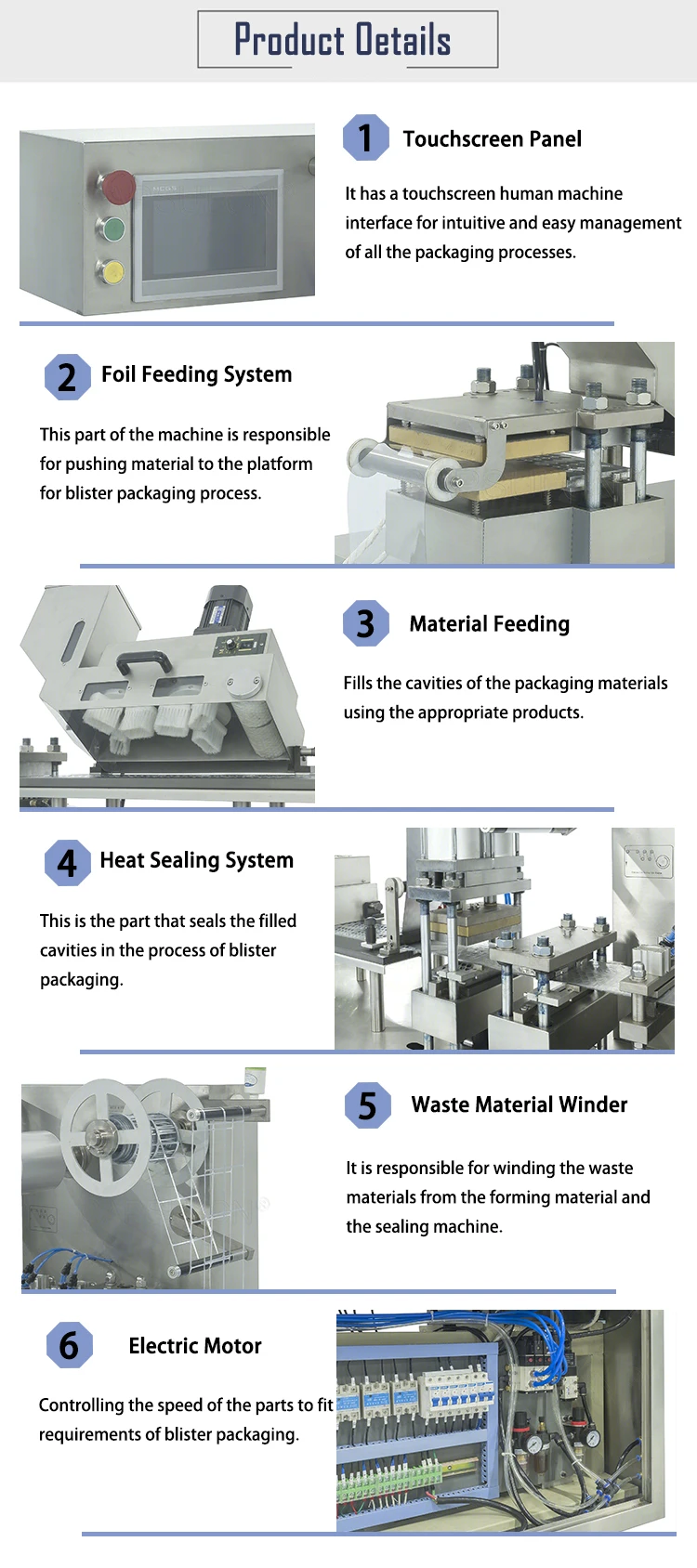

Details Images
Recommend Products
(Don't Worry! We have several Models. We can recommend you according to your requirement. Just Tell Us: Capacity, packing machine and Capsule Size.) Contact us>>
Company Profile
Wenzhou CapsulCN Machinery Co., Ltd is specialized in the research, production andrelevant service in the automatic packing machines of pharmaceutical, medical andfood industries.It is a member of National Equipment Association, High-tech Enterprise of Zhejiang Province, and the director unit of Wenzhou Private Management Economy Promotion Association.
In 2010, we had a new factory located in Wenzhou City, Zhejiang Province, with a covering area of more than 13,000 square meters. building area of 15,000 square meters, and workshops of 10 meters high. It greatly improved our production capacity.
Product packaging
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui 'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Alibaba Trade AssuranceService for all transactions to protect your money and assure our service for you.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries.
Please find the contact information on this page, you can contact us by Email, WeChat, skype, WhatsApp, QQ, Facebook, phone, etc.
A: Our factory is located In Rui 'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Alibaba Trade AssuranceService for all transactions to protect your money and assure our service for you.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q:How to contact you?
A: Please leave messages and click "send" to send us inquiries.
Please find the contact information on this page, you can contact us by Email, WeChat, skype, WhatsApp, QQ, Facebook, phone, etc.
