Heat treatment Fiberglass Sleeving
- Category: >>>
- Supplier: Hitex Insulation (ningbo) Co. Ltd.
Share on (60809953628):
Product Overview
Description
Heat-treatment Fiberglass Sleeving
Product Description
Description:
Hitex heat-treatment sleeving is the non-alkali fiberglass braided sleeving with wax refined out and weaves set. Then impregnated with silicone. It possesses the characteristic of high tensile strength and Heat- resistance. It can be used as an excellent insulating material for the wiring of electrical machinery and appliances and domestic electrical appliances.
Appearance:
The sleeving is round and smooth with a white surface.
Length:
Usually as1000(+20 -10)mm, Continuous length may be negotiated.
Application
l This heat treated fiberglass sleeving is often used where air gap electrical insulation is sufficient.
l May be used as an easy and affordable alternative to heat shrink tubing.
l Protects wire and cable components used in challenging or hazardous environments.
l High temperature applications.
l Fits over wire and cable without heat-shrinking.

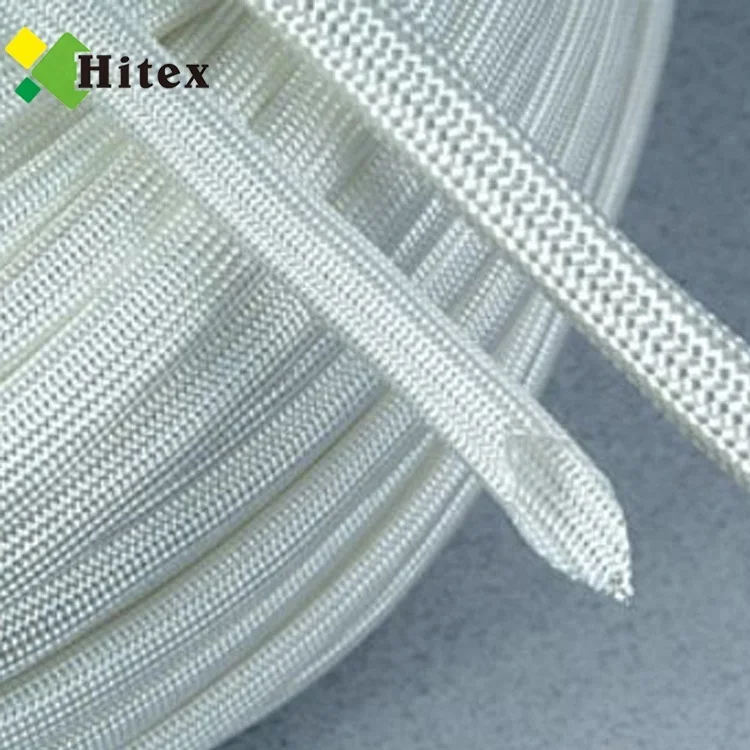

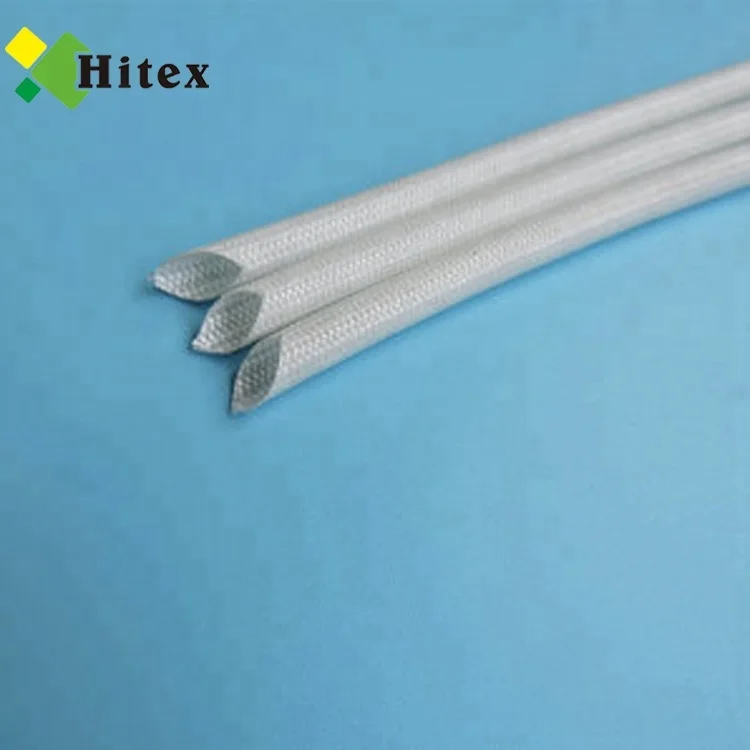

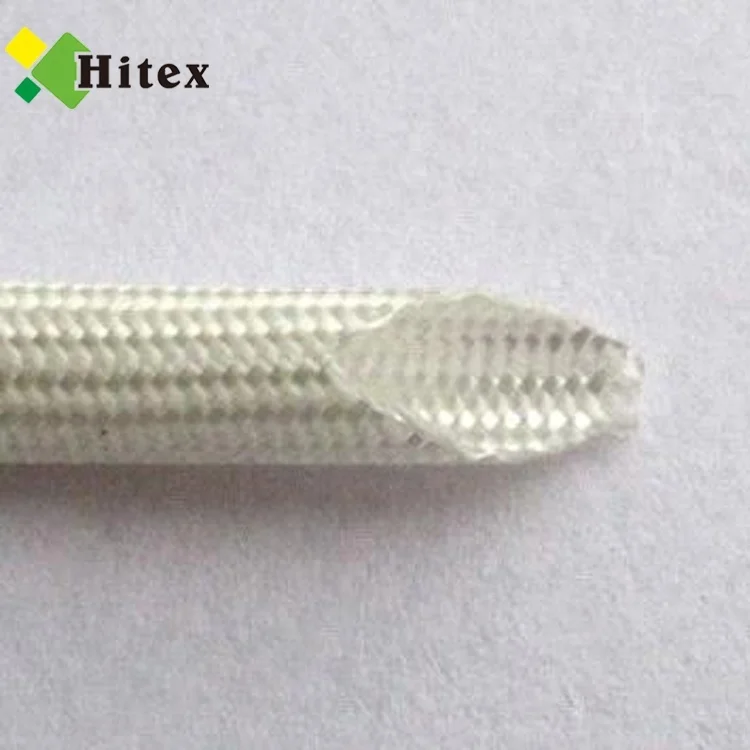

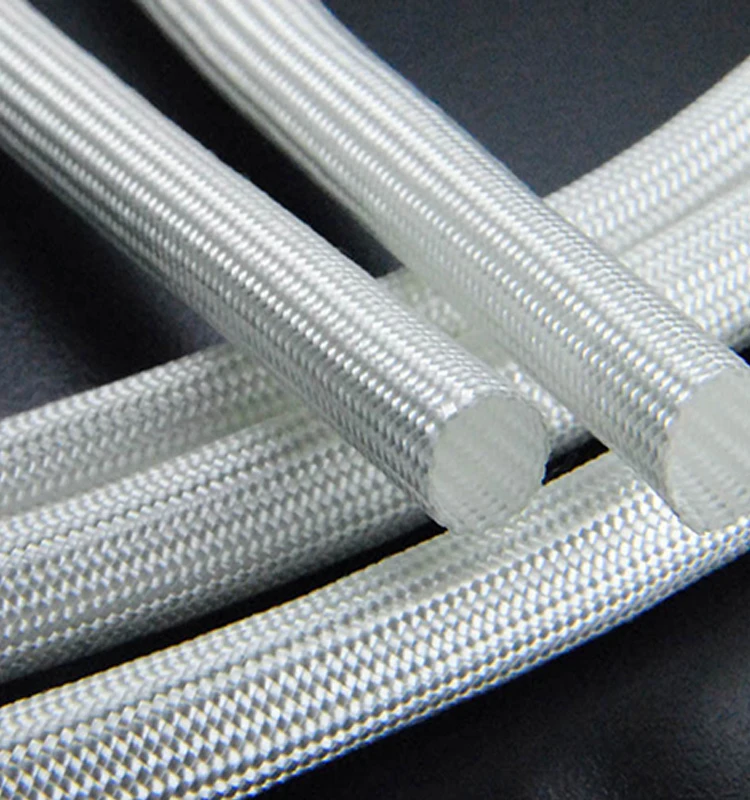

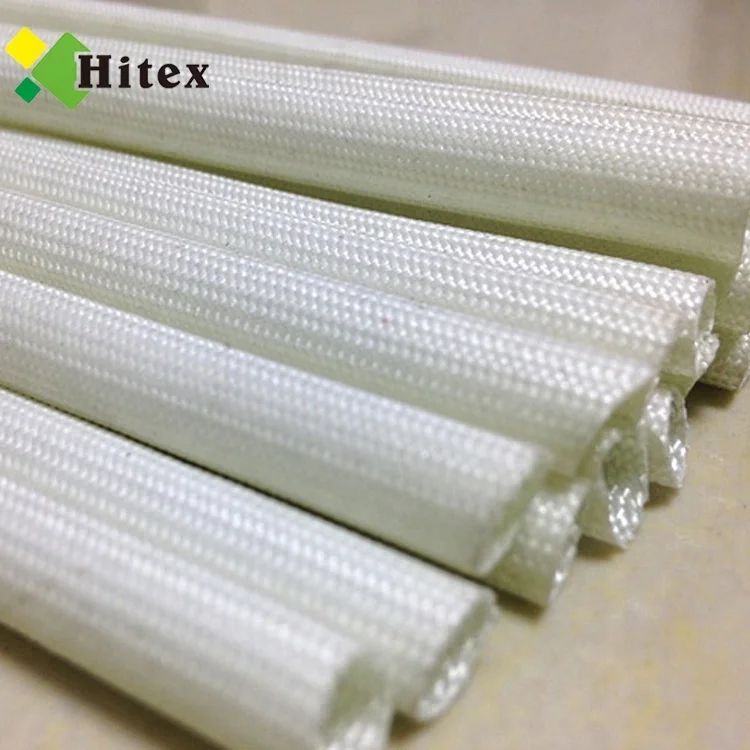

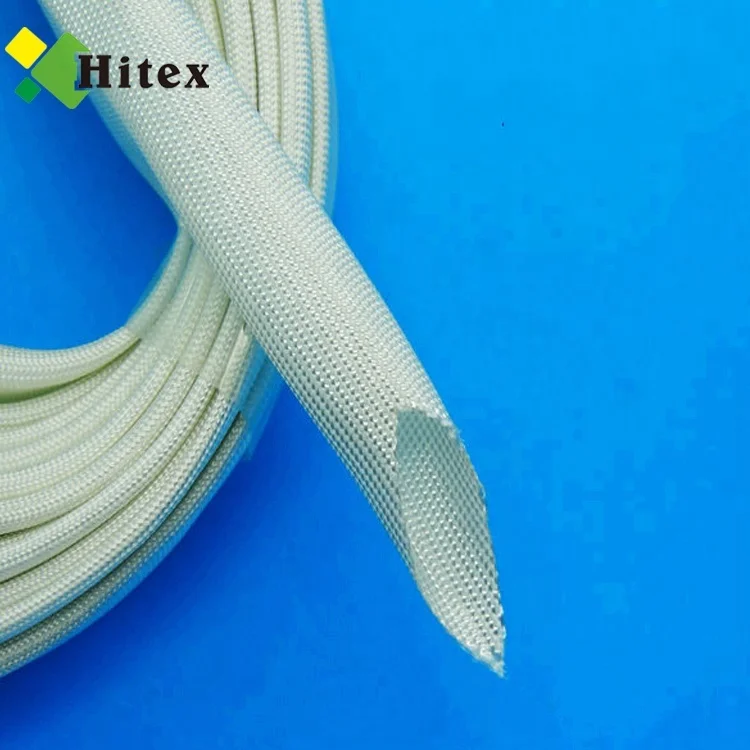

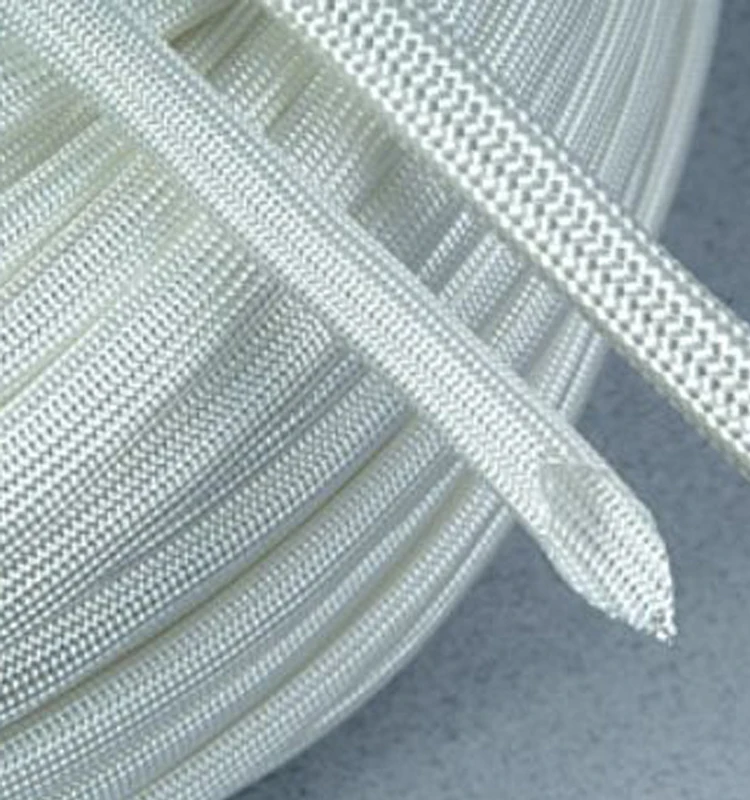

Detailed Images
Specification
| Inside Diameter And Wall Thickness(mm) | ||
| Nominal Size | Tolerance | Wall Thickness |
| 1.0; 1.5; 2.0; 2.5; 3.5; 4.0 | +0.30 -0.20 | ≥0.25 |
| 5.0; 6.0; 7.0; 8.0; 9.0; 10.0 | +0.50 -0.30 | ≥0.30 |
| 12.0; 14.0; 16.0; 18.0; 20.0 | +0.80 -0.50 | ≥0.45 |
About US
Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Packaging & Shipping
FAQ
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao
.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side
Q3.Mode of transportation?
By sea or by air
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.Do you have other production?
Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Q7.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A
