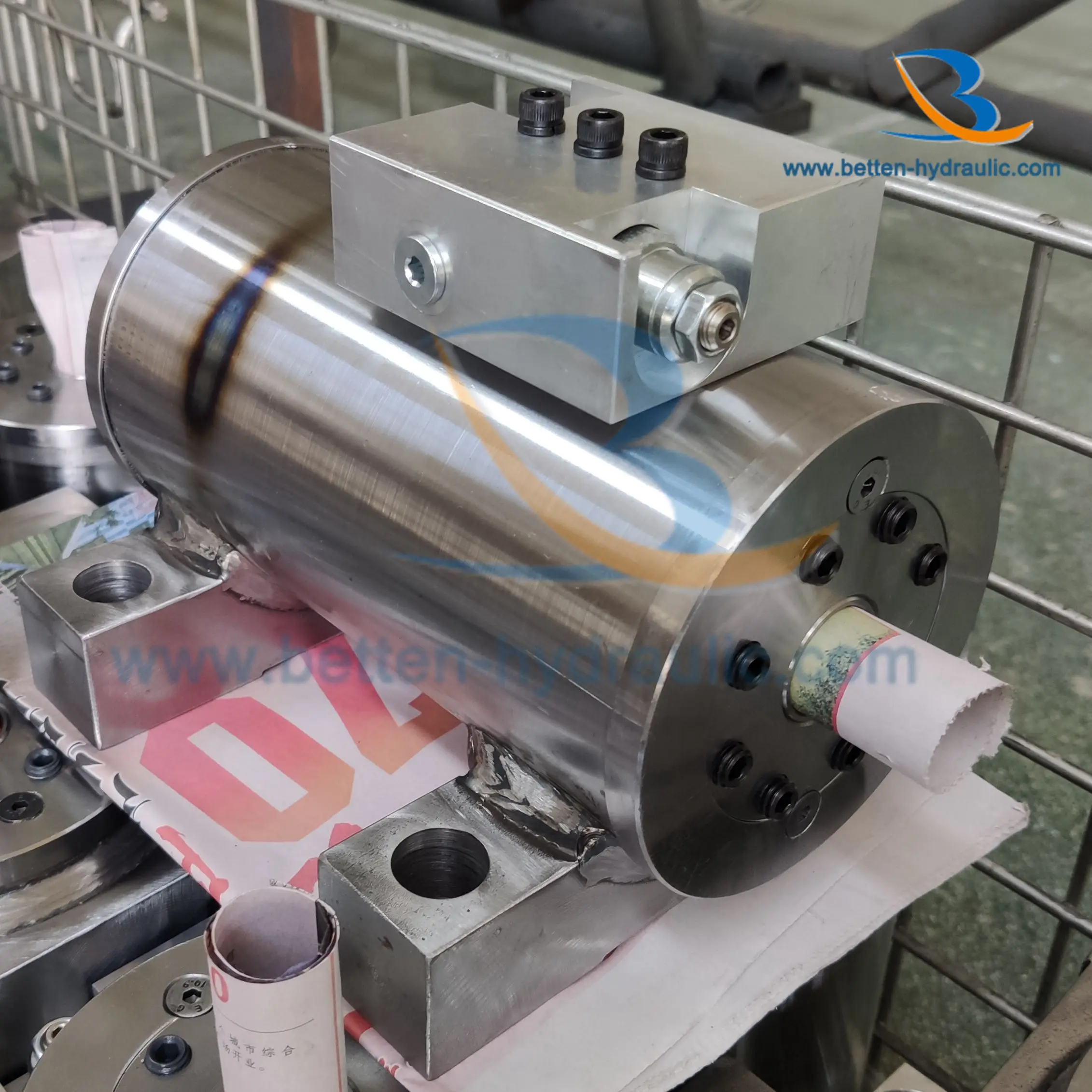

hydraulic rotary actuator from China
- Category: >>>
- Supplier: Wuxi Boli Hydraulic & Pneumatic Technology Co. Ltd.
Share on (60810035523):
Product Overview
Description
\t\t\t\t\t\t\t\t\tproduct details \t\t\t\t\t\t\t
Product Description

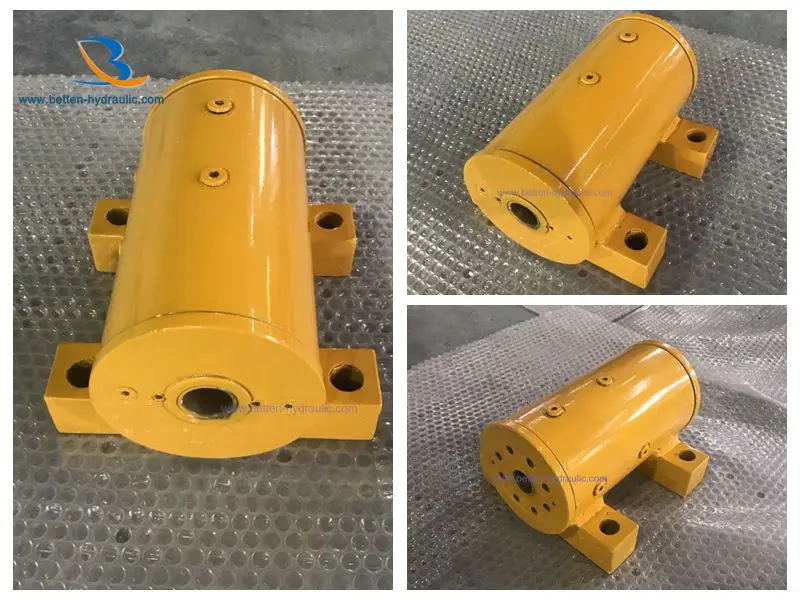

Standard Rotary Hydraulic Cylinder
Each Betten Hydraulic Ram has suffered rigorous process and inspection to promise the good quality for our customer.
Design Services → Product Services →Sample Procedure →Research & Development →Quality Control →Should your products require testing and certification to comply with international standards, we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.

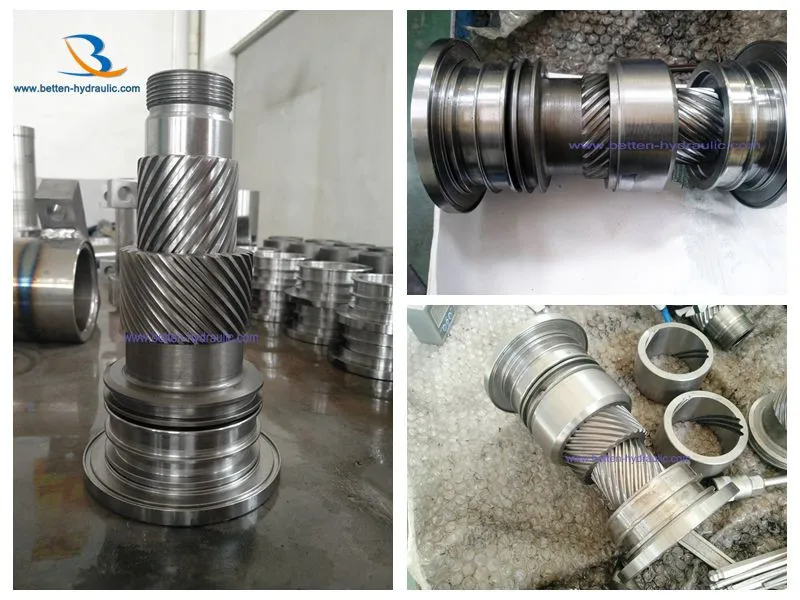

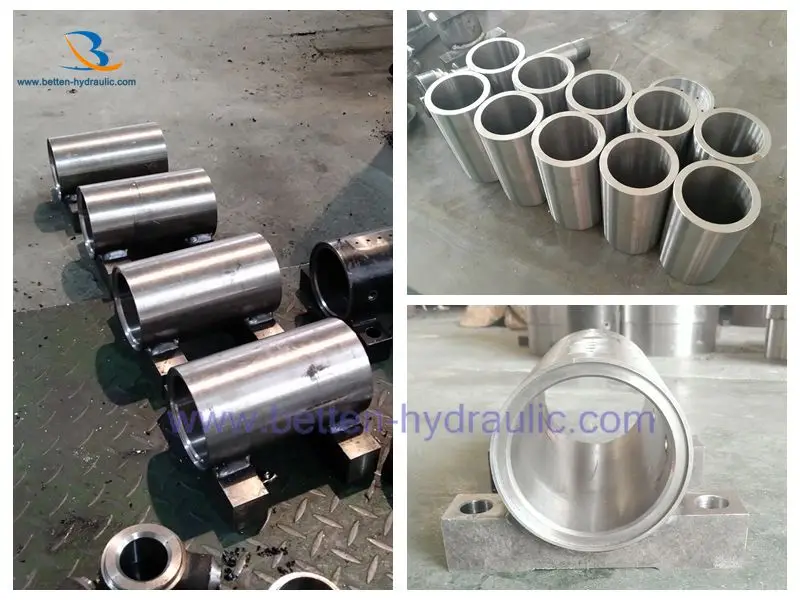

Betten Hydraulic rotary actuators' innovative, sliding-spline operation technology converts linear piston motion to powerful shaft rotation.Each actuator is composed of a housing and two moving parts- the central shaft and piston.The spline teeth on the shaft engage matching teeth on the piston's inside diameter.A second set of splines on the piston's outside diameter mesh with the gear on the housing.

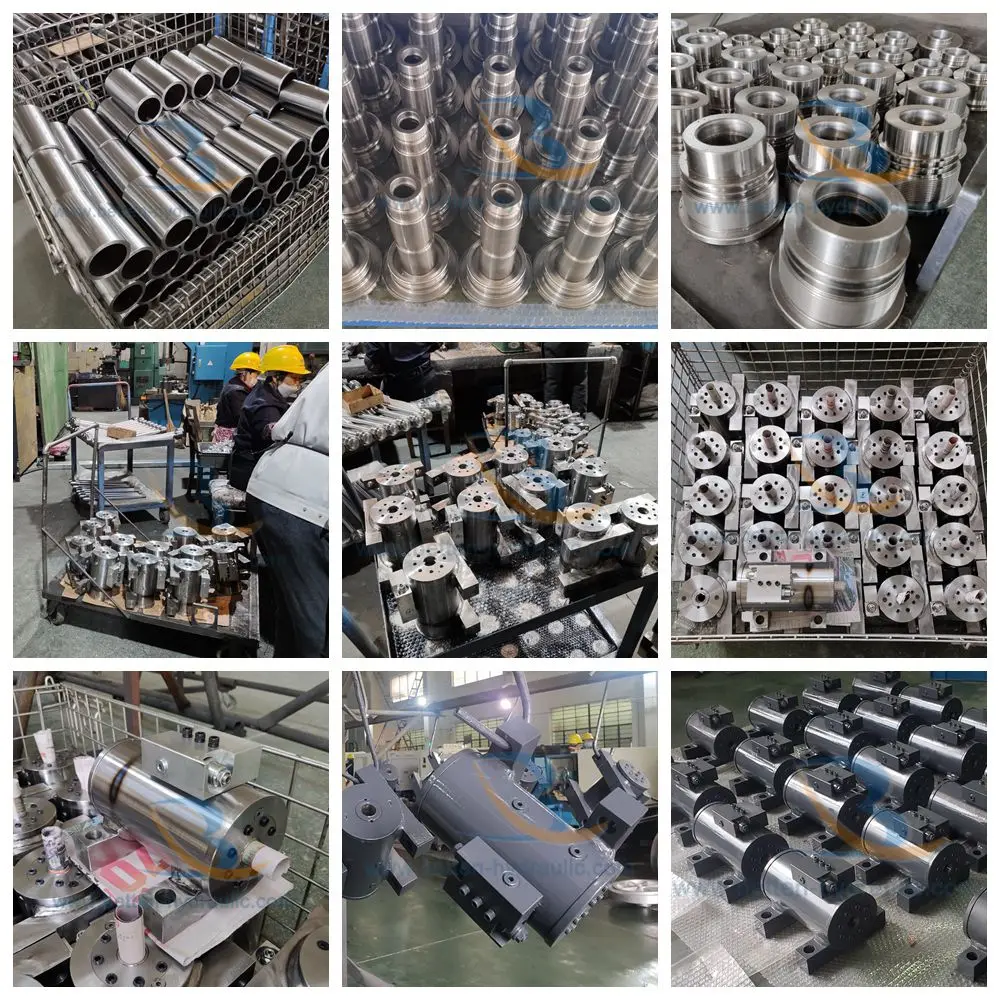

Our factory
Betten Hydraulic-Built Cylinders to Fit Your Needs
As an experienced Hydraulic Cylinder Manufacturer, Betten Machinery is built to develop the overseas business of Boli Hydraulic & Pneumatic Technology Co., Ltd which is known as a professional manufacturer of Oil Cylinder,Pneumatic Cylinder, Hydraulic System and Related Spare Partsin East China.
with over 30 sets of manufacturing and testing machines including machining center, numerical control machine, argon welding machine, plasma cutter etc. Betten has gained the certification of ISO 9001:2008 and certification of Product Quality Supervision and Inspection Center of Wuxi City. Meanwhile, Betten also got customers' satisfaction for reasonable price, timely delivery and good after-sale service.
With the fast development in the past 20 years, we have gained much experience and technology in making various types of Tractor hydraulic cylinder with our expert team. Our products are widely used in equipment such as toyota machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco,BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.
Technical Data
BMT-10 series Hydraulic Rotary Actuator
BMT-20 series Hydraulic Rotary Actuator
BMT-30 series Hydraulic Rotary Actuator
BMT-T series Hydraulic Rotary Actuator
BMT-10 SERIESE | Rotation:180°-360° |
Max Drive Torque:1,700-25,000 in Ib | |
Max Holding Torque: 5,600-83,000 in Ib | |
Max Straddle Moment : 5,000-100,000 in Ib | |
Max Cantilever Moment:5,000-100,000 in Ib | |
Mounting: Flange | |
BMT-20 SERIESE | Rotation:180° |
Max Drive Torque:4,500-39,000 in Ib | |
Max Holding Torque: 11,800-93,200 in Ib | |
Max Straddle Moment : 22,500-280,000 in Ib | |
Max Cantilever Moment:12,000-140,000 in Ib | |
Mounting: Foot | |
BMT-30 SERIESE | Rotation:180°-360° |
Max Drive Torque:17,000-380,000 in Ib | |
Max Holding Torque: 43,600-936,000 in Ib | |
Max Straddle Moment : 119,000-1,505,000 in Ib | |
Max Cantilever Moment:45,900-570,000 in Ib | |
Mounting: Flange or Foot | |
BMT-T SERIESE | Rotation:200°-220° |
Max Drive Torque:25,000-60,000 in Ib | |
Max Holding Torque: 54,200-127,000 in Ib | |
Max Straddle Moment : 37,500-90,000 in Ib | |
Mounting: Foot |
Pcking & Delivery
FAQ
1. How to customize hydraulic cylinders?
Please provide the details below:
♣Cylinder bore
♣Rod diameter
♣Stroke
♣mounting style
♣working pressure and test pressure
♣Seals brand
♣special modifications.
♣ports
2. What is your cylinder application?
♣ Construction Machinery
♣ Metallurgy Machinery
♣ Mining machinery
♣ Hydraulic power project
♣ Hydraulic Press Machinery
♣ Marine Industry
Related products
L10-1.7 3.0 5.5 9.5 15 25
90~360 degree
L20-4.5 8.2 15 25 39
90~360 degree
L30-17 25 42 65 95 125 165 215 380
T20-25 45 60
90~360 degree
Custom hydraulic rotary cylinder
We will custom the mounting type on your requirements based on standard rotary actuator
