Стальная конструкция 90 градусов и 180 градусов, гидравлическая токарная машина для H образной машины
- Category: Weld Holders >>>
- Supplier: Wincoo Engineering Co. Ltd.
Share on (60810040878):
Product Overview
Description
Product Description

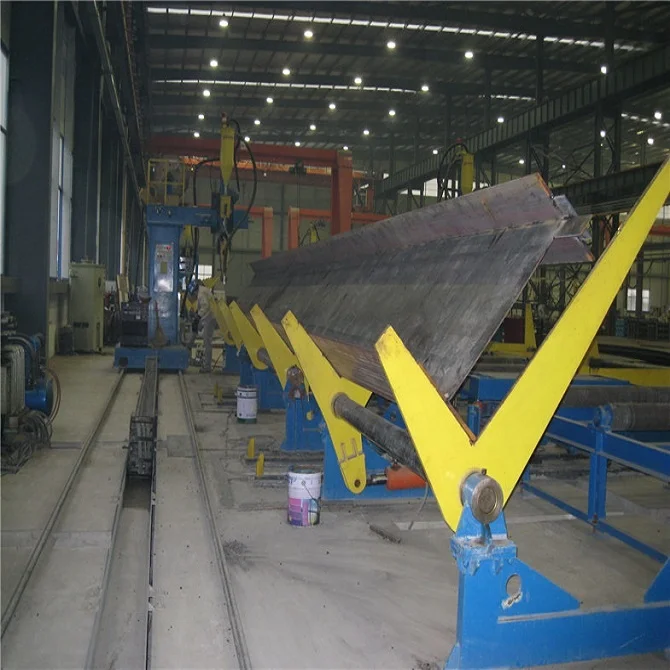

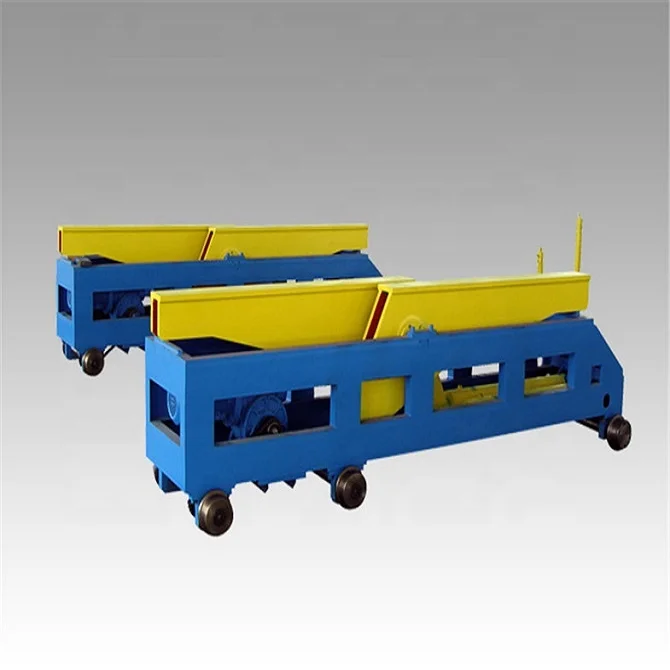

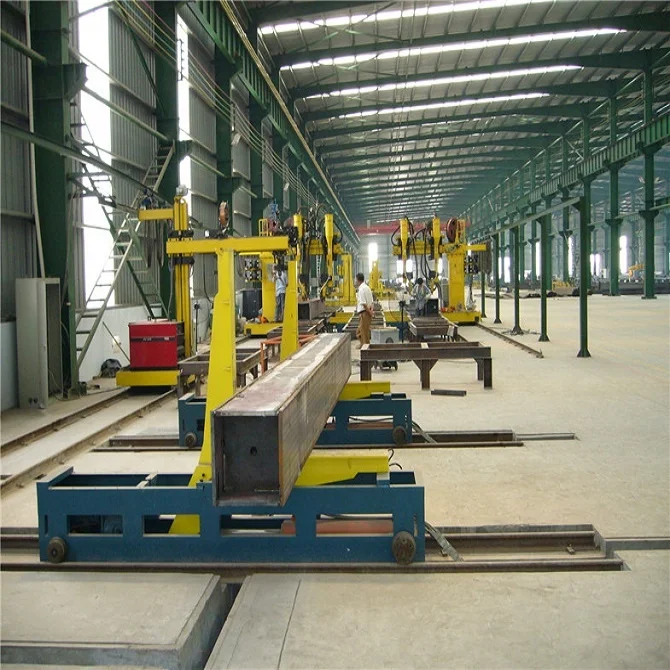

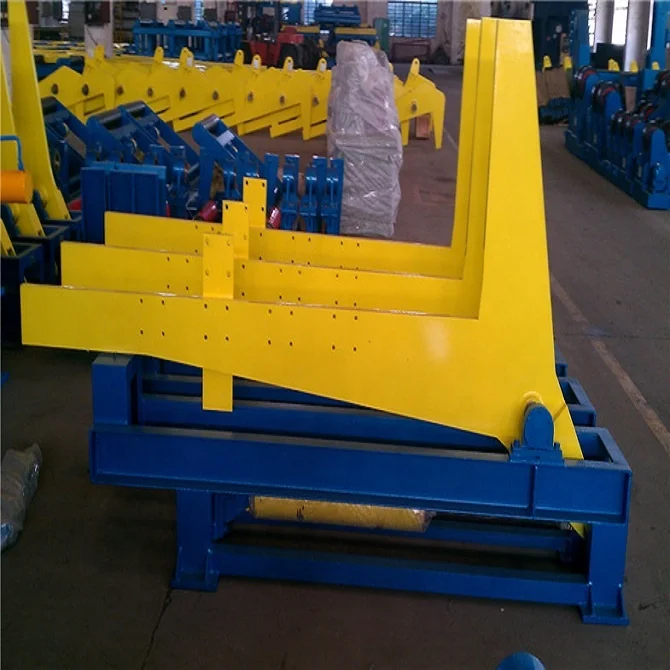

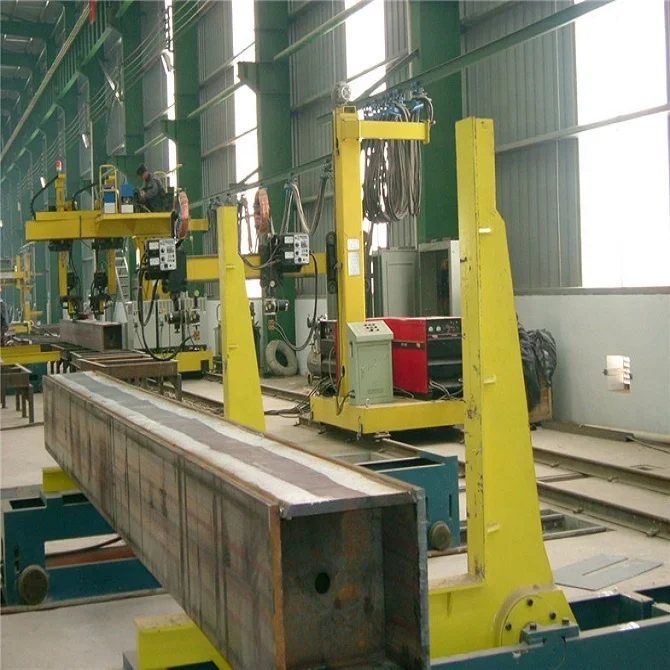

The equipment mainly used for overturn 90° or 180° of work piece during the process of H-beam production. It is the special equipment for overturning and movable, which is widely used for welding overturning, straightening overturning and manual welding.
It also can be used in other applications. We also welcome special requirements.
It also can be used in other applications. We also welcome special requirements.
Size Information
Main parameter
Model | FZ180 | |
Applicable work piece weight (t) | ≤20t | |
Travel motor power (kW) | 1.5 | |
Travel speed (m/min) | 5 | |
Overturning oil cylinder diameter (mm) | φ150 | |
Max pressure of hydraulic system (MPa) | 16 | |
Rail center distance (mm) | 700 or upon actual conditions | |
Above are our standard models and parameters, and it can be designed and manufactured on request. | ||
Model | FZ90 | |
Suitable H-beam flange width (mm) | 200-800 | |
Suitable H-beam web height (mm) | 200-2000mm | |
Suitable work-piece weight (t) | ≤20T | |
Overturning oil cylinder diameter (mm) | φ125 | |
Max pressure of hydraulic system (MPa) | 14 | |
Above are our standard models and parameters, and it can be designed and manufactured on request. | ||
Model | FZ60 | |
Tilting angle (O) | 0-60O | |
Overturning work piece weight (t) | 20t/group | |
Overturning oil cylinder diameter (mm) | φ125 | |
Max pressure of hydraulic system (MPa) | 16 | |
Above are our standard models and parameters, and it can be designed and manufactured on request. | ||
Related Products
Packing&Shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
After Sales Service
After sale service
Professional technical support and product quality assurance.
