Golden manufacturer barmac vsi sand vertical shaft impact crusher machine for sale
- Category: Sand Making Machinery >>>
- Supplier: Henan,Shibo,Mechanical,Engineering,Co.,Ltd.
Share on:
Product Overview
Description

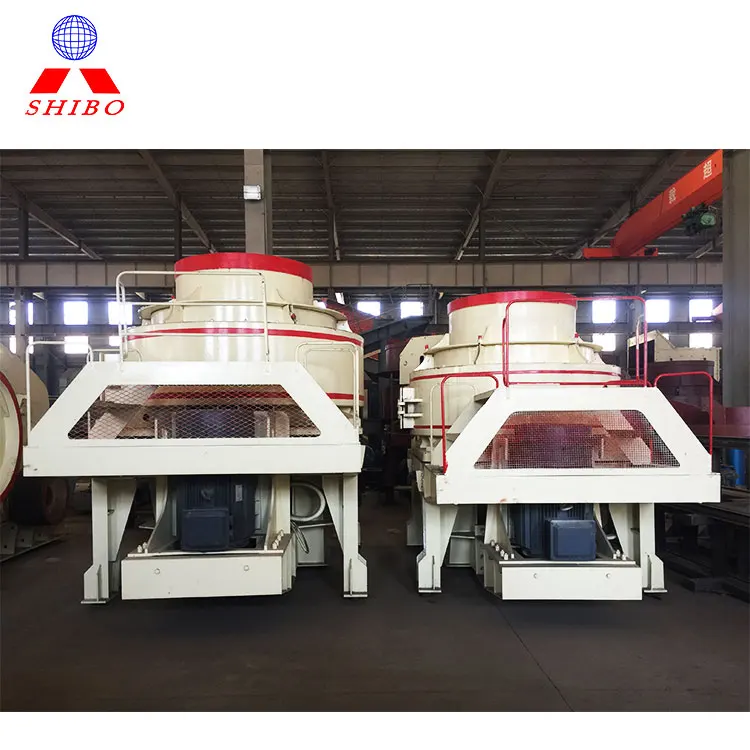

Golden manufacturer barmac vsi sand vertical shaft impact crusher machine
Product Description
| VSI-IV sand making machine is the latest product of our company which absorbed the advanced technology from German. It can provide the best material for the highway,railway,construction project and concrete mixing station etc. Lower cost and good performance decide that this kind of equipment is a preferred choice for artificial sand making or stone reshaping. |
 |
Applicable Materials
| 1. Pebble, Rock( the limestone, granite, basalt, aluminum, andesite, etc.), Ore tailings, Attle artificial sand production. 2. Building aggregate, highway, cushion, asphalt concrete and cement aggregate production. 3. Sand making production and stone reshaping production in water conservancy and hydropower engineering field,highway,railway,bridge,passenger line,airport runway,municipal engineering and high-rise buildings. 4. The grinding anterior finely process of mining areas. Building materials, mining, metallurgy, hemical industry, cement, abrasive, refractory material, etc. 5. The crush of high abrasive materials resistance and secondary disassembly, desulphuration of thermal power and metallurgy, slag and construction waste. 6. The production of glass,quartz sand and other high purity material. |
 |
 |
 |
1. Center Feeding:
Raw material falls down into feed hopper, then enters impellor through central entrance hole. It is accelerated in high-speed impellor, then is thrown out at speed of 60-75m/s. When hitting impact plate, it is crushed. Final products come downwards though outlet.
2. Ring Feeding:
Raw material falls down into feed hopper, then through ring, it is devided into two parts by material-dividing plate. One enters into impellor through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by impellor at speed of 60-75m/s, hits material coming down from outside of material-dividing plate. In this way, material is crushed.
Data Parameters
Model | VSI-7611 | VSI-8518 | VSI-9526 | VSI-1140 | VSI-1145 | ||
Capacity (t/h) | Center and Ring feeding | 120-180 | 200-260 | 300-380 | 450-520 | 490-600 | |
Center feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-310 | ||
Max Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 | <50 | |
Hard material | <30 | <35 | <40 | <45 | <45 | ||
Rotation speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1180-1280 | ||
Power for double motor (kW) | 110-150 | 180-220 | 264-320 | 400-440 | 440-520 | ||
Overall Dimension L×W×H (mm) | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | 5100×2790×3320 | ||
Weight (t) | 7.5 | 10.5 | 14 | 16 | 27.5 | ||
Power Source | 380v 50Hz | ||||||
Vibrating Sensor | Inspect scope: 0.1-20mm/s adjusted continuously | ||||||
Lubrication hydraulic pressure station | Power for double oil pump | 2×0.31kW | |||||
Safety | To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter. | ||||||
Power for oil box heater | 2 kW | ||||||
Production Line
Packing & Shipping
Our Service
• Pre-sales
- Help customers to choose product.
- Freely send engineers to the working field to plan the installation site and design the best technical production process.
- Design the special product according to the contract.
• On-sales
- Inspect every part of machines before production.
- Deliver goods on schedule according to the contract.
• After-sales
- Send the engineers to guide the installation.
- Install and adjust the equipment for customers.
- Train the operator for customers.
- We also provide the technical service for our customers after the installation.
- If there is any problem during the application, our after-sale engineer shall ensure to offer clear solutions within 24 hours or arrive at the working site within 48 hours ASAP.
Company Profile
Henan Shibo Machinery Co.,Ltd. is committed to designing, producing grinding mills, crushers,conveyors, feeding machines, drying and calcinating as well as beneficiation equipments and etc, which are widely applied in electricity, metallurgy, mine and quarry, wharf, granary, chemical industry.
Our products have been spreaded all over China, and also exported to European,American, Asian, African countries and enjoyed great popularity among our customers.
