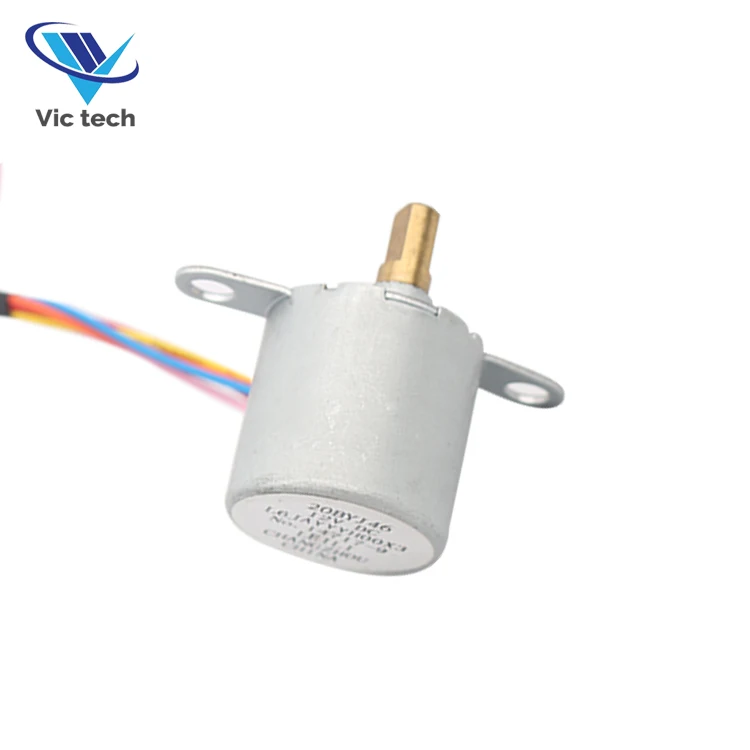

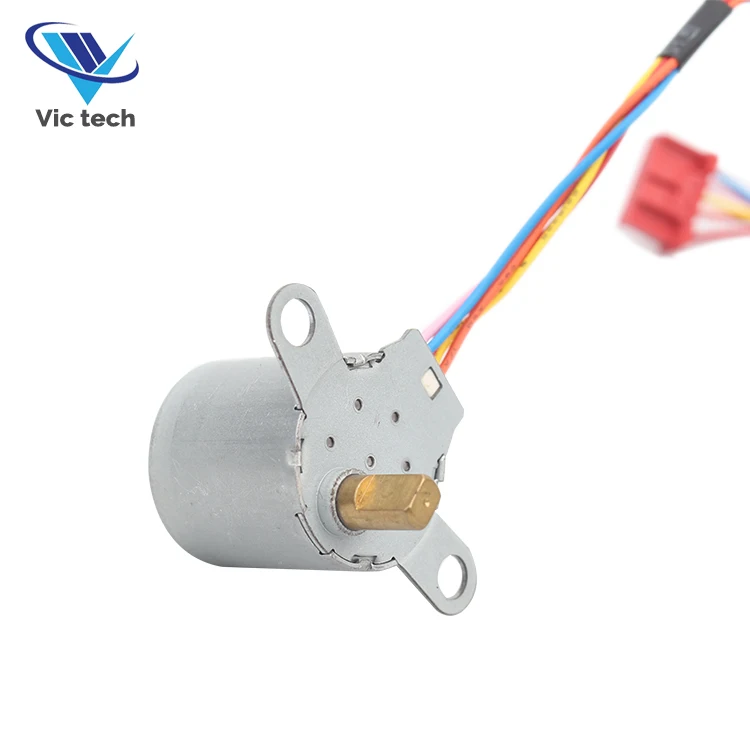

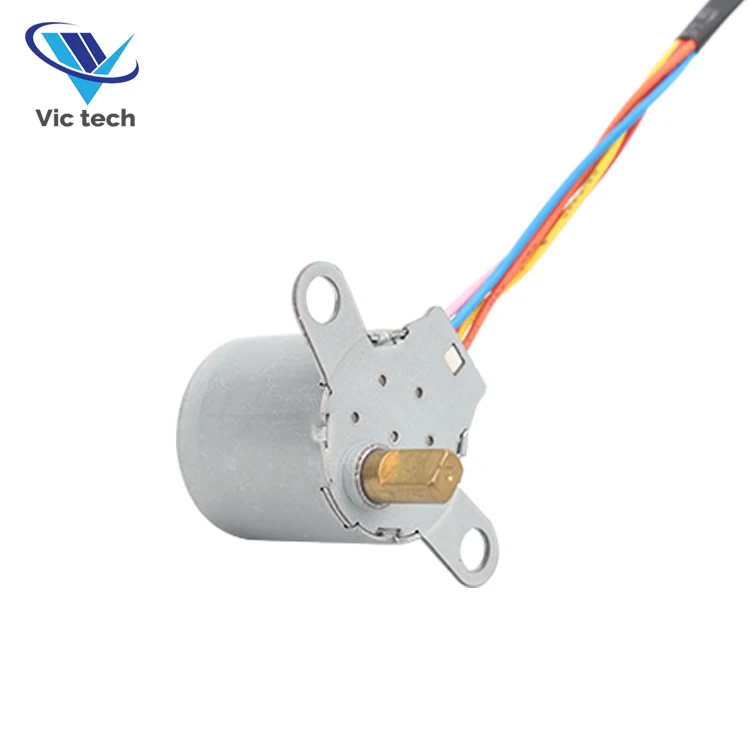

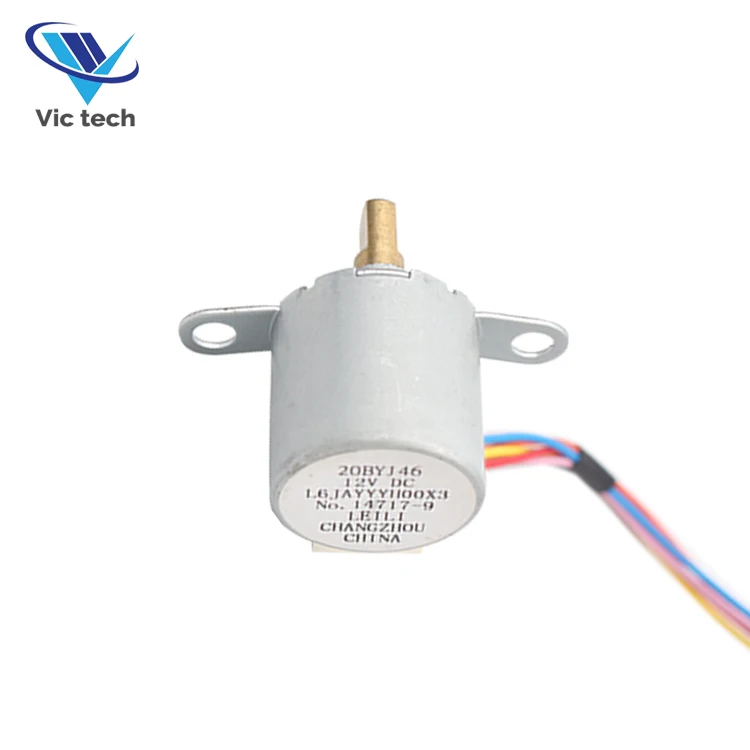

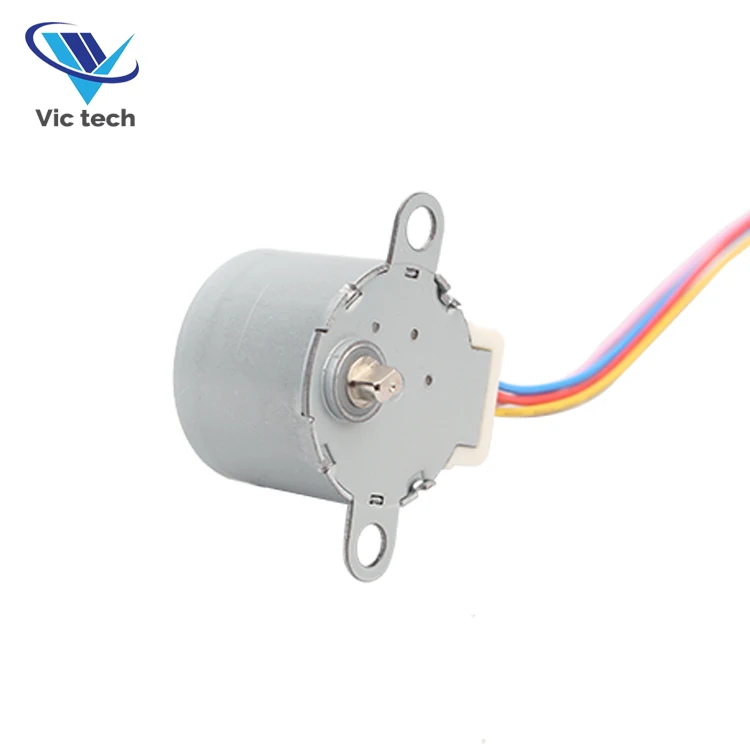

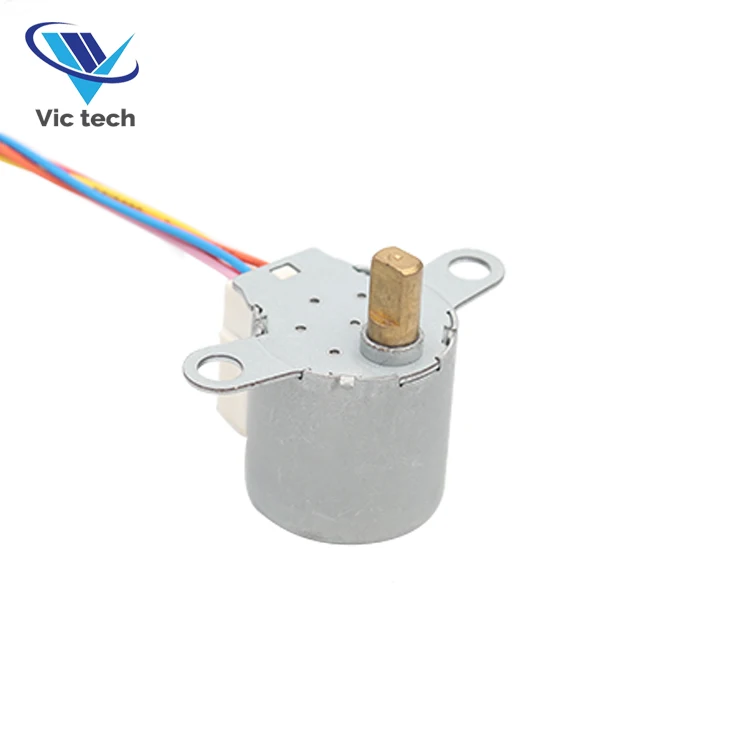

High torque 20BYJ46 gearbox stepper motor 5V 12VDC mini gear motor with monitoring system, Ratio1/85 PM stepper motor

Product Overview

Description

20BYJ46 with Chinese wholesale supply low noise 12v permanent magnet  stepping motor

Widely used in robot,lock. Auto shutter, USB fan,Slot machine,Money detector, Coin refund devices,Currency

Count machine, Towel dispensers,adjusment mechanism, limit switch



Suitable to small diameter, low noise and big toque application



We can provide samples for your test.

Rotating speed is constant and can be made as you required.

Ratio: 1/16,1/25,1/64



MOTOR
PRODUCT NAME	20BYJ46 with Chinese wholesale supply low noise 12v permanent magnet  stepping motor
MODEL	20BYJ46
RATIO	1/85
STARTING FREQUENCY	500 PPS min. (AT 12V DC)
RESPONCE FREQUENCY	900 PPS min. (AT 12V DC)
DETENT TORQUE	21.6mN.m
RESISTENCE	200MΩ±7%/phase
INSULATION RESISTENCE	100MΩ DC 500v

High torque 20BYJ46 gearbox stepper motor 5V 12VDC mini gear motor with monitoring system, Ratio1/85 PM stepper motor

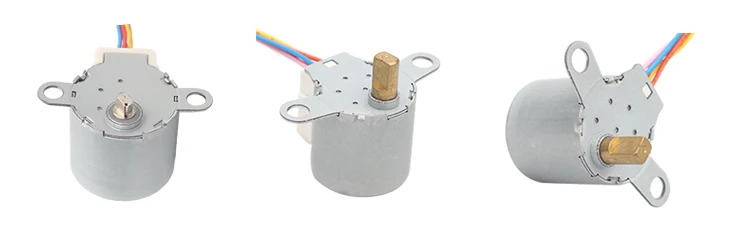

TYPE of FIXTURE COVER:

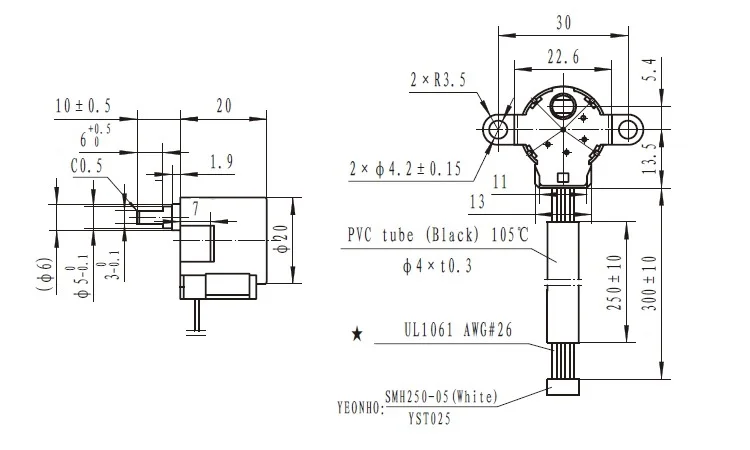

The regular models are shown in the figure, and the special sizes can be customized.



TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.

Changzhou Vic-Tech Motor Techology Ltd. is a professional  manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.

1. How about the quality of products in your company?

We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.

2. Are you a manufacturer?

Yes, we are a manufacturer, not agent. We have own factory, which is located changzhou, CHINA. We have a leading power in producing and exporting galvanized steel pipe etc. I promise that we are what you are looking for. and Welcome you to contact us !
