Fully automatic tissue packing machine for facial tissue,napkin and V fold hand towel

    Our company is found in year 2011 by a group of experienced tissue machinery sales and engineers.On the fist year,our annual sales volume is around 1.38 million USD.After seven years' development,with strong R & D team and excellent quality of machines,our annual sales volume has broken trhough 18 million USD.All the big companies of China are cooperated with us in our packing line and our machines has been sold to all over the world even in Southc Africa such as Brazil and Argentina.

    On 2017,since kinds of machiens become more and more and more denames from our cutomers.We move to a new plant cover area around 10000 sqm.Our company has around 130 employees and among them more than 70% are technicians and engineers.

    IMAKO is capable to provice you top quality machines and excellent after sales service.Welcome to send us inquiry and come to our facotry to discuss more details.

Product Description

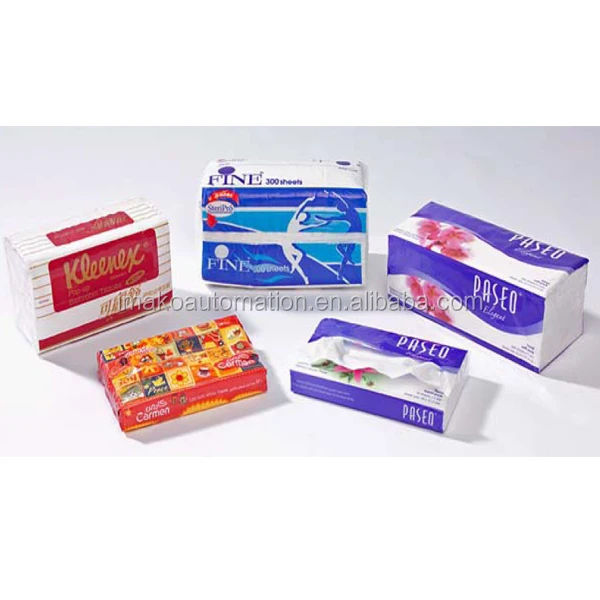

Fully automatic tissue packing machine for facial tissue,napkin and V fold hand towel

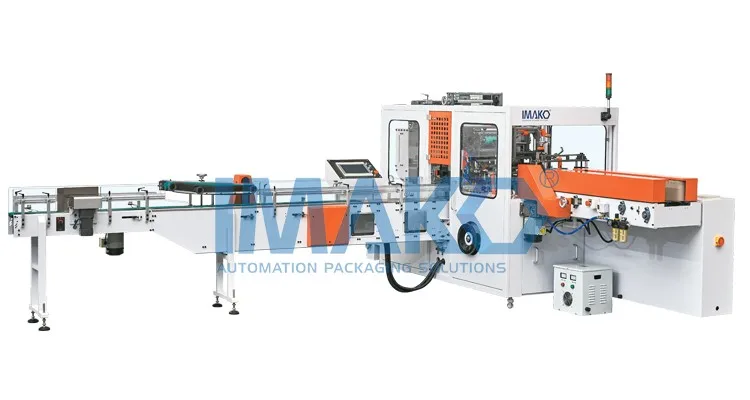

    TP-T180 high speed fully sutomatic single wrapping machine is suitable for N/M/V fold tissue,V fold hand towel and napkin.

    Adopts frequency drive control mode for paper arraying and feeding.Film hole punching,film pulling and position locating,film cutting,paper fill into bag,paper center sending etc. are controlled by servo motors.This machine hs the advantages of complete operation function,high use effciency,easy to operation,wide range of suitable specification,quick size change over,convenient maintenance,low cost for maintenance etc..

SPECIFICATIONS FOR FULLY AUTOMATIC TISSUE PACKING MACHINE

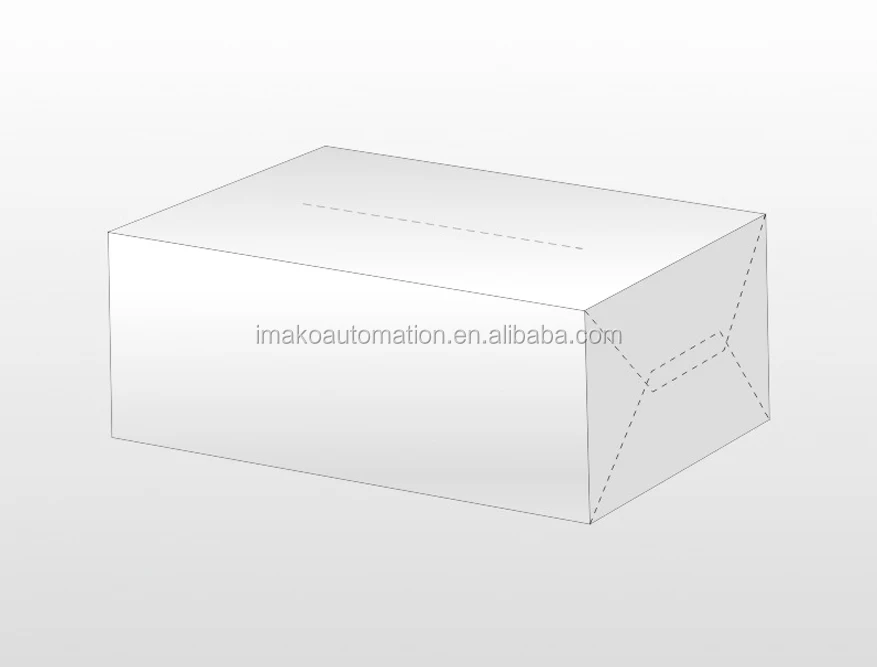

Scope of application	V fold facial tissue,Napkin,V fold hand towel	Packaging style	3D(Three dimensional)
Design speed	100 packs/min	Production speed	80-100 packs/min
Tissue length	95-210mm	Tissue width	90-115mm
Tissue height	40-100mm(can be customized)	Size changing moulds	3sets
Machine dimension	4650X3650X1700mm	Packaging material	CPP,PE,SPP,BOPP
Film thickness	0.035-0.05mm	Max.film diameter	≤500mm
Film core diameter	76mm(international standard)	Max.film width	340mm
Compressed air	0.6mpa	Power supply	380V,50HZ(can be customized)
Total power cunsumption	12kw	Electrical control system	Mitsubishi,Siemens
Pneumatic system	FESTO	Optional device	Ink printer

Detailed Images

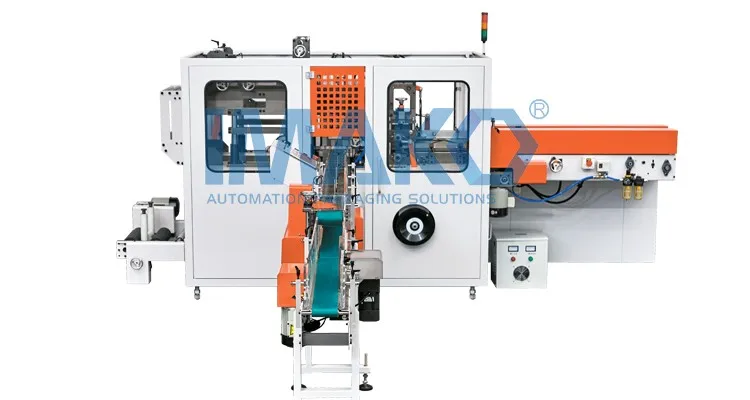

Machine Parts

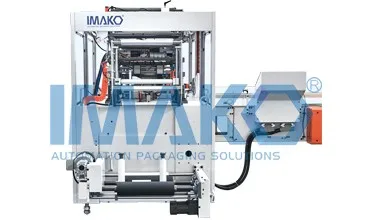

Machine Parts

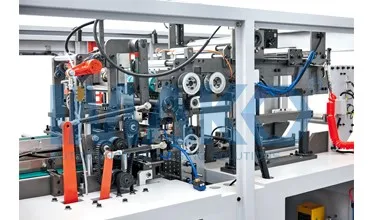

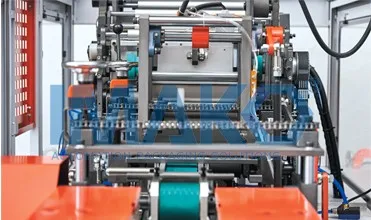

Machine Parts

Packing & Delivery

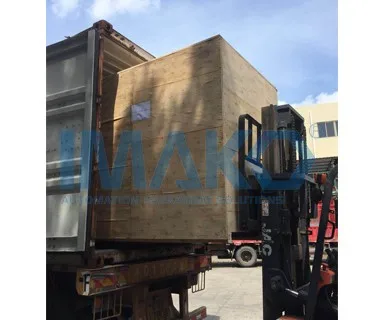

Wooden case package cater for ocean transportation

Wooden case package cater for ocean transportation

FAQ

1.Are you manufacturer or trading company?

We are manufacture for automatic tissue packing machine,welcome you to visit our factory at anytime.

2.Where is your factory located?

Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport,airport code SWA and high-speed railway station is Chaoshan Station.It's very convenient to come from Guangzhou city or Shenzhen city.

3.What is the warranty of your machines.

All of our machines have one year's warranty.

4.How long is the delivery time?

It depends on the machine models and your requirement on packing sizes.Usually is 45-70 days.
