semi automatic controlling bottles washing machine
- Category: Washer >>>
- Supplier: Zhangjiagang Technology Star Machinery Co. Ltd.
Share on (60810097759):
Product Overview
Description
Product Description:
This machine is semi-automatic machine which is suitablre for small capacity such like 100 barreled/h to360 barreled/h, it is
Controlled by manual, there is bottons on the machines.Easy operation and with high efficiency.
20L bottle rising machine
19L bottle washer
5 gallon water bottle washing machine
BS-1 5gallon washing and cap remove machine
This machine mainly for recycled bottles.

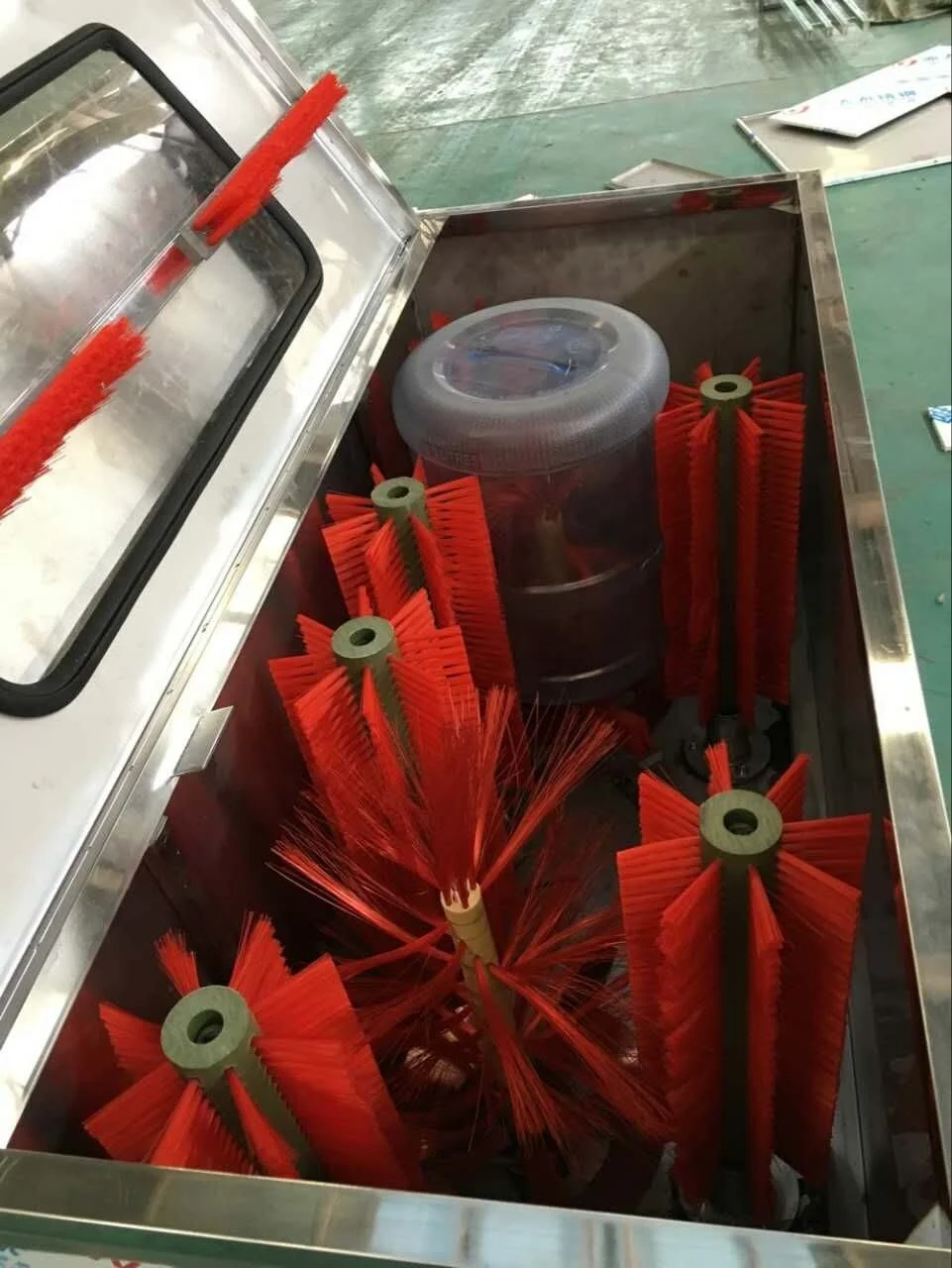

Cap remove and bottle inside &outside brushing , ensure the bottle clear.
This machine equipped motor , brush, water pump.
Controlled by manual, there is bottons on the machines.Easy operation and with high efficiency.
20L bottle rising machine
19L bottle washer
5 gallon water bottle washing machine
BS-1 5gallon washing and cap remove machine
This machine mainly for recycled bottles.
Cap remove and bottle inside &outside brushing , ensure the bottle clear.
This machine equipped motor , brush, water pump.
Contact: Kelly Li
WhatsApp:18001564982
WeChat:Kelly2021286246
Email:ms.Kelly@kjxyljx.com
WhatsApp:18001564982
WeChat:Kelly2021286246
Email:ms.Kelly@kjxyljx.com
Technical Parameters | ||||
item | model | TS-BS-1 | ||
1 | material | stainless steel | ||
2 | power | 1.8kw | ||
3 | suitable bottle size | Φ200mm-300mm height:400mm-500mm | ||
4 | capacity | 100-360 bottles per hour | ||
5 | Air supply | 0.6~0.8MPa | ||
6 | air consumption | 20L/min | ||
7 | machine size | 800x750x1200mm | ||

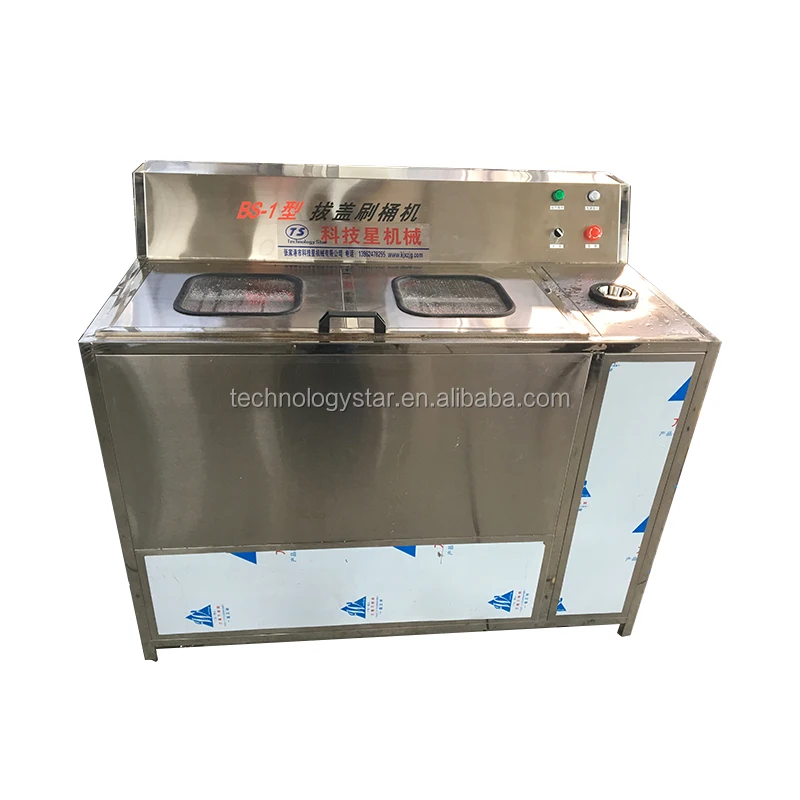

Machine Picture
Lid remove port is specially for removing 5 gallon bucket lid.
It is controlled by pedal mechanical valve. It only need connect a air compressor, and the lid can be reused. Simple operation,
good performance, less damage and small deformation
lid remove operational specification:
good performance, less damage and small deformation
lid remove operational specification:
a. It suits for Φ56 standard bottle,the highest speed is about 200-300 pieces/h
b. Open the power switch, the pump switch indicator light, brush bucket began to spray water.
c. Open the working switch, the drive brush indicator light, brush starts drive.
d. Put the bucket without lid in the washing sink. Bucket port is aligned with the center axis and close the wash sink cover.
e. Put the bucket at a clean place after cleaned.
b. Open the power switch, the pump switch indicator light, brush bucket began to spray water.
c. Open the working switch, the drive brush indicator light, brush starts drive.
d. Put the bucket without lid in the washing sink. Bucket port is aligned with the center axis and close the wash sink cover.
e. Put the bucket at a clean place after cleaned.
Maintenance
1) check the cleanliness of the lid remove port and the link screw between the head and the cylinder.
2) The use of the process, such as the individual lid can not be pulled out, it maybe the size of the bucket neck is unusual,and
pay attention to air pressure.
3) Do not put hand in lid remove port while it is working. To prevent hurting yourself.
4) Close the gas valve while checking the equipment, to prevent hurting person.
5) Pay attention to the pressure of the bucket down when cleaning bucket.
2) The use of the process, such as the individual lid can not be pulled out, it maybe the size of the bucket neck is unusual,and
pay attention to air pressure.
3) Do not put hand in lid remove port while it is working. To prevent hurting yourself.
4) Close the gas valve while checking the equipment, to prevent hurting person.
5) Pay attention to the pressure of the bucket down when cleaning bucket.
