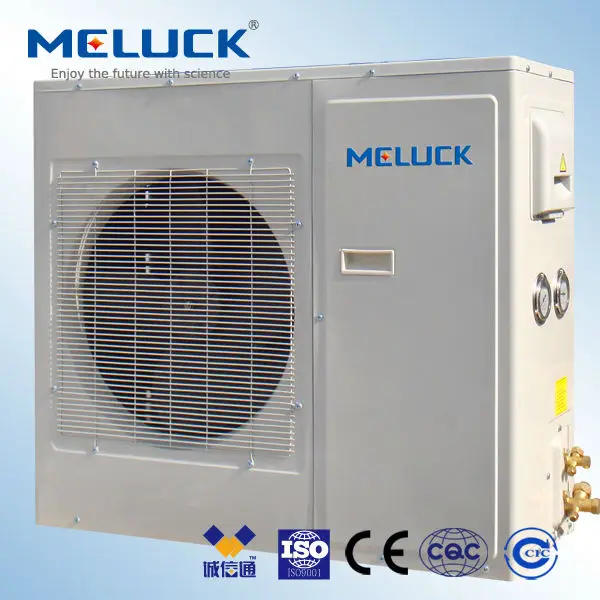

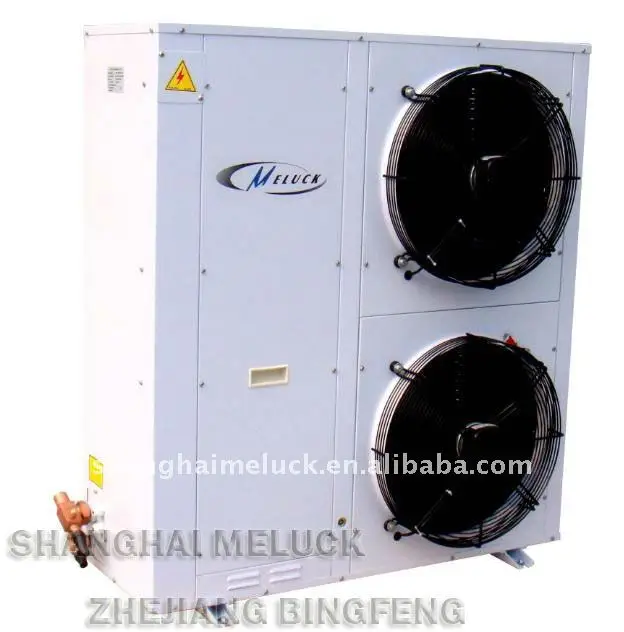

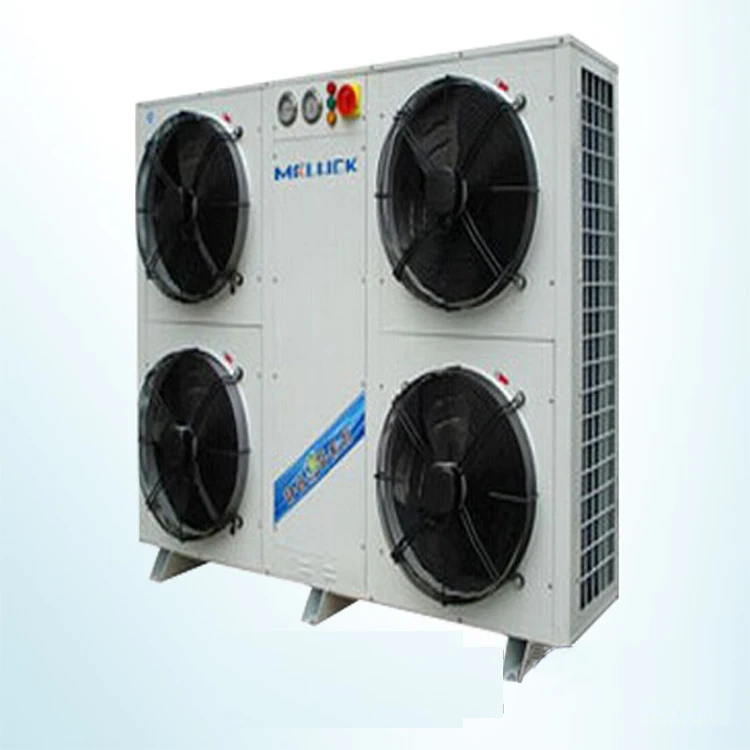

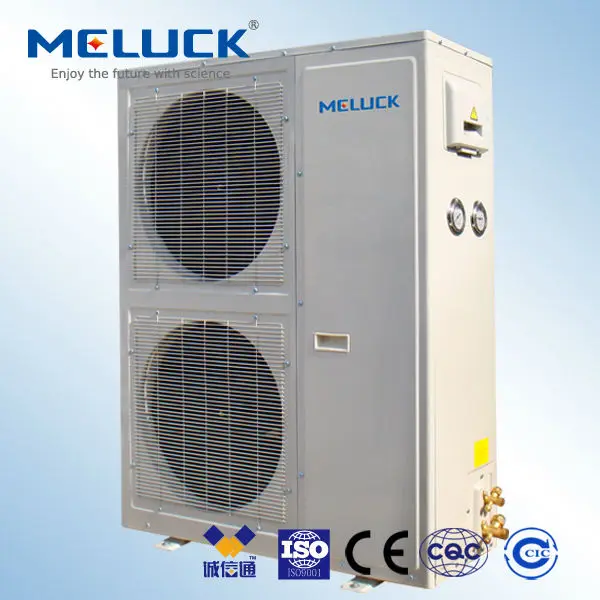

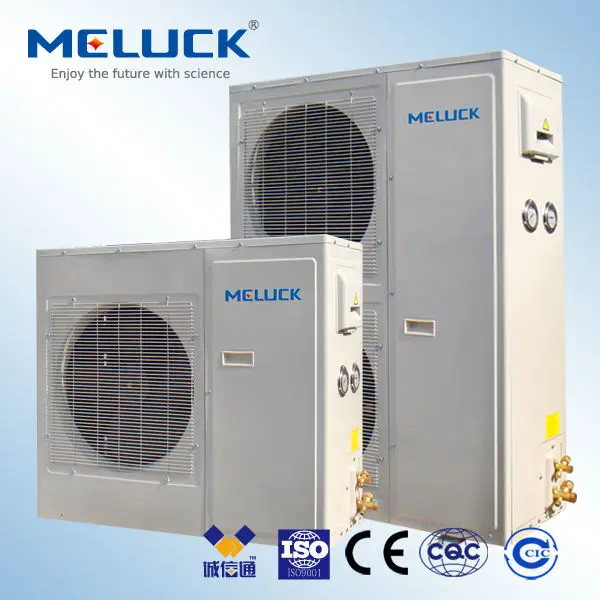

Chinese Suppliers Green Refrigerant Cold Room Refrigeration Condensing Unit

Product Overview

Description





Model	Compressor Model	Cooling Capacity(W)	Condenser Fan QTY	Input(KW)	Overall size(mm)
XJQ02MAG-E	ZB15KQE	3080	1	1.82	1020*420&*1240
XJQ03MAG-E	ZB21KQE	4680	1	2.51	1020*420&*1240
XJQ04MAG-E	ZB29KQE	6360	1	3.33	1020*420&*1240
XJQ05MAG-E	ZB.38KQE	8020	2	4.2	1020*420&*1240
XJQ06MAG-E	ZB45KQE	9380	2	4.75	1020*420&*1240
XJQ07MAG-E	ZB48KQE	10200	2	5.23	1020*420&*1240
XJQ08MBG-E	ZB58KQE	12400	1	6.32	967*825*1025
XJQ09MBG-E	ZB66KQE	14000	1	7.05	967*825*1025
XJQ10MBG-E	ZB76KQE	16600	1	8.22	967*825*1025
XJQ13MBG-E	ZB95KQE	20300	2	10.6	1354*825*1025
XJQ15MBG-E	ZB114KQE	24000	2	12.65	1354*825*1025
Power:380V/3P/50HZ   Refrigerant: R404A   Cold room temperature:-15~5℃



Model	Compressor Model	Cooling Capacity(W)	Condenser Fan QTY	Input(KW)	Overall size(mm)
XJQ02LAGY-E	ZSI06KQE	1870	1	1.73	580*380
XJQ03LAGY-E	ZSI09KQE	2640	1	2.21	580*380
XJQ04LAGY-E	ZSI11KQE	3350	1	2.58	580*380
XJQ05LAGY-E	ZSI15KQE	4820	2	3.52	580*380
XJQ06LAGY-E	ZSI18KQE	5900	2	4.29	580*380
XJQ07LAGY-E	ZSI21KQE	6580	2	4.73	580*380
Power:380V/3P/50HZ   Refrigerant: R404A   Cold room temperature:-18~-20℃



Model	Compressor Model	Cooling Capacity(W)	Condenser Fan QTY	Input(KW)	Overall size(mm)
XJQ08LAGY-E	QF125AE	7700	1	5.6	570*785
XJQ12LAGY-E	QF175AE	8800	1	6.6	570*785
XJQ13LAGY-E	QF185AE	10200	1	7.5	570*785
XJQ15LAGY-E	QF205AE	11600	1	8.7	570*785
Power:380V/3P/50HZ   Refrigerant: R404A   Cold room temperature:-18~-30℃















1.How does a chiller system work?

Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.



2.How to calculate cooling capacity for chillers?

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)



3.Types of chiller system?

Air Cooled Chiller and Water Cooled Chiller.Water cooled chiller needs a separated cooling tower and has a higher efficiency,but less easier than air cooled.



4. What type of the chiller should I use ?

 It depend on the local environment temperature and water source. If lack of water and low ambient temp , we advise you use the air cooled chiller, if not , air cooled chiller is ok. But for installation,air cooled is more convenient than water cooled.



5. How to select the model of the chiller ?

It is better to tell us some parameter, such as : Cooling Capacity, Outlet Temperature, Power Supply,Environment Temperature, Application Field, Anti-rust Or Anti-corrosion, and so on.Meanwhile,we could do customized chiller according to your end user consumption.



6.Cooling capacity unit conversion?

1 kcal/h = 1.163W,1 W = 0.8598 kcal/h;
1 Btu/h = 0.2931W,1 W = 3.412 Btu/h;
1 USRT = 3.517 kW,1 kW = 0.28434 USRT;
1 kcal/h = 3.968 Btu/h,1 Btu/h = 0.252 kcal/h;
1 USRT = 3024 kcal/h,10000 kcal/h = 3.3069 USRT;



7.The chiller can heat?

Yes,by the electrical heating wire.Please kindly inform us the hot water temp or heating capacity.



8. What is production period ?

Generally speaking, it is 15-30 days,some standard model there are some stocks, but it all depend on the model ,quantity.



9.What is your company after-sales service ?

Our warranty period is one year. If there is any problem in this year, we will send you the new parts for replacement. Meanwhile, welcome to consulting the technical knowledge.



10.Chiller maintenance?

Step 1: Keep Tubes Clean
Step 2: Ensure a Leak-free Unit
Step 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Step 4: Analyze Oil and Refrigerant
